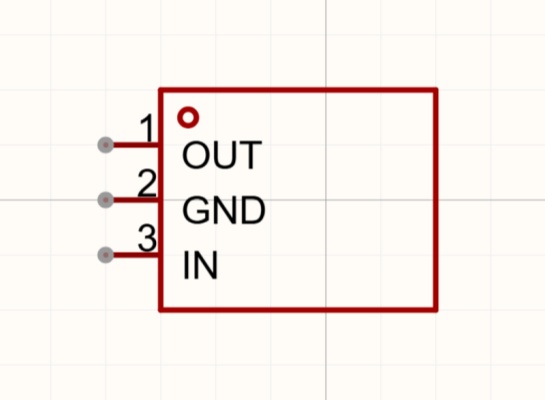

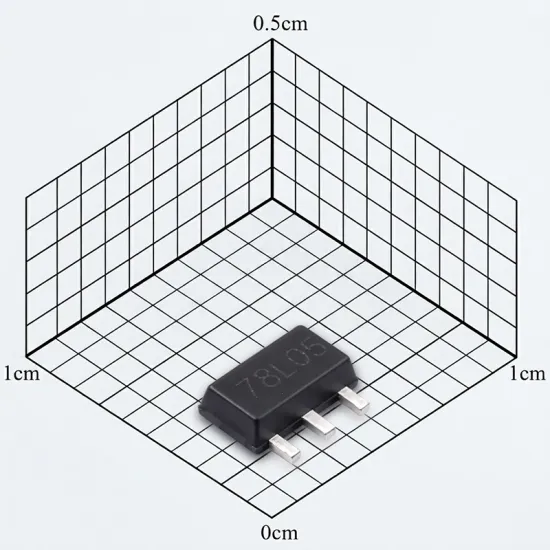

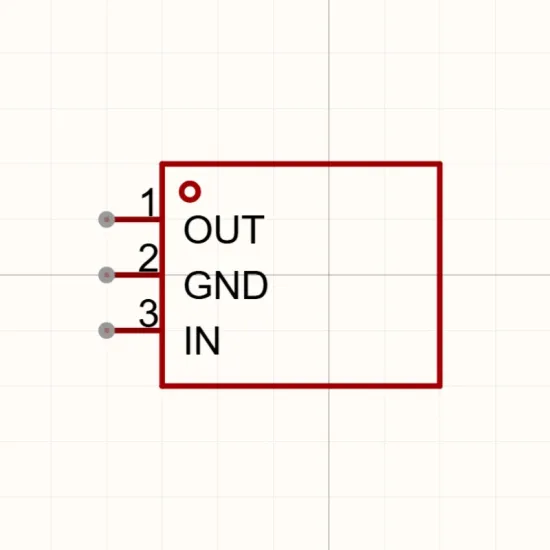

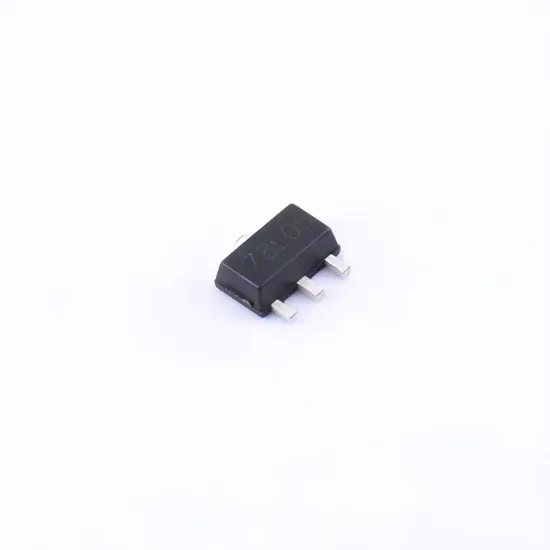

78L05
78L05 5V 100mA Linear Regulator IC 30V Input Fixed Output LDO Power Management Chip
- Operating Voltage：30V
- Output Voltage：5V
- Output Current：100mA
- Power Supply Rejection Ratio (PSRR)：49dB@(120Hz)
- Dropout Voltage：1.7V
- Quiescent Current (Iq)：3.8mA

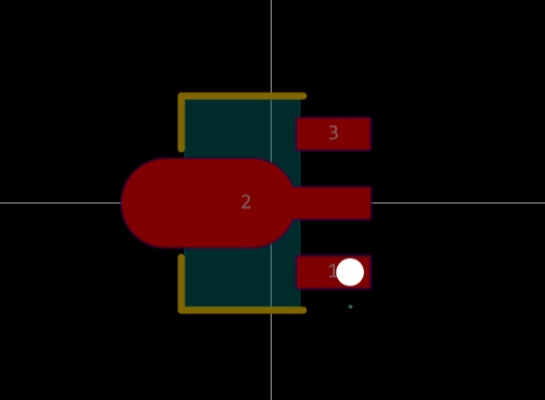

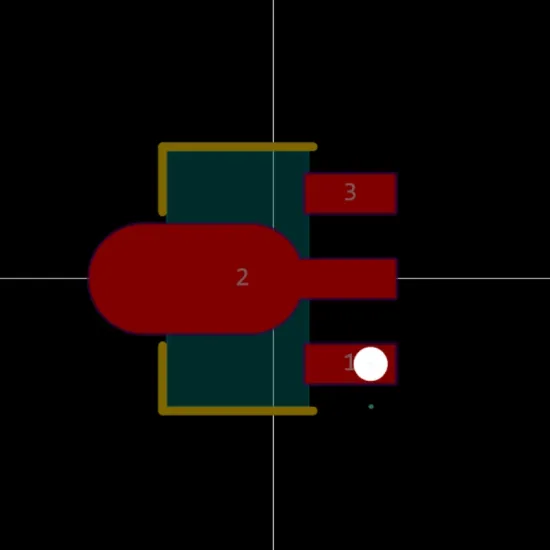

- Package：SOT89-3
- Package Type：Tape&Reel
USD 0.04
26000
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
