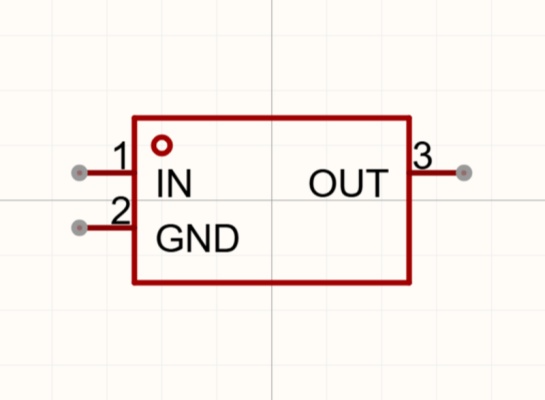

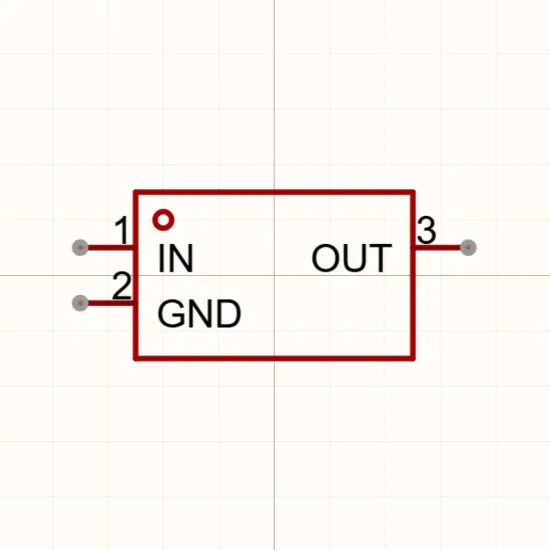

L7805CDT
L7805CDT IC is a 5V 1A linear LDO regulator in TO-252-2L package for HVAC, industrial power supplies and post-regulation applications.
- Operating Voltage：20V
- Output Voltage：5V
- Output Current：1A
- Power Supply Rejection Ratio (PSRR)：72dB@(120Hz)
- Dropout Voltage：1V@(300mA)
- Quiescent Current (Iq)：8mA

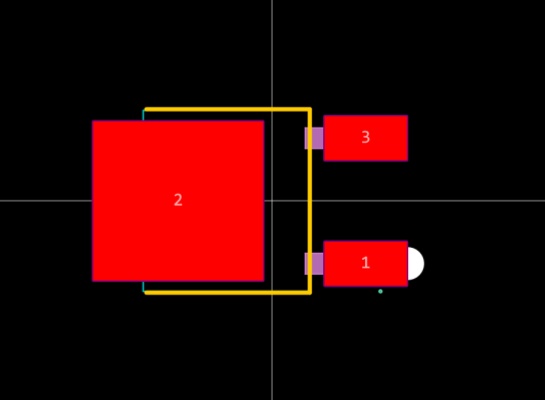

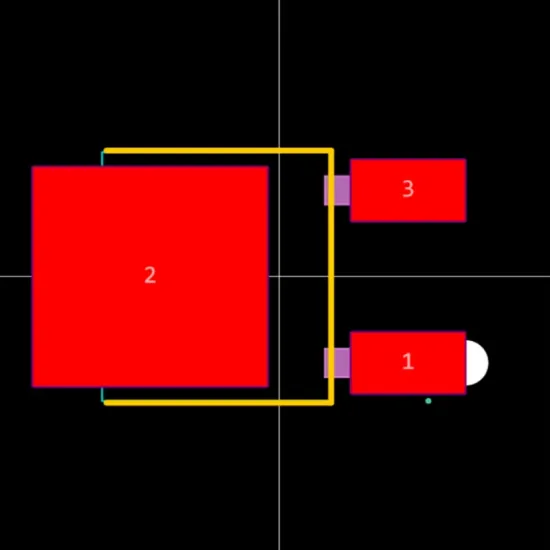

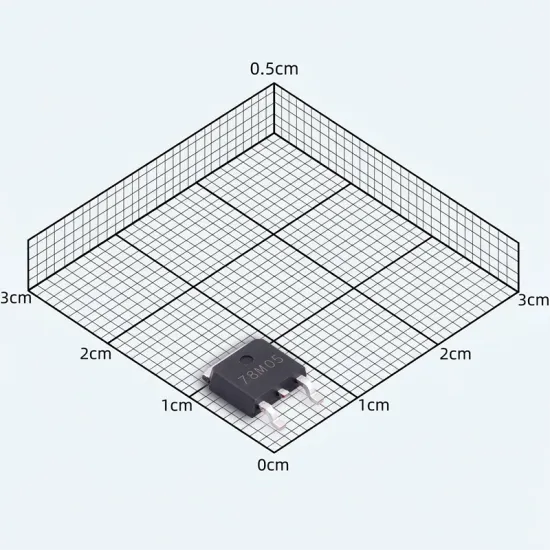

- Package：TO-252-2L
- Package Type：Tape&Reel
USD 0.11
6200
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
