10mmstroke

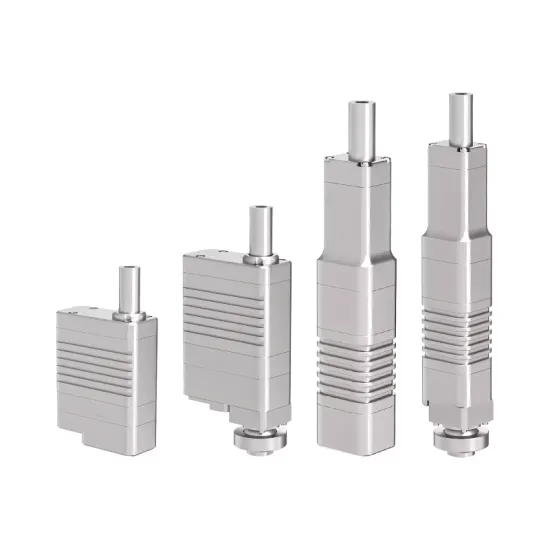

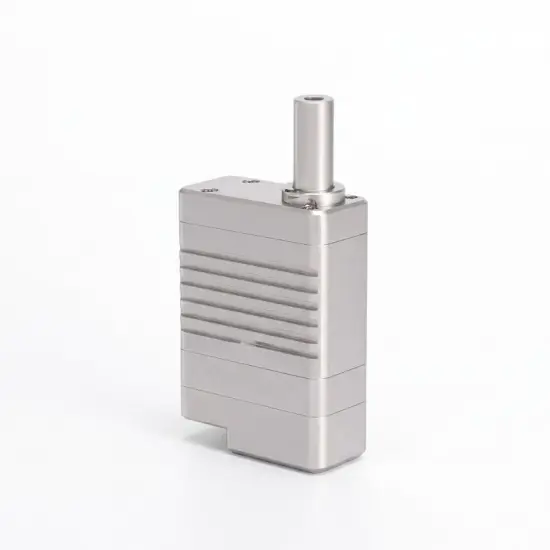

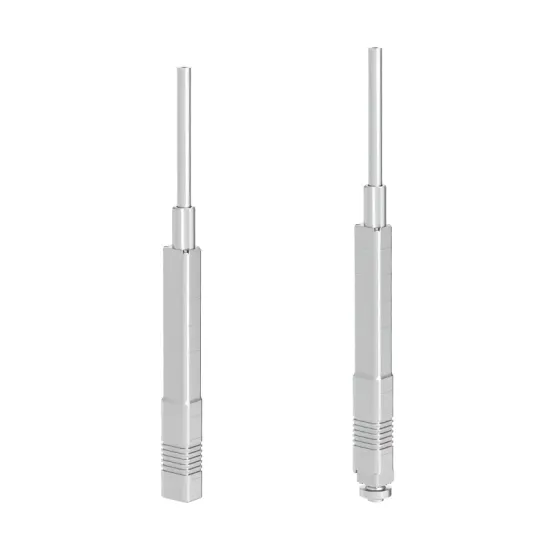

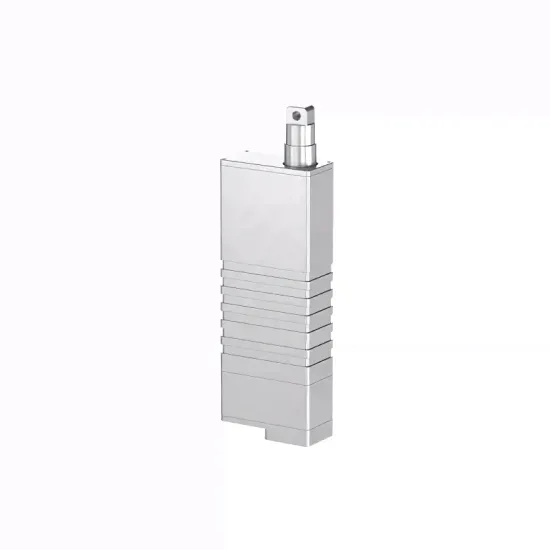

Miniature servo electric cylinder
Product Introduction
A micro servo electric cylinder—also known as an integrated linear actuator—is a compact, all-in-one linear servo system that serves as a core motion component for precision electromechanical equipment such as robots, industrial machinery, and medical devices. It integrates a coreless motor, a precision gear reducer, a lead screw drive mechanism, sensors, and a closed-loop control system. Characterized by its compact size, high precision, and high power density, it enables precise servo control at any position within its travel range. It features a built-in absolute position sensor, ensuring that position data is retained after power loss and eliminating the need for a homing procedure.
Core Advantages
| ●Compact size ●High precision ●Force control ●High power density ●Integrated drive and control |
|
Product Specifications
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LA10 | 02 | 1 | D | LA10-021D | |
journey | 02 | 1-Standard Interface | D-LVTTL Serial Port | ||
07 | 2-Port with mounting tabs | P-PWM interface | |||
3-Octagonal interface | 2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent current | Peak current | IP Rating |
10mm | 21g | DC8V±10% | ±0.02mm | -10℃~+60°C | 0.02A | 2A | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 70N | 100N | 100N | 18mm/s | 8mm/s | 0.20A |
07 | 42N | 60N | 50N | 50mm/s | 21mm/s | 0.50A |
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LAS10 | 02 | 1 | D | LAS10-021D | |
journey | 02 | 1-Standard Interface | D-LVTTL Serial Port | ||
06 | 3-Octagonal interface | P-PWM interface | |||
10 | 2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent current | Peak current | IP Rating |
10mm | 24g | DC8V±10% | ±0.02mm | -10°℃C~+60°C | 0.02A | 2A | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 105N | 150N | 150N | 13mm/s | 4mm/s | 0.20A |
06 | 49N | 70N | 50N | 38mm/s | 18mm/s | 0.50A |
10 | 31N | 45N | 30N | 62mm/s | 39mm/s | 0.50A |
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LAF10 | 02 | 1 | D | LAF10-024D | |
journey | 02 | 4-Spherical Plain Bearing | D-LVTTL Serial Port | ||
07 | 2-RS485 Interface |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent current | Peak current | Force sensor detection range | Force sensor resolution | IP Rating |
10mm | 24g | DC8V±10% | ±0.02mm | -10°℃C~+60°C | 0.02A | 2A | -100N~+100N | 1N | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 70N | 100N | 100N | 18mm/s | 8mm/s | 0.23A |
07 | 42N | 60N | 50N | 50mm/s | 21mm/s | 0.53A |
Series Name | Speed rating | Mechanical interface | Electrical interface | Model Examples | |
LASF10 | 02 | 1 | D | LASF10-024D | |
journey | 02 | 4-Spherical Plain Bearing | D-LVTTL Serial Port | ||
06 | 2-RS485 Interface | ||||
10 |
Standard Parameters
journey | weight | Operating voltage | Repeat positioning accuracy | Operating temperature | Quiescent current | Peak current | Force sensor detection range | Force sensor resolution | IP Rating |
10mm | 32g | DC8V±10% | ±0.02mm | -10°℃C~+60°C | 0.05A | 2A | -100N~+100N | 1N | IP40 |
Other parameters at different speed ratings
Speed rating | Maximum push-pull force | Stall push-pull force | Maximum self-locking force | No-load speed | Full-load speed | No-load current |
02 | 105N | 150N | 150N | 13mm/s | 4mm/s | 0.23A |
07 | 49N | 75N | 50N | 38mm/s | 18mm/s | 0.73A |
10 | 31N | 45N | 30N | 62mm/s | 39mm/s | 0.73A |

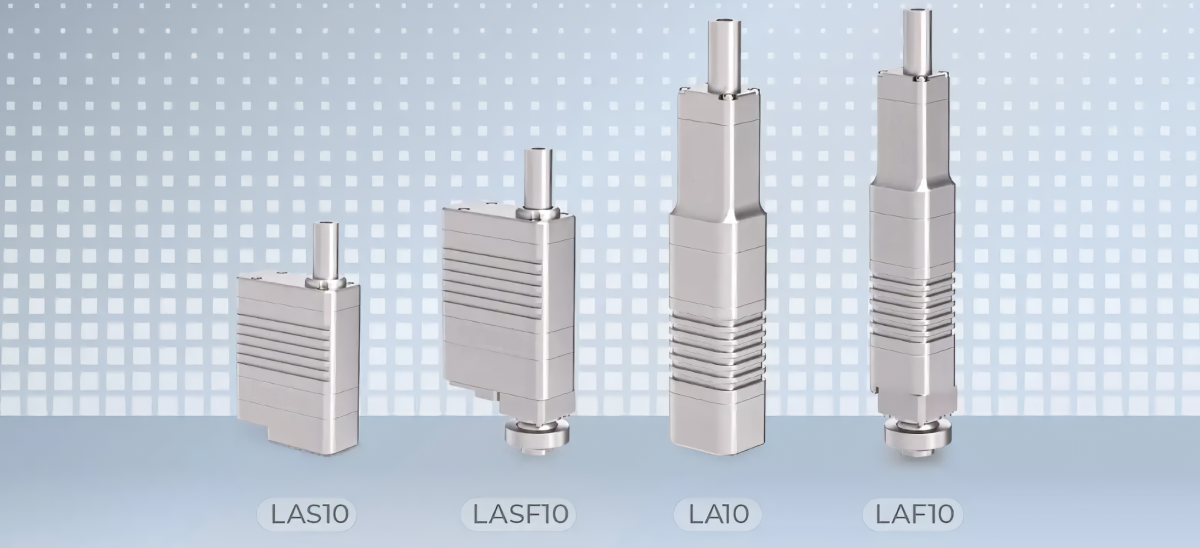

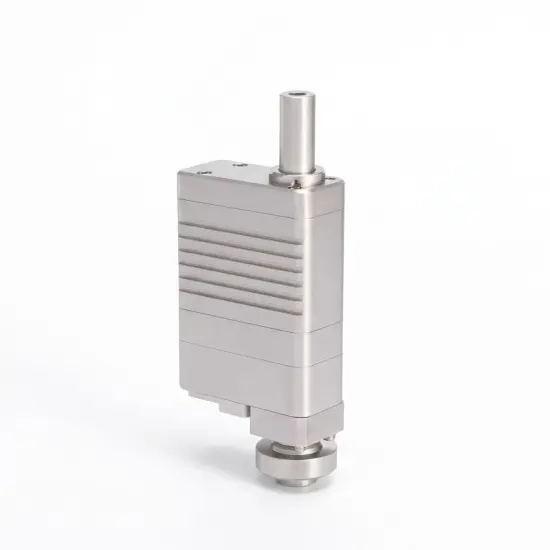

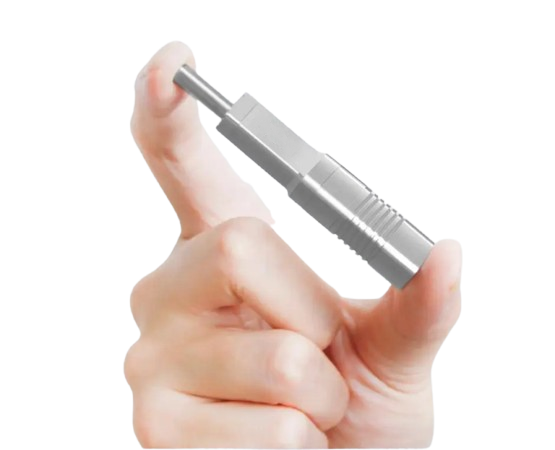

Photo of the actual product

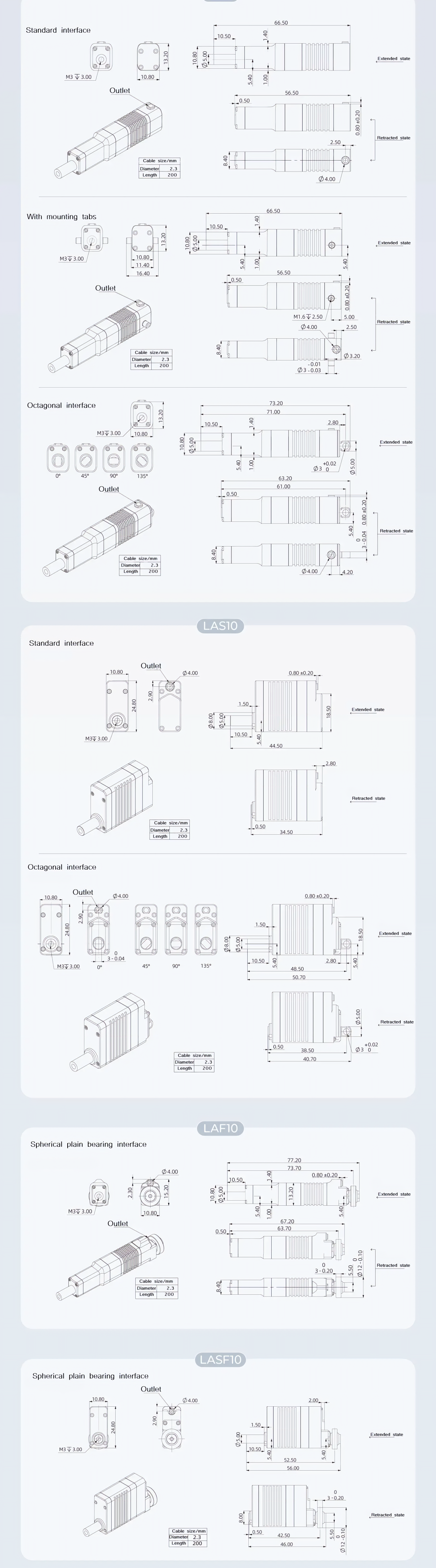

Dimensional Drawing

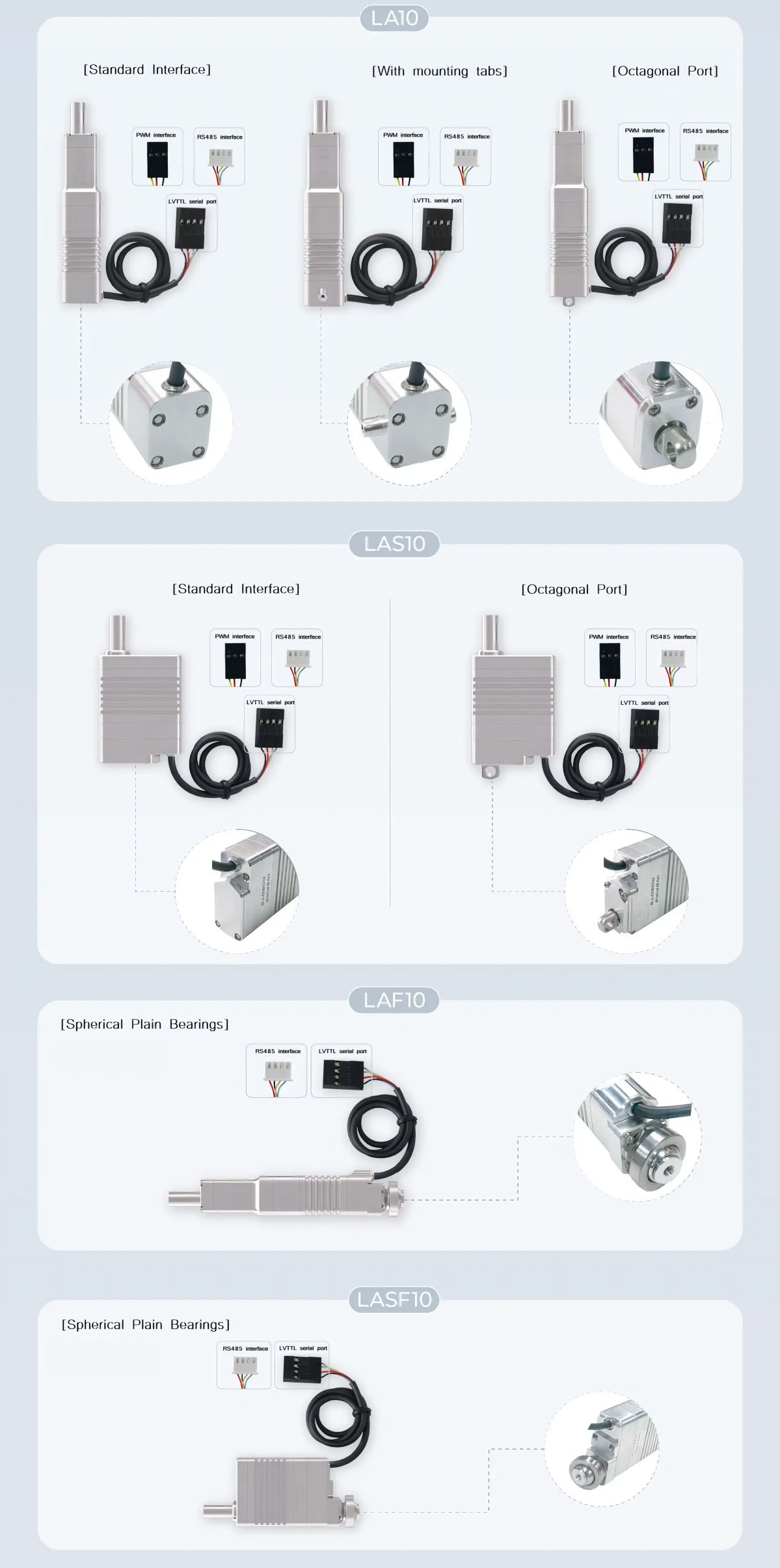

Installation Method
LA Series
Note: Installation parts are for design reference only; actual parts are not provided.
LAS Series
Note: Installation parts are for design reference only; actual parts are not provided.
LAF Series
LASF Series
Note: Installation parts are for design reference only; actual parts are not provided.
（It is recommended to install a linear guide rail at the front end of the push rod to unload lateral forces and eliminate their influence on the force sensor's detection results.）
