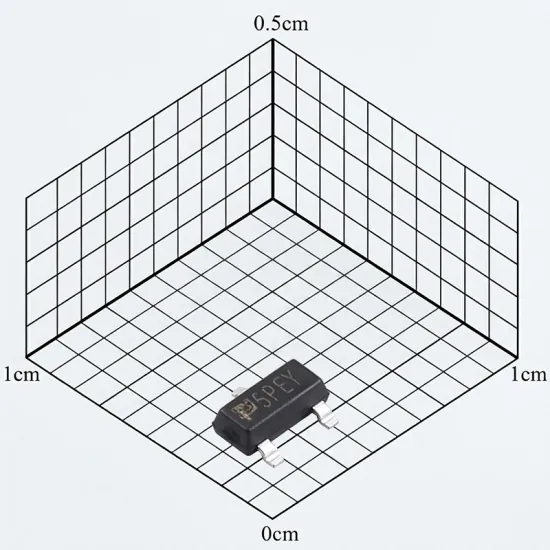

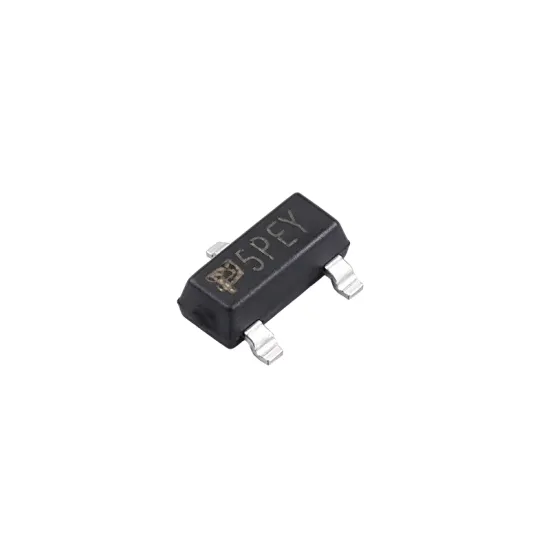

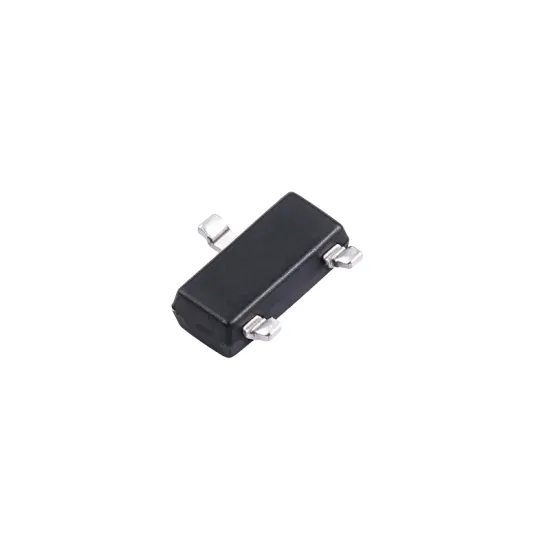

DMG2305UX
Ideal for load/power switches, interface switching, and logic level shift, DMG2305UX offers lead-free, halogen-free compliance in SOT-23.
- Drain-Source Voltage (Vdss) ：20V
- Continuous Drain Current (Id) ：4.1A
- On-Resistance (RDS(on)) ：52m0@4.5V
- Power Dissipation (Pd)：1.7W
- Input capacitance (Ciss) ：740pF
- Reverse transfer capacitance (Crss) ：190pF
- Working temperature：-55°C~+150°C

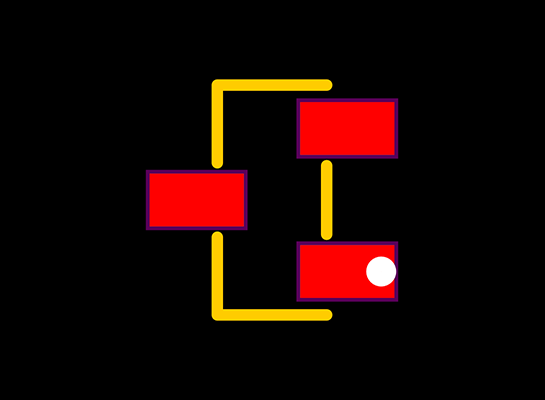

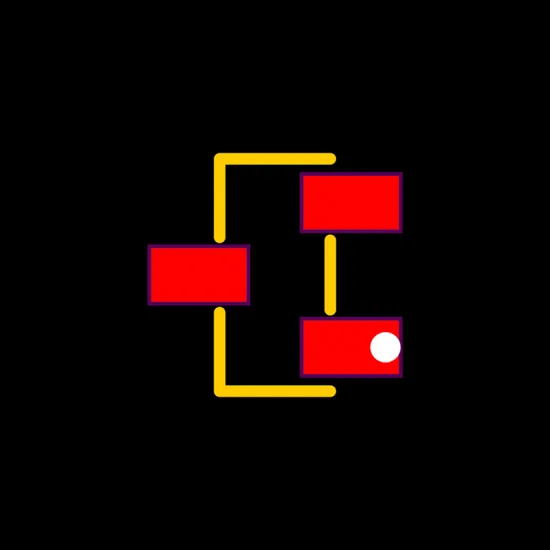

- Package Type ：SOT-23
- Packaging Method ：Tape & Reel
- Gross Weight ：0.031(g)
USD 0.0875
18000
