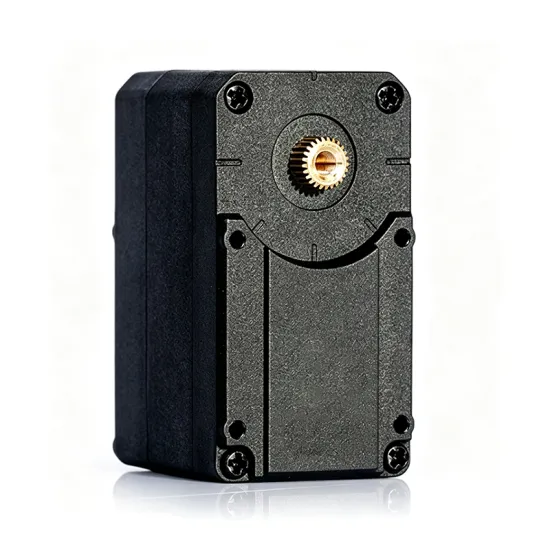

Product Description

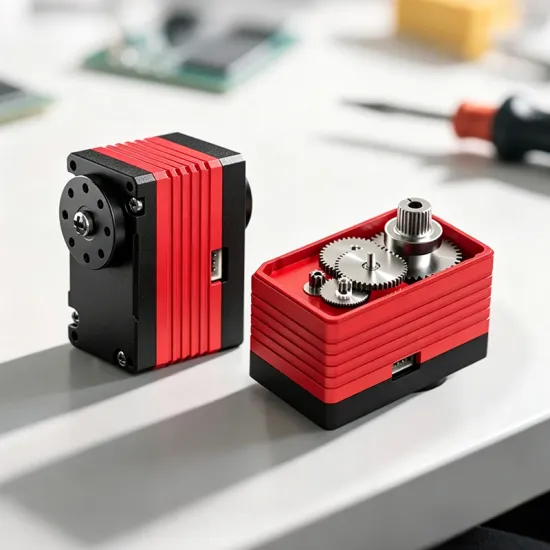

Featuring an aluminum alloy housing, brushless motor, steel gear transmission, RS485 control, and 12-bit magnetic encoder, this servo provides precise 360° angle control and multi-turn rotation. It supports center position setting, smooth acceleration/deceleration, and real-time feedback of position, speed, current, voltage, temperature, and load, with overload and overcurrent protection. Suitable for industrial equipment, robots, and automation applications.
Bionic Motion Control
Serial Bus Intelligent Servo Motor
Precision Micro Servos
Product parameters
Product Model | SM-260B-C001 | SM-160B-C001 |
Product Size | 78mm *43mm *65.5mm | 62mm *34mm *47mm |
Product Weight | 455g±1g | 211±3g |
Motor Type | 4 Pole Brushless motor | |
Temperature Range | -30℃ ~ 80℃ | |
Gear Type | Steel | |
Limit Angle | No limit | |
No Load Speed | 0.192sec/ 60° 52RPM@24V | 0.181sec/60°(55RPM)@24V |
Runrig Current(at no load) | 320 mA@24V | 250mA@24V |
Operating Voltage Range | 24V | |
Peak Stall Torque | 260kg.cm@24V | 160kg.cm@24V |
Stall Current | 9.1A@24V | 9A@24V |
Rated Load | 65kg.cm@24V | 40kg.cm@24V |
Rated Current | 2200mA@24V | |
Ide Current | 25mA@24V | |
Command Signal | Digital Packet | |
Communication Speed | 38400bps ~ 1 Mbps | |
Running Degree | 360° (when 0~4096) | |

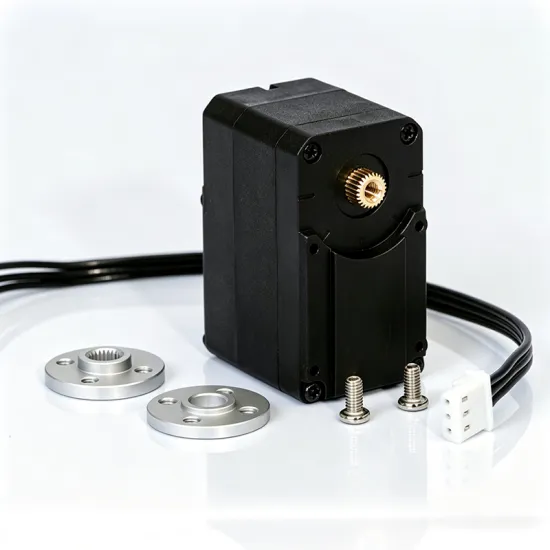

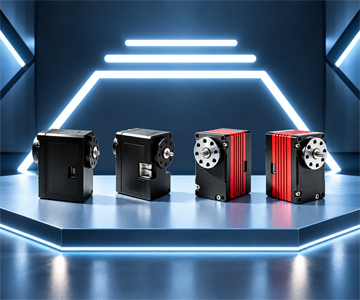

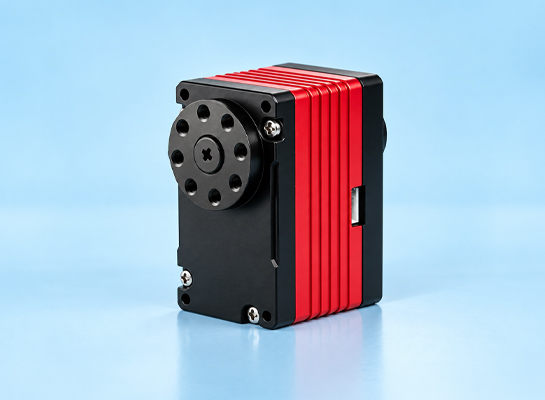

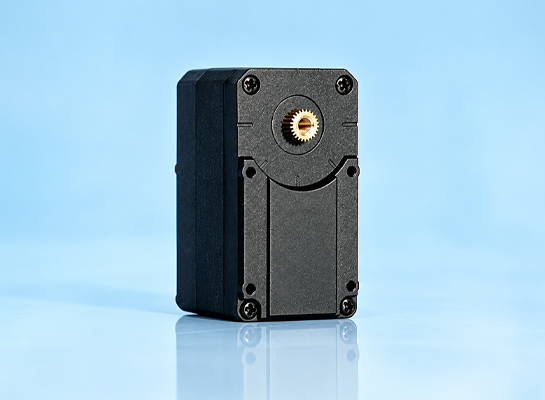

Product Display

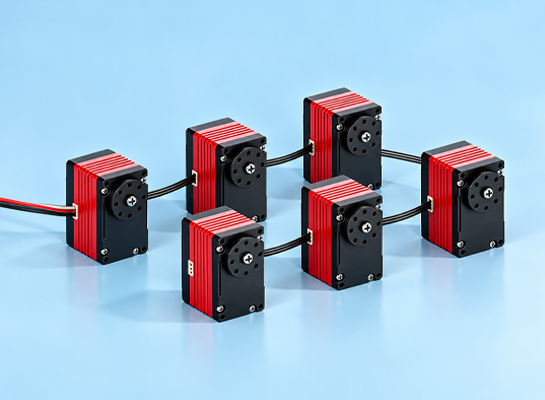

SERIAL BUS
Multi-turn Large angle design
As desired Angle installation
Closed loop feedback real-time protection

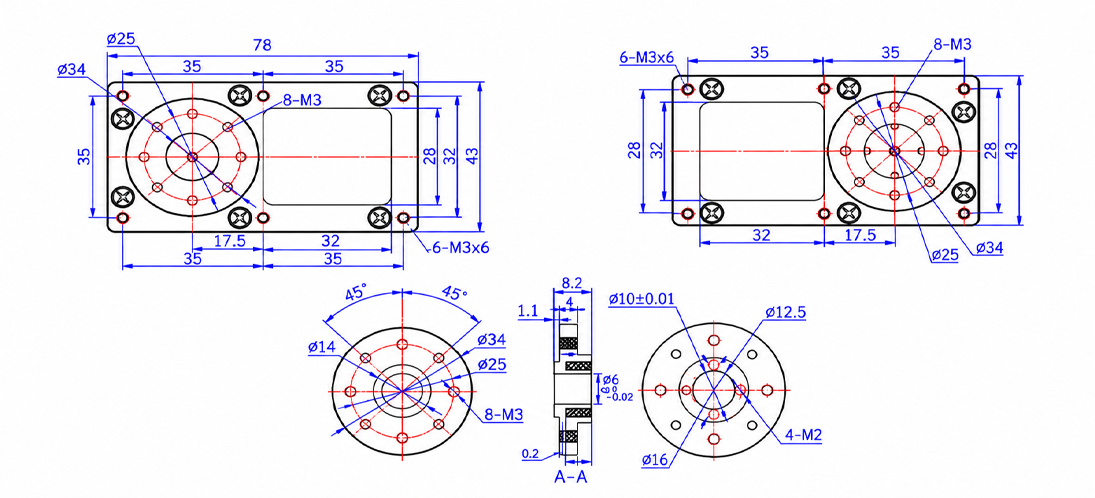

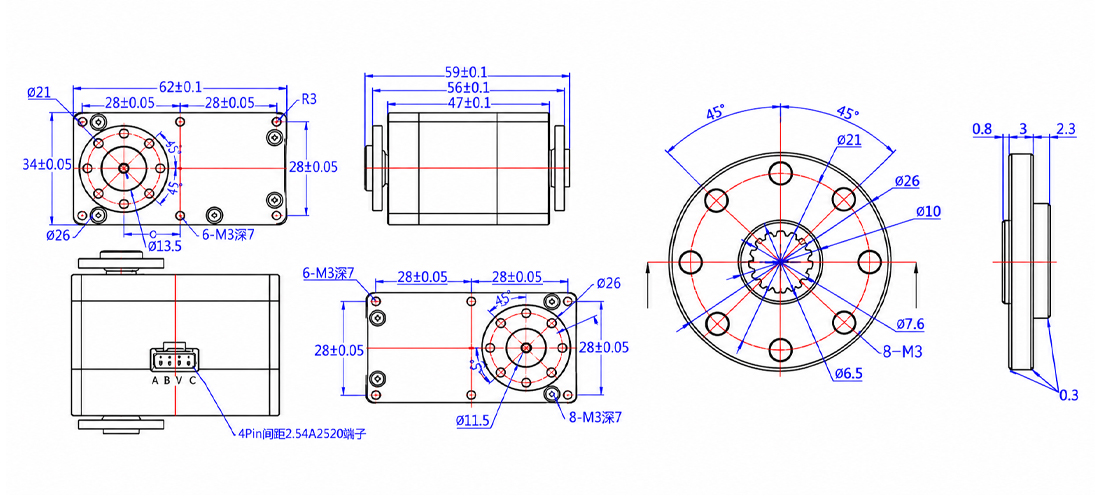

Schematic Diagram
SM-260B-C001
SM-160B-C001
Application Cases

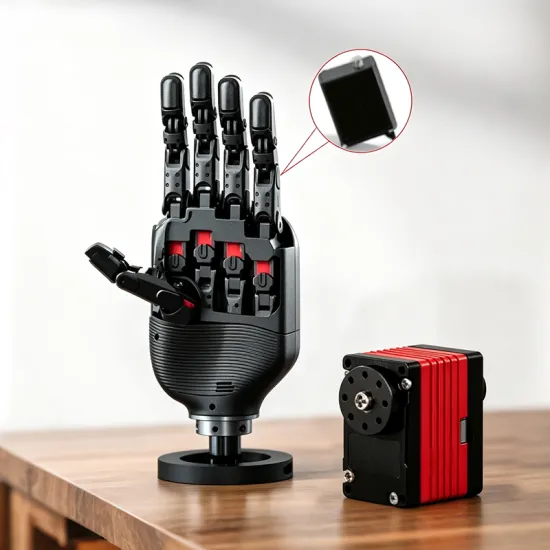

This serial bus intelligent servo motor is widely applied in robot arms, patrol robots, STEM maker education, custom automation equipment, logistics, aviation, smart home, medical and food & beverage service scenarios.
Food & Beverage Services
Smart Home
Medical Equipment

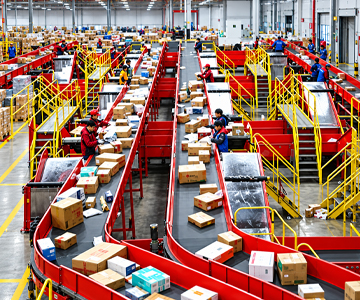

Logistics Industry
Aviation

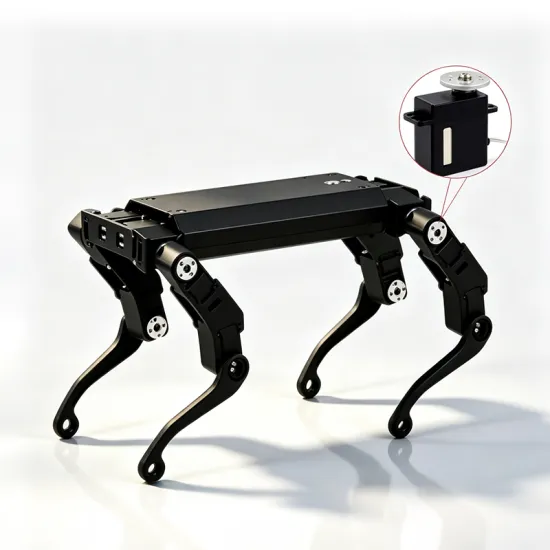

Patrol Robot
STEM Maker Education
Custom Automation Equipment

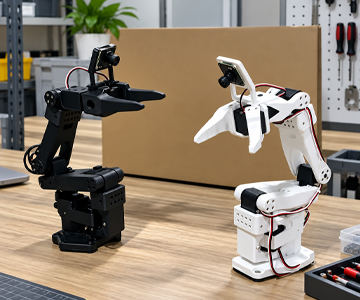

Robot Arm
Company Introduction
Avatar Intelligent Equipment Co.,Ltd. specializes in the R&D and supply of robotic prod-ucts and mobile solutions for robot platforms. Its core product line covers various robot application related products such as wall finishing robots, cleaning robots, grippers, and robotic arms. The company has built an integrated service system from R&D, quality inspection,production to sales and after sales service, providing customers with reliable intelligent equipment support through independent technical strength.
