Product Description

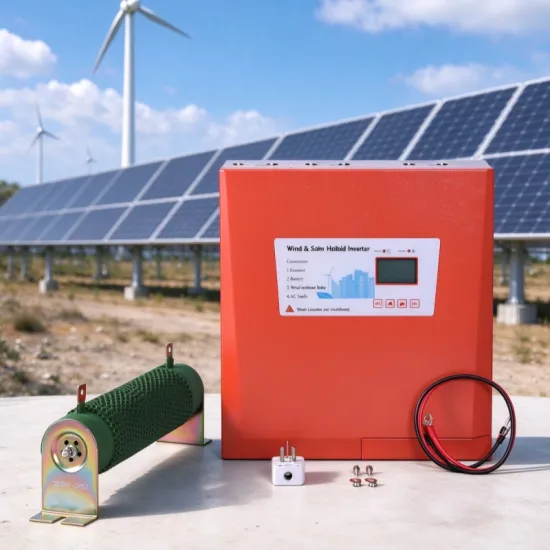

This hybrid inverter is designed to manage power for off-grid robot systems. It connects wind turbines and solar panels, manages battery charging, and converts the stored DC power into stable AC power for robots, charging equipment, and other electrical devices. This makes it suitable for robot stations and remote sites where grid power is unavailable.
With dual MPPT wind and solar charging and boost charging technology, it can make better use of available renewable energy under changing conditions. The built-in pure sine wave inverter provides stable AC power, while the LCD screen shows key operating information for easy monitoring. Combining charging, power conversion, and monitoring in one unit also helps simplify the overall power system.
Product Features
Intelligent Battery Management
Built-in battery management with overcharge and deep-discharge protection helps protect the battery and extend its service life.
Multiple Protection Functions
Provides protection against overload, overcurrent, short circuit, under-voltage, over-voltage, high temperature, and reverse connection for safer system operation.
Stable & Efficient Operation
High-frequency transformer design with low power loss and high conversion efficiency provides stable operation and strong load-handling capability.
Unattended Operation
The system can automatically restore power output after battery voltage or load conditions return to normal, reducing the need for manual intervention.

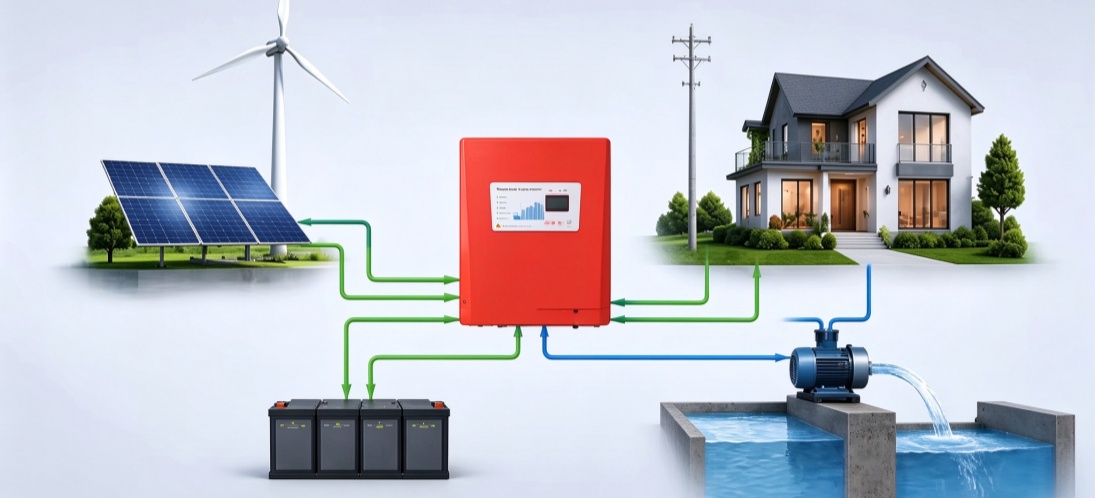

Integrated Hybrid Energy Solution
An integrated solution combining wind power, solar power, battery storage, and inverter functions in one system. By integrating multiple core power components, it helps reduce the need for separate equipment procurement, wiring, and system integration, which can simplify project configuration and control overall procurement costs.
The system can be configured according to different power loads, battery capacities, and energy input requirements, allowing customers to select the appropriate configuration without over-specifying the system. This provides a more practical approach to project budgeting, installation, and procurement.
Product parameters
Battery Parameters (12V / 24V / 48V Systems) | ||
Battery Type | Overcharge (V) | Low Voltage Cut-off (V) |
Custom (b0) | 14.4 / 28.8 / 57.6 | 10.0 / 20.0 / 40.0 |
Lead-acid / Gel (b1) | 14.4 / 28.8 / 57.6 | 10.0 / 20.0 / 40.0 |
Li-ion (b2) | 12.6 / 25.2 / 54.6 | 9.5 / 19.0 / 39.0 |
Li-ion (b3) | 12.6 / 29.4 / 58.8 | 9.5 / 21.0 / 42.0 |
LiFePO4 (b4) | 14.4 / 28.8 / 57.6 | 10.0 / 20.0 / 40.0 |
Note: Default settings are for lead-acid batteries. Lithium or customized systems require confirmation before delivery.
Inverter Output | |
Rated Power | 1000W / 2000W |
Peak Power | 2000W / 4000W |
Output Voltage | 110V / 220V AC ±3% |
Frequency | 50Hz / 60Hz ±1% |
Waveform | Pure Sine Wave |
THD | < 3% |
Efficiency | ≥ 90% |
Features | |
Soft Start | Yes |
USB Output | 5V / 2A |
Display | LCD + LED Indicators |
Cooling | Intelligent Fan Cooling |
Protection & Communication | |
Protection | Overcurrent, Overload, Short Circuit, Low Voltage, Overvoltage, Overtemperature, Reverse Polarity |

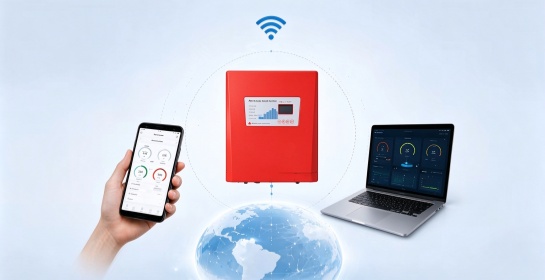

Communication | GPRS (Optional) / RS485 (Optional) |
Environment & Mechanical | |
Operating Temperature | -20°C ~ +55°C |
Net Weight | 8.5kg / 9.5kg |
Gross Weight | 9.5kg / 10.5kg |
Product Size | 354 × 350 × 107.4 mm |
Package Size | 490 × 420 × 190 mm |
How to Choose Your Model？
Step / What to Check | How to Choose |
1. Power | Add up the power of all your devices. Choose 1000W for light loads, or 2000W for heavier loads. Total load should not exceed Rated Power. |
2. Output Voltage | 110V or 220V AC, based on your country's standard |
3. Frequency | 50Hz or 60Hz, based on your country's standard |
4. Battery Type | Lead-acid / Gel (default), Li-ion, LiFePO4, or Custom. Tell us your battery type before ordering. |
5. Battery System | 12V / 24V / 48V, matching your battery bank |
Not sure? Send us your devices list and country. We will recommend the right model for you.
Application Scenarios

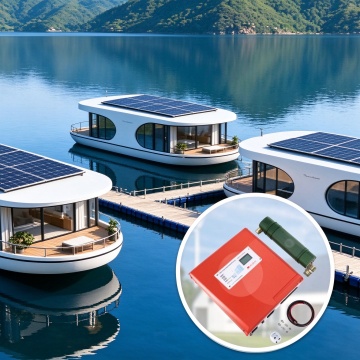

Floating House
Land-based Modular Capsule Cabin
Remote Island Off-grid Project
Supply & Customization
Low MOQ — From 1 Unit
MOQ starts from 1 unit, supporting both sample orders and small-scale project requirements.
In-House Manufacturing
Modern production lines and precision manufacturing equipment ensure consistent product quality, efficient production, and reliable delivery.
OEM & ODM Customization
Customizable product specifications, dimensions, branding, packaging, and system configurations to meet different project requirements.
Engineering & Technical Support
Our experienced engineering team provides product selection, system design, technical guidance, and project support from initial consultation through after-sales service.
