Jueying X30
Flagship-level strength, born for the industry.
|
Flagship-level prowess, born for the industry.

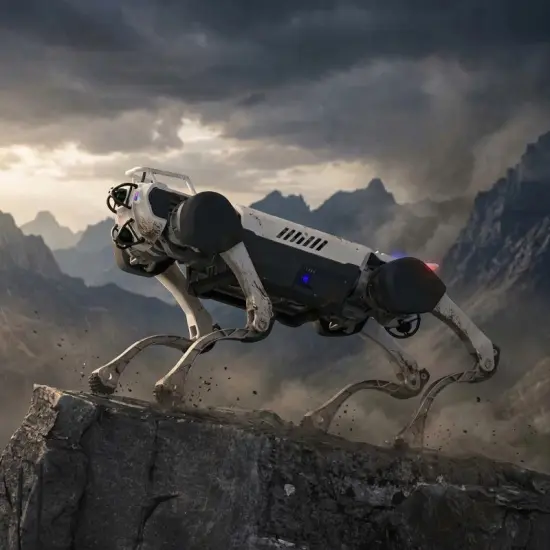

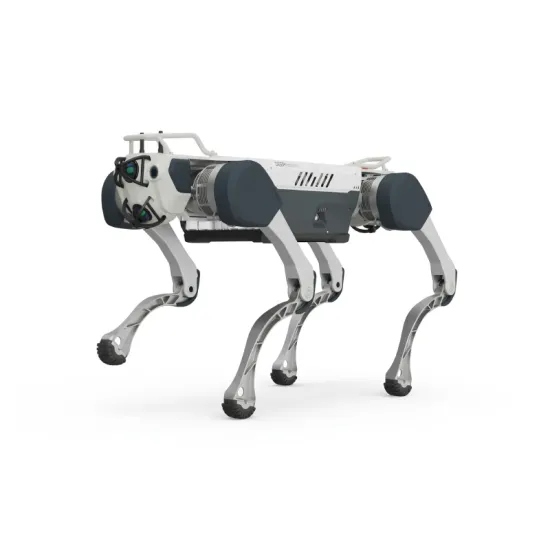

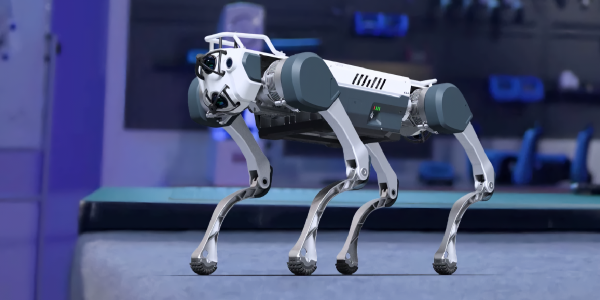

The Jueying X30 quadruped robot is a new generation of industry-grade products designed for industrial applications.
Delivering world-leading industry capabilities to address core requirements across diverse sectors—including inspections of power plants, factories, and utility tunnels, as well as emergency rescue, firefighting reconnaissance, and future scientific research.
Through bitter cold and scorching heat, wind or rain—nothing stands in the way. Features IP67 industrial-grade protection, capable of operating in environments ranging from -20°C to 55°C.。 |
|

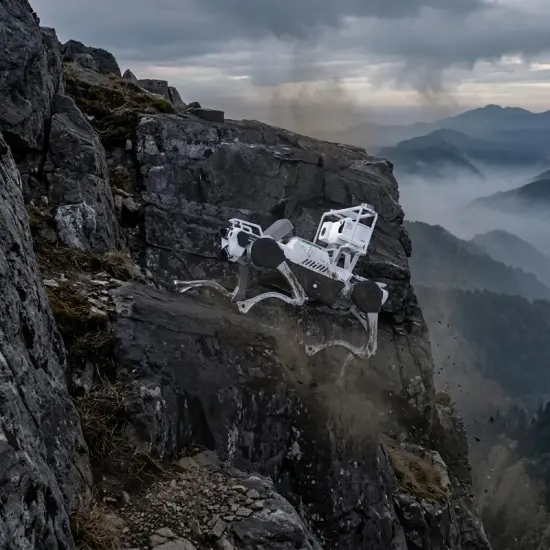

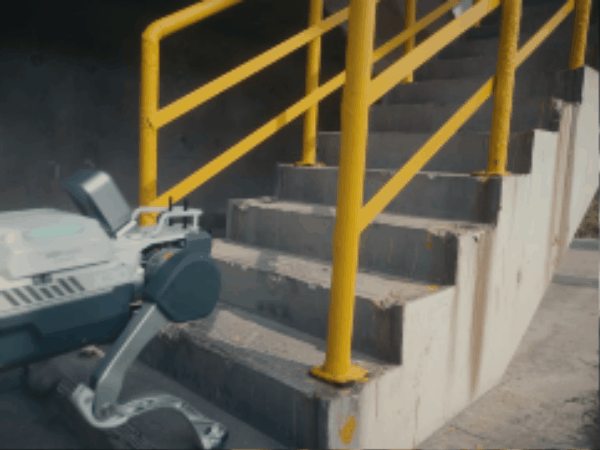

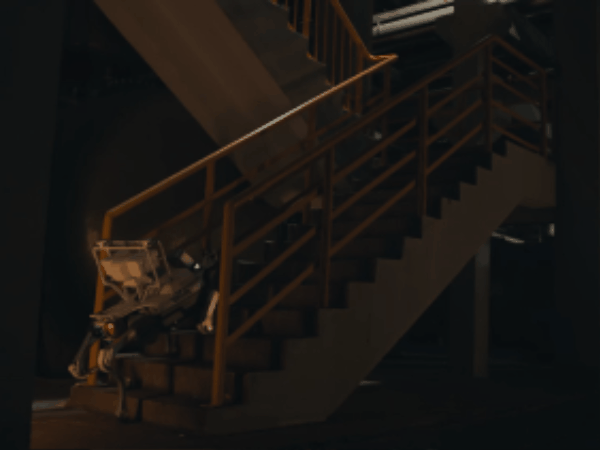

| High-speed obstacle traversal, rapid response. Featuring a staircase capable of flexibly adjusting 45° up and down, the unit can stably navigate open-grid industrial stairways, enabling immediate response to urgent mission requirements and rapid access to complex environments and operational blind spots. |

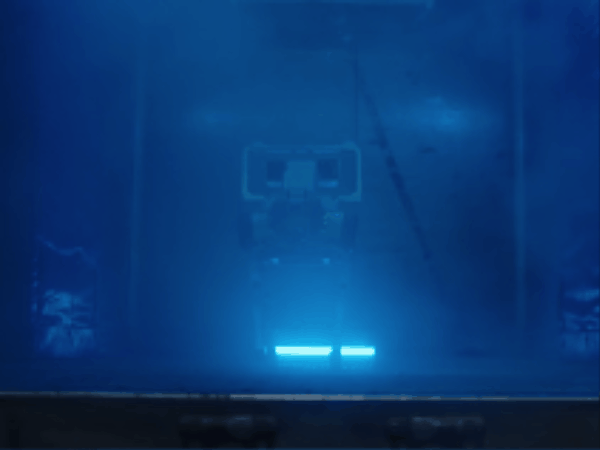

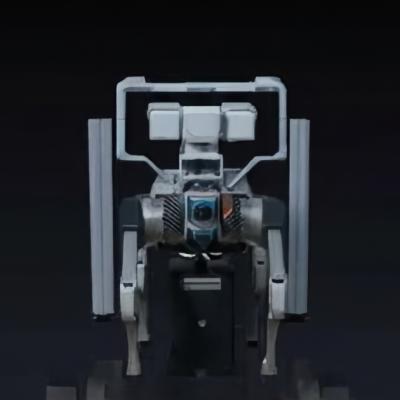

Sensor Fusion, Night-Vision Expert Featuring proprietary integrated sensing capabilities, it can autonomously navigate and operate in extreme environments—including low-light, high-glare, flickering-light, and even zero-light conditions. |
|

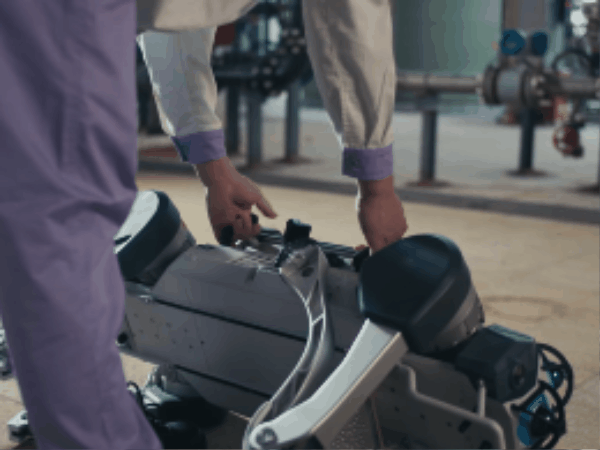

| Ultra-long range, rapid battery swapping Flight endurance under load has increased by 25%, and the battery supports rapid on-site swapping, ensuring operational readiness for special missions and emergency situations in industrial applications. |
Core Advantages
Choose the Jueying X30
Autonomous charging |
Autonomous obstacle avoidance for worry-free movement. |

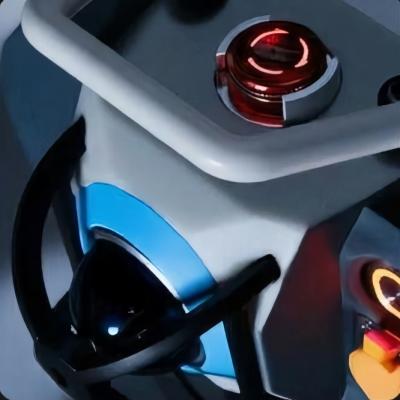

One-touch emergency stop |
IP67 protection rating |
Wide operating temperature range: -20°C to 55°C |

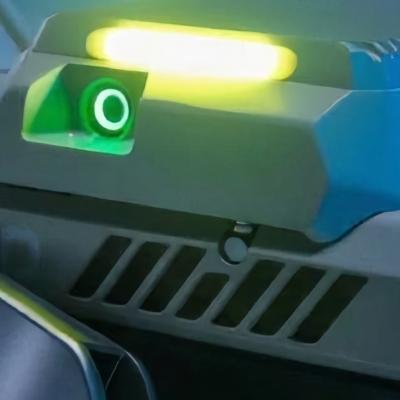

Smart Lighting Manufacturing |
Application Areas
Explore more industry applications with us.

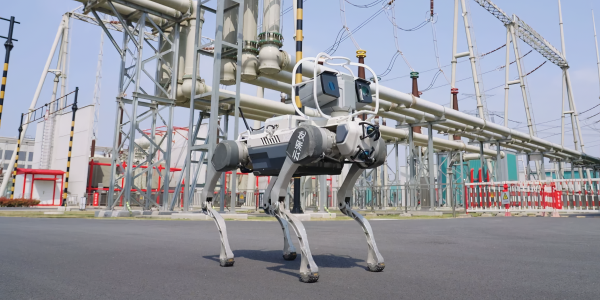

Power Grid Inspection |

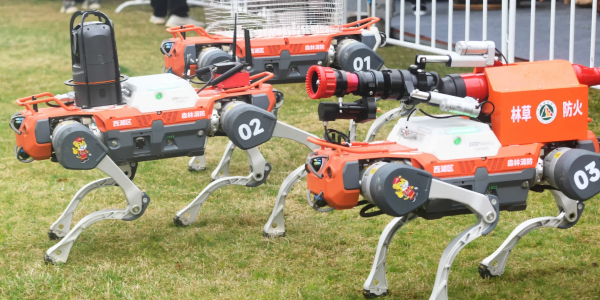

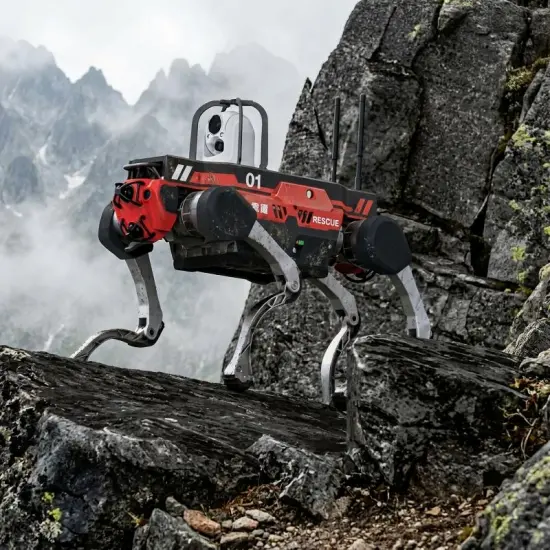

Emergency Firefighting |

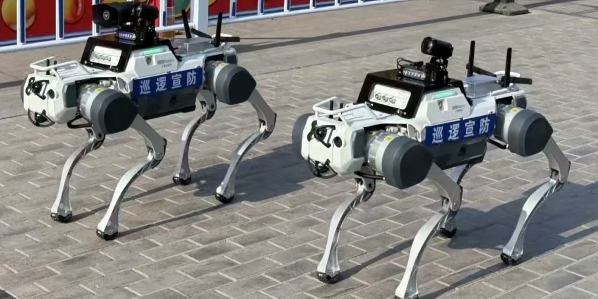

Security Patrol |
Scientific Research and Education |

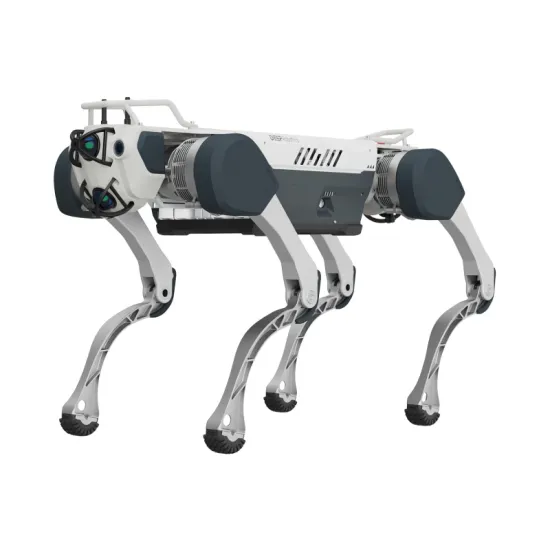

Product Specifications
Please contact customer service for purchases.
Key Specifications | X30 | X30 PRO | |
Unit Specifications | Footprint dimensions (length × width × height) | 1130mmx470mmx265mm | 1130mmx470mmx285mm |
Assembled dimensions (L × W × H) | 1000mmx470mmx695mm | 1000mmx470mmx715mm | |
Overall unit weight | 56kg | 59kg | |
Electrical Parameters | Battery capacity | 22.4Ah | 22.4Ah |
Battery rated voltage | 72V | 72V | |
Charger input | 200V~240V | 200V~240V | |
Charger output | 84V/8A | 84V/8A | |
Charging time | 2.5h~3h | 2.5h~3h | |
External power input port | 72V(BAT) | 12V 24V 5V(USB) | |
External communication interface | Ethernet WiFi | Ethernet WiFi USB2.0 USB3.0 | |
Autonomous charging function | 支持 | 支持 | |
Motion parameters | Maximum speed | 4.95m/s（Stress test data） | 4.95m/s（Stress test data） |
Maximum travel speed | 1.2m/s | 1.2m/s | |
Maximum running speed | 2.5m/s | 2.5m/s | |
Maximum climbable slope gradient | ±30° | ±30° | |
Maximum step height for climbing | 20cm | 20cm | |
Maximum angle of climbable steps | ±45° | ±45° | |
No-load flight time | 4h | 4h | |
Payload endurance | 2.5h | 2.5h | |
Payload | 20kg | 20kg | |
Maximum load | 85kg | 85kg | |
Sensor Parameters | Solid-state LiDAR | 4个 | 4个 |
Wide-angle camera | 1个 | 1个 | |
Other optional modules | Dual-sensor gimbal with RTK | Dual-sensor gimbal with RTK | |
Environmental parameters | Protection rating | IP67 | IP67 |
Operating ambient temperature | -20°C~55°C | -20°C~55°C |
*All specifications are based on official test data; actual performance may vary depending on the operating environment. Supports secondary development.
