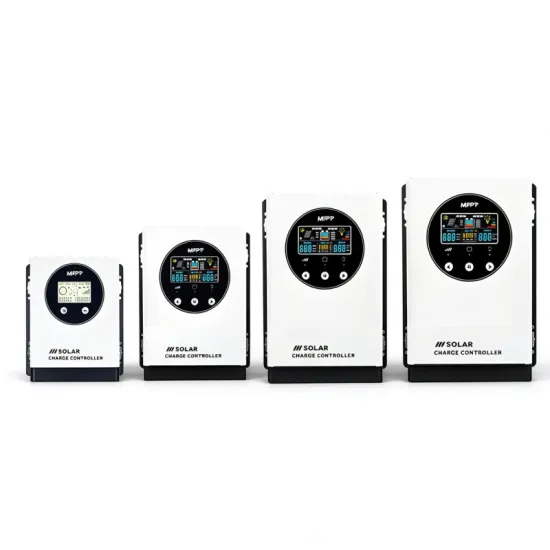

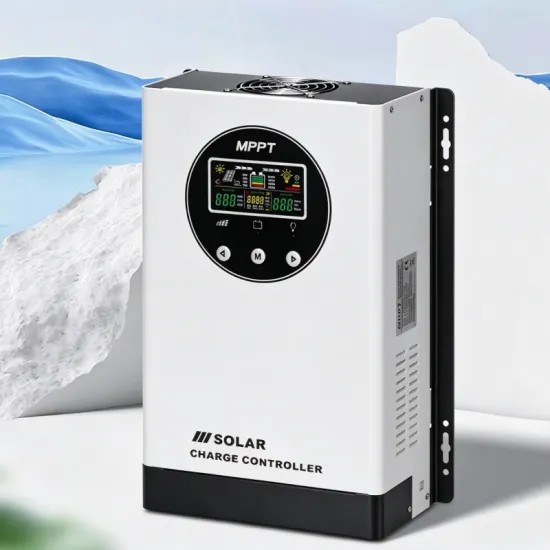

Product Description
The smart MPPT solar charge controller supports 12V, 24V, 36V, and 48V battery systems with 30A–120A current options. It uses advanced MPPT technology to improve solar charging efficiency and supports LiFePO₄, NCM, lead-acid, and gel batteries. With intelligent charging, multiple protection functions, LCD monitoring, and RS485/RJ45 communication, it is suitable for residential, commercial, RV, and off-grid solar systems.
Key Selling Points
1. Up to 99% MPPT Tracking Efficiency
Maximizes available solar power and improves charging performance.
2. 12V / 24V / 36V / 48V Compatibility
One product family covers multiple battery system voltages.
3. 30A–120A Current Options
Flexible current ratings for different solar system sizes and customer requirements.
4. Multiple Battery Chemistries
Supports LiFePO₄, NCM, lead-acid, and gel batteries.
5. Intelligent Charging Management
Multi-stage charging helps optimize battery charging and support battery life.
6. RS485 & RJ45 Communication
Supports system monitoring, data communication, and integration with other devices.
Product parameters
Parameter | MPPT-40 | MPPT-60 | MPPT-80 | MPPT-100 | |||||
Rated Charge Current | 30A | 40A | 50A | 60A | 80A | 100A | 100A | 120A | |
System voltage | 12V/24V/36V/48V Auto | ||||||||
PV maximum input power | 12V | 390W | 520W | 650W | 780W | 1040W | 1300W | 1300W | 1560W |
24V | 780W | 1040W | 1300W | 1560W | 2080W | 2600W | 2600W | 3120W | |
36V | 1170W | 1560W | 1950W | 2340W | 3120W | 3900W | 3900W | 4680W | |
48V | 1560W | 2080W | 2600W | 3120W | 4160W | 5200W | 5200W | 6240W | |
Maximum PV open circuit voltage | <150V (at the lowest temperature) | <200V (at the lowest temperature) | |||||||
Rated Discharge Current | 20A | 30A | 40A | 40A | |||||
MPPT highest accuracy | 99% | ||||||||
Maximum charging efficiency | 97% | ||||||||
Battery Type | GEL, SLD,FLD and USER(default),Lithium batteries customization | ||||||||
Product size | 220×200×83 mm | 265×220×88 mm | 295×220×100 mm | 340×240×108 mm | |||||
Choose the Right Model
Current Range | Recommended Application |
30A–40A | Small residential and mobile solar systems |
50A–60A | Home energy storage and medium-size off-grid systems |
80A–100A | Larger residential and commercial systems |
120A | Higher-capacity solar and energy storage systems |
Product Display

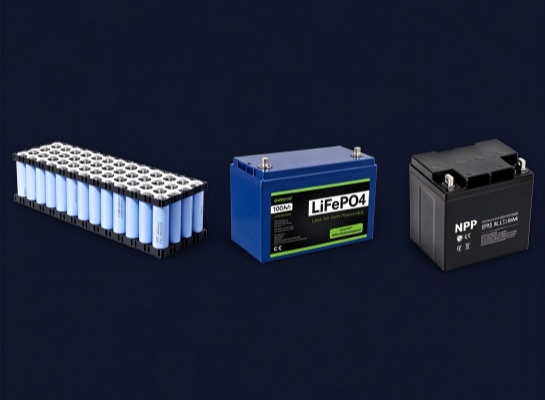

Multi-Battery Compatibility
Supports LiFePO₄, NCM, lead-acid, and gel batteries, providing flexible options for different energy storage systems.

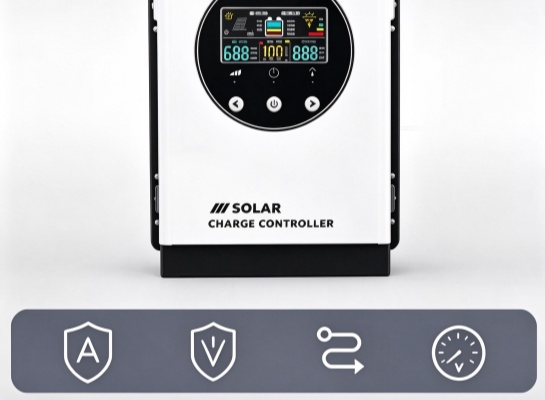

Multiple Protection Functions
Built-in overcurrent, overvoltage, reverse polarity, and low-voltage protection helps improve system safety during operation.

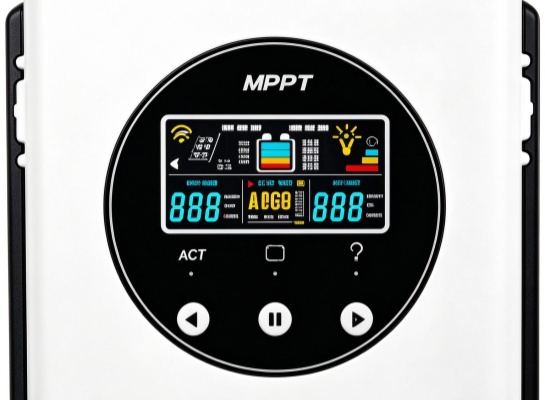

Clear LCD Display
The large LCD screen provides clear system information, while responsive buttons make parameter settings and daily operation easier.

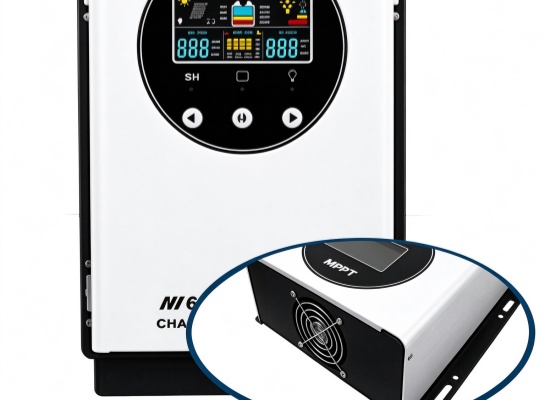

Efficient Aluminum Heat Dissipation
A thickened aluminum heat sink and optimized MOSFET contact design improve heat dissipation and support stable operation at temperatures up to 60°C.

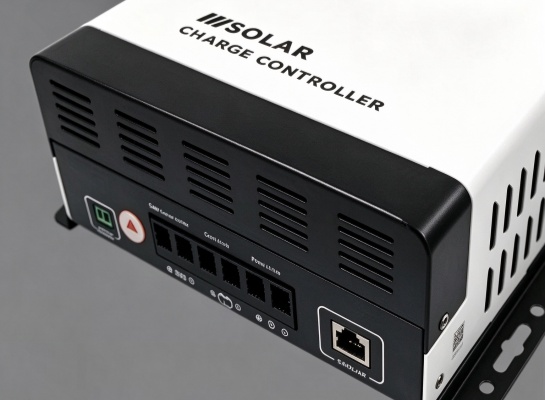

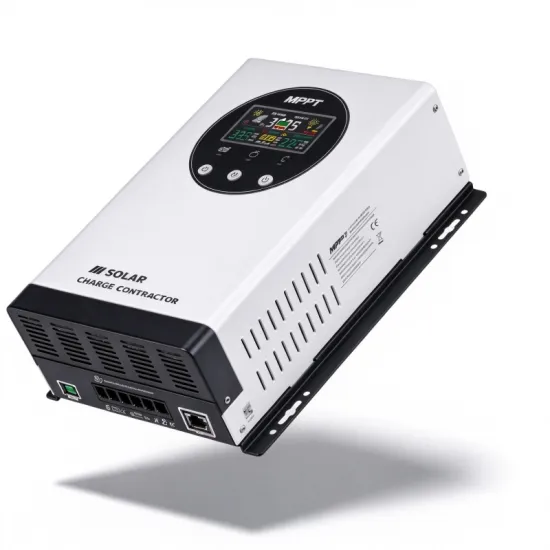

Organized Wiring Design
The concealed wiring area keeps cable connections organized and protected, helping create a cleaner and more convenient installation.

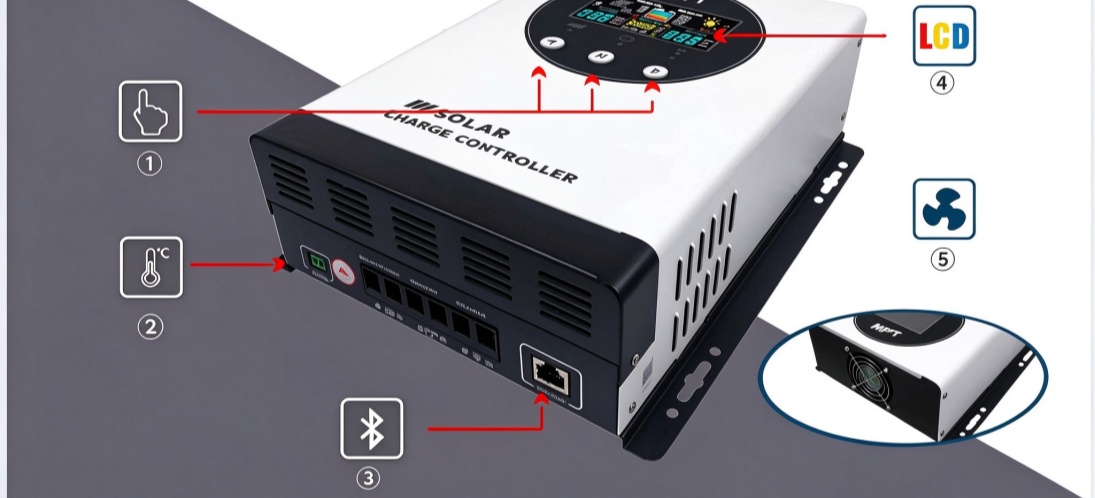

Main Functions
① Button mode
② Temperature compensation
③ Communication port：RS485/RJ45 port/Optional
④ LCD Color display
⑤Forced air cooling
Simple Installation Process
01 — Mount the Controller
Secure the controller to the wall using the supplied screws.
02 — Check System Voltage
Confirm that the battery and PV array voltage are within the controller's operating range.
03 — Disconnect Power
Turn off the battery, PV, and load breakers or remove the fuses.
04 — Connect the Battery
Connect the battery to the designated battery terminals and tighten the terminal screws.
05 — Connect the Load
Connect the load to the load terminals.
06 — Connect the PV Array
Connect the solar panels to the PV input terminals.
07 — Power On the Battery
Turn on the battery breaker or fuse. The controller will power on and display the system status.
08 — Power On the PV System
Turn on the PV breaker or fuse. The controller will automatically begin charging the battery.
Installation Safety Notice
Always disconnect the battery and PV power before installation. Carefully check positive (+) and negative (-) polarity before making electrical connections. Follow the installation instructions to reduce the risk of electrical hazards.

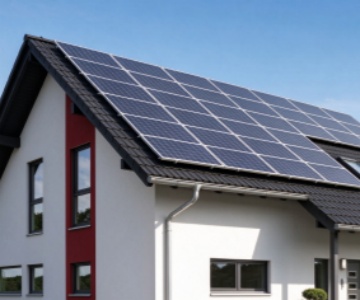

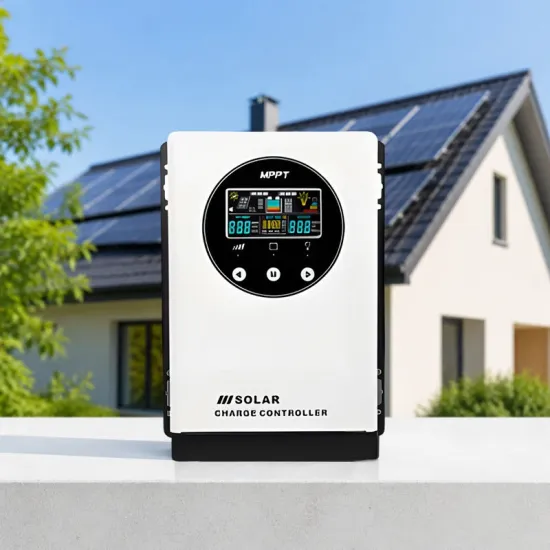

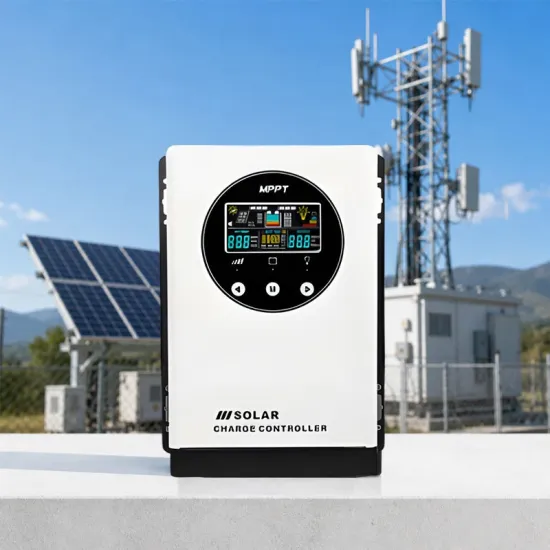

Application Cases

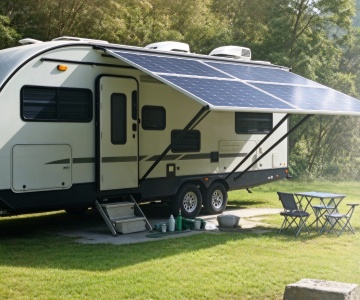

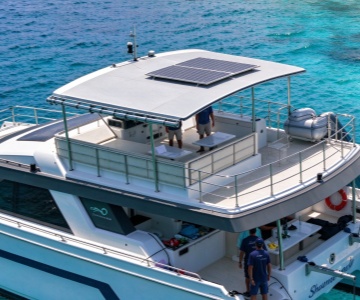

Suitable for residential solar systems, RVs, off-grid power, remote sites, and small commercial solar applications.
Distributor Opportunities
With 12V–48V compatibility, 30A–120A options, and support for multiple battery types, this controller can cover different solar system requirements and customer segments.
Order & Supply
With an MOQ of 4 units and multiple voltage and current options, the controller is suitable for distributors serving different solar markets. Small initial orders allow flexible inventory planning, while larger quantities can be arranged according to market demand and project requirements.
