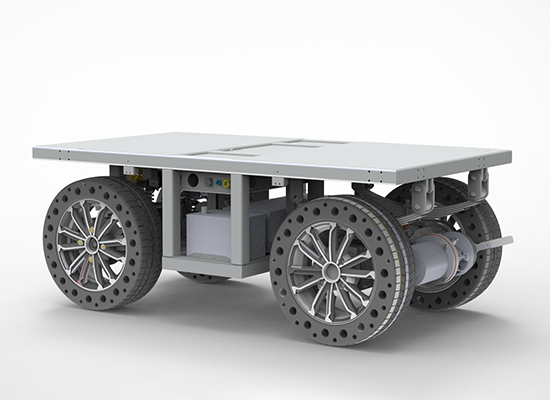

Product Description

Its self-developed front suspension adopts a compact double-A-arm layout with left-right balanced pushrods and a transverse single-reduction arrangement, improving vehicle stability and terrain adaptability.

The rear drive system uses a solid differential axle with a brushless DC motor and encoder-equipped drive control.

Product parameters

Item	Data	Item	Data
Design dimensions	1615 x 830 x 480 mm	Internal compartment	1250 x 435 x 100 mm
Chassis self weight	160 kg	Operating speed	0-21 km/h
Tire type and size	Solid explosion-proof rubber tire / 15 in	Chassis height	130 mm
Main body material	Carbon steel / alloy steel plate / aluminum	Protection rating	IP54
Obstacle avoidance devices	2 front, 2 rear	Surface coating	Spray paint / powder coating
Drive motor	48 V 1650 W DC brushless motor	Design payload	300 kg
Rear axle reduction ratio	Two-speed options: 1:10 / 1:20	Maximum grade	10°
Maximum obstacle height	120 mm	Turning radius	2.5 m
Brake configuration	Front disc / rear drum	Parking brake	Yes
Battery capacity	48 V / 30 Ah	Travel range	20 km

Service

Services
1 year warranty for main parts	During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts	most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance	we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support	Video technical support
Online Service	your question will be answer within 24 hours during working days, 48 hours during holiday.

FAQ：

1.Does your machine have great quality and favorable price?

Sure,we offer good quality and cheap price products.

2.How is your service?

We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.

3.How about the MOQ?

1 set.

4.What's the warranty of machine?

One year warranty for main machine.

5.When the machine can be shipped?

Within 3-5 working days after receiving full payment.
