Product Description

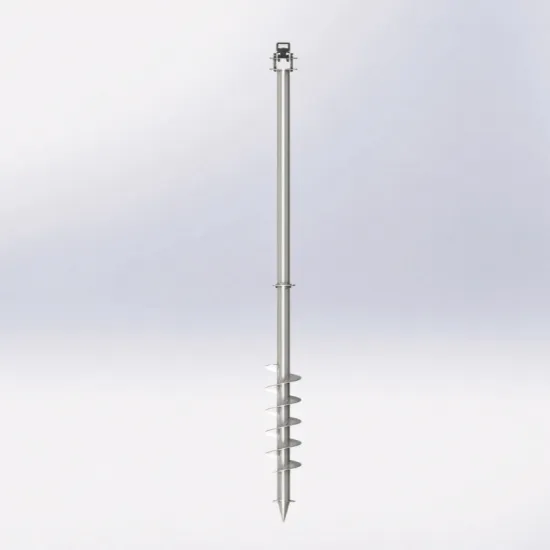

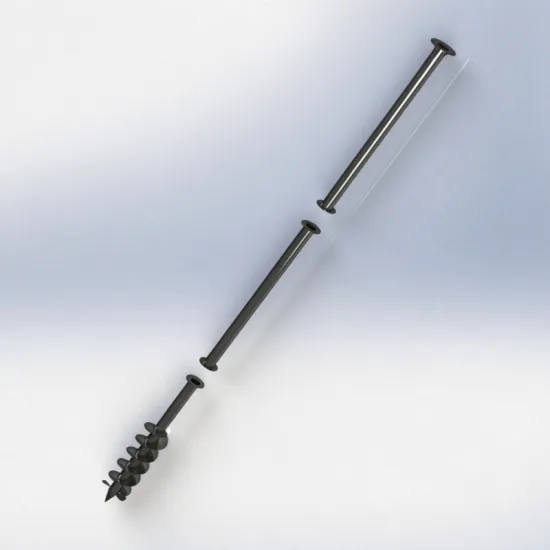

The GA-250 ground anchor features a detachable multi-section structure, a helical screw tip, and an adjustable upper mechanism. Its sectional design simplifies transportation, while the adjustable top allows positioning to be fine-tuned according to installation requirements. Designed for selected ground-fixing applications, it can be considered for small wind turbine projects and other compatible outdoor support structures, subject to site conditions and engineering requirements.
Product Features

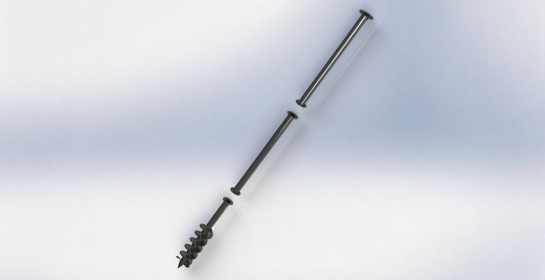

Modular Sectional Structure
The detachable shaft sections simplify transportation and allow the anchor to be assembled on site according to the specified configuration.
Adjustable Upper Mechanism
The upper adjustment structure supports on-site positioning and alignment, helping accommodate installation requirements.

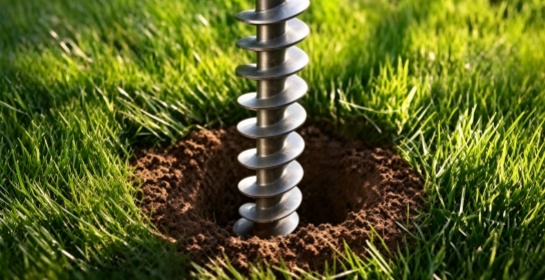

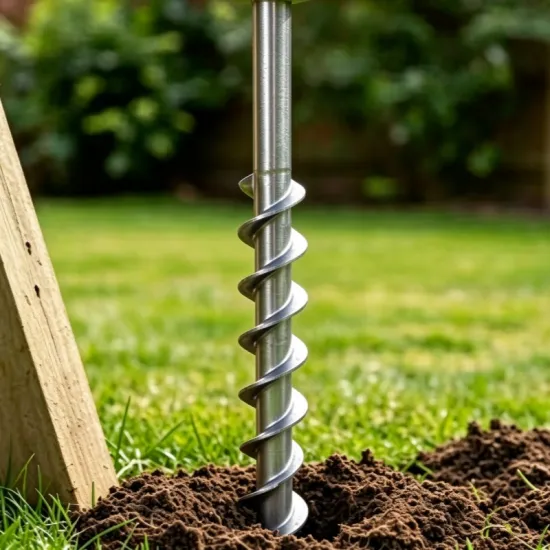

Helical Ground Penetration Design
The spiral tip is designed to penetrate suitable soil and provide ground engagement for the intended anchoring application.

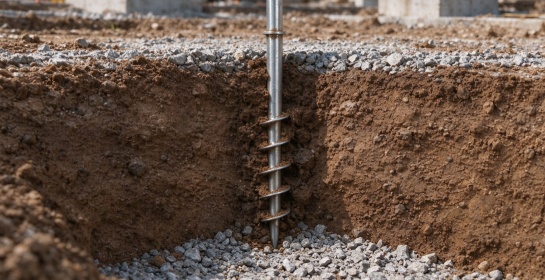

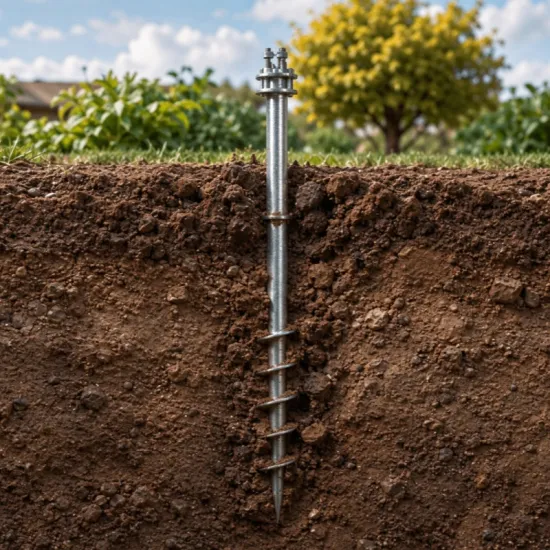

Underground Anchoring Structure
The embedded helical section provides ground engagement, with anchoring performance dependent on soil conditions, installation depth, and design loads.
Product parameters
Parameter | Details |

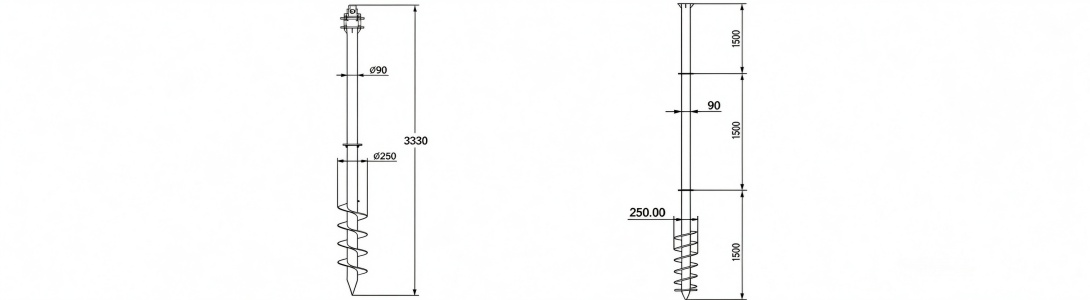

Dimensions | Helix Ø250 * Length 3330 mm (Shaft Ø90 mm) |
Material | Carbon Steel / Stainless Steel, Customizable |
Surface Treatment | Hot-Dip Galvanized |
Available sizes for the Middle Section | 0.5m / 1m / 1.5m / Customizable |
Connection Type | Modular |
Soil Conditions | Areas with Sufficient Soil Depth |
Project Applications

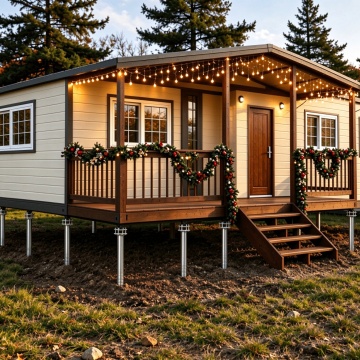

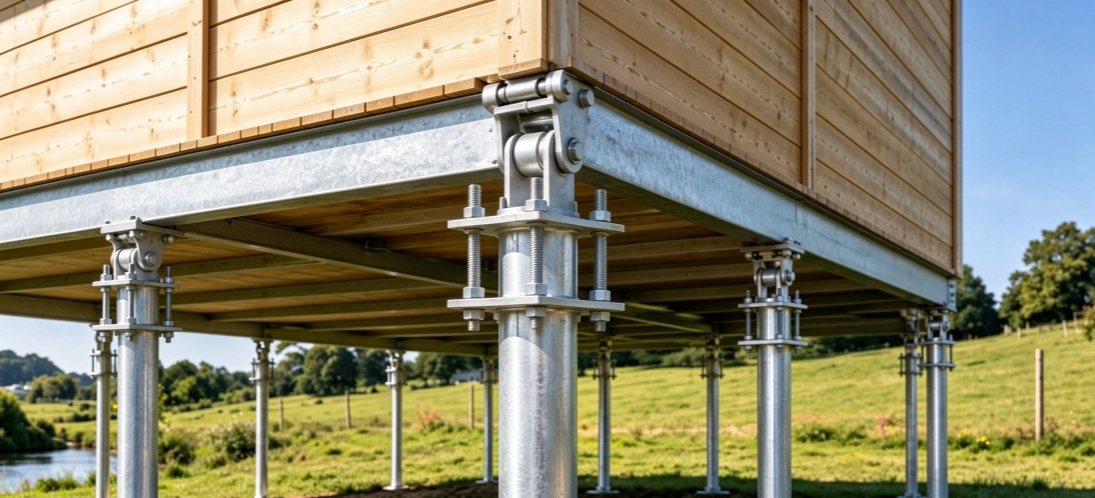

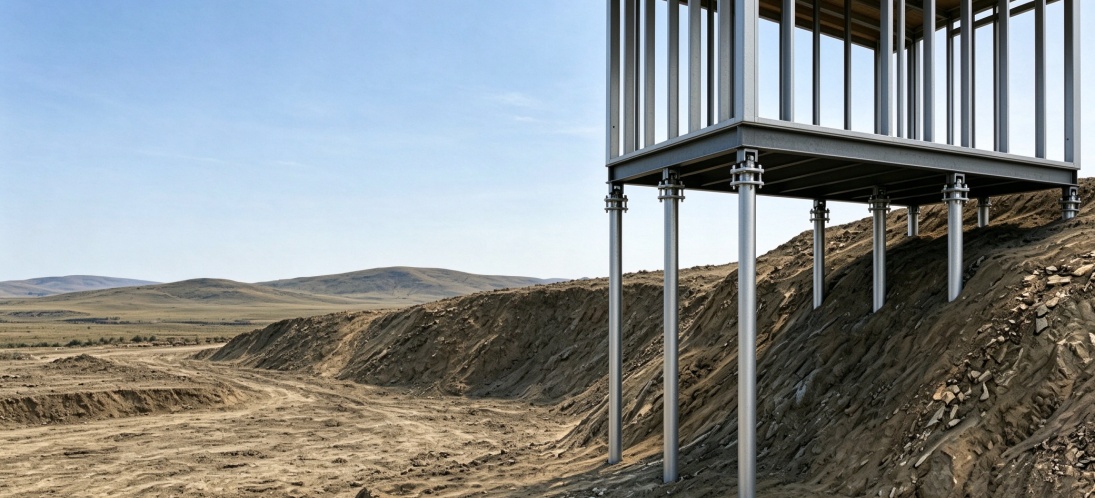

Prefabricated Building Projects

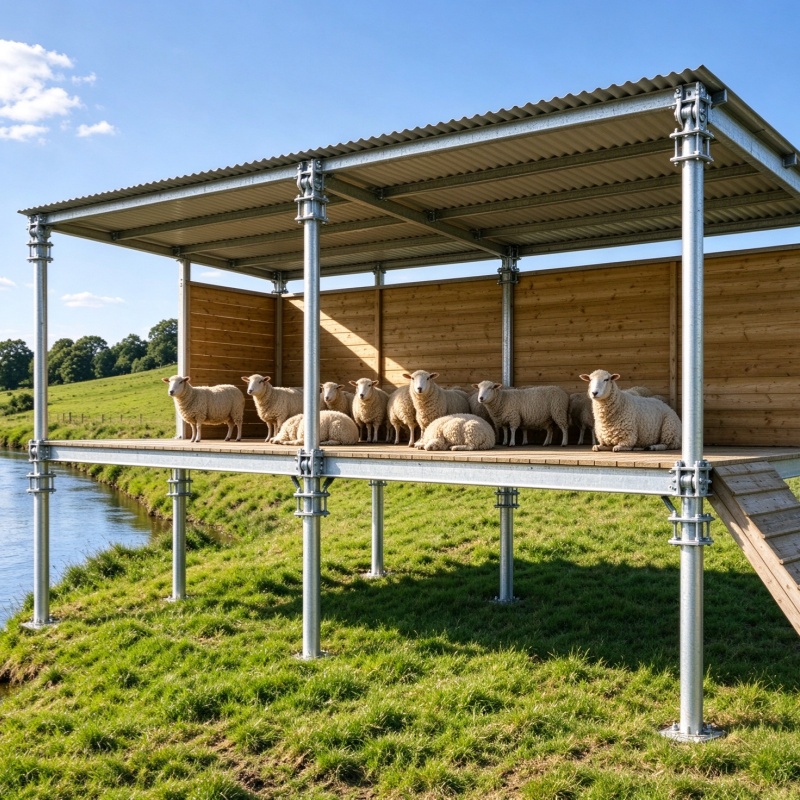

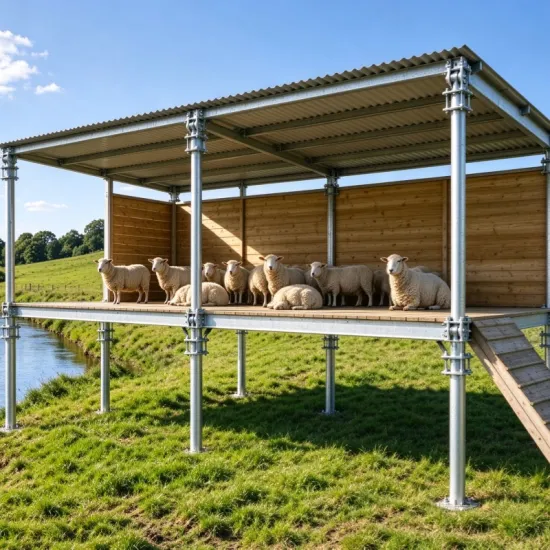

Ranch Applications

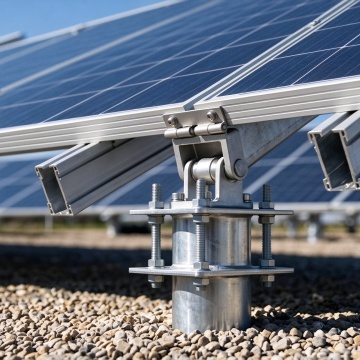

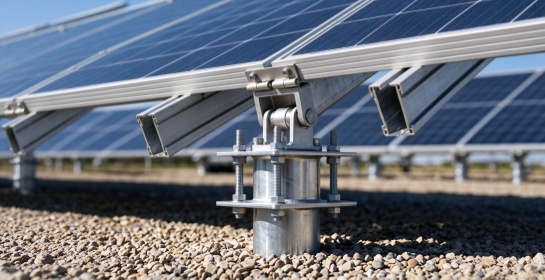

Solar Panel Installation
Project Advantages
1. Simplified Transportation and Handling
The detachable sections make the anchor easier to pack, transport, and handle on site, particularly for projects requiring multiple anchoring points.
2. Flexible On-Site Positioning
The adjustable mechanism supports alignment on uneven ground, helping installation teams accommodate site-specific positioning requirements.
3. Adaptable Project Configuration
The modular structure allows sections to be assembled according to the intended configuration, subject to the approved installation method and required anchoring performance.
4. Practical for Multi-Point Installations
Its modular format is suitable for projects involving multiple ground anchors, where consistent specifications, organized transport, and repeatable installation procedures are important.
Installation & Project Planning
The modular design and adjustable upper mechanism support on-site assembly and positioning. Before installation, project teams should confirm soil conditions, required anchoring depth, design loads, equipment access, and compatibility with the supported structure. Installation procedures and anchoring performance should follow the approved project design and manufacturer’s instructions.
