Product Description

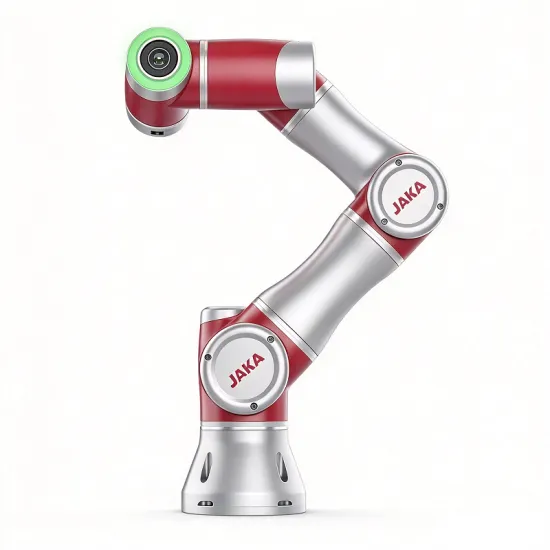

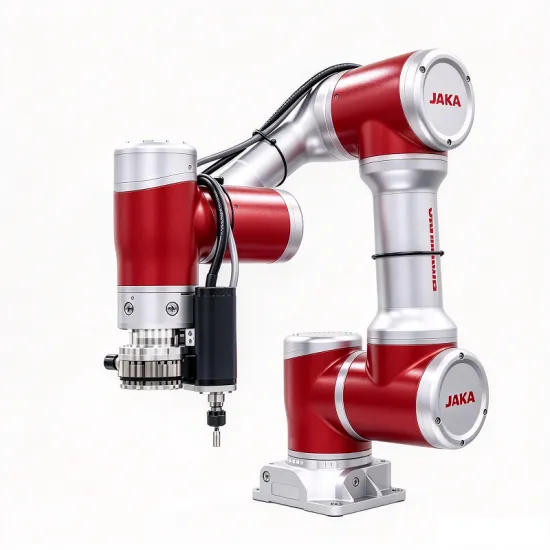

JAKA Zu3
Harmonious collaboration among humans, robots and the environment
3 kg rated payload, 12 kg self-weight and 626 mm reach
Integrated joint design, easy to assemble and disassemble
Compact size with high precision,
fits narrow spaces and handles high-precision tasks
Functional Features

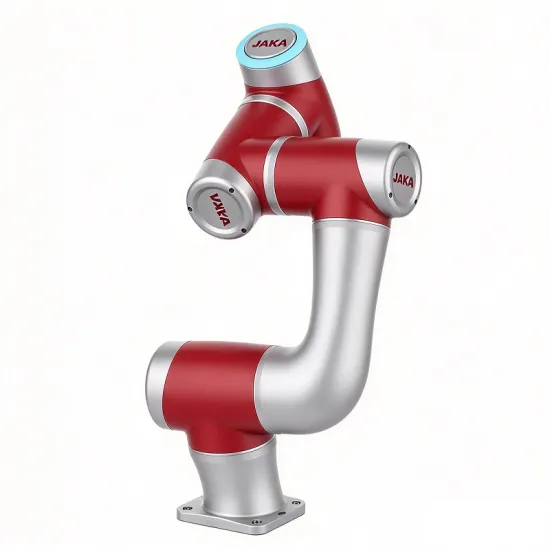

Integrated joint design
Easy to assemble
Easy to disassemble
Compact and lightweight

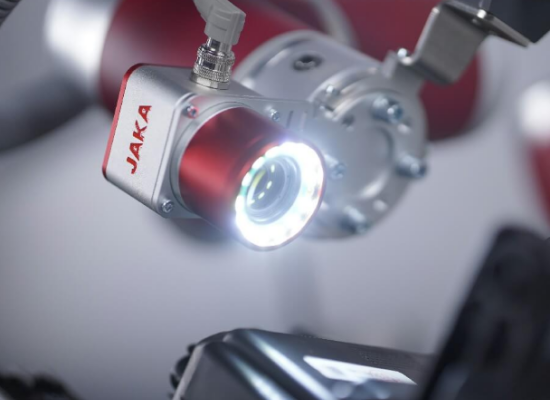

Inspection:
· Replaces manual inspection, improving inspection efficiency and quality while freeing workers from repetitive tasks.
· Excellent scalability, allowing enterprises to quickly redeploy according to production conditions.
· Strong compatibility, supporting vision systems, measuring instruments and other devices for non-destructive inspection and fully automated high-precision measurement of multi-variety, small-batch workpieces.

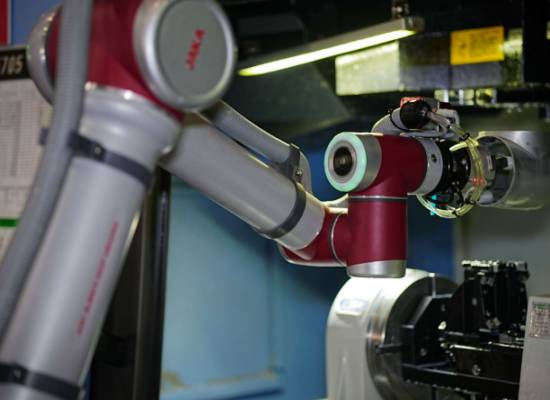

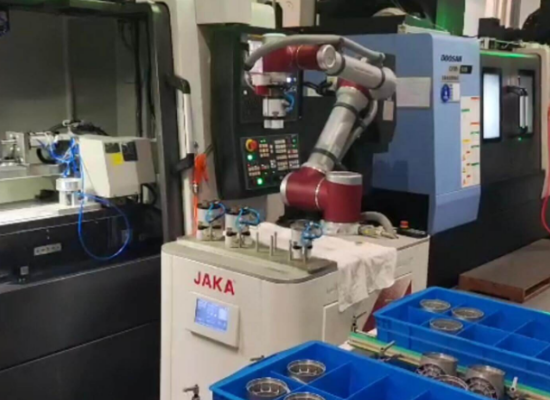

Loading/Unloading:
· Enables rapid production-line redeployment for efficient, high-quality and flexible machine tending.
· Improves production efficiency and product quality.
· Simple programming gives full control of the robot, maximizing labor substitution.

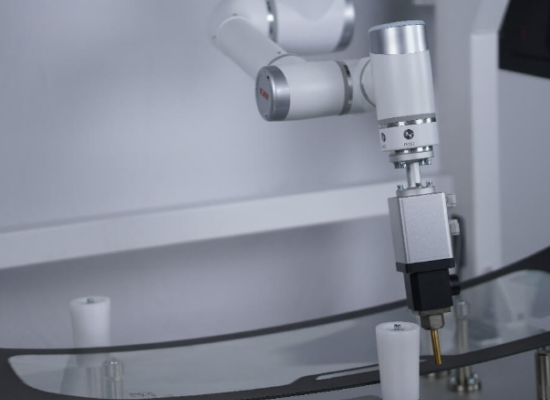

Dispensing:
· Replaces manual dispensing for mechanized production.
· Improves dispensing appearance, precisely controls adhesive volume, saves adhesive and reduces labor costs.
· Easy to use, easy to move within the workspace, greatly improving flexibility and user experience.

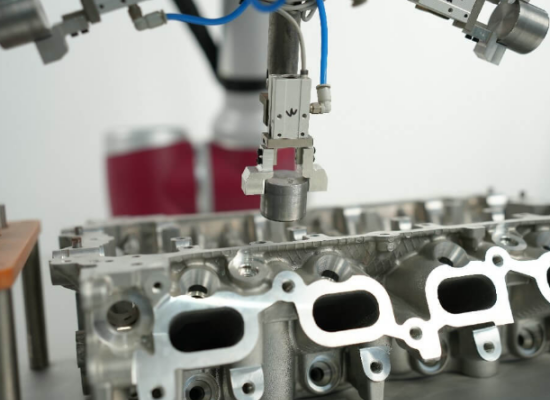

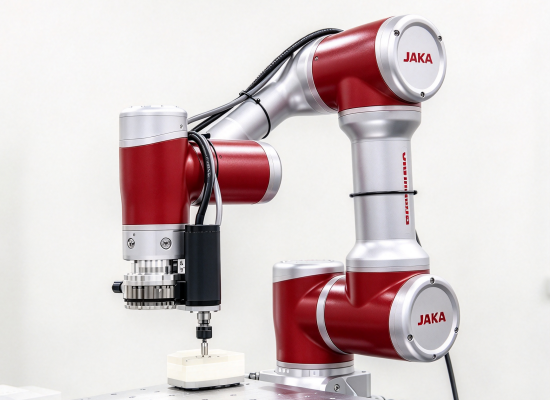

Flexible Assembly:
· Lightweight design for rapid production-line deployment.
· High-precision adaptive assembly effectively prevents workpiece damage and improves labor productivity.
· Supports small-batch, multi-variety production.

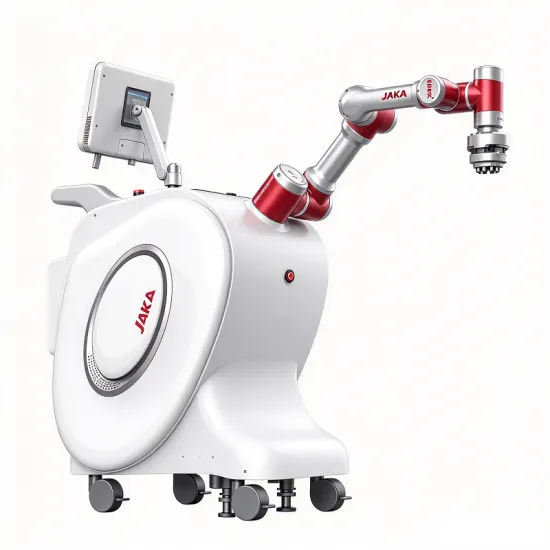

Composite Robots:
· Proprietary feature-code-based positioning meets high-precision positioning needs during loading/unloading.
· Supports one-to-many service mode, ensuring production efficiency while greatly saving labor costs.
· Highly adaptable to scenarios, compatible with CNC machine tending, warehouse handling and more.

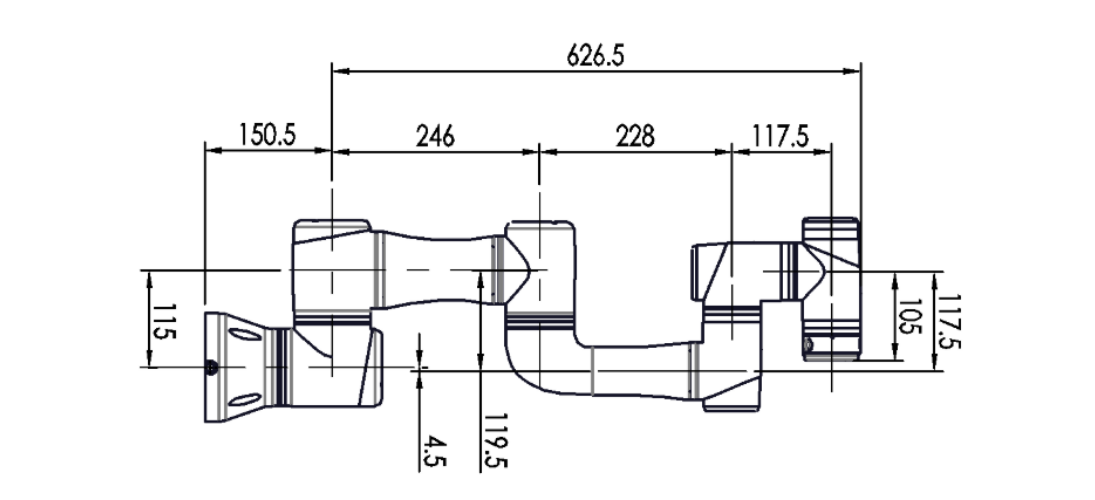

Dimensional Drawin

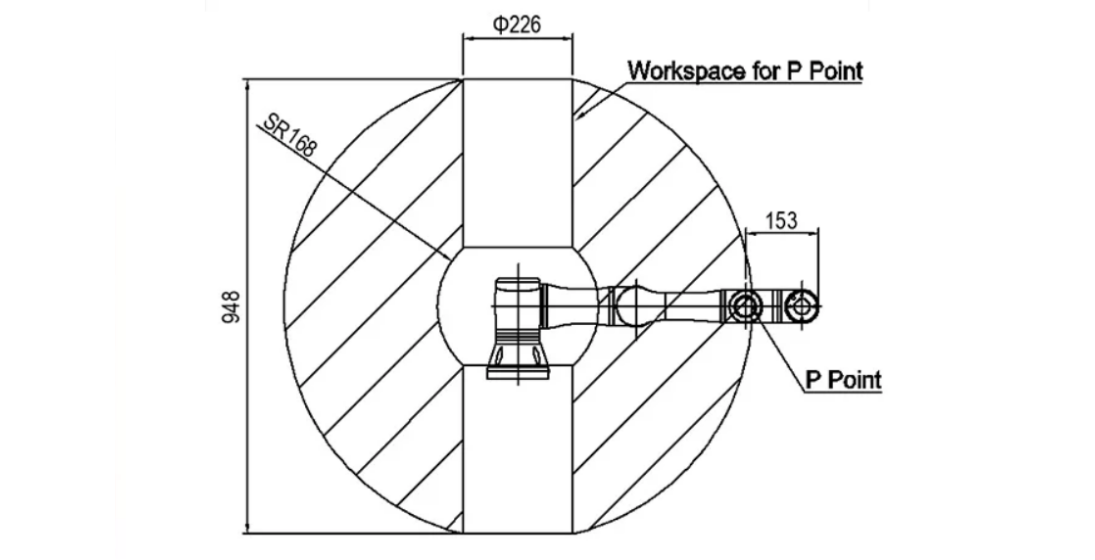

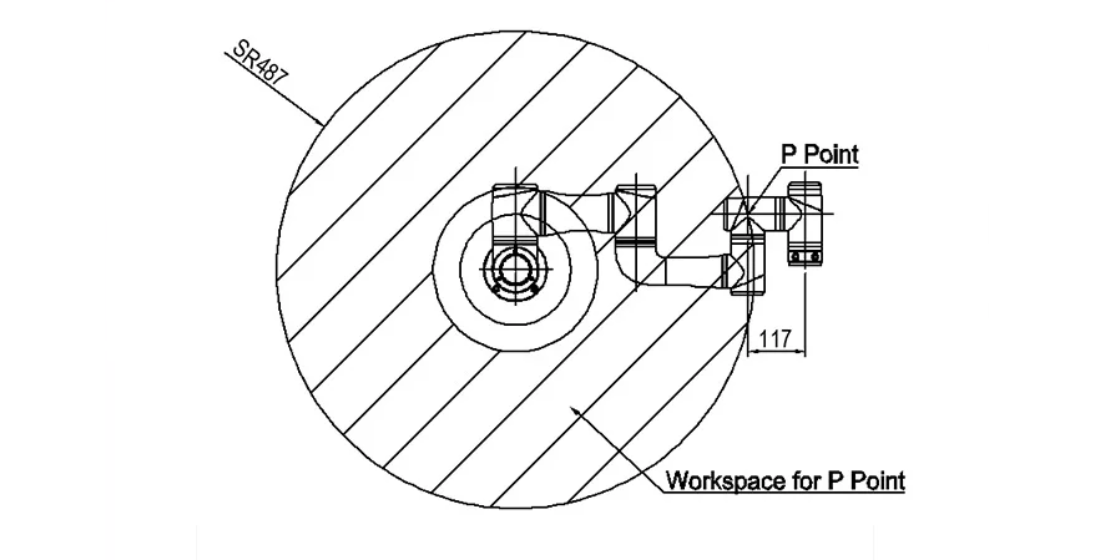

scope of work
Product parameters
JAKA Zu3 Body Parameters
Parameter | Value |
Rated payload | 3 kg |
Weight (incl. cable) | 12 kg |
Reach | 626 mm |
Repeatability | ±0.02 mm |
Degrees of freedom | 6 axes |
Programming | Graphical programming, drag teaching |
Teach pendant type | PC, mobile devices (PAD/phone) |
Collaborative operation | Compliant with GB 11291.1-2011 |
Certifications | CR certification, CE certification, ISO 15066 certification |
JAKA Zu3 Physical Performance Parameters
Parameter | Value |
Typical power consumption | 150 W |
Temperature range | 0-50 °C |
Humidity range | 0-90% RH, non-condensing |
IP rating | IP54 |
Robot mounting | Any-angle mounting |
Tool I/O ports | Digital input 2/digital output 2/analog input 2 |
Tool I/O power | 12/24 VDC |
Base diameter | 129 mm |
Material | Aluminum alloy, PC |
Tool I/O size | M8 |
Robot connection cable length | 6 m |

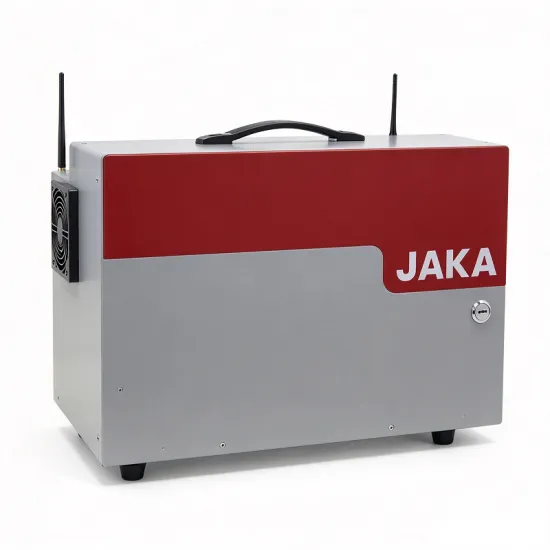

JAKA Zu3 Control Box Parameters
Parameter | Value |
Control box model | CAB 3 |
IP rating | IP44 |
Control box I/O ports | 16 digital inputs and outputs, 2 analog inputs or outputs |
Control box I/O power | 24 VDC |
Communication | TCP/IP, Modbus TCP, Modbus RTU |
Power supply | 100-240 VAC, 50-60 Hz |
Control box dimensions | 410×307×235 mm (W×H×D) |
Weight | 13.5 kg |
Material | Painted carbon steel plate |
