Product Description

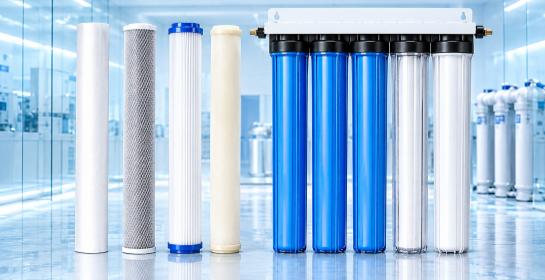

The 20-inch multi-stage water filter system is designed to remove sediment, rust, chlorine, odors, and other impurities from water, depending on the selected filter configuration. Its modular design supports different combinations of filter media to meet varying water quality requirements, making it suitable for household water supply, rainwater collection, groundwater treatment, and off-grid water systems.
Product Features
Multi-Stage Filtration
Combines different filter media to address sediment, chlorine, odors, hardness, and other water quality concerns according to the selected configuration.
Modular Configuration
Filter stages can be selected and combined according to raw water quality, treatment requirements, and project specifications.
Housing Material Options
Different housing materials are available to accommodate installation environments and project requirements, subject to the available product configurations.
Adaptable to Different Water Sources
Filtration combinations can be configured for rainwater, groundwater, and atmospheric water systems based on source-water quality and treatment needs.

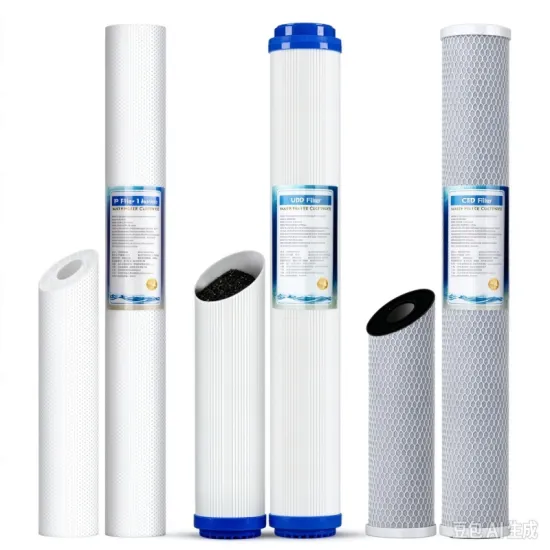

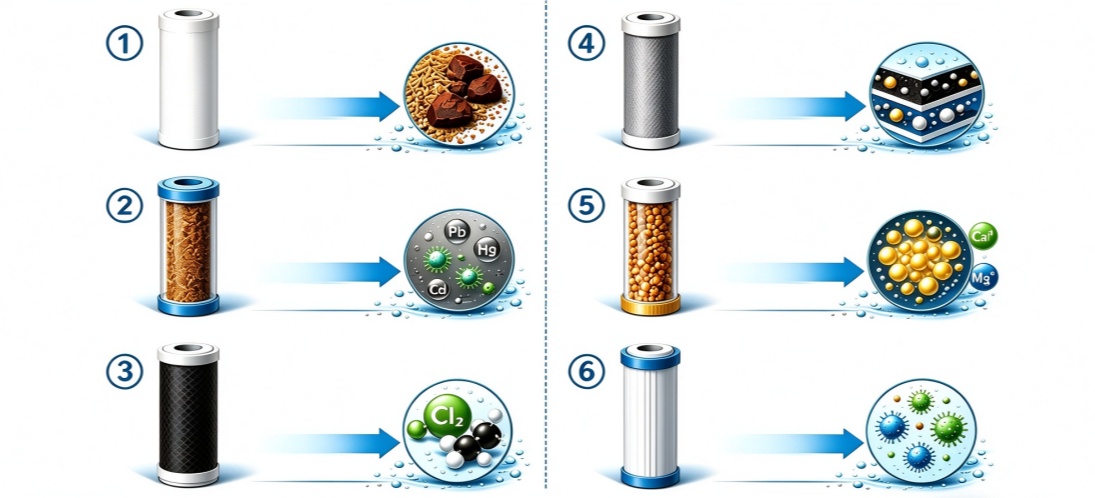

Filter Cartridge Specifications
Stage 1 – PP Sediment Filter
Removes sand, rust, and large particles
Stage 2 – KDF Media
Removes heavy metals and inhibits bacteria growth
Stage 3 – GAC Carbon Filter
Removes chlorine, odors, and organic compounds
Stage 4 – CTO Carbon Block
Deep adsorption + fine filtration
Stage 5 – Ion Exchange Resin
Softens water and reduces hardness
Stage 6 – UF Membrane
Removes bacteria, colloids, and suspended solids
Product parameters
System Specifications
Specification | Details |
Product Type | 20-inch Multi-Stage Water Filter System |
Cartridge Size | 20" |
Optional Filter Media | PP Sediment Filter Cartridge, KDF Filter Media, GAC Granular Activated Carbon Filter, CTO Carbon Block Filter, UF Membrane Filter, Ion Exchange Resin Filter |

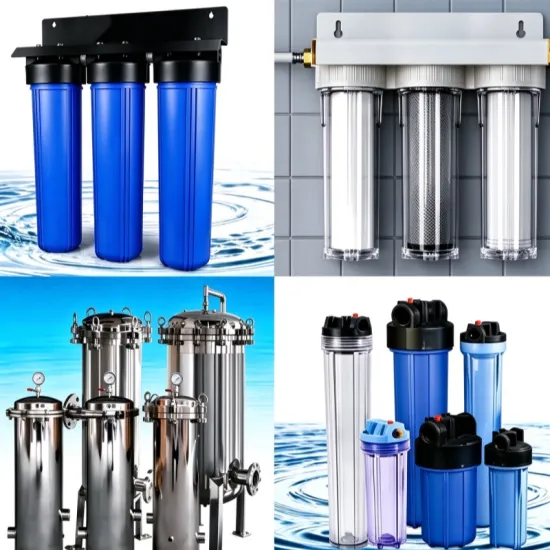

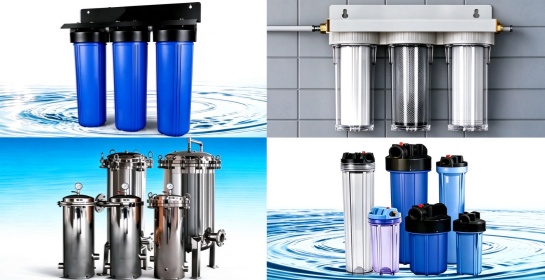

Housing Material | Plastic/ABS or Stainless Steel |
Recommended Flow Rate (Plastic/ABS Housing) | 6–25 LPM (varies by cartridge type, see Table 2) |
Recommended Flow Rate (Stainless Steel Housing) | 15–50 LPM (varies by cartridge type, see Table 2) |
Typical Applications | Plastic/ABS: commercial, small offices, food service, office buildings |

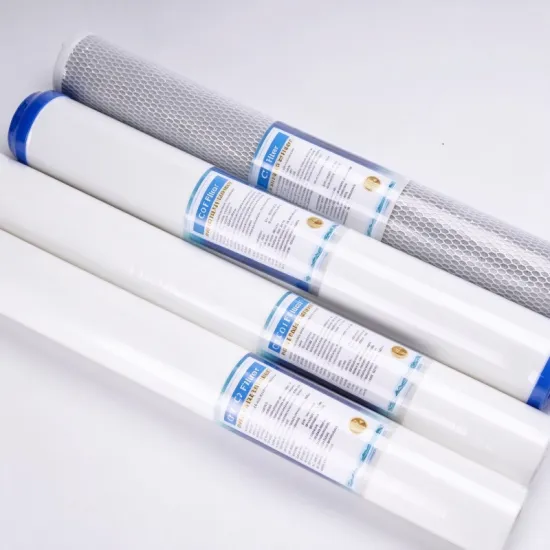

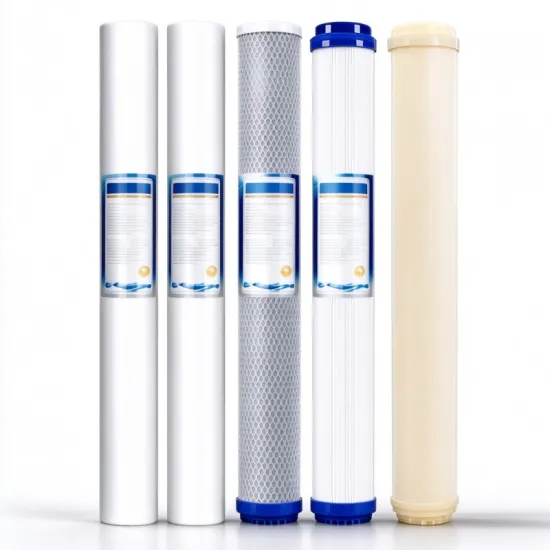

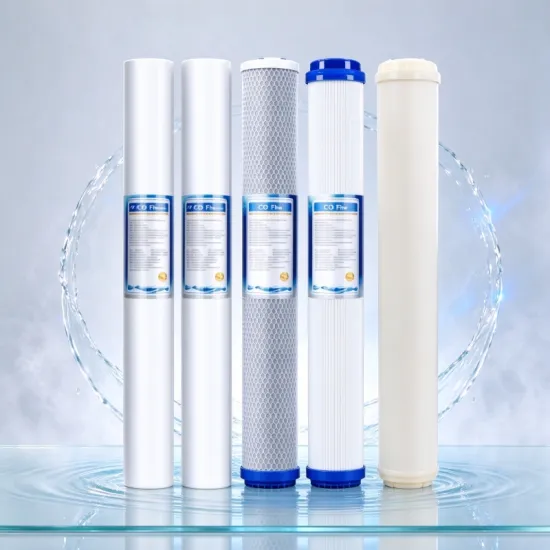

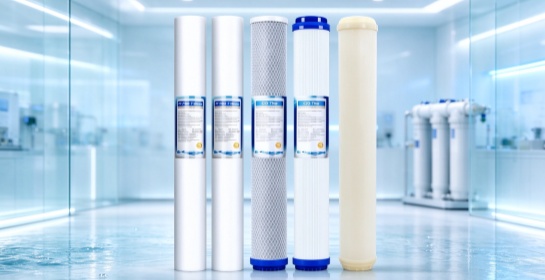

Filter Cartridge Specifications
Filter Cartridge Type | Filter Size | Main Filtration Function | Recommended Flow Rate | Housing / Cartridge Material | Reference Replacement Interval* |
PP Sediment Filter Cartridge | 508±1 × 63±1 mm, ID 28 mm | Removes rust, silt, turbidity | Plastic/ABS: 10–25 LPM | Housing: Plastic/ABS or Stainless Steel | Approx. 3–6 months |
GAC Granular Activated Carbon Filter | 508±1 × 63±1 mm, ID 28 mm | Removes residual chlorine; adsorbs odors and discoloration | Plastic/ABS: 10–20 LPM | Housing: Plastic/ABS or Stainless Steel | Approx. 6–9 months |
CTO Carbon Block Filter | 508±1 × 63±1 mm, ID 28 mm | Removes residual chlorine; deeply adsorbs odors and impurities | Plastic/ABS: 10–20 LPM | Housing: Plastic/ABS or Stainless Steel | Approx. 6–9 months |
UF Membrane Filter | Flat socket: 51 × 7 cm | 0.01 micron filtration precision | Plastic/ABS: 6–20 LPM | Housing: Plastic/ABS or Stainless Steel | Recommended 12 months |
Ion Exchange Resin Filter | 505 × 70 mm | Water softening | Plastic/ABS: 8–20 LPM | Housing: Plastic/ABS or Stainless Steel | Approx. 6 months |
*Reference only. Actual replacement interval may vary with local water quality and usage volume.
Supplementary Technical Data
Cartridge | Parameter | Value |
PP Sediment Filter | Filtration Accuracy | 1 micron / 5 microns |
KDF Filter Media | Specifications | 5–10 mesh / 10–40 mesh / 20–60 mesh |
KDF Filter Media | Material | High-purity copper-zinc alloy |
KDF Filter Media | Recommended Flow Rate | 2–5 L/min |
UF Membrane Filter | Water Flow Rate | 3500 mL/min (at 25°C, 0.2 MPa) |
UF Membrane Filter | Operating Temperature | 4–45°C |
Ion Exchange Resin Filter | Working Pressure | 0.1–0.4 MPa |
Customer Scenarios

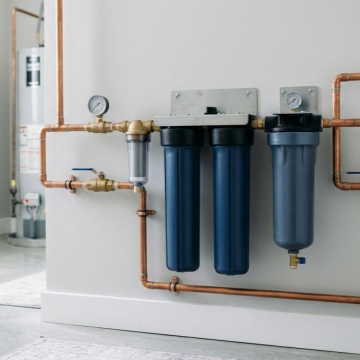

Household Water Supply
Pre-treatment and filtration for domestic water systems.
Remote & Off-Grid Sites
Water treatment for sites with independent water collection or supply systems.

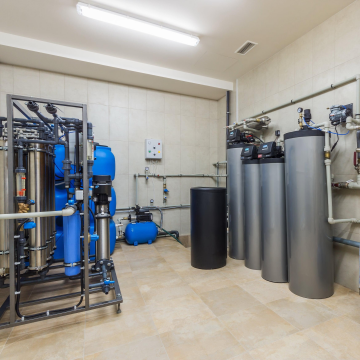

Small Commercial Projects
Configurable filtration for suitable small-scale facilities.

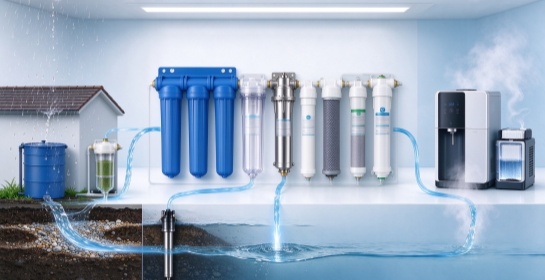

Water Source Solutions
Solution A — Rainwater Filtration
Designed to reduce suspended particles and certain organic contaminants in collected rainwater. Additional disinfection may be required depending on the intended use and water quality.
Reference configuration: PP → GAC → CTO → UF → UV (optional)
Solution B — Groundwater Filtration
Designed to address sediment, hardness, and selected iron, manganese, or heavy-metal concerns through appropriate pretreatment and filter media selection.
Reference configuration: PP → Quartz/Manganese Sand (optional) → GAC → CTO → Resin → UF/RO
Solution C — Atmospheric Water Filtration
Supports post-treatment of water produced by atmospheric water generators, with optional disinfection and mineralization stages selected according to the system design.
Reference configuration: PP → GAC/CTO (optional) → UV → Mineralization Cartridge (optional)
Customization & Procurement
Flexible Filter Configuration
Filter media, filtration stages, and housing options can be selected according to source-water quality and project requirements.
Component & Accessory Selection
Filter cartridges, housings, fittings, and other compatible accessories should be confirmed according to the final system configuration.
Project Specification Confirmation
Before ordering, confirm the required flow rate, inlet water quality, outlet water requirements, operating pressure, connection size, and installation dimensions.
