TPLP2992IM5X-1.8

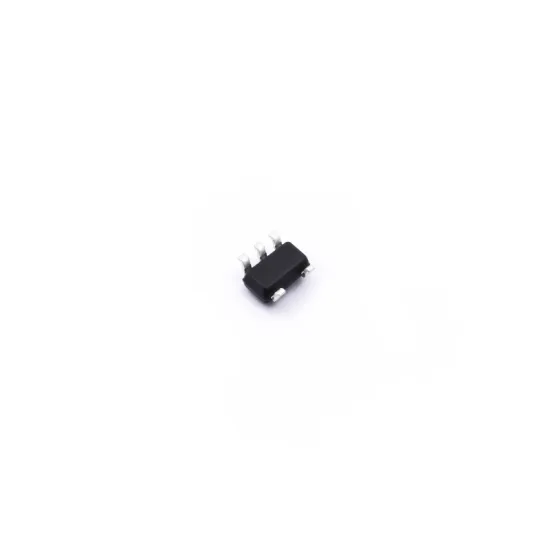

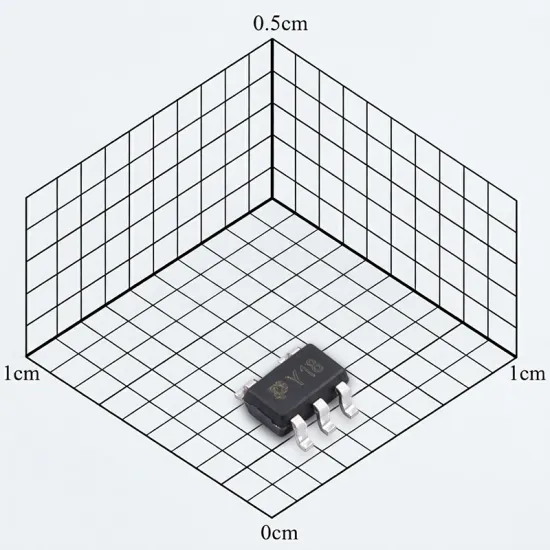

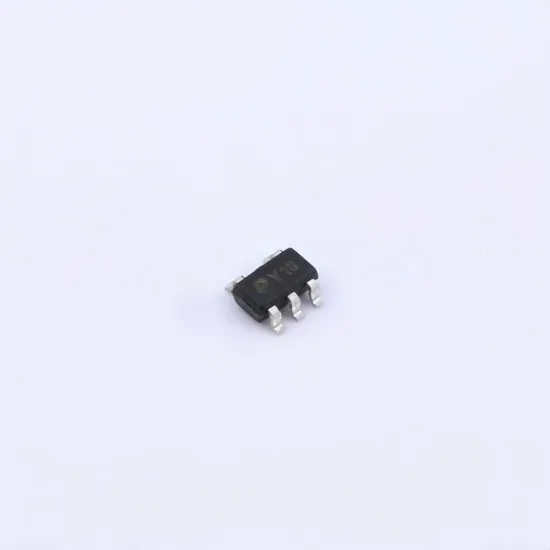

TPLP2992IM5X-1.8 LDO Voltage Regulator IC 1.8V 300mA 24V Low Quiescent Current SOT-23-5
- Operating Voltage：24V
- Output Voltage：1.8V
- Output Current：300mA
- Power Supply Rejection Ratio (PSRR)：70dB@(1kHz)
- Dropout Voltage：500mV@(100mA)
- Quiescent Current (Iq)：2uA
- Package：SOT-23-5
- Package Type：Tape&Reel
USD 0.2
2700
