Product Description

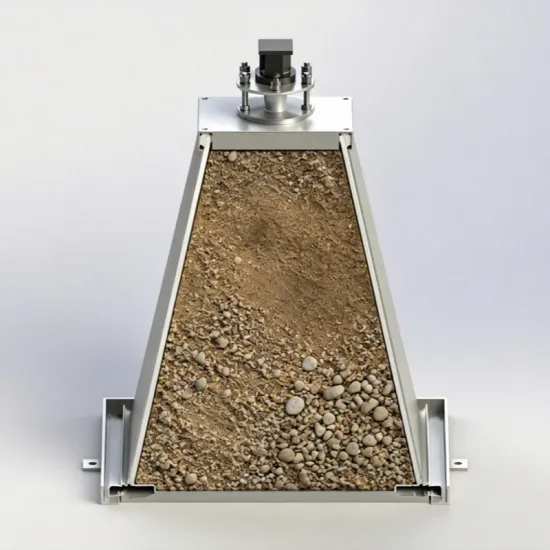

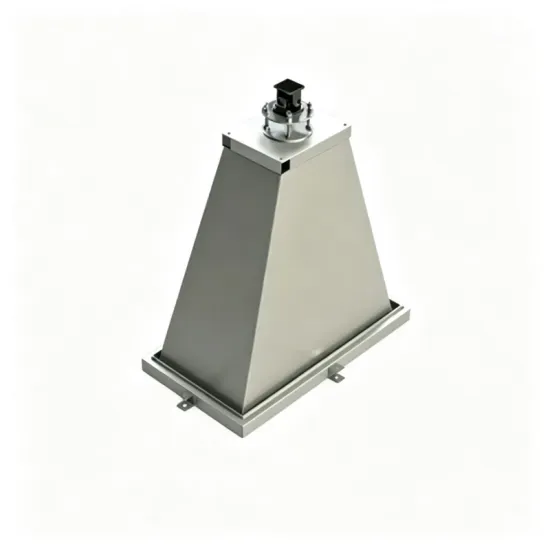

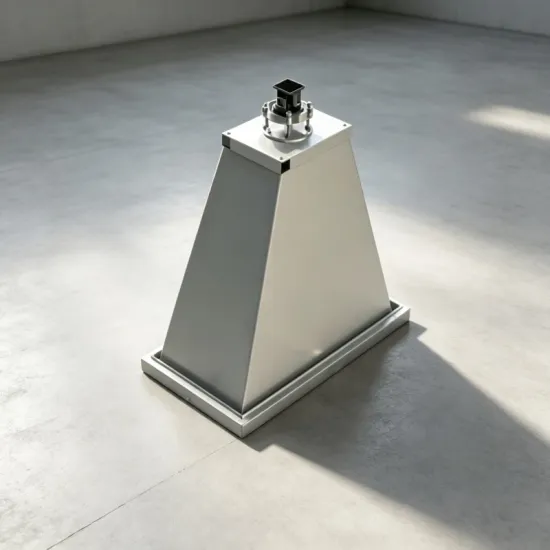

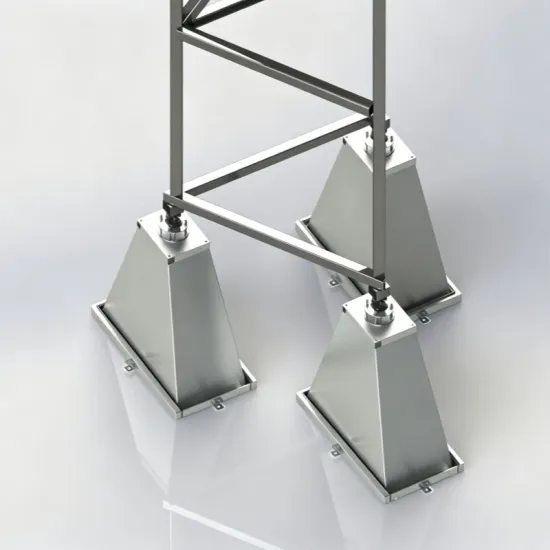

The GP-0.5 Modular Ground Pier is a prefabricated foundation solution designed for modular buildings, renewable energy systems, and equipment installations. Its modular structure supports efficient on-site assembly, adjustable top alignment, and reduced reliance on conventional concrete foundation work. The system can be configured according to project requirements and may be removed and reused where site conditions permit.
Key Features
1. Modular Structure
A modular component design allows flexible configuration for different foundation layouts and project requirements.
2. Efficient Installation
Designed to reduce complex on-site civil works and minimize the need for concrete pouring and heavy construction equipment, subject to site conditions.

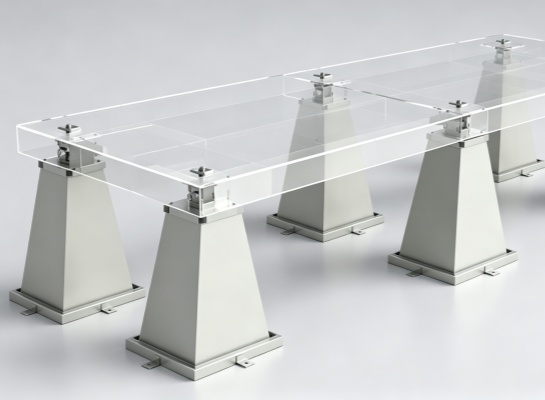

3. Adjustable Top Alignment
The adjustable top connection helps correct installation height and alignment, supporting more precise positioning of the structure above.
4. Stable Structural Support
The metal foundation structure provides support for compatible buildings and equipment when properly selected and installed according to the required loads and ground conditions.
5. Reusable Components
The removable modular design supports relocation and reuse where the foundation, connections, and site conditions allow.
6. Reduced Ground Disturbance
Compared with conventional concrete foundations, the system can reduce excavation and concrete use, depending on the project design.
Product parameters

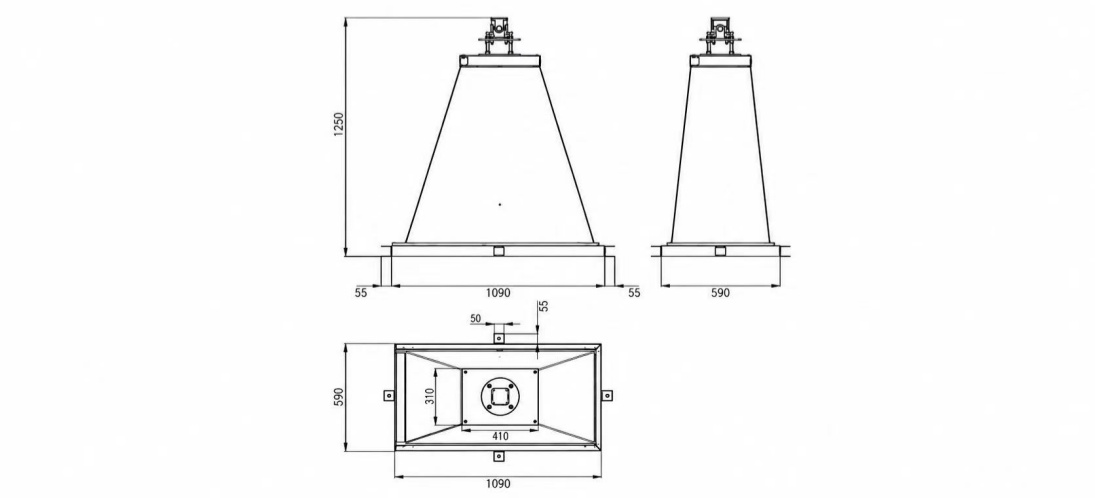

Dimensions | 1*0.5*1m, 1*0.5*1.5m, Customizable |
Material | Carbon Steel / Stainless Steel, Customizable |
Surface Treatment | Hot-Dip Galvanized |
Available sizes | 0.5m³, 7.5m³, Customizable |
Wall Thickness | 3 mm |
Connection Type | Modular |
Soil Conditions | Natural soil (soft or compacted), Sandy ground, Gravel and mixed terrain, Backfilled land |
Project Installation & Deployment
The modular design is intended to simplify on-site assembly and reduce the amount of conventional foundation work. Before installation, confirm the ground conditions, foundation layout, required elevation, load distribution, and connection compatibility. Final installation procedures should follow the manufacturer's instructions and the approved project design
Integrated Infrastructure Applications
The GP-0.5 can be evaluated for modular infrastructure projects that combine prefabricated structures, renewable energy systems, and automated equipment. Potential configurations include solar-powered monitoring stations, remote equipment shelters, and robot docking or charging facilities. Foundation selection should be verified against the actual equipment loads, anchoring design, and site conditions.
Robot Base Stations

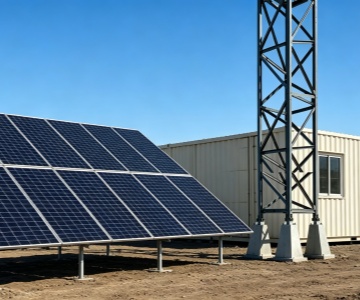

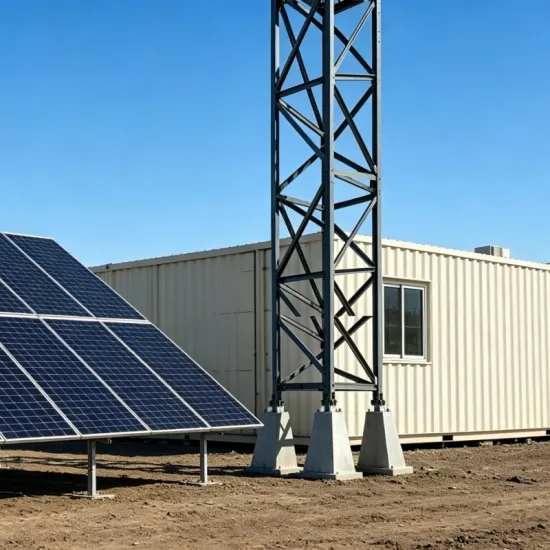

Solar Energy Systems

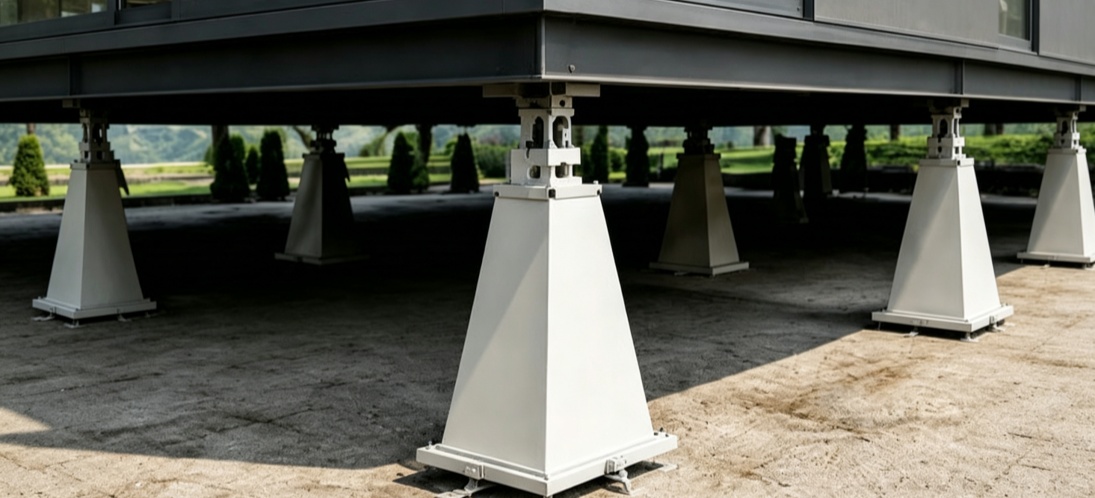

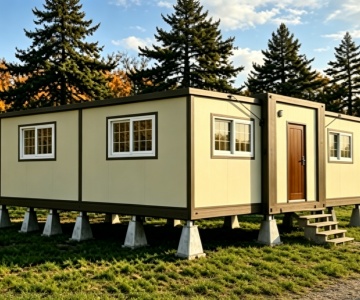

Prefab & Modular Buildings
Project Configuration & Support
Foundation requirements vary with building dimensions, equipment loads, site conditions, and installation layouts. Confirm the required quantity, dimensions, top connection configuration, and installation conditions before placing an order. Project drawings and equipment specifications can be used to evaluate the appropriate foundation arrangement.
