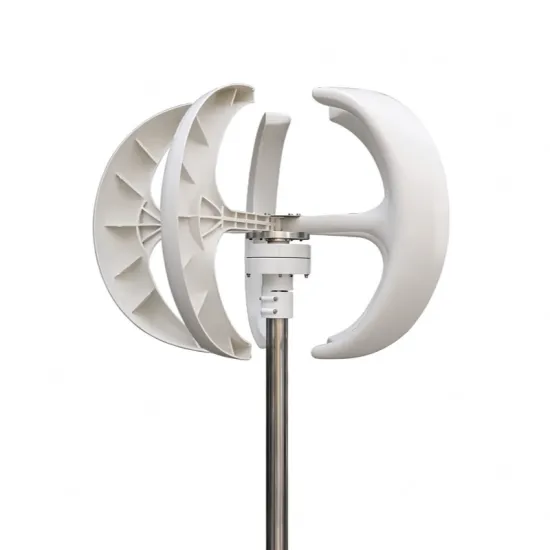

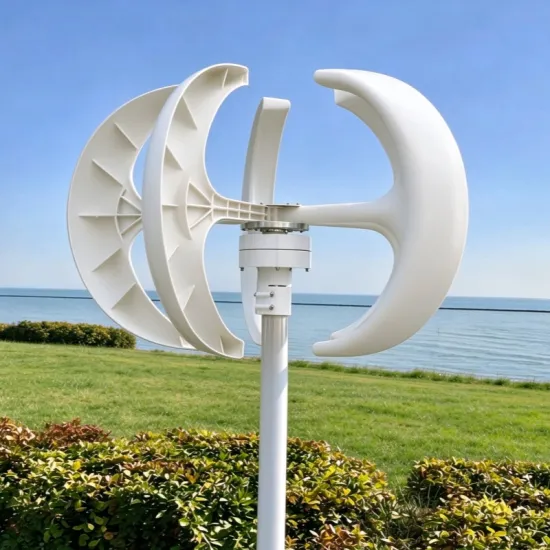

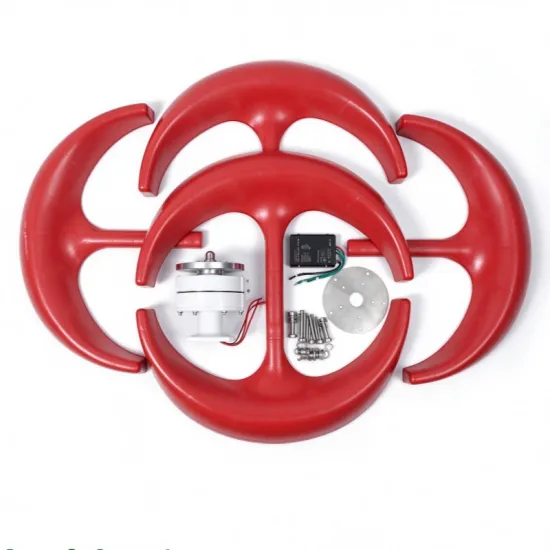

Product Description
The VT Series Vertical Axis Wind Turbine uses a three-phase AC permanent magnet generator with magnetic levitation technology. Its vertical-axis design adapts to changing wind directions without manual adjustment. It is designed for distributed wind power applications, including lighting, battery storage, and small household appliances.
Key Features
1. Low-Wind-Speed Startup
Designed to begin generating power in light winds.

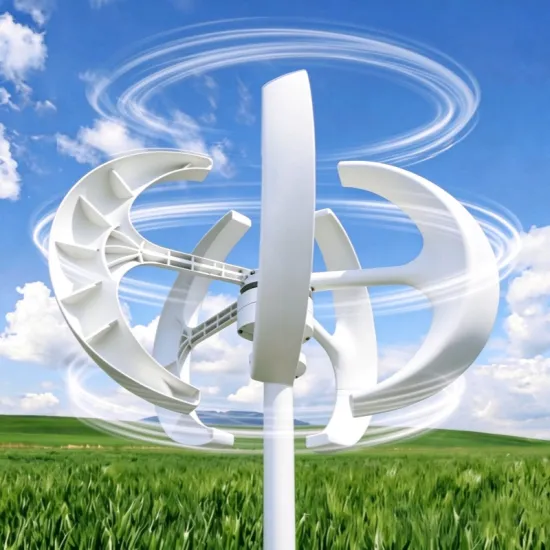

2. Wind Direction Adaptability
The vertical-axis design operates without manual wind-direction adjustment.
3. Low-Noise Operation
Suitable for residential and outdoor installations.
4. Weather Protection
Waterproof and dustproof design for outdoor use.
5. Corrosion Protection
Aluminum alloy and carbon steel construction with triple-layer protection against corrosion and leakage.
Product parameters
Rated power | 300W | 400W | 450W | 600W | 800W | 1000W |
Max power | 350W | 350W | 500W | 650W | 850W | 1050W |
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V |
Start-up wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | 1.3m/s |
Rated wind speed | 12m/s | |||||
Survival wind speed | 45m/s | |||||
Net weight of main engine | 12kg | |||||

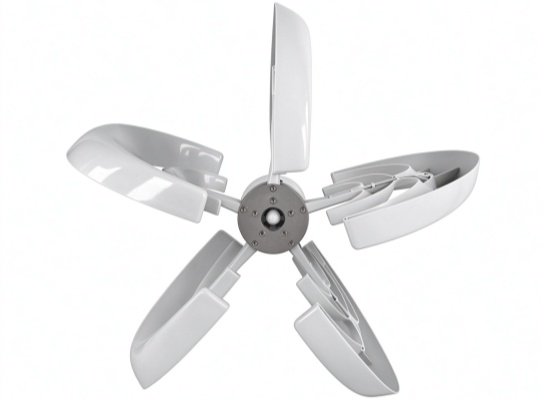

Number of blades | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 3 pieces |
Blades material | nylon fiber | |||||
Body material | nylon fiber | |||||
Generator | three phase AC | |||||
Control System | electromagnetic brake | |||||
Yaw Mode | automatic windward | |||||
Lubrication mode | self lubrication | |||||
Working temperature | -40℃-80℃ | |||||

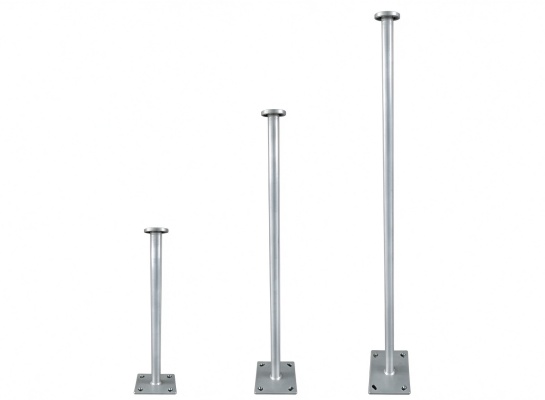

Tower & Mounting Options
①

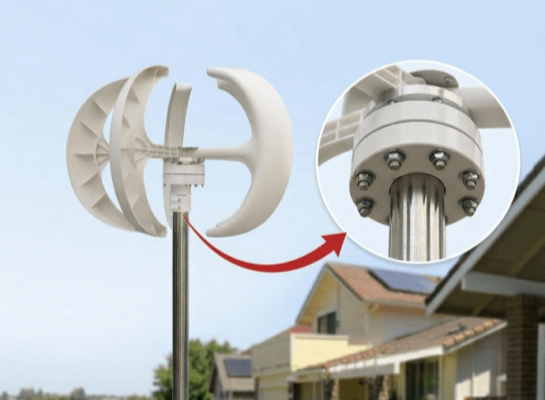

The turbine uses a standard flange mounting system for attachment to compatible poles or tower structures. Insertion mounting may be available as a custom option for selected low-power models. Matching poles, guy wire kits, and complete installation solutions are available for project configuration.
②
Power Range | Recommended Pole Diameter | Suggested Height |
100–500W | 50 mm | 3–6 m |
500–1000W | 60 mm | 6–10 m |
1000–2000W | 89 mm | 8–12 m |
The specifications above are for reference only. Confirm the applicable pole configuration, mounting method, and model specifications before ordering. Customized wind-solar-storage configurations are available upon request.

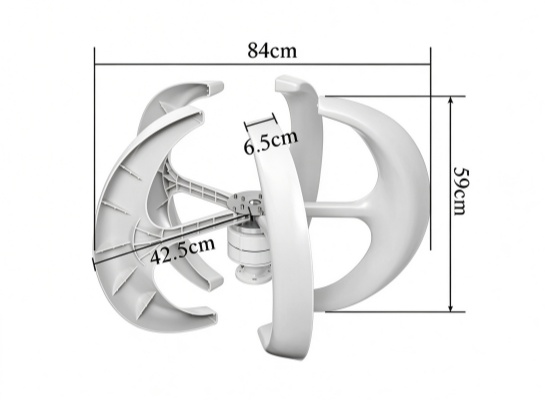

Product Dimensions
Wind-Solar Hybrid System
①Wind Turbine
②Wind Solar Hybrid Controller
③Batttery
④Off-Grid Inverter
⑤AC Bypass
⑥Solar
⑦Dump Load
⑧DC Loads
⑨AC Loads
⑩Grid
Application Scenarios

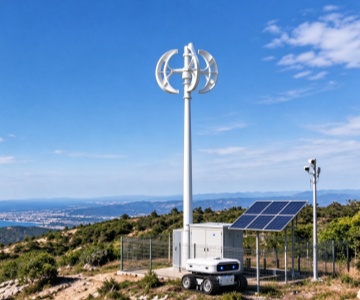

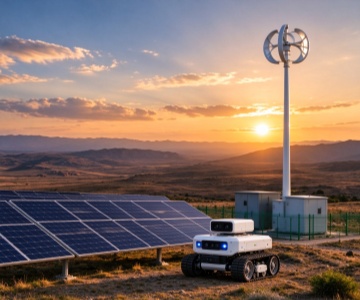

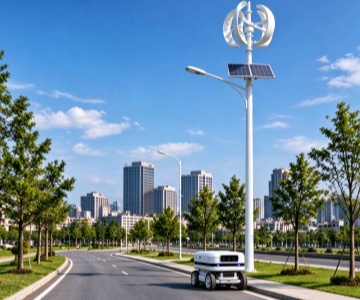

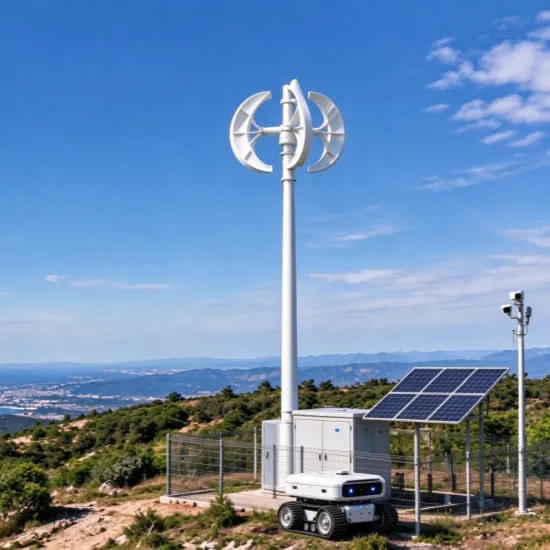

The VT Series can be used in distributed wind power systems for residential lighting, outdoor camping power, battery storage, and small household appliances. It may also be considered for auxiliary power in remote monitoring stations or outdoor robot workstations, subject to load requirements and system compatibility.
Ordering & Technical Support
Model selection, order quantities, delivery schedules, and technical requirements can be confirmed before ordering. Product specifications, installation guidance, and after-sales support are available according to the selected model and project requirements.
