Product Description
Flexible solar panels are lightweight, slim photovoltaic modules made with monocrystalline silicon cells for mobile and off-grid power applications. With bending capability of up to 60° and a weight up to 70% lower than traditional glass panels, they can be installed on suitable curved or flat surfaces. Available in 50W, 100W, and 200W models, they are suitable for RVs, boats, cabins, and compatible outdoor robot systems. The panels feature an upgraded busbar design, a waterproof junction box, and sealed MC4 connectors for electrical connections in outdoor applications.
Product parameters
Model | M50 | M100 | M200 |
Conversion Efficiency | 23% | ||
Maximum Power | 50W | 100W | 200W |
Dimensions (mm) | 460*590 | 590*935 | 780*1280 |
Module Weight (KG) | 0.91 | 2.49 | 2.8 |
Operating Current(A) | 2.57 | 5.5 | 11.1 |
Power Tolerance | 0-3% | ||
Waterproof Rating | IP67 | ||
Model Selection Guide
Model | Suitable Applications |
M50 | Compact outdoor inspection robots, small mobile monitoring devices, and low-power off-grid equipment |
M100 | Mobile robotic platforms, remote monitoring systems, and medium-power off-grid equipment |
M200 | Larger mobile equipment, outdoor robotic systems with sufficient mounting space, and higher-power off-grid applications |
Product Display
Lightweight and Slim Design

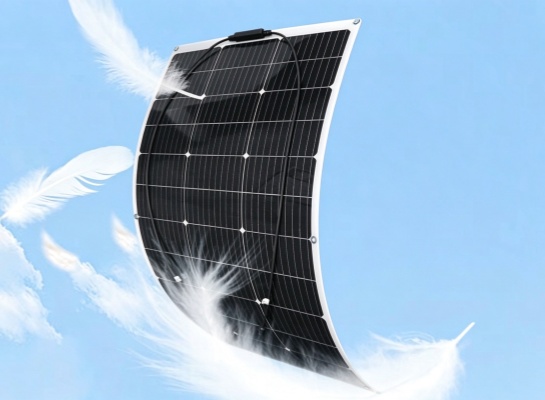

The panels are up to 70% lighter than traditional glass panels, making them suitable for mobile equipment and installations where weight and available space are important.
Flexible Panel Structure

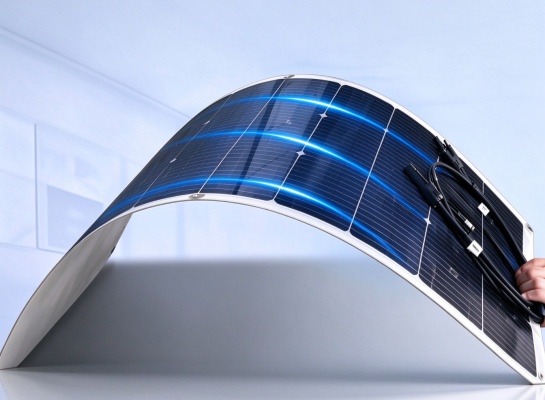

Designed to bend up to 60°, the panel can conform to suitable curved surfaces for applications where rigid modules are difficult to install.
Upgraded Busbar Design
The upgraded busbar design is intended to improve electrical output and energy efficiency.
Waterproof Electrical Components

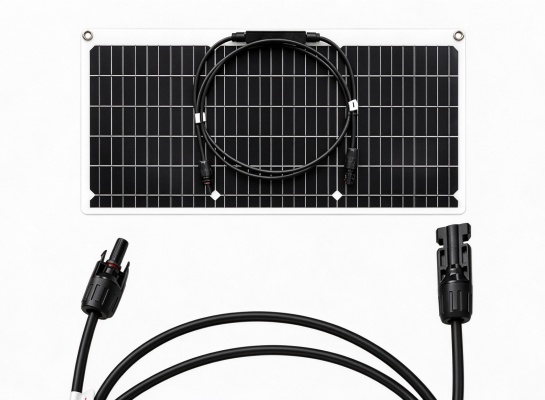

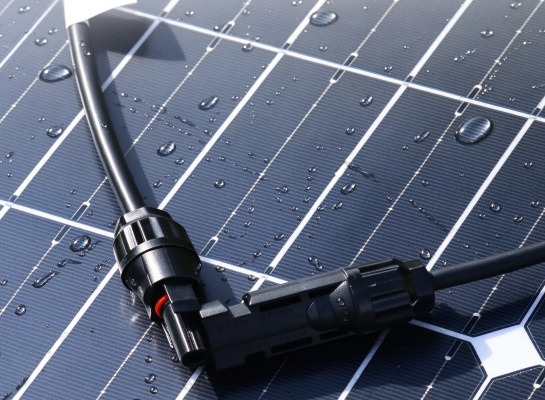

The panel features a waterproof junction box with enhanced diode protection and sealed MC4 connectors for electrical insulation and moisture protection.
Product Details

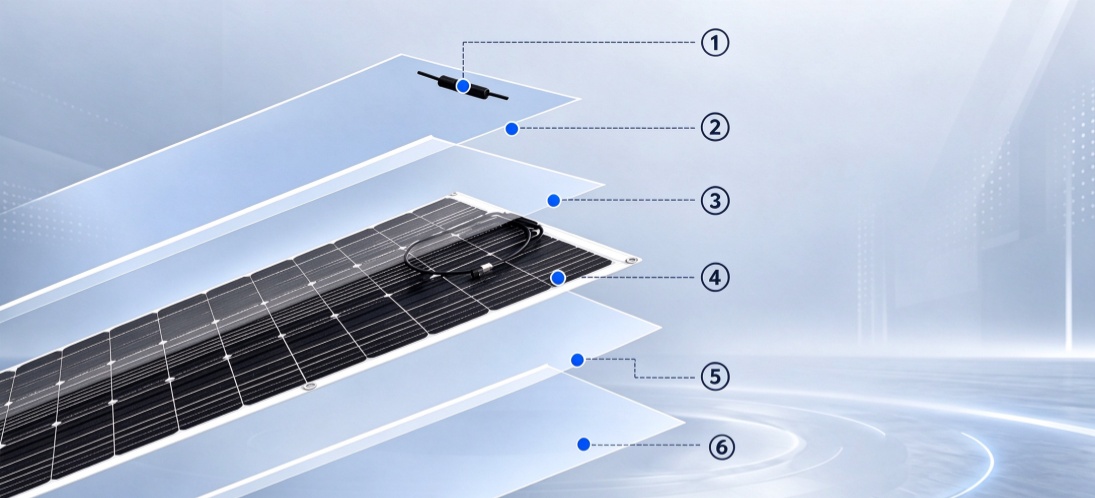

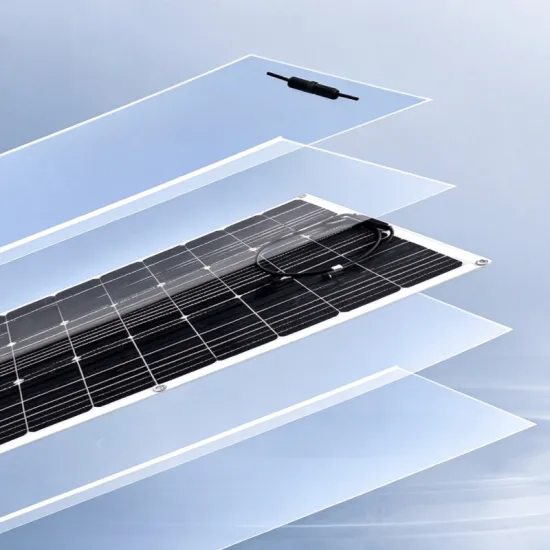

Product Structure
① Waterproof Junction Box
② PET/ETEF
③ EVA
④ Solar Cell
⑤ EVA
⑥ PET
Application Cases

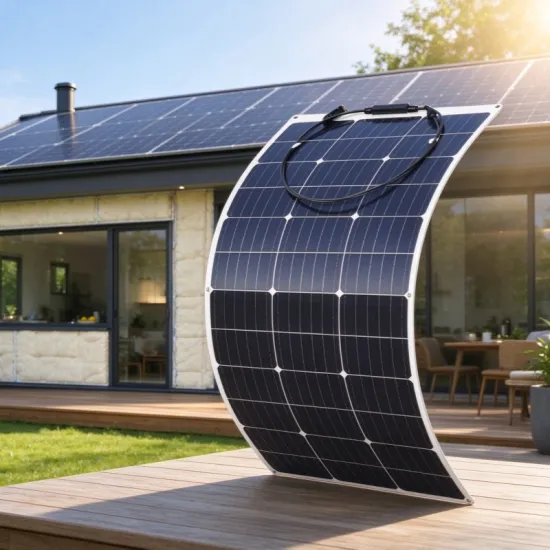

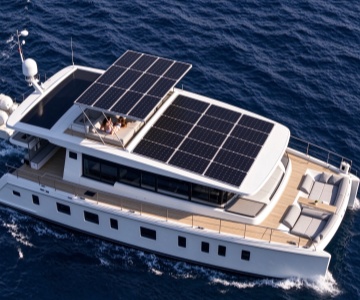

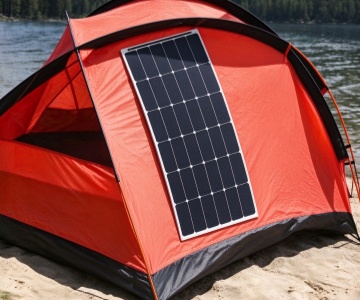

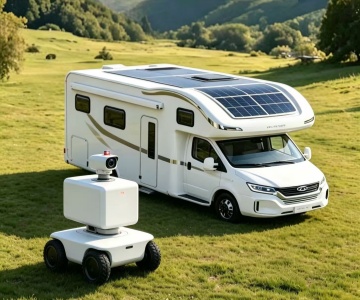

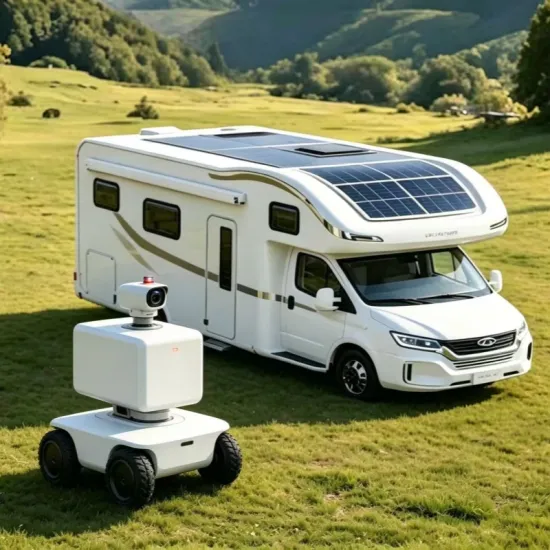

Suitable for RVs, boats, cabins, and off-grid power systems, these flexible solar panels can also be considered for compatible outdoor inspection robots, mobile robotic platforms, and remote equipment where solar charging is feasible. Actual suitability depends on the available mounting area, sunlight exposure, daily energy demand, and battery system configuration.
