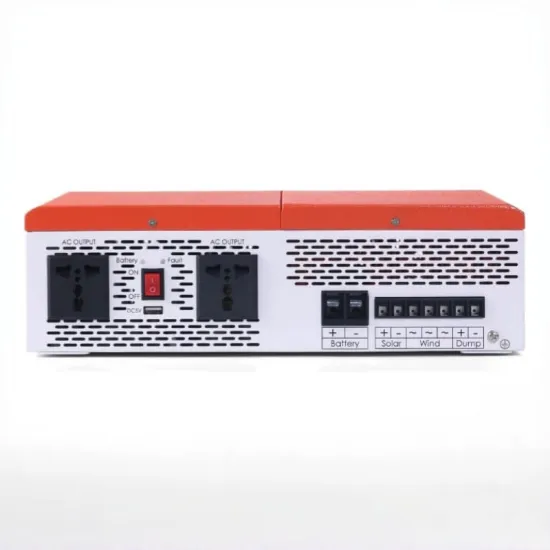

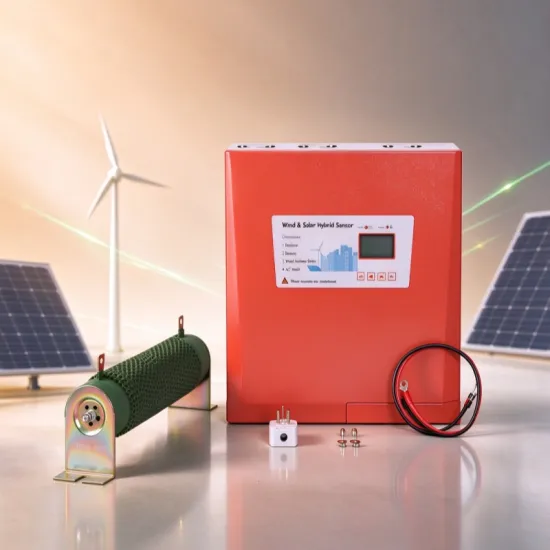

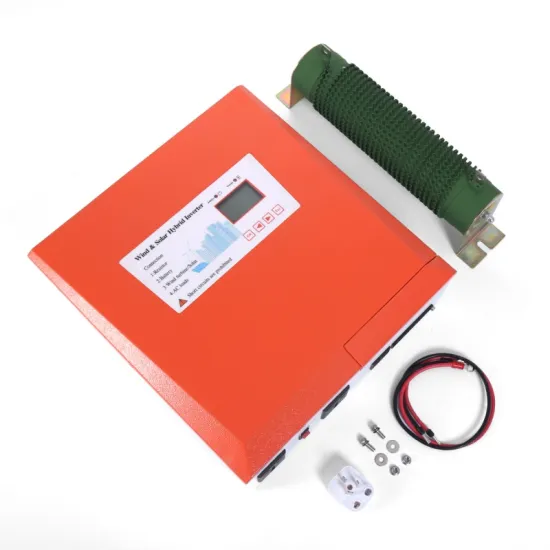

Product Description
This hybrid wind-solar inverter combines wind and solar charging control with DC-to-AC power conversion in one unit. It supports 12V, 24V, and 48V battery systems and provides pure sine wave AC output for off-grid electrical equipment. With dual MPPT charging control, LCD monitoring, and automatic protection functions, it can be used in remote robot power stations and other standalone energy systems.
Product Features
1. Wind & Solar MPPT Charging
Supports wind and solar charging control, including boost MPPT control for wind input, to manage energy collection from both sources.
2. Pure Sine Wave AC Output
Provides 110V or 220V AC output, depending on the selected configuration, for compatible electrical loads.
3. LCD System Monitoring
Displays battery, wind, solar, and load information, including voltage and current readings, with selected parameters adjustable through the controller.
4. Intelligent Battery Management
Supports battery voltage monitoring, charging control, and low-voltage and overvoltage protection. Battery settings should match the selected battery type.
5. Automatic Protection & Recovery
Includes overload, overcurrent, short-circuit, overtemperature, reverse-polarity, and voltage protection. Output can automatically resume when applicable battery or load conditions return to normal.

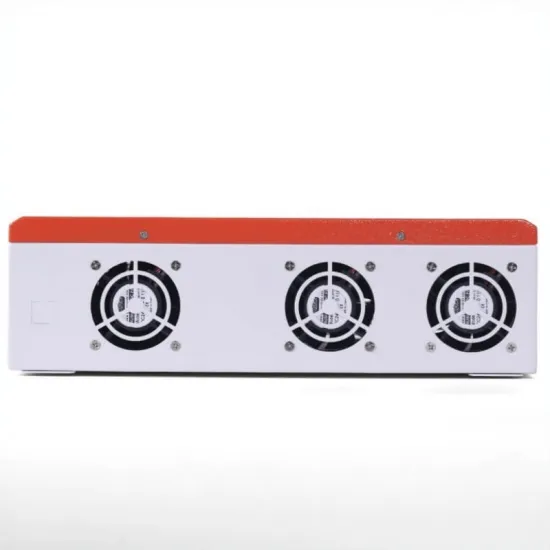

6. Temperature-Controlled Cooling
Uses a temperature sensor and intelligent fan control to manage heat dissipation during operation.
Product parameters
System Voltage | Output Waveform | Conversion Efficiency |
12V/24V/48VDC | Pure Sine Wave | ≥90% |
Rated Power | Peak Power | Output Voltage |
1000W / 2000W | 2000W / 4000W | 110V/220VAC ±3% |
Power Input | ||
Item | PV | Wind Turbine |
Rated Power | 600W/12V, 1200W/24V, | 300W/12V, 800W/24V, |
Max Input Voltage | 12/24V System: PV≤80VDC | 12/24V System: Wind Turbine≤80VDC |
Charge Control Method | PV MPPT&PWM Charging | Wind Turbine Boost MPPT&PWM Charging |
Unloading Method | — | External Dump Load Resistor |
Output | ||
Item | 1000W Model | 2000W Model |
Rated Power | 1000W | 2000W |
Peak Power | 2000W | 4000W |
Inverter Output Voltage | 110V/220VAC ±3% | |
Inverter Output Frequency | 60/50Hz ±1% | |
Inverter Output Waveform | Pure Sine Wave | |
Distortion | THD≤3% | |
Conversion Efficiency | ≥90% | |
Soft Start | Yes | |
USB Port | 5VDC/2A | |
Modulation Method | Center-aligned PWM Modulation | |
Net Weight | 8.5kg | 9.5kg |
Gross Weight | 9.5kg | 10.5kg |
Protection & Features | ||
Protection Types | Over-current, Overload, Short-circuit, Under-voltage, Over-voltage, Over-temperature, Reverse-connection Protection, etc. | |
Display Method | LCD Display + LED Indicator | |
Cooling Method | Intelligent Fan Cooling Control | |
Communication Method | GPRS Remote Monitoring (Optional) / RS485 (Optional) | |
Operating Temperature & Humidity Range | -20~+55℃ / 35~85%RH (Non-condensing) | |
Product Size | 354*350*107.4mm | |
Package Size | 490*420*190mm | |
Battery Settings (12V / 24V / 48V Systems) | ||
Item | Lead-acid/Gel (b1) | LiFePO4 (b4) |
Overcharge Protection (Charge Protection) | 14.4V/28.8V/57.6V | 14.4V/28.8V/57.6V |
Under-voltage Protection (Load Disconnect) | 10.0V/20.0V/40.0V | 10.0V/20.0V/40.0V |
Low Voltage Alarm (Battery Low Voltage) | 10.5V/21.0V/42.0V | 10.5V/21.0V/42.0V |
Under-voltage Recovery (Load Reconnect) | 12.0V/24.0V/48.0V | 12.0V/24.0V/48.0V |
Over-voltage Recovery (Load Reconnect) | 15.0V/30.0V/60.0V | 15.0V/30.0V/60.0V |
Over-voltage Protection (Load Disconnect) | 15.5V/31.0V/62.0V | 15.5V/31.0V/62.0V |
Note: Factory default is the parameters for conventional lead-acid gel batteries. Custom (b0) and NCM Lithium Battery (b2/b3) settings are available on request; other customized systems and lithium battery systems must be confirmed through prior communication before shipment.

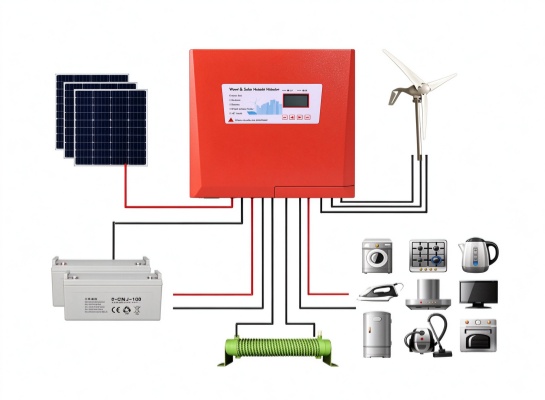

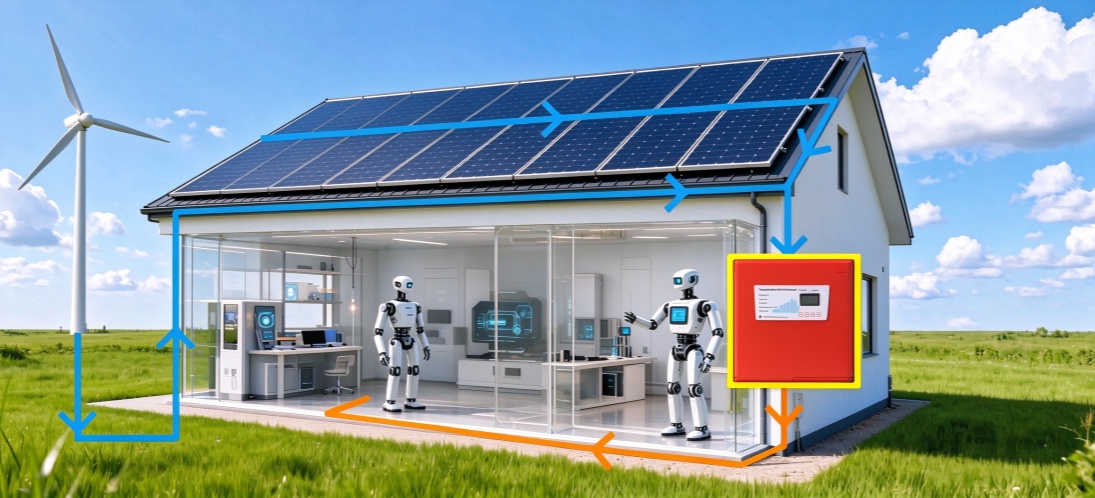

System Configuration Guide
The hybrid inverter integrates wind and solar charging with battery storage and AC power output. Select the appropriate model according to the battery voltage, wind and solar input ratings, and load requirements. For robot charging stations, confirm the robot's power demand and charging requirements before configuring the system.
Applications Scenarios
The hybrid wind-solar inverter can be used in boats, residential homes, and remote island power systems. By integrating wind and solar charging with battery storage, it supports compatible electrical loads in locations where grid power is limited or unavailable.
Ordering & Supply Support
Model Selection
12V/24V/48V battery systems available with varied input & inverter output. Confirm specs prior to order.
Order & Lead Time
MOQ, lead time and repeat order availability subject to model & quantity.
Packaging & Shipment
Dimensions, weights, carton specs and shipping info available for freight calculation.
Technical Support
Specs, battery setup, wiring & system compatibility support before installation.
Optional Communication
GPRS & RS485 optional. Check availability & compatibility before ordering.
