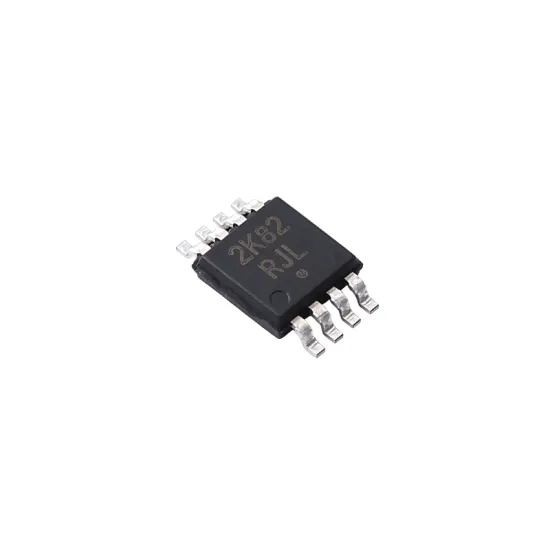

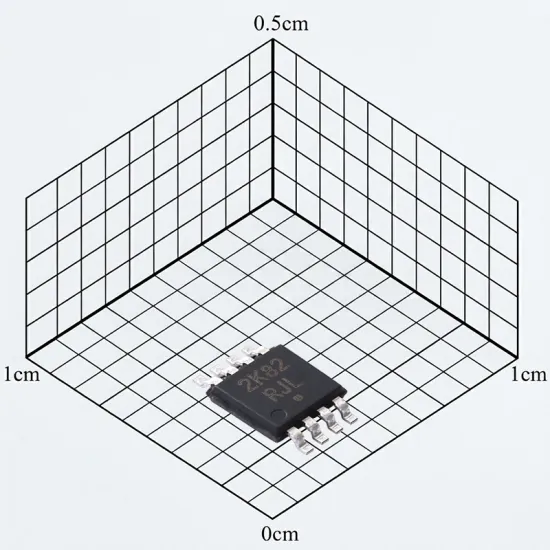

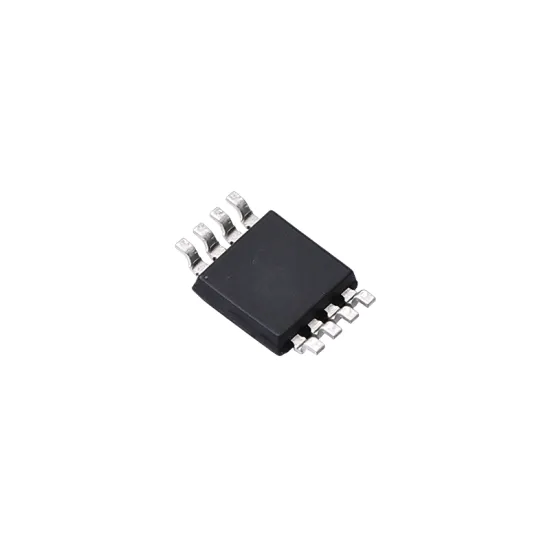

TPNCS20082DMR2G
This dual operational amplifier features rail-to-rail input/output, low quiescent current, and wide supply range for battery-powered instruments.
- Gain-bandwidth product (GBW) ：1MHz
- Input offset voltage (Vos) ：5mV
- Input offset voltage temperature drift (Vos TC)：2uV/°C
- Quiescent current (lq) ：55uA
- Output current ：20mA
- Operating temperature ：-40°C~+125°C
- Single supply voltage：1.8V~5.5V
- Product packaging ：MSOP-8
- Packaging Type ：Tape & Reel
USD 0.183
18000
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
