Product Description

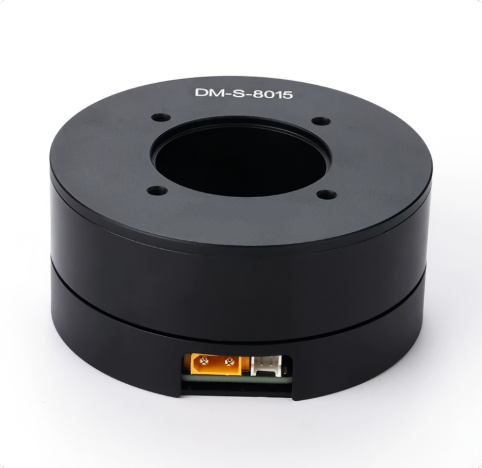

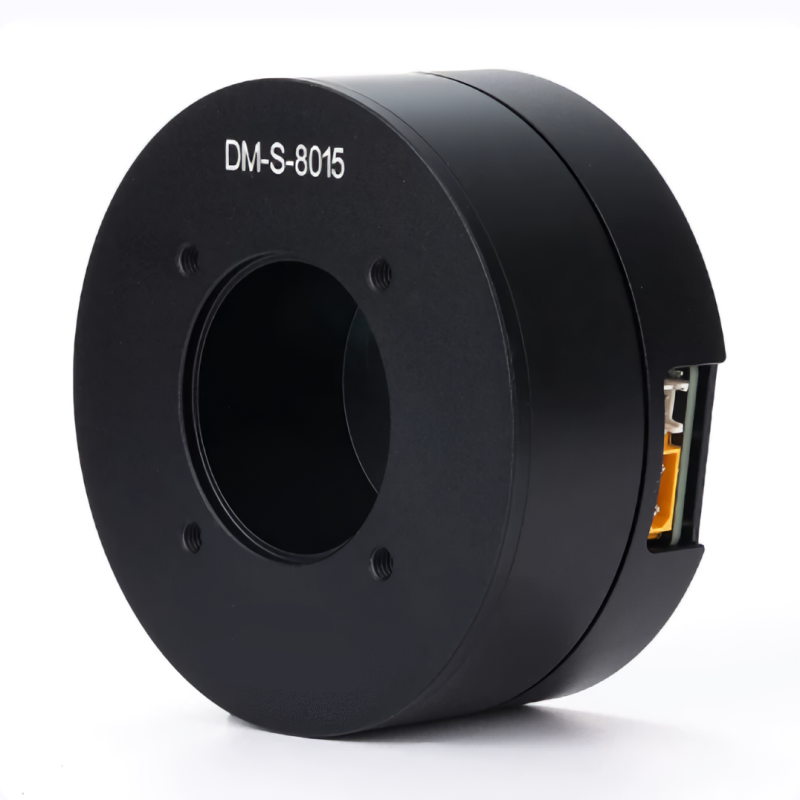

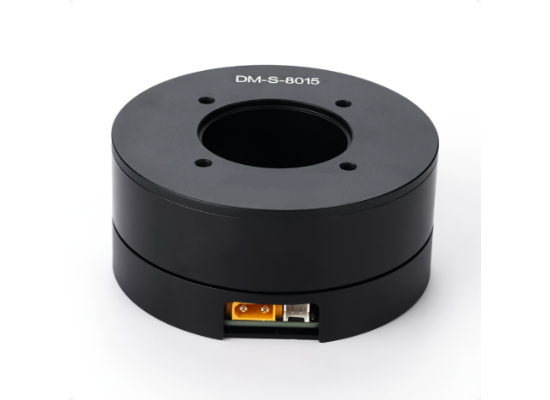

The DM-S-8015 DC Brushless Servo Motor (BLDC) integrates a high-performance FOC driver and precision encoder for exact closed-loop control. Featuring high torque, low noise, low heat, and fast response, its compact integrated design saves valuable space. Ideal for automation equipment, rotary tables, robot joints, and AGVs/AMRs, delivering stable and reliable power for precise position and speed control.

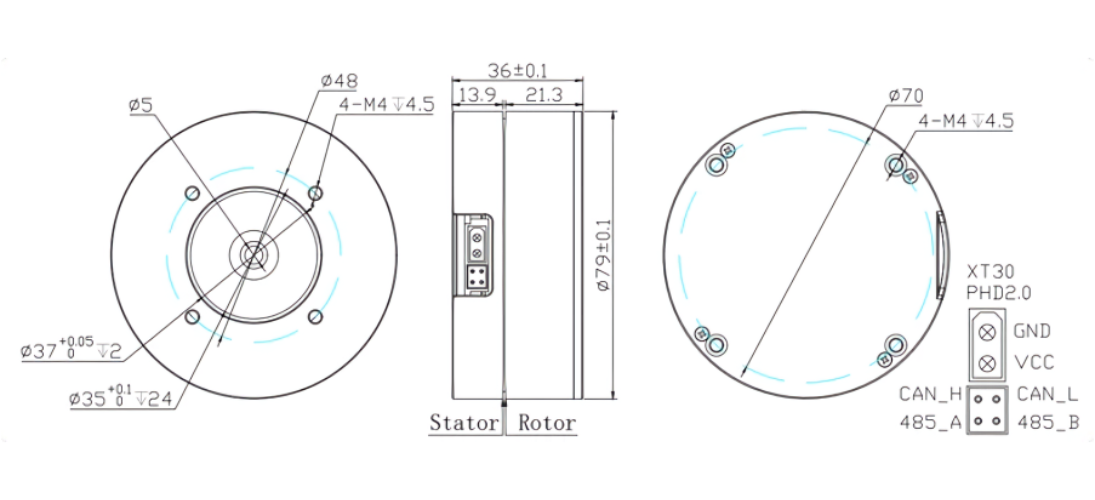

Dimensional Drawin
Product parameters
Details/Model | Unit | DM-S-8015 |
Nominal voltage | V | 24 |
Voltage range | V | 12~40 |
Nominal current | A | 2.9 |
Nominal power | W | 69.6 |
Nominal torque | N.M | 1.2 |
Nominal speed | rpm | 354 |
No-load max speed | rpm | 516 |
Peak torque | N.M | 3.7 |
Peak current | A | 16 |
Speed constant | rpm/v | 21.5 |
Torque constant | N.M/A | 0.41 |
Number of pole pairs | Pairs | 21 |
Phase resistance | Ω | 1 |
Phase inductance | Mh | 0.63 |
Rotor inertial | gcm^2 | 1555 |
Communication | RS485/CAN | |
Encoder type | Single-turn absolute | |
Resolution | bit | 14 |
Motor weight | g | 418 |
Working temperature | ℃ | -20~80 |

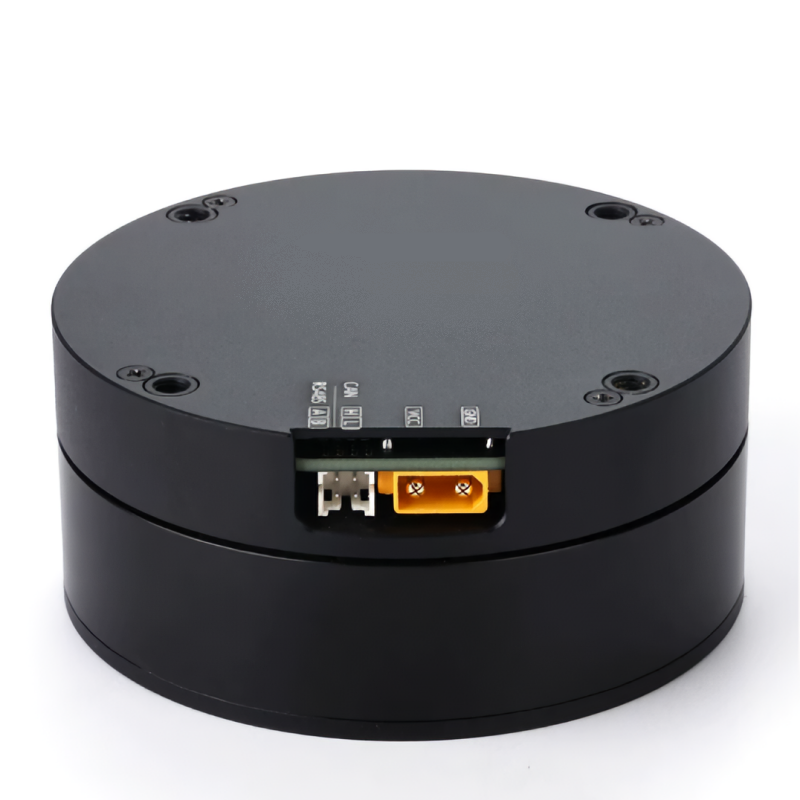

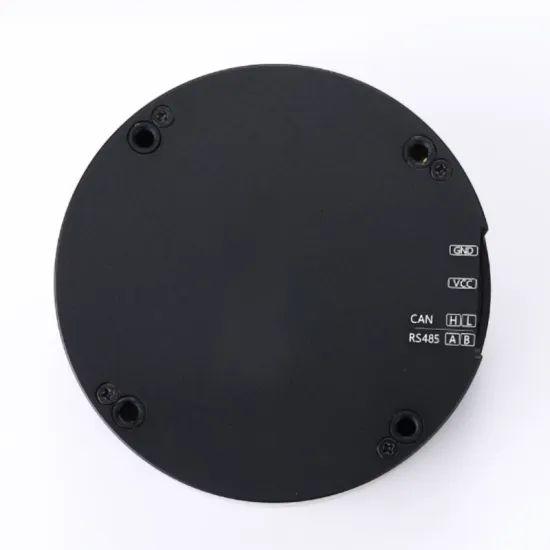

Application wiring diagram

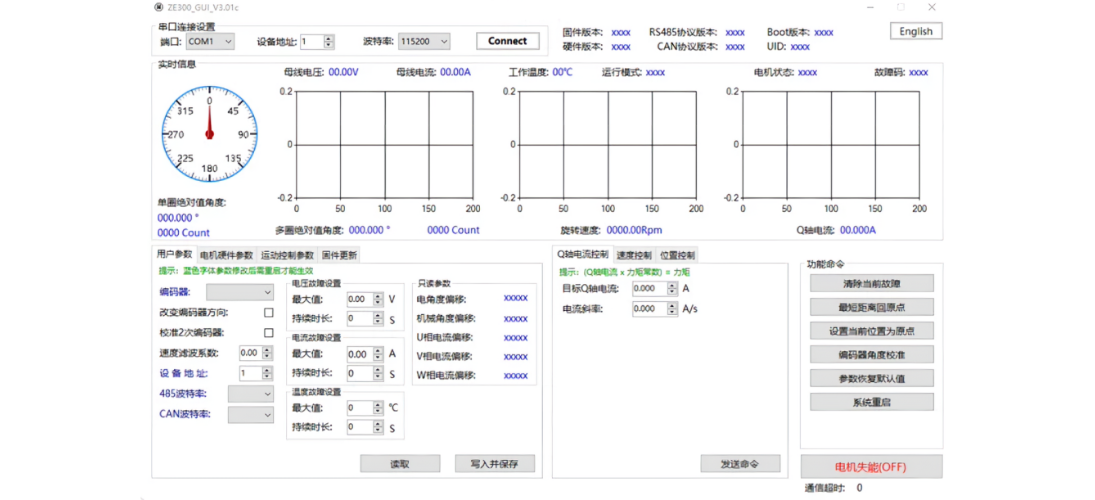

PC Software
|
|
|
Applications
