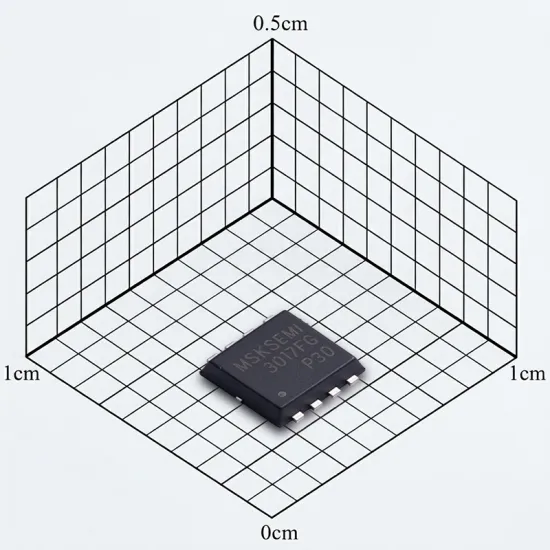

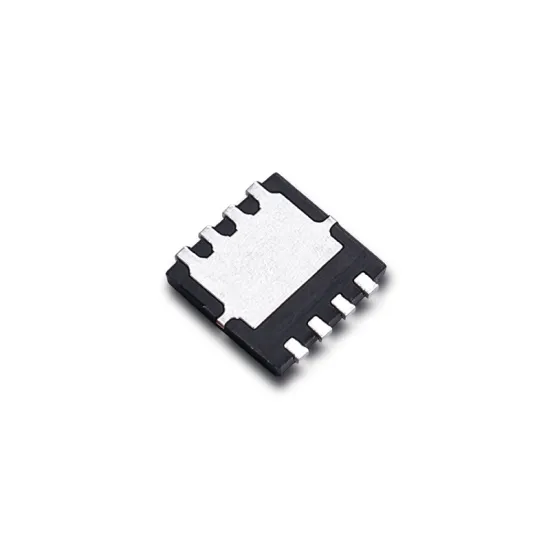

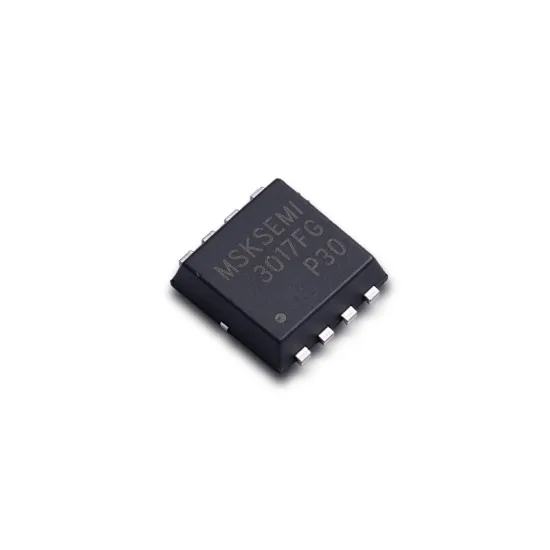

DMP3017SFGQ-MS
DMP3017SFGQ-MS is a 30V, 55A P-channel MOSFET with 8mΩ typical RDS(ON), designed for efficient power management and high-current load switching applications.
- Channel Configuration：Single P Channel
- Drain-Source Voltage (Vdss)：30v
- Continuous Drain Current (Id)：55A
- Drain-Source On-Resistance (RDS(on))：8.5mΩ@10V
- Power Dissipation (Pd)：21.5W

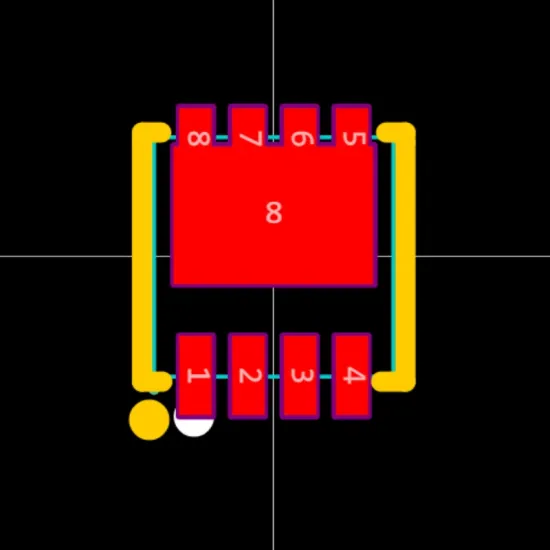

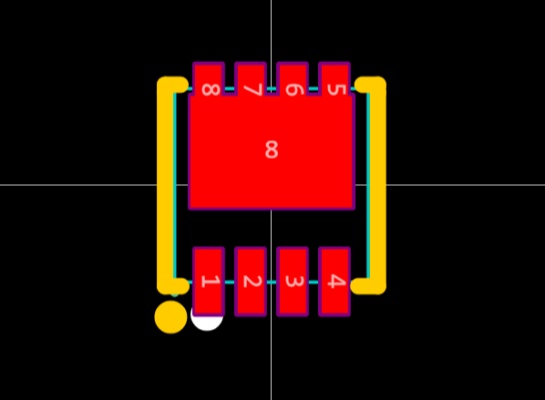

- Package：DFN-8L(3x3)
- Packaging Type：Tape&Reel
USD 0.29
900
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
