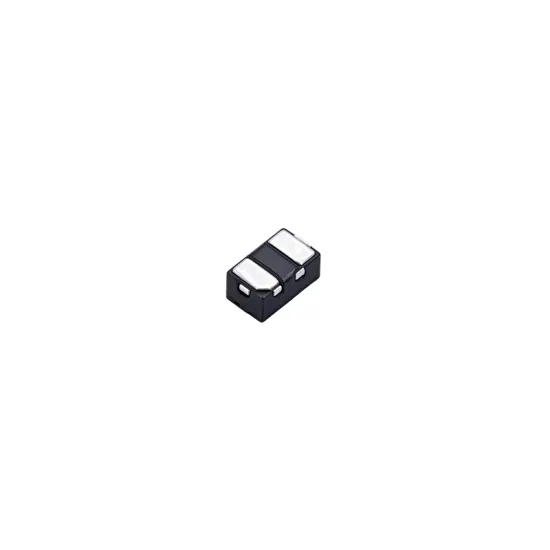

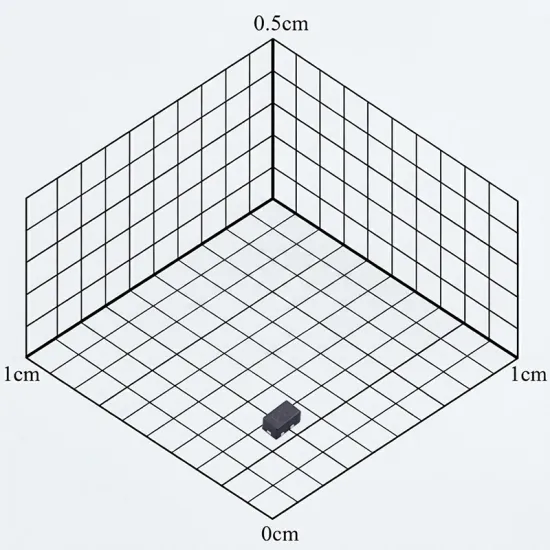

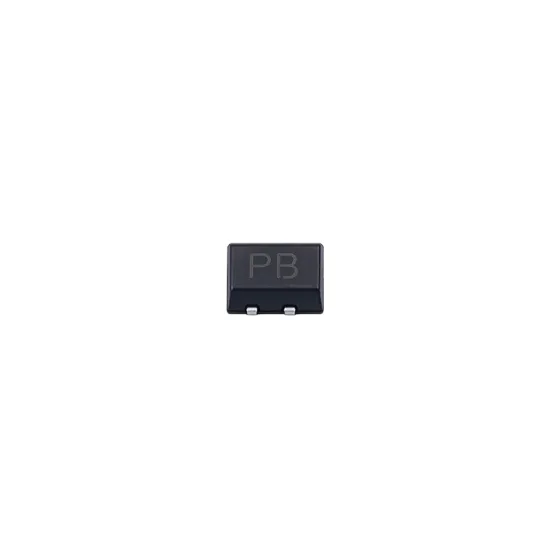

PESD5V0S1BL,315-JSM

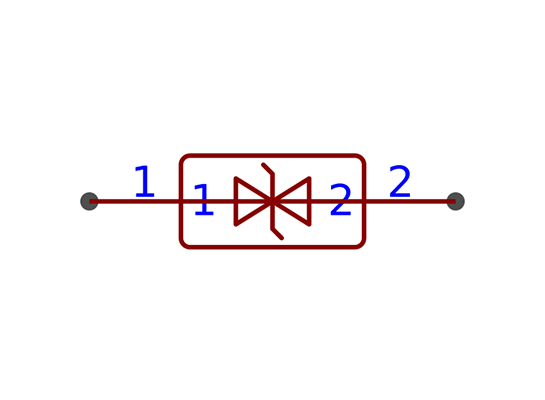

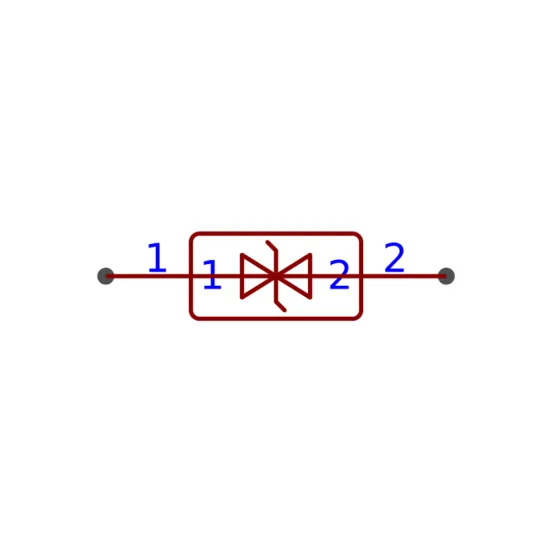

PESD5V0S1BL,315-JSM is a 5V ESD protection diode with 10V clamping, 8A surge, 80W peak pulse power, and DFN1006-2 package for high-speed data lines.
- Clamping voltage ：17V
- Peak pulse current (Ipp) ：5A@8/20us
- Peak pulse power (Ppp) ：68W@8/20us
- Breakdown voltage (VBR) ：9V
- Operating temperature ：-55°C~+150°C
- Protection rating：IEC61000-4-2

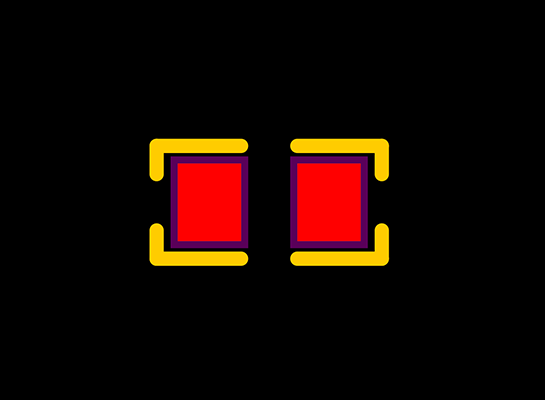

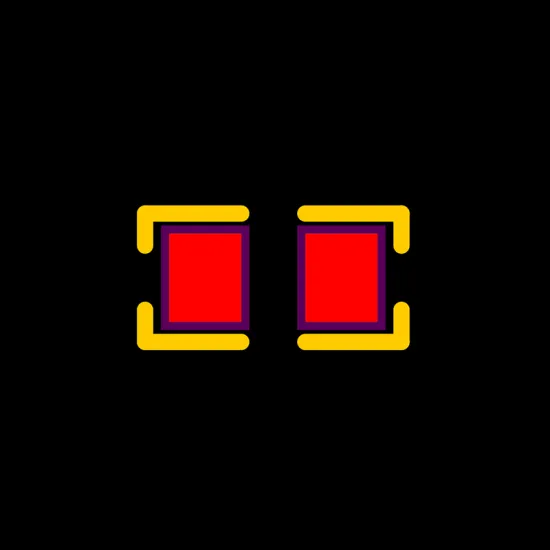

- Product Packaging ：DFN1006-2
- Packing Type ：Tape & Reel
USD 0.0143
16000
