ESD5301N

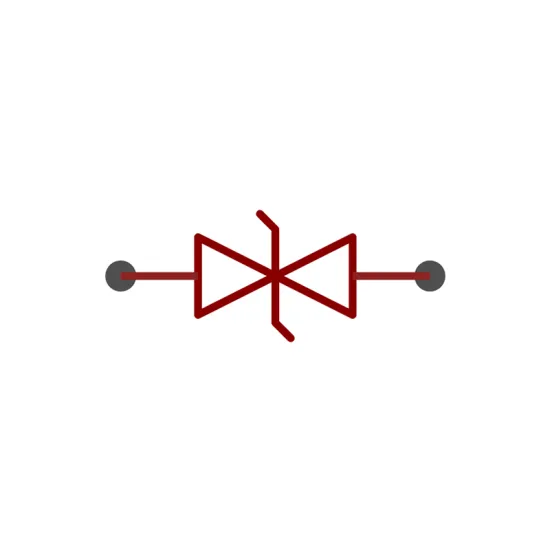

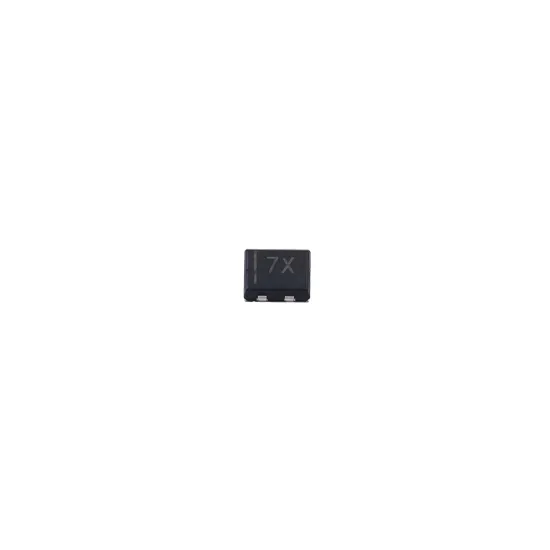

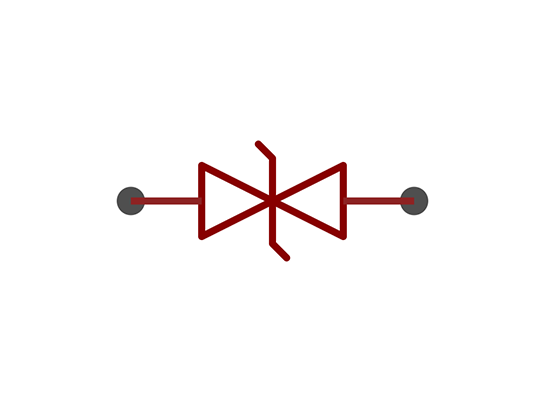

ESD5301N is a 5V ESD protection diode with 50W peak pulse power, ultra-low capacitance, and DFN1006-2 package for high-speed data lines.
- Clamping voltage ：25V
- Peak pulse current (Ipp) ：3A@8/20us
- Peak pulse power (Ppp) ：50W@8/20us
- Breakdown voltage (VBR) ：8.5V
- Protection rating：IEC 61000-4-2

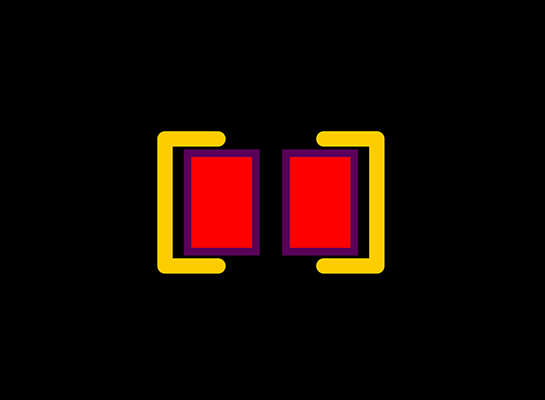

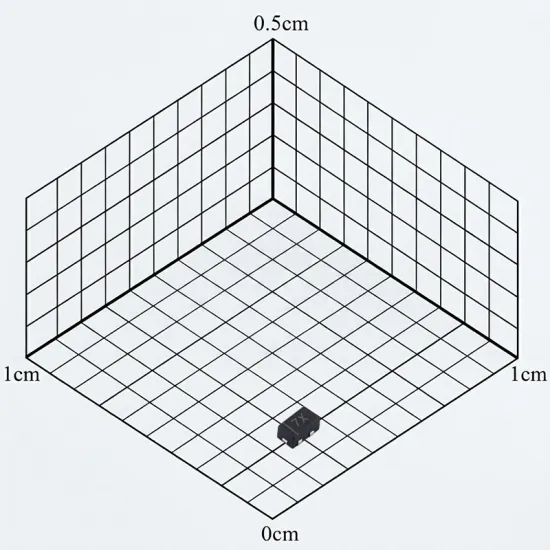

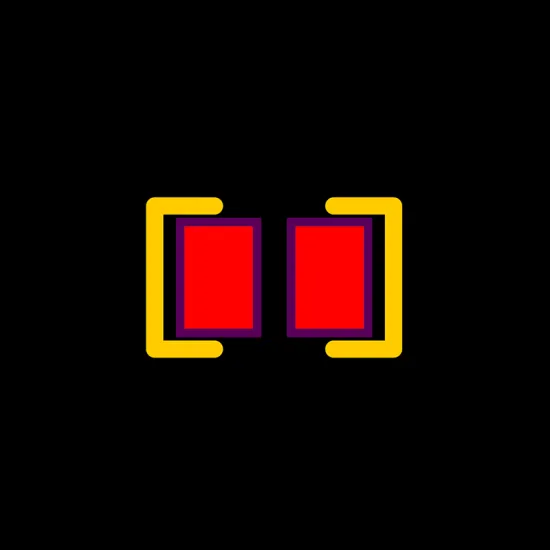

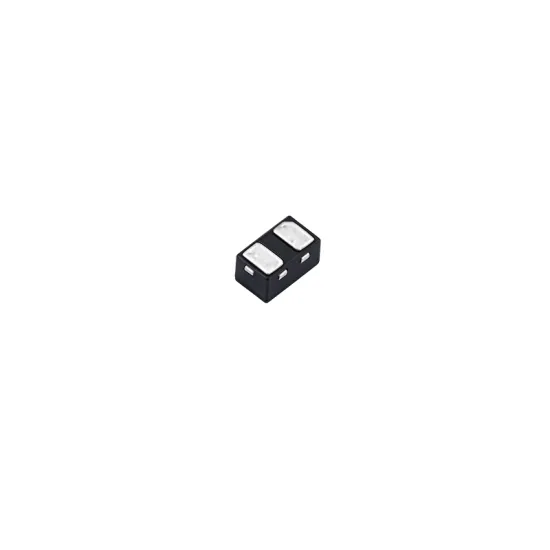

- Product Packaging ：DFN1006-2
- Packing Type ：Tape & Reel
USD 0.0195
16000
