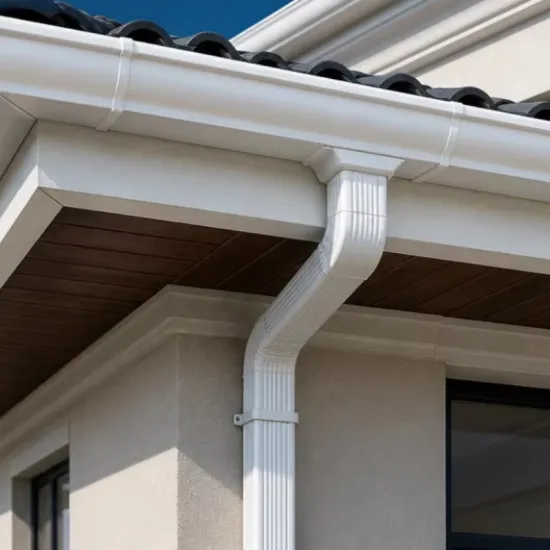

Product Description
The AG-5.5K aluminum roof gutter collects rainwater from roof edges and channels it toward a storage system for filtration and reuse. As the collection and drainage component at the beginning of a rainwater harvesting system, it helps direct roof runoff to the next stage of water storage and management.
Its aluminum construction provides corrosion resistance for outdoor use, while the deep-channel design supports rainwater collection and drainage.
Structural Design & Connection Details
Multi-Point Fixing for Structural Stability
Multiple fixing points help secure the gutter at key positions, supporting structural stability and resistance to deformation.
Sealed Component Connections
Sealant is applied at component joints to help prevent water leakage at the connections.

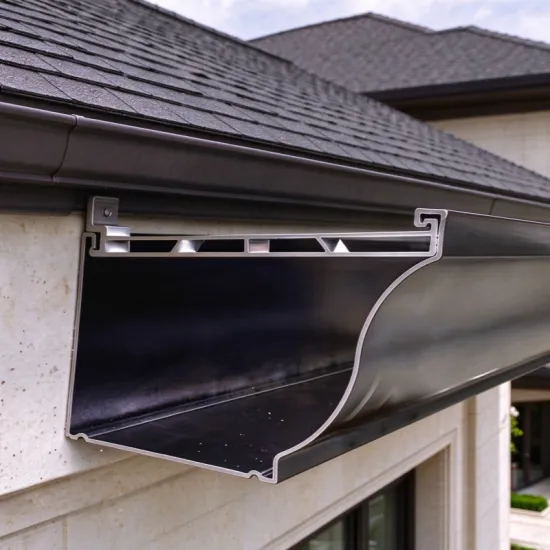

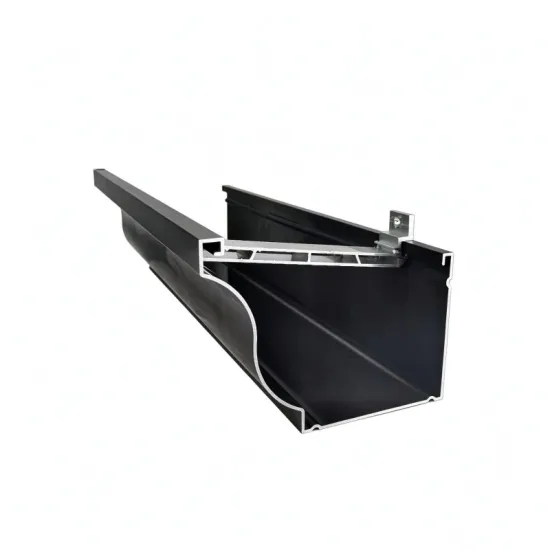

Deep-Channel Design
The deep channel provides space for collecting and directing roof runoff toward the drainage outlet.

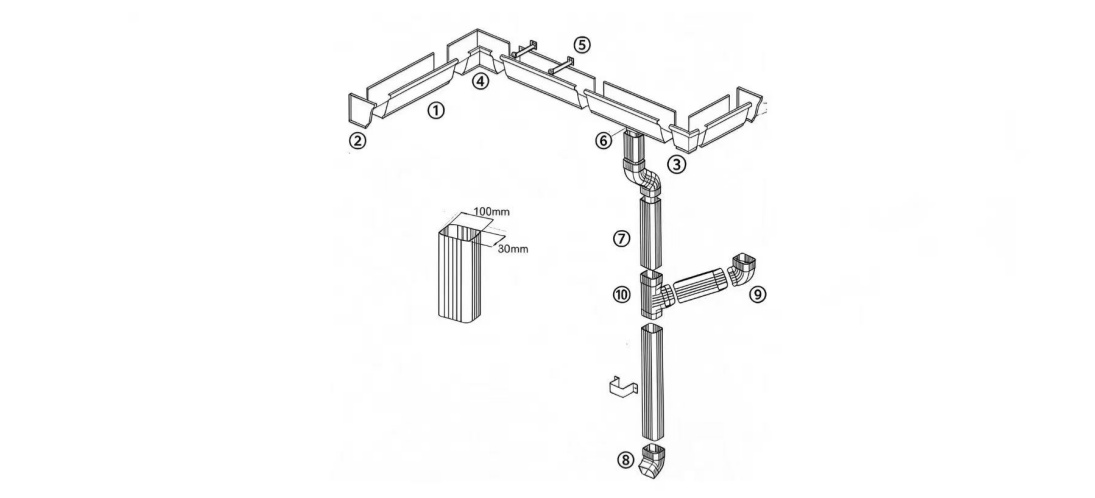

① Eaves gutter
② End cap
③ 90°external corner
④ 90°internal corner
⑤ Eaves gutter hook
⑥ Rainwater outlet
⑦ Downspout
⑧ Downspout diverter
⑨ Downspout Deflector
⑩ Sloped Tee

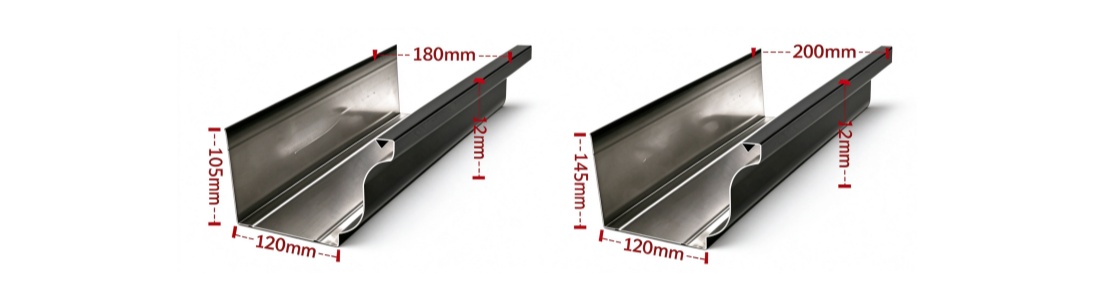

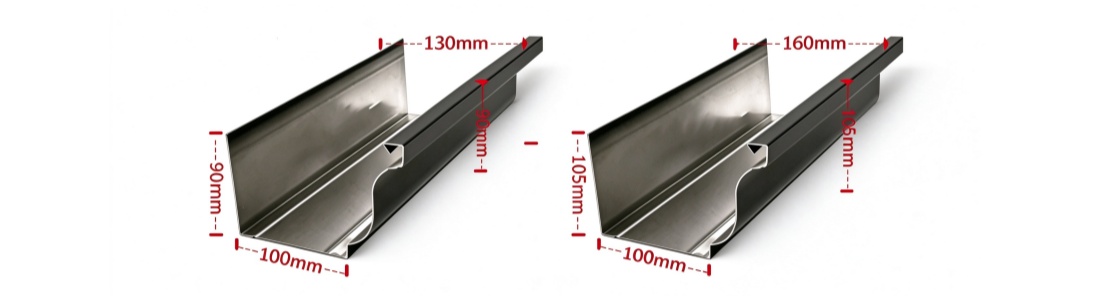

Product parameters

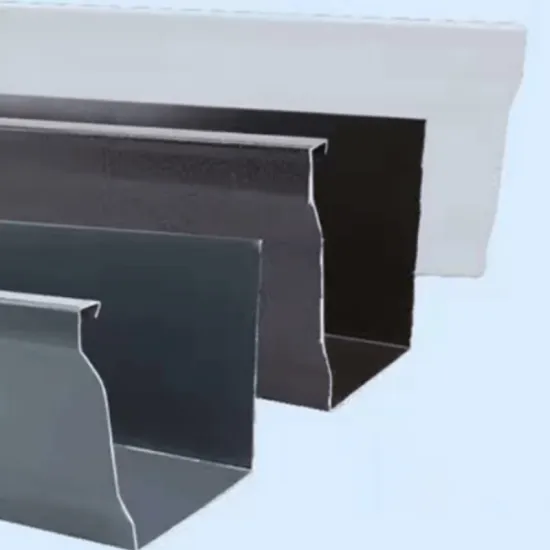

5.5" K-Style Gutter 6" K-Style Gutter
7" K-Style Gutter 8" K-Style Gutter
*Standard thicknesses are 0.7mm and 1.0mm.
Custom thicknesses include 1.2mm, 1.35mm, 1.5mm, and 2.0mm.
Rainwater Collection & Reuse

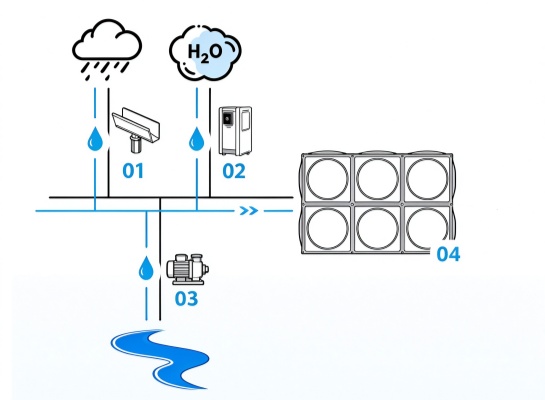

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
From Roof Runoff to Reusable Water
The AG-5.5K gutter provides the initial collection and drainage path for a rainwater harvesting system. By directing roof runoff toward storage tanks, it supports subsequent filtration, storage, and reuse for gardening, outdoor cleaning, and other suitable applications.
A properly arranged collection channel helps connect the roof drainage area with the downstream water storage system.
Schematic Diagram

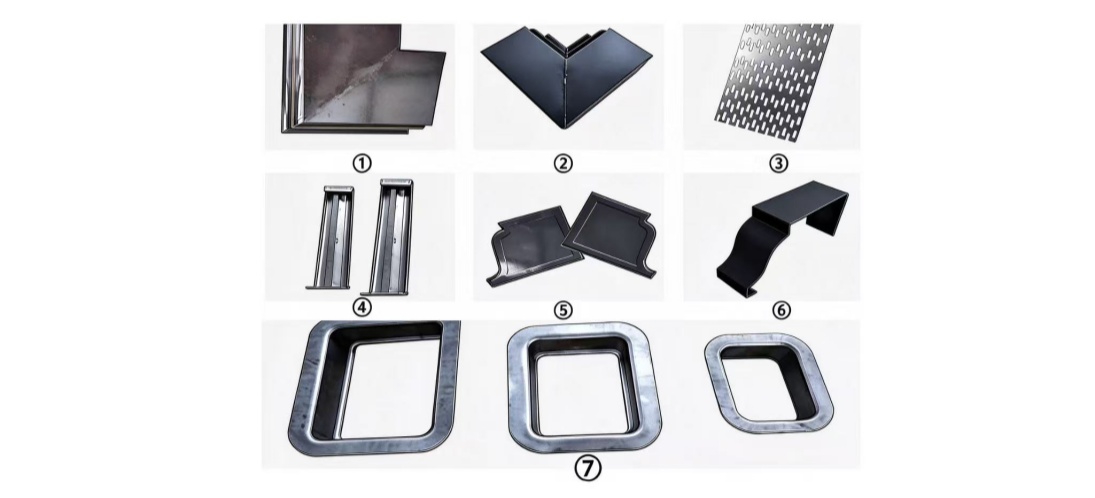

① 90-degree external corner
② 90-degree internal corner
③ Drain cover
④ Hanger
⑤ Sealing cap
⑥ Clip connector
⑦ Drain
Application Scenarios

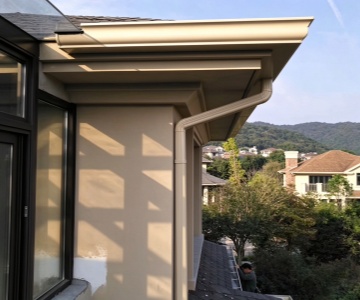

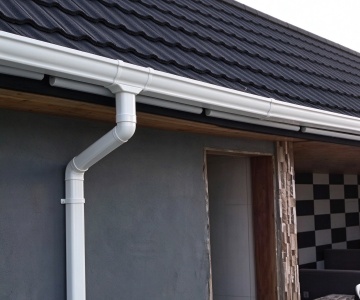

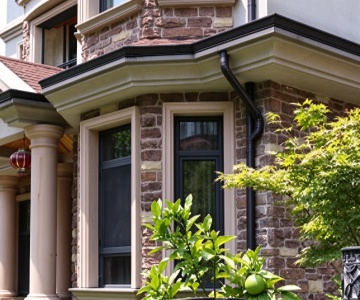

Suitable for a wide range of applications, including residential buildings, outdoor facilities, off-grid projects, remote sites, and equipment or robot support stations. The AG-5.5K aluminum roof gutter collects and directs rainwater to storage systems for filtration and reuse in gardening, outdoor cleaning, and other suitable applications.
Procurement & Order Confirmation
Low MOQ – 1 Piece
Minimum Order Quantity: 1 piece, suitable for sample orders and project-specific requirements.
Product Dimensions: Confirm the required gutter dimensions and lengths.
Component Configuration: Check the required fittings and included components.
Packaging & Shipping: Confirm package dimensions, gross weight, and shipping arrangements.
Lead Time: Confirm the production lead time and delivery schedule before ordering.
