Product Description
Raspberry Pi 5 AI Large Model Vision Car.
AI Large Model | Embodied Intelligence | Visual Recognition | ROS2 Development.
| Voice Interaction | Line Following & Obstacle Avoidance | Omnidirectional Movement | Autonomous Driving |
Product Intro:

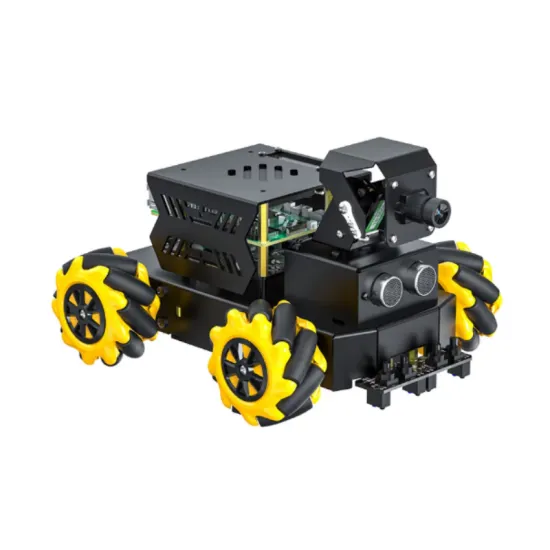

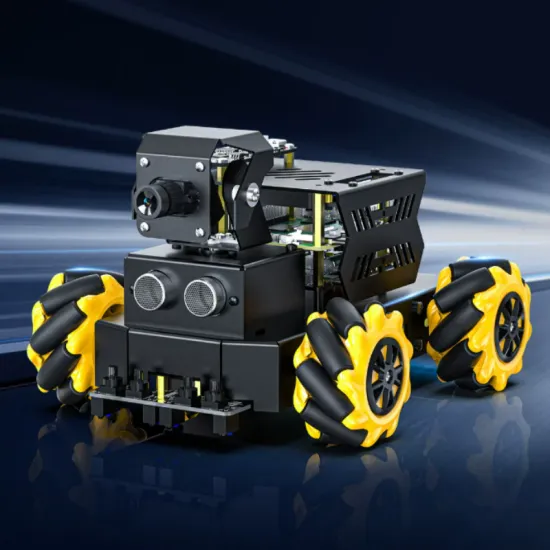

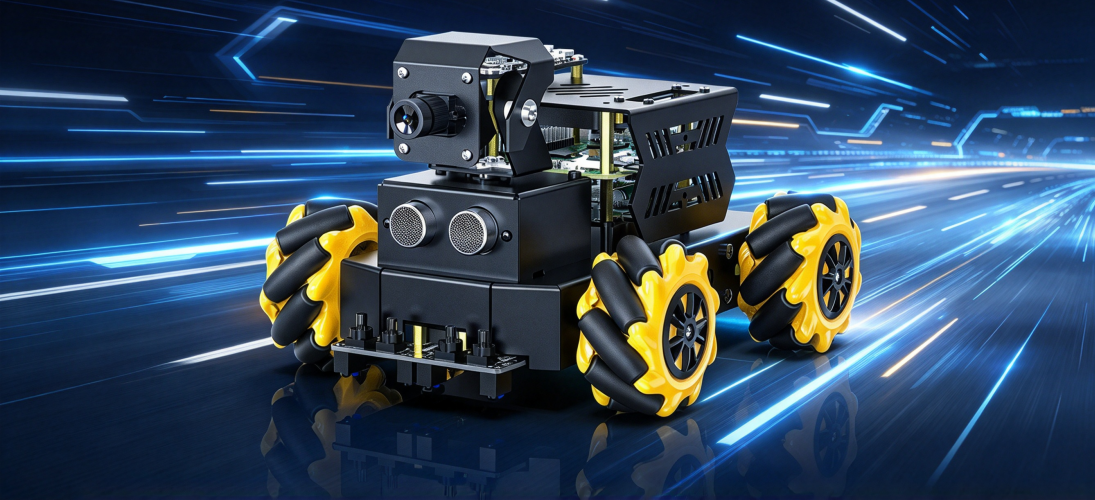

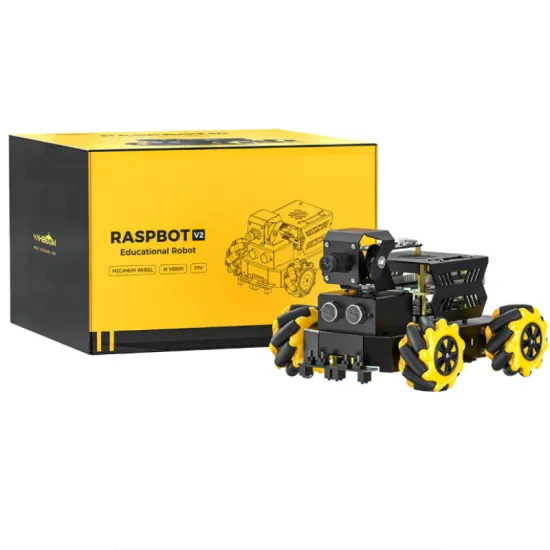

RASPBOT V2 is an AI large-model vision car for beginners, powered by Raspberry Pi 5 with mecanum wheels, camera gimbal and AI large-model voice module, supporting omnidirectional movement, AI visual interaction and voice interaction.
Equipped with multiple sensors for basic sensor application learning and practice.
Combining frontier AI large-model technology, RASPBOT V2 fuses vision, voice and text information, with environment perception, task planning and dynamic execution capabilities.
160 lessons help you easily master robotics and large-model applications, exploring the infinite possibilities of AI.
Product Features
Omnidirectional & Creative
1. New Chapter of Multimodal Large
Model Embodied Intelligence - Voice interaction | Scene understanding & intent inference | Custom RAG knowledge base.

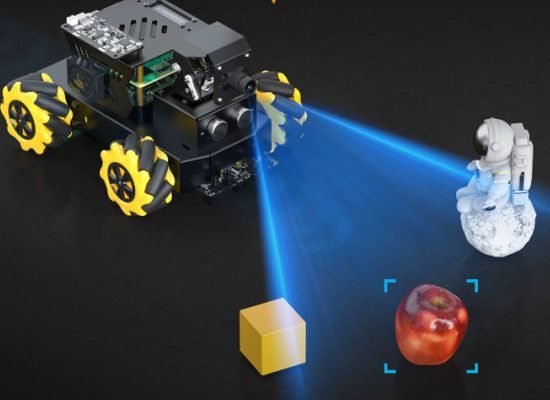

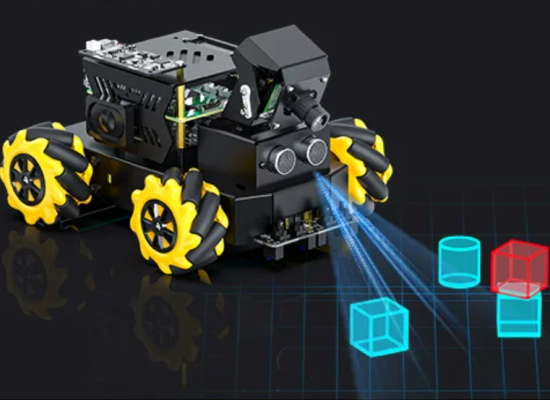

2. AI Visual Recognition
MediaPipe machine learning, OpenCV image processing, YOLO object detection, machine vision.
3. AI Visual Interaction

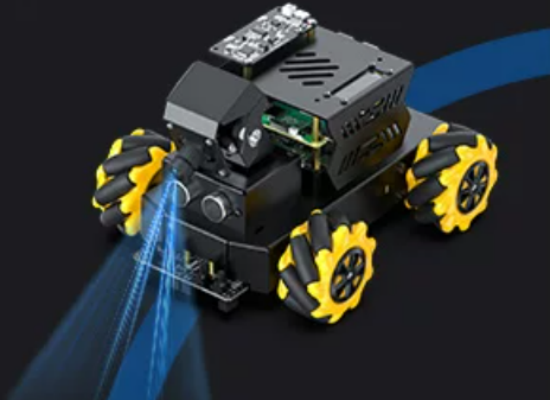

Gesture/QR code control, face tracking/following, color tracking/following, visual line following.
4. Sensor Expansion:

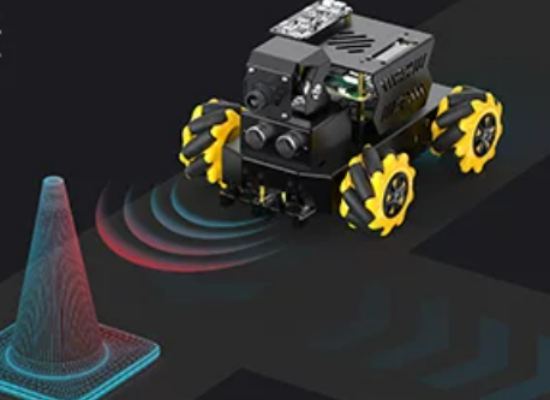

OLED data display, ultrasonic obstacle avoidance, ultrasonic following, infrared line following.

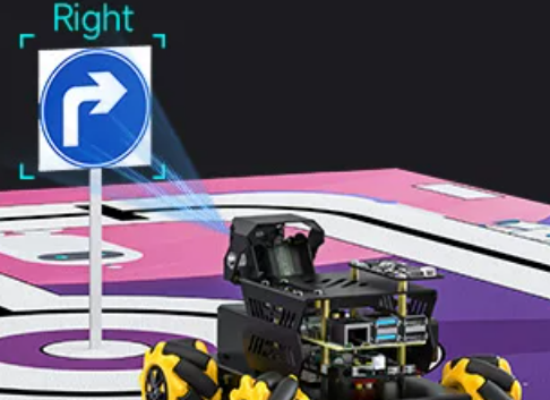

5. AI Autonomous Driving
Speed limit sign recognition, sandbox map line following, horn sign recognition, traffic light recognition.

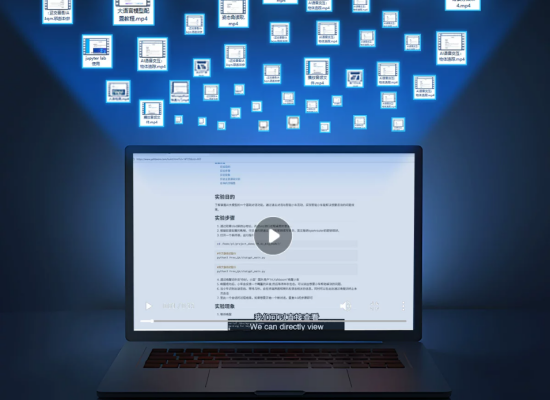

6. 160 Lessons & Premium Video Tutorials
Full-stage learning from beginner to professional, meeting the needs of beginners and engineers.

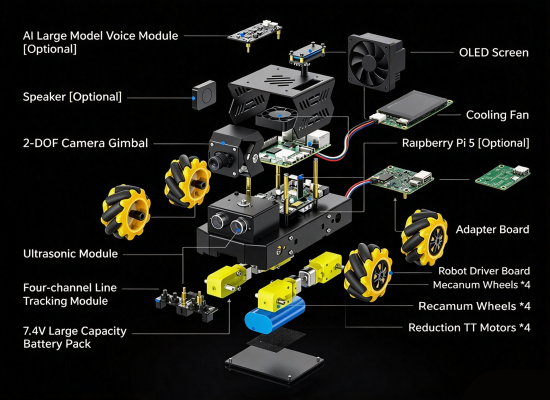

7. Enthusiast-grade Hardware Configuration

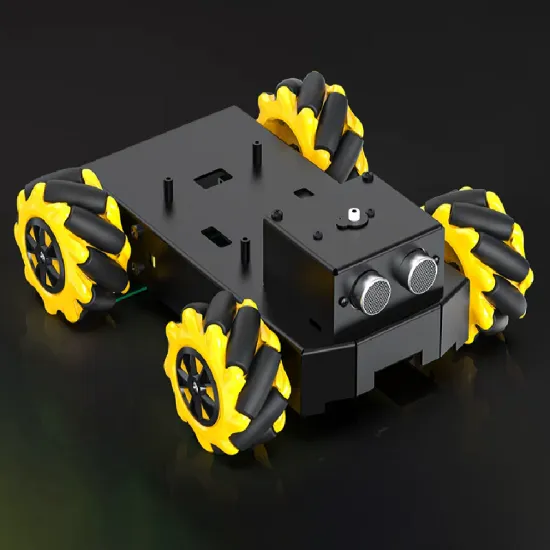

Ultrasonic/infrared line following/OLED/light strip, mecanum wheel motion chassis, 2-DOF camera gimbal, Raspberry Pi 5 mainboard.
8.after-sales service
Comprehensive after-sales service support to solve various difficult problems for you
Product Display
Embodied Intelligence, Fully Upgraded.
1. Rich New AI Large-Model Features
Combining frontier AI large-model technology, RASPBOT V2 fuses vision, voice and text, with environment perception, task planning and dynamic execution, reaching a new height of embodied intelligence!

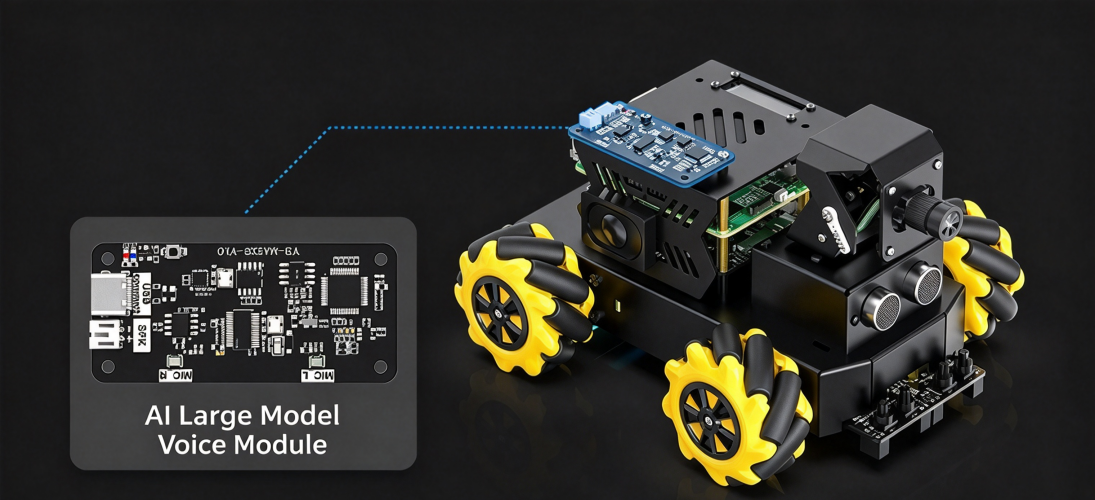

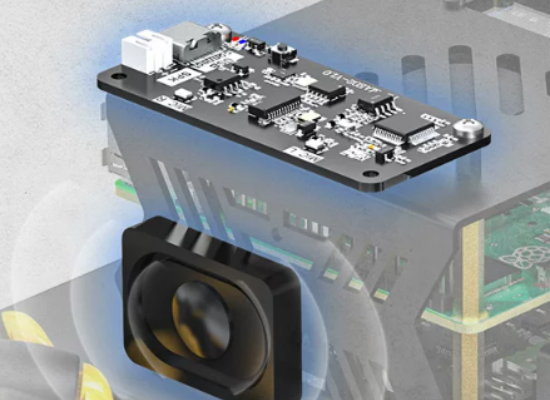

2. Upgraded AI Large-Model Voice Module
New AI large-model voice module with far-field pickup, echo cancellation and environment noise reduction, accurately recognizing voice commands and responding naturally and smoothly, improving the human-machine interaction experience!
3. Embodied Intelligence Tech Innovation
Dual-model inference architecture and dynamic feedback inference mechanism, built-in large-model RAG retrieval augmentation to effectively reduce model hallucination, supporting free conversation interruption, smarter intelligence, redefining the new benchmark of embodied intelligence!

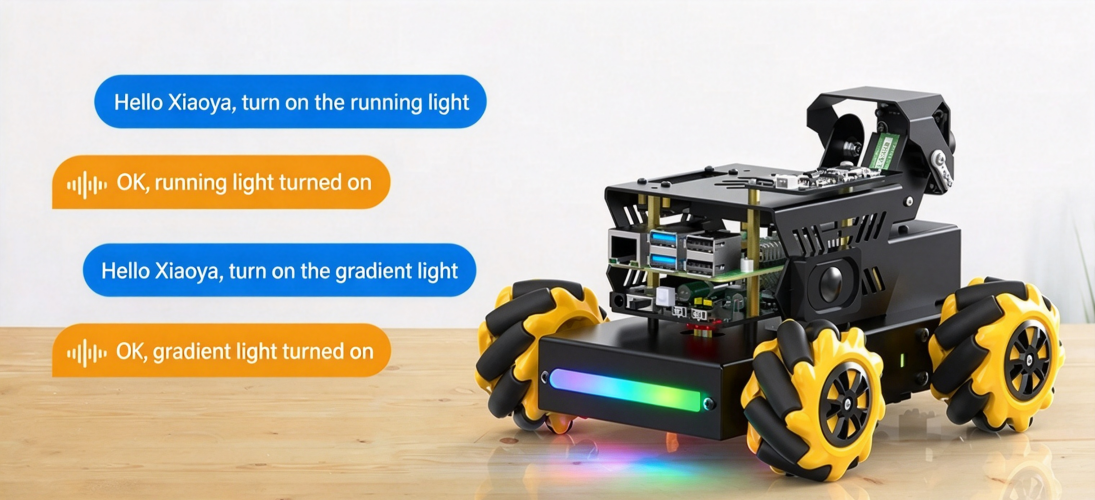

4. Upgraded Offline Voice Interaction Control
Brand-new offline voice control: no large model needed to control car motion, light strip changes, color recognition, autonomous driving and tracking tasks; faster and more stable local response, smart interaction one step ahead!

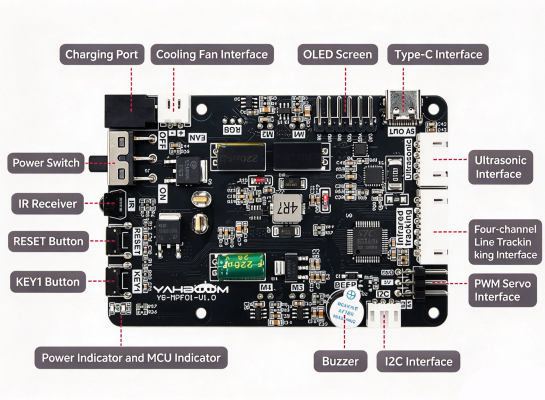

Raspberry Pi 5 Robot Driver Board
Communicates with Raspberry Pi 5 via I2C to drive servos, motors, sensors and other peripherals.
Type-C power port supports Raspberry Pi 5 PD (5V/5A) power spec.
Factory-loaded peripheral driver firmware; users can directly call the driver API - simple and efficient.
Raspberry Pi 5 Robot Driver Board
Communicates with Raspberry Pi 5 via I2C to drive servos, motors, sensors and other peripherals. Type-C power port supports Raspberry Pi 5 PD (5V/5A) power spec. Factory-loaded peripheral driver firmware; users can directly call the driver API - simple and efficient.

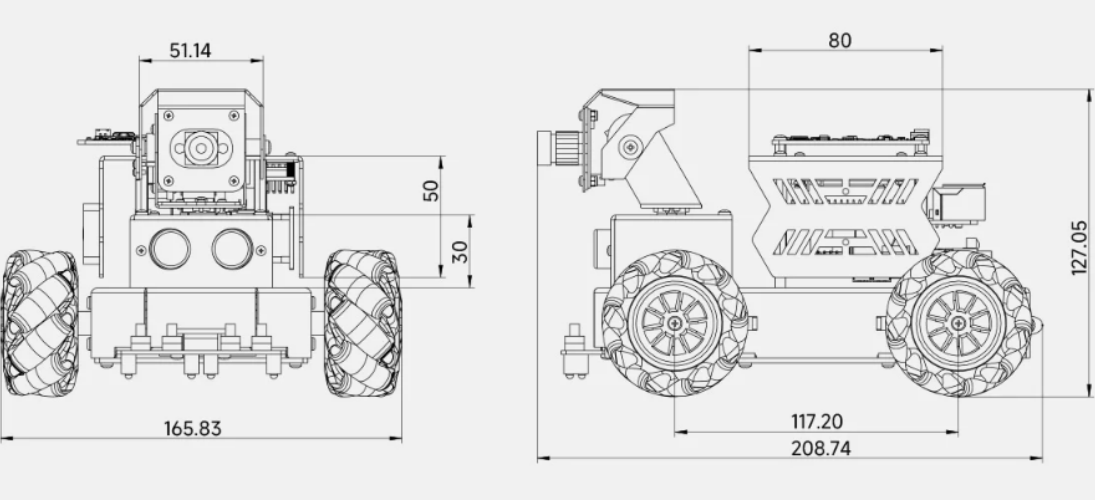

Dimension drawing
Product parameters
Parameter | Value |
Product Name | RASPBOT V2 AI Large-Model Vision Car |

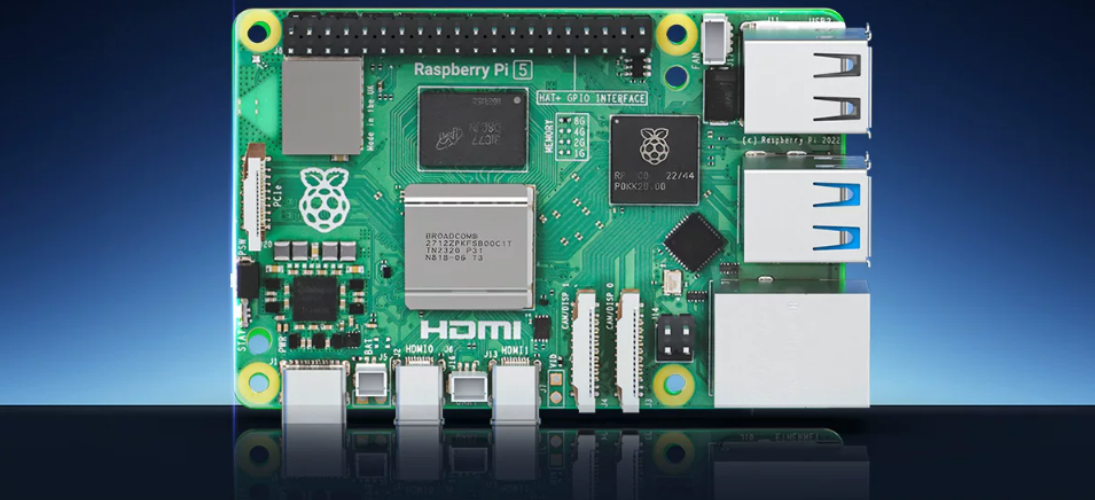

Main Controller | Raspberry Pi 5 |
System Version | Raspberry Pi OS + ROS2 Humble |
Input | Ultrasonic sensor, 4-channel line-tracking sensor, buttons, IR receiver, camera, AI large-model voice module |
Output | OLED display, motors, RGB light strip, buzzer, servo, cavity speaker |
Pickup Distance (Luxury) | 5m |
Camera Solution | 100W-pixel USB camera |
Camera Resolution | 480p/720p |
Camera FOV | Diagonal 120°, horizontal 110° |
Camera Gimbal | 2 DOF (horizontal 180°, vertical 110°) |
2-DOF Gimbal Servo | YB-SG90 digital servo |
Servo Pulse Width Range | 500~2500us (0~180°) |
Servo Working Voltage | 4.8V~6.0V DC |
Motor Solution | TT gear motor |
Motor Torque | 0.8N·m |
Motor Speed | 245±10%rpm |
Body Material | Metal |
Remote Control | PC, IR remote, mapping & navigation APP (iOS/Android) |
Battery | 7.4V 2S Li-ion battery pack (2000mAh) |
Battery Life | About 2.1h (continuous movement) |
Assembled Weight | Standard: 885g; Luxury: 917.4g |
Assembled Size | 208.74*165.83*127.05mm |
Service

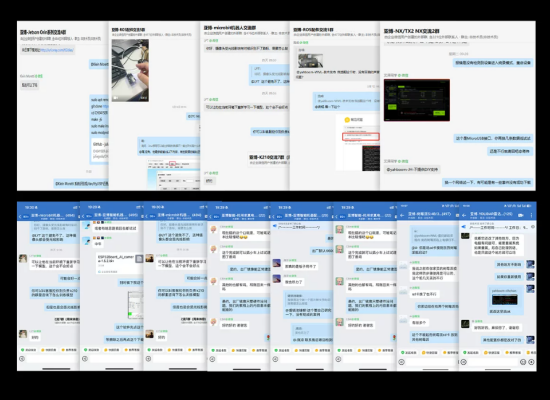

1. Technical support
