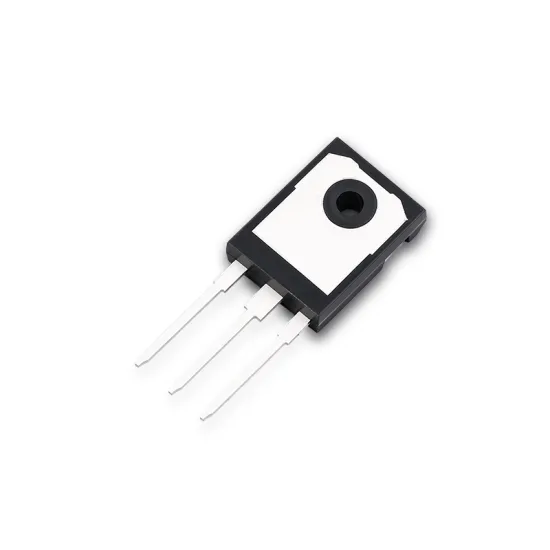

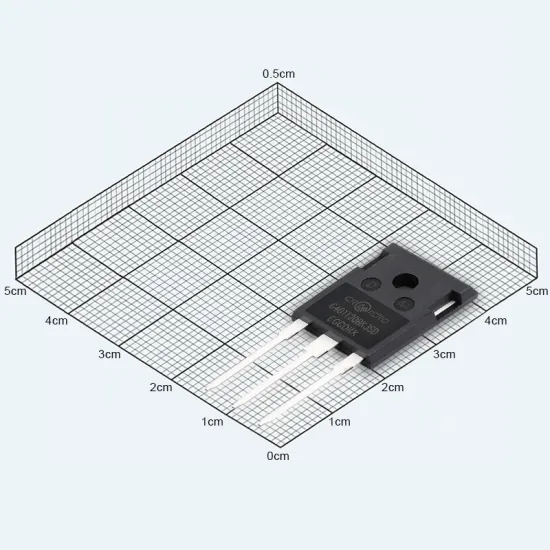

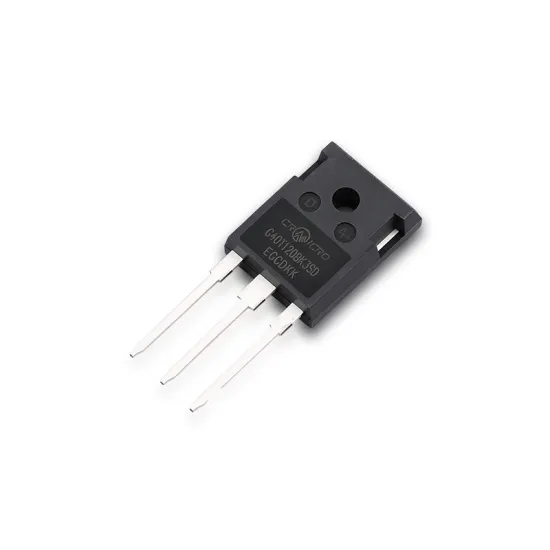

CRG40T120BK3SD

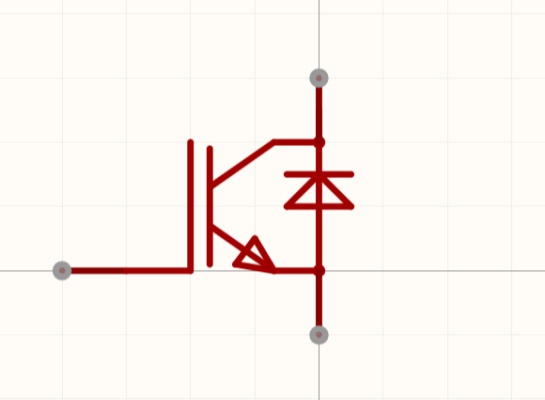

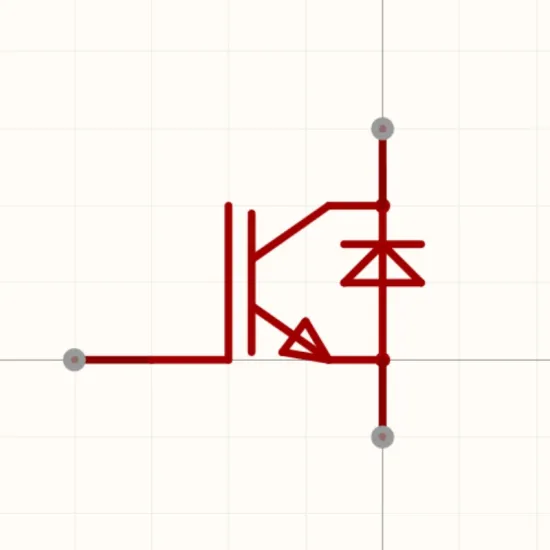

CRG40T120BK3SD IGBT features excellent conduction and switching performance, supports easy parallel operation, and complies with RoHS requirements.
- IGBT Technology：-
- Power Dissipation (Pd)：278W
- Collector-Emitter Breakdown Voltage (VCES)：1.2kV
- Continuous Collector Current (IC)：40A
- Pulsed Collector Current (ICM)：160A

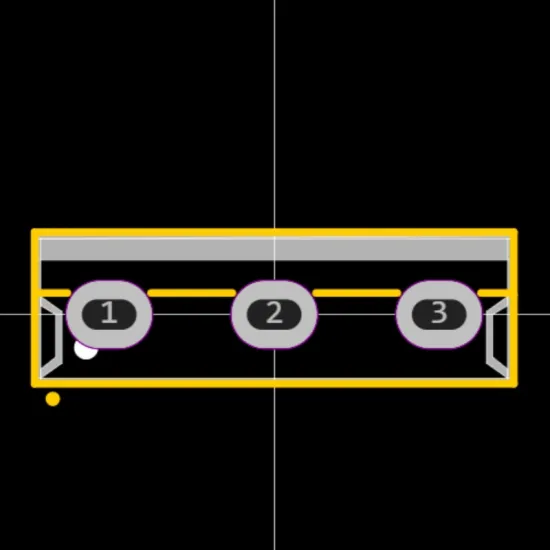

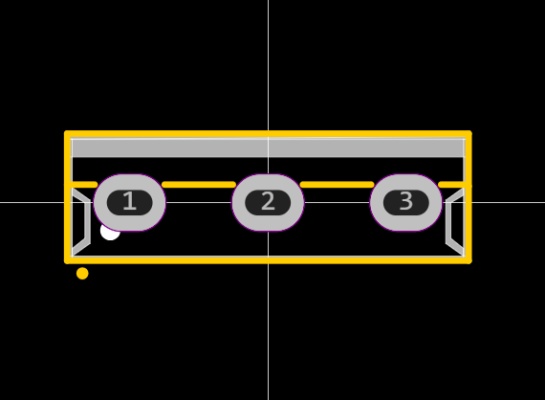

- Package：TO-247
- Packaging Type：Tube
USD 2.87
600
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
