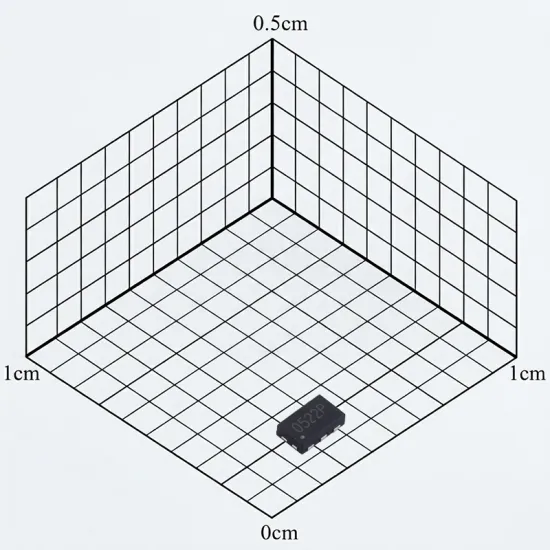

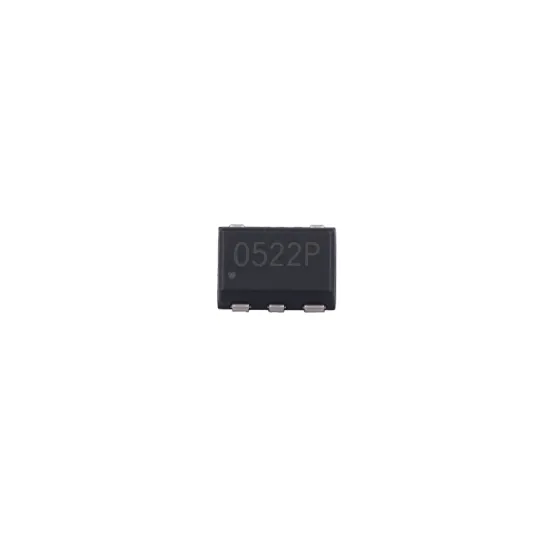

ESD0522P

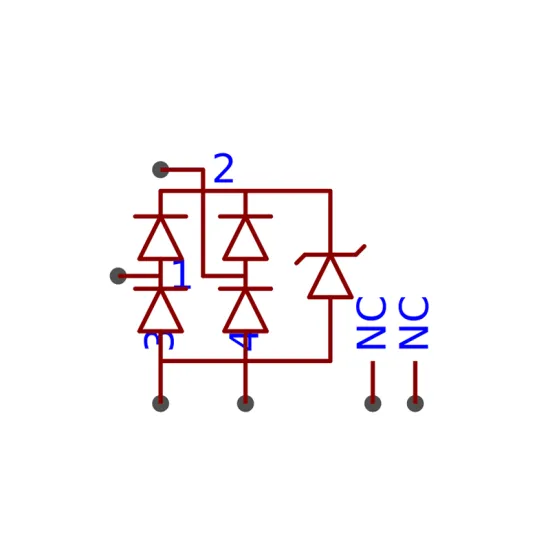

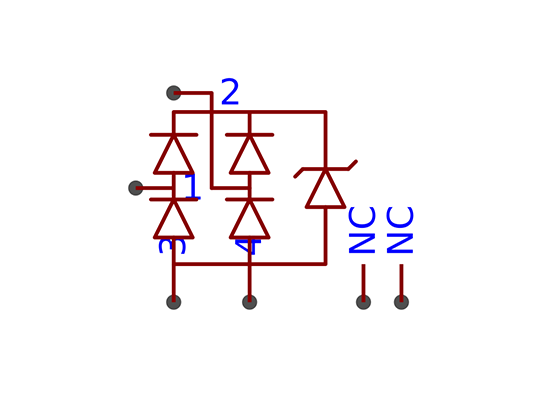

ESD0522P is a 5V dual-line ESD protection diode with 150W peak pulse power, 4.5A surge current, 15V clamping, and 0.5pF capacitance.
- Clamping voltage ：25V
- Peak pulse current (Ipp) ：4.5A@8/20us
- Peak pulse power (Ppp) ：100W@8/20us
- Breakdown voltage (VBR) ：6V
- Reverse leakage current (Ir) ：1uA
- Operating temperature：-55℃~+125℃

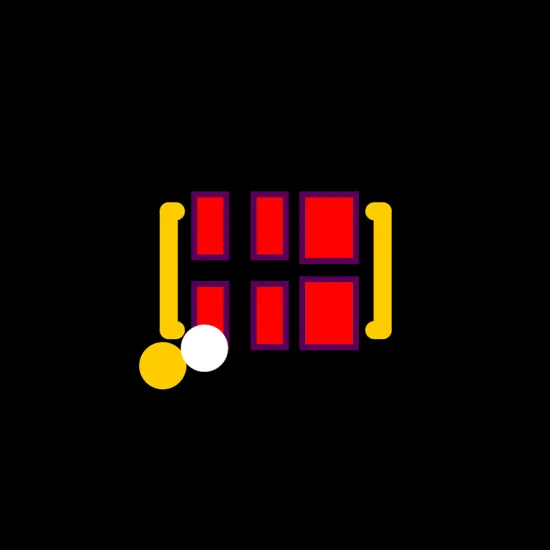

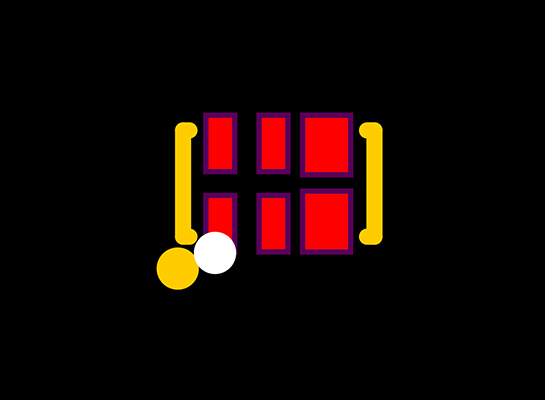

- Product Packaging ：DFN1610-6L
- Packing Type ：Tape & Reel
USD 0.0407
16000
