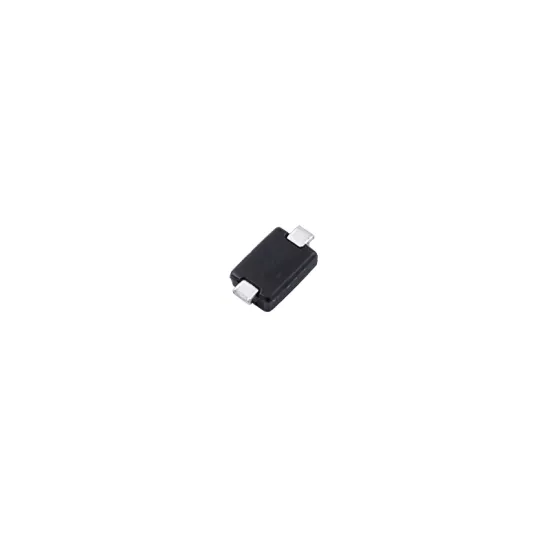

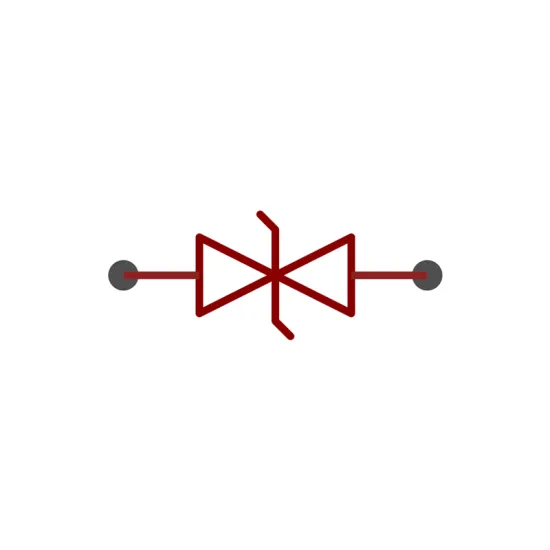

PESD5V0V1BB,115-JSM
This TVS diode meets IEC 61000-4-2 ±25kV contact/air, IEC 61000-4-4 EFT 40A, and IEC 61000-4-5 surge 8A, using solid-state silicon avalanche technology.
- Clamping voltage ：15V
- Peak pulse current (Ipp) ：8A@8/20us
- Peak pulse power (Ppp) ：90W@8/20us
- Breakdown voltage (VBR) ：6V
- Reverse leakage current (Ir) ：200nA
- Operating temperature：-55℃~+150℃

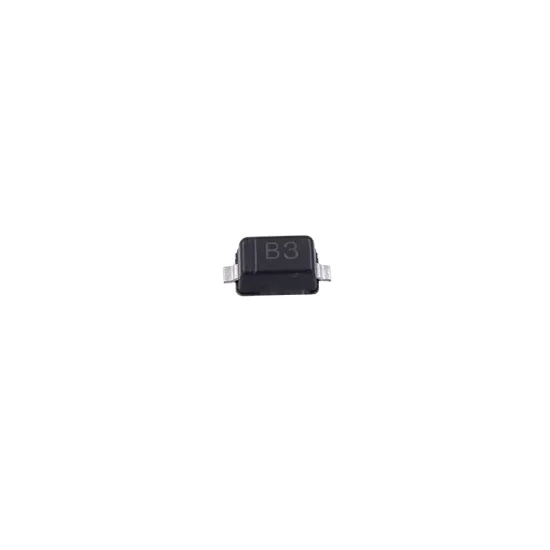

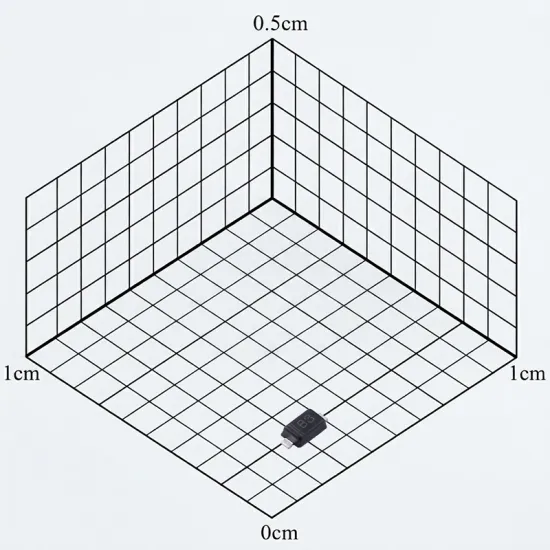

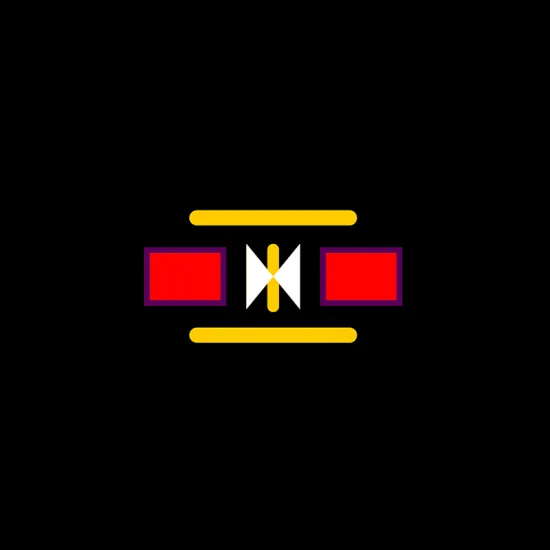

- Product Packaging ：SOD-523
- Packing Type ：Tape & Reel
USD 0.0347
18000
