Product Description

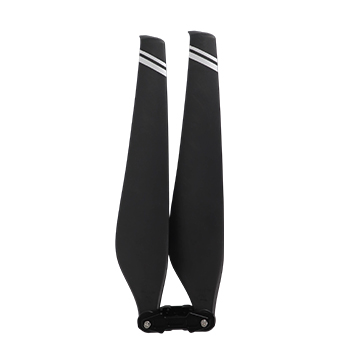

MF3119P MFP PRO
Heavy-Lift Folding Propeller for Firefighting & Emergency Rescue UAV
Guarantee Reliability for Every Rescue Mission | Impact Isolation Protection | Stable Heavy Airdrop | Anti-Vibration for Continuous Sorties
Product Overview

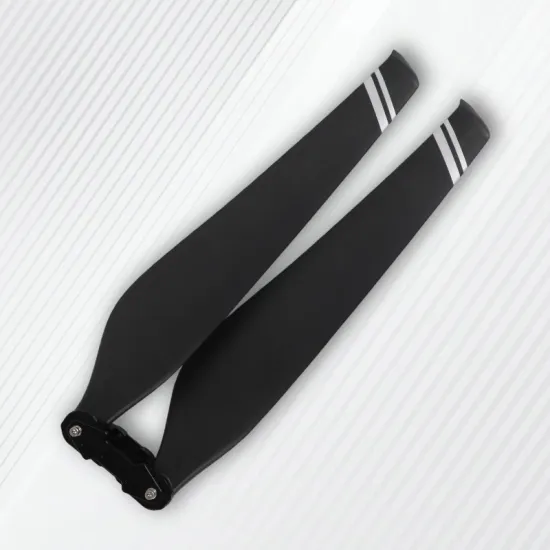

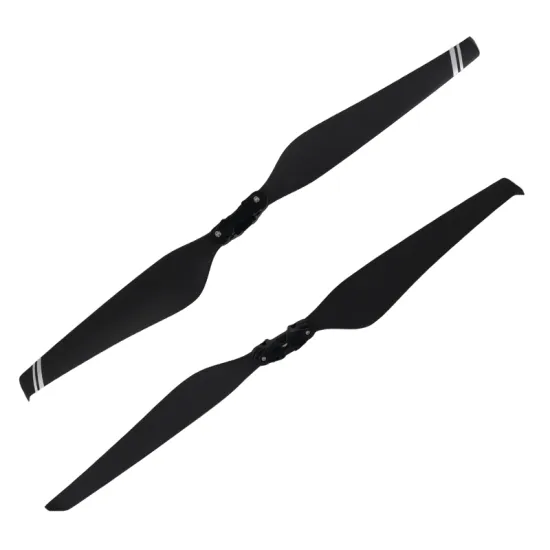

MF3119P is a 31-inch folding propeller system developed for firefighting and emergency rescue multirotor platforms, including blades and patented buffer clamp structure. Foldable design reduces storage volume for easy deployment on emergency vehicles. The whole system is designed for mission tolerance, prioritizing motor protection and minimizing loss caused by component failure.
Functional Features

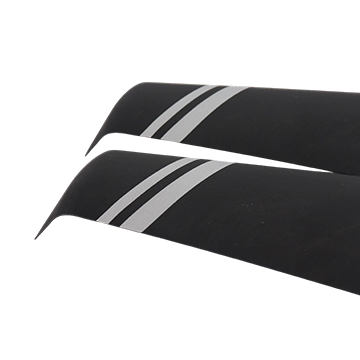

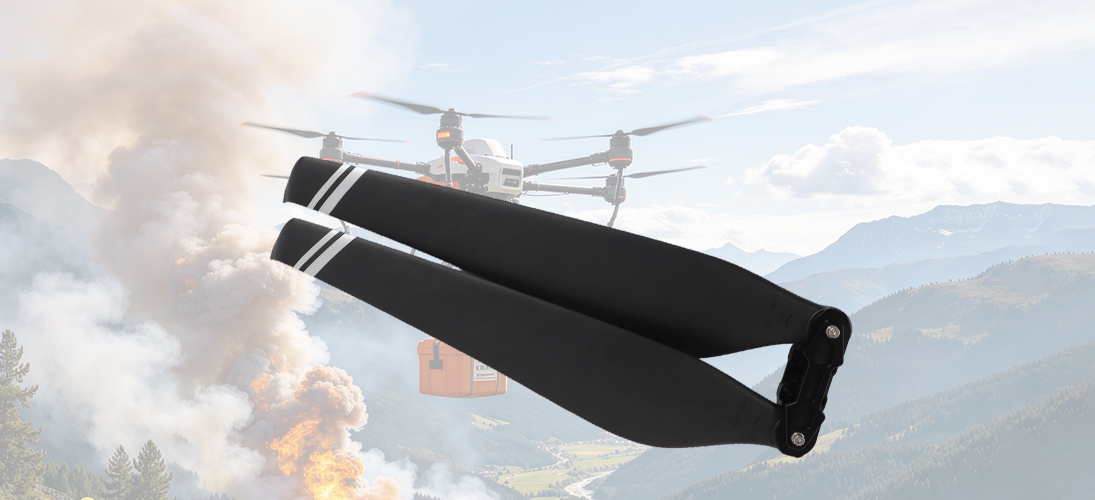

Aerodynamic Stability for Turbulent Fire Site

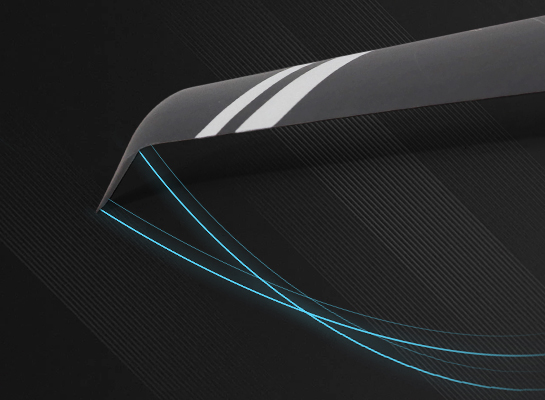

Downward winglet tip suppresses tip vortex. Maintains steady thrust under thermal turbulence and mountain airflow. Higher payload with same power consumption, extend hover duration for airdrop and reduce return-to-base frequency.
Reinforced Fatigue-Resistant Hub for Frequent Heavy Sorties
Upgraded carbon composite formula with thickened root section. Optimized for cyclic load from repeated takeoff and heavy airdrop. Extend service life and reduce fracture risk during long-duration hover with payload, suitable for all-day multi-run rescue missions.

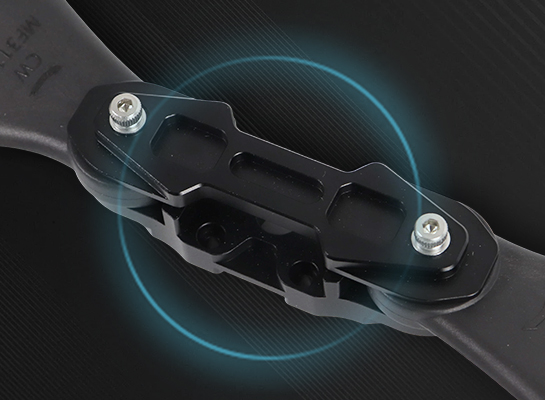

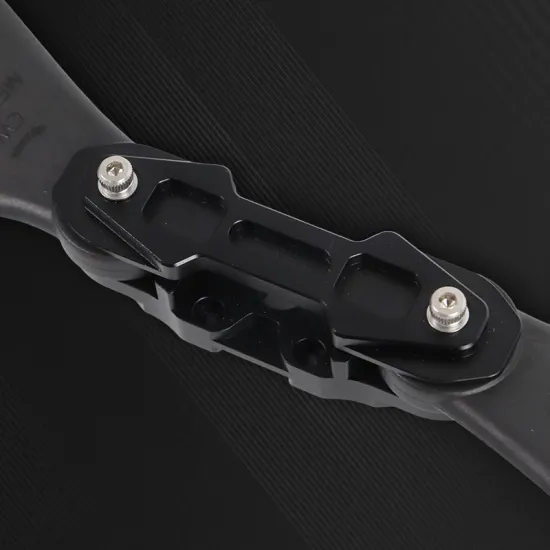

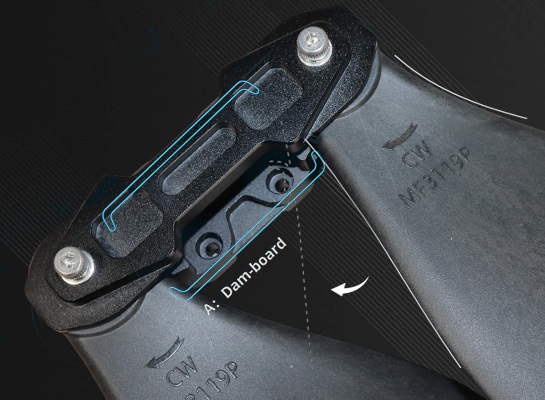

Dedicated Buffer Plate, Primary Protection Barrier
The buffer plate acts as a sacrificial shock absorber. During low-altitude collision, the plate deforms and dissipates impact force before it reaches the motor shaft. Low-cost prop parts absorb damage to save high-value motors and airframe, shorten on-site repair time and cut spare part cost.

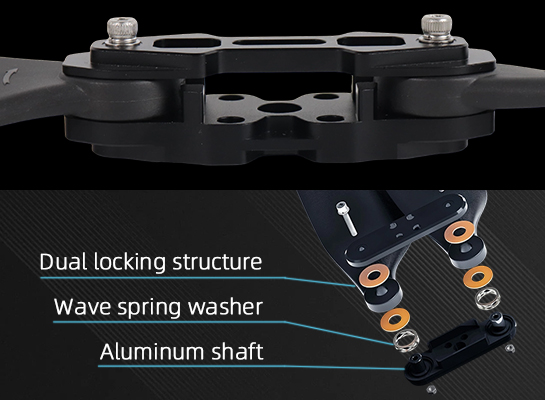

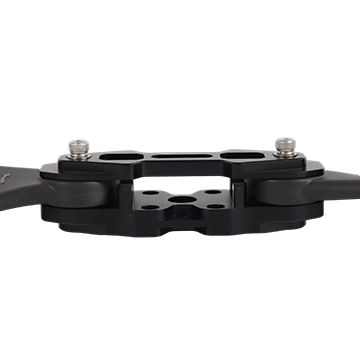

Dual-Lock Damping Clamp, Anti-Loosening under Sustained Vibration
Aluminum shaft reduces blade abrasion. Dual-lock mechanism resists vibration and prevents thread loosening. Built-in wave spring shim provides damping to isolate vibration to airframe and flight controller. Remain locked reliably during long fire patrol and repeated landing, eliminate crash risk.

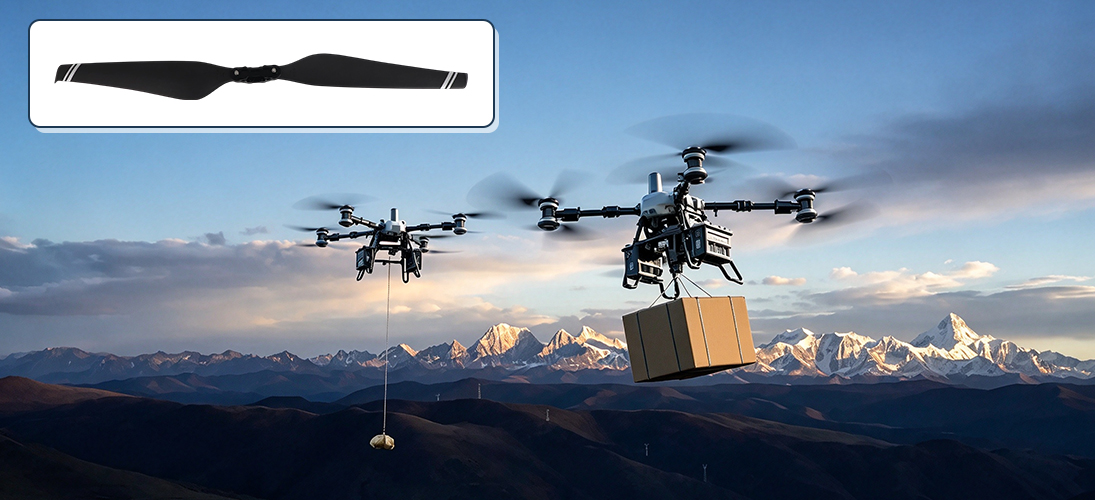

Application
Application Matrix for Fire & Emergency Missions

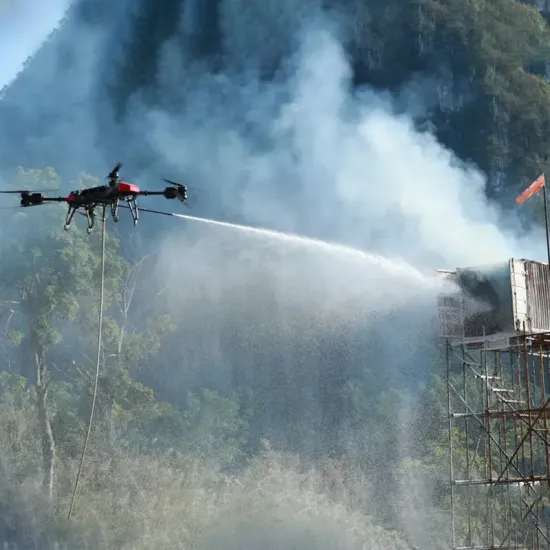

▪ Forest fire patrol & suppressant airdrop | Payload: Fire extinguishing bomb, retardant
▪ Urban high-rise fire reconnaissance & targeted delivery | Payload: Fire bomb, camera gimbal
▪ Mountain /water search & rescue airdrop | Payload: First-aid kit, flotation device, communication terminal
▪ Tethered UAV for emergency relay & high-altitude lighting | Payload: Communication module, light array
Dimensional Drawin
Engineering Drawing
Product Performance
Performance Operating Envelope

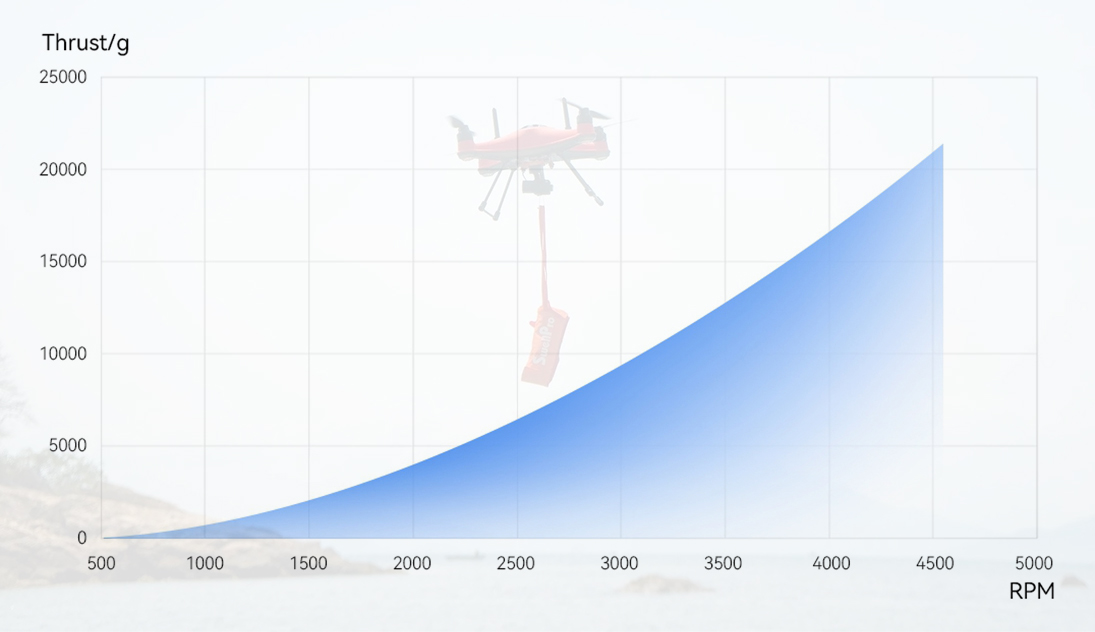

Max thrust up to 21kg, recommended operating RPM: 2300–3800RPM. Optimized for typical hover and low-speed airdrop in rescue missions. Full thrust test report available for UAV power matching & flight controller tuning.
Product parameters
Specification | |||
Model NO. | MF3119P | T-MOTOR Series | Folding |
Weight(Single Blade) | 205.4g | Package Weight | 664.6g |
Diameter | 31inch（787.4mm） | Package Size | 377*148*59mm |
Pitch | 10.2inch（259.1mm） | Material | Polymer+CF |
Recommended Thrust/RPM | 5.2~15g/2300-3800RPM | Recommended Max Thrust/RPM | 21kg/4500RPM |
Ambient Temp | -40℃～65℃ | Storage Temp/Humidity | -10℃～50℃/＜85% |
Quality Control
Reliability Verification & Quality Control
Factory dynamic balance inspection to guarantee stability at high RPM
Bench cyclic fatigue durability test
Impact test to verify buffer plate protection performance
Dual incoming & finished goods inspection for every batch. Test reports available on request.
Bench Thrust Test
Dynamic Balance Inspection
Impact Test Real Shot Image
Packaging

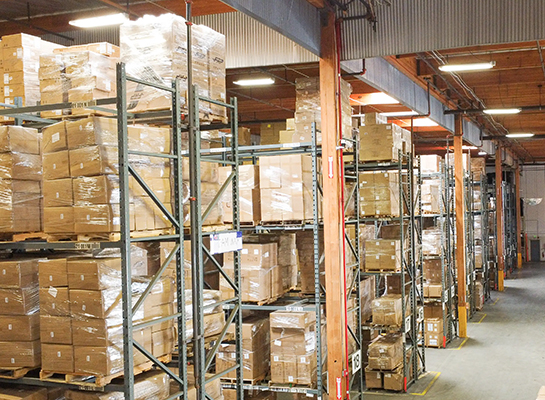

Warehouse Stacking Performance
The carton adopts thick corrugated board with reinforced corner protectors. Standard stacking is supported for warehouse stocking and project bulk storage, reducing deformation damage.

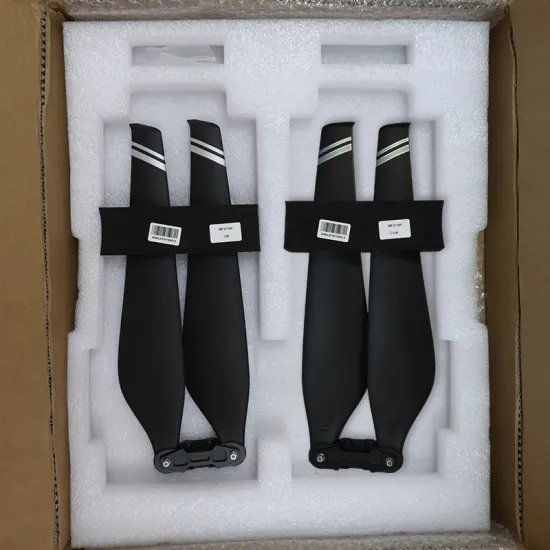

Long-distance & On-site Transfer
Equipped with custom shockproof EVA liner to lock the propeller in position, preventing collision and surface scratches under bumpy transportation.
