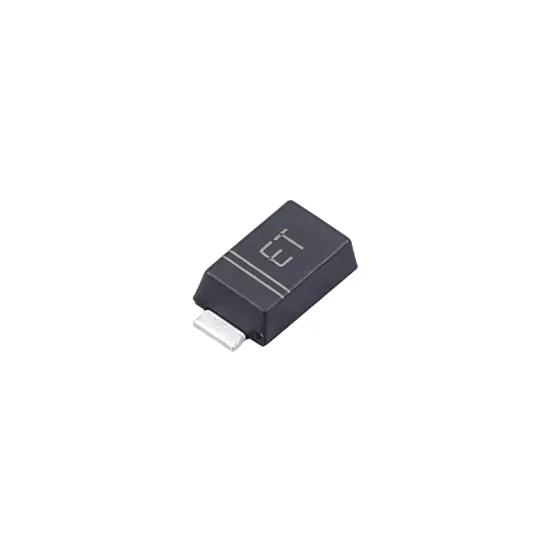

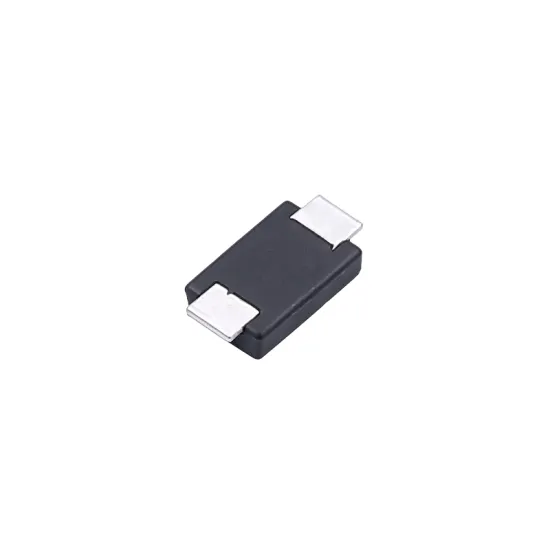

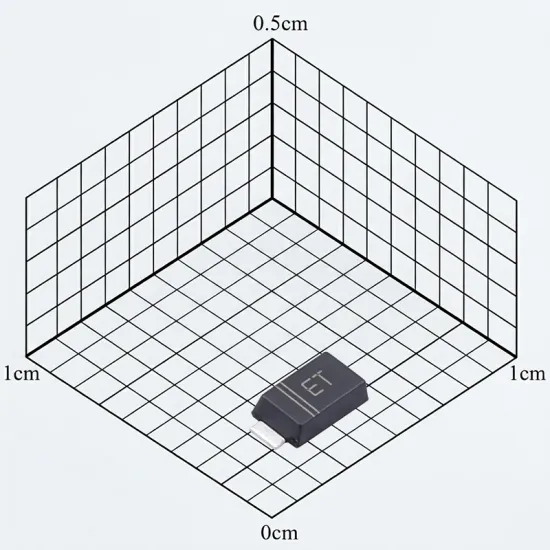

SMF180A

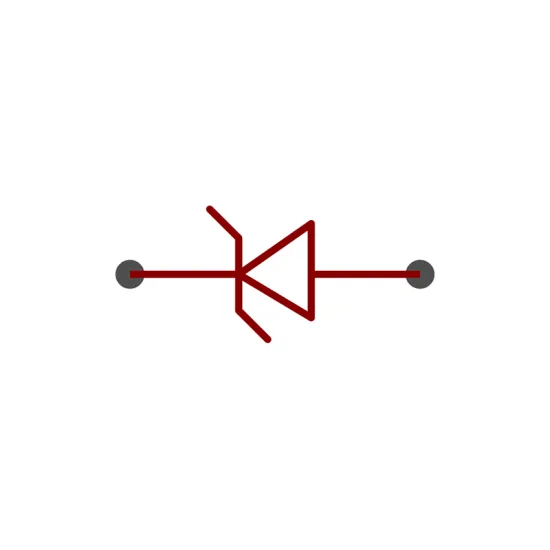

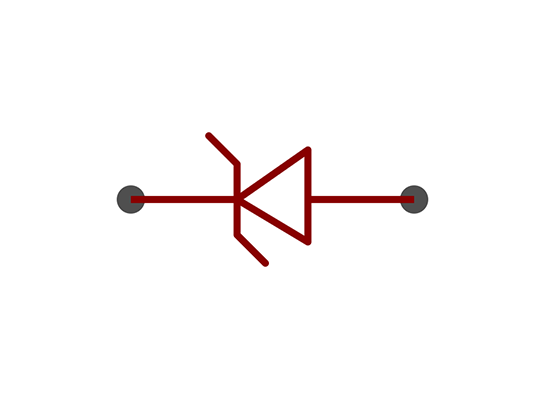

SMF180A is a 200W unidirectional TVS diode with 180V standoff voltage, 201V breakdown voltage, 292V clamping, and SOD-123FL package for high-voltage protection.
- Clamping voltage ：292V
- Peak pulse current (Ipp) ：500mA
- Peak pulse power (Ppp) ：200W
- Breakdown voltage (VBR) ：201V
- Reverse leakage current (Ir) ：1uA
- Operating temperature：-55℃~+150℃

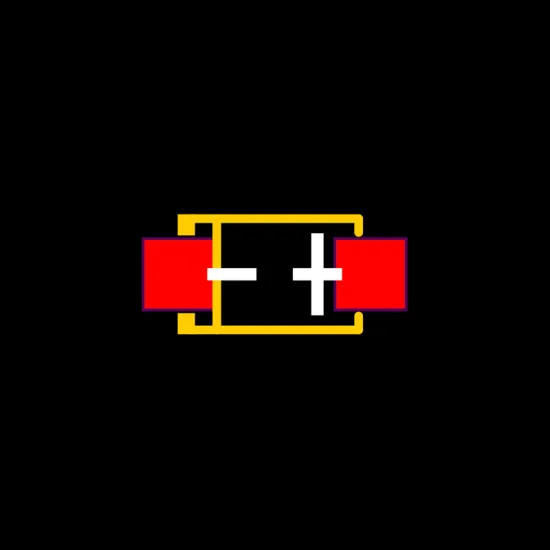

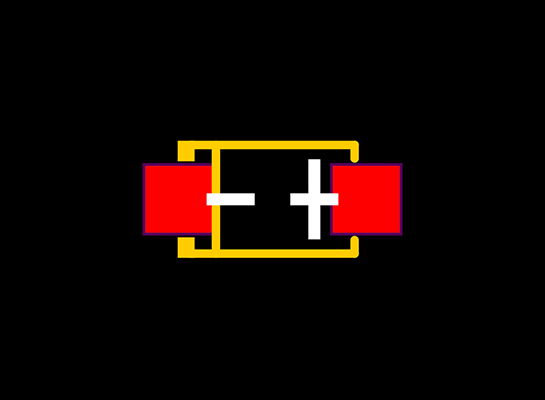

- Product Packaging ：SOD-123FL
- Packing Type ：Tape & Reel
USD 0.0165
16000
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
