SMF45CA

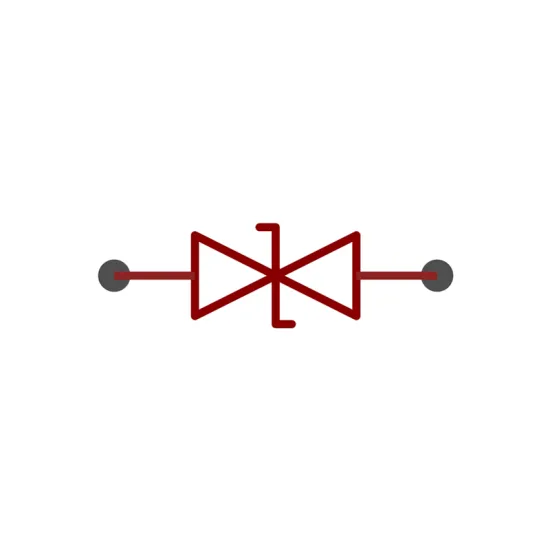

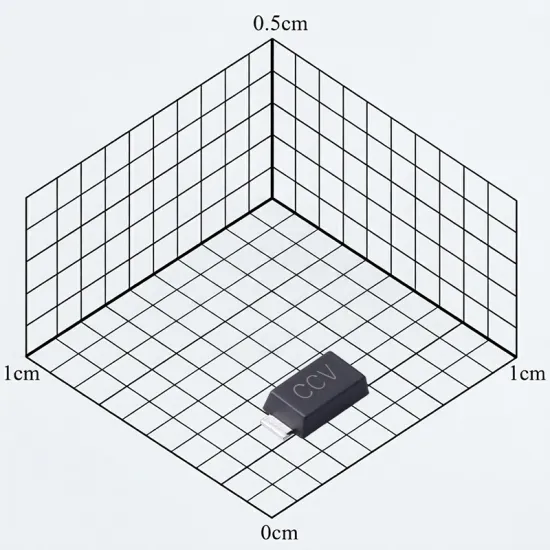

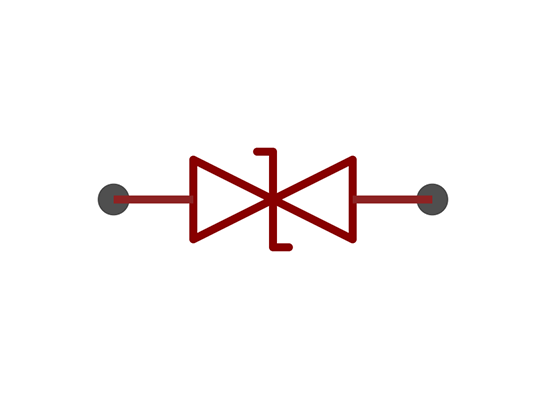

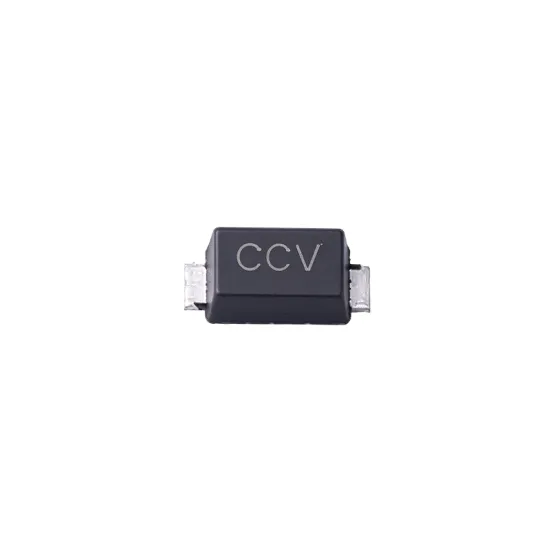

SMF45CA is a 200W bidirectional TVS diode with 45V standoff voltage, 2.8A surge current, and SOD-123FL package for surface-mount protection.
- Clamping voltage ：72.7V
- Peak pulse current (Ipp) ：2.8A
- Peak pulse power (Ppp) ：200W@10/1000us
- Breakdown voltage (VBR) ：50V
- Reverse leakage current (Ir) ：1uA
- Operating temperature：-55℃~+150℃

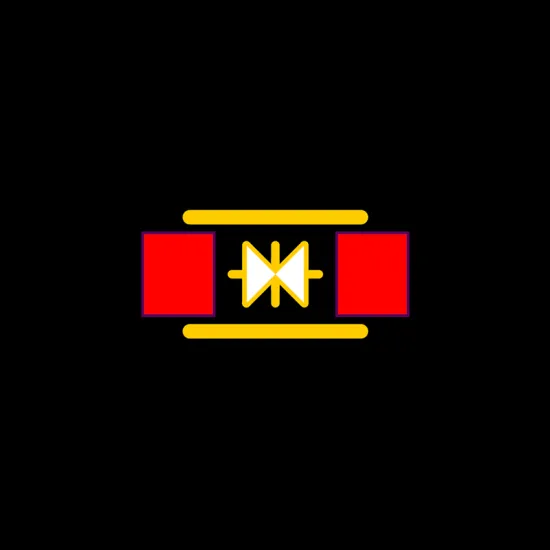

- Product Packaging ：SOD-123FL
- Packing Type ：Tape & Reel
USD 0.0186
15000
