Product Description
Heavy-duty modular 3-finger & 6-finger robotic hands. The heavy-duty manual AVHM3F460 three-finger electric gripper adopts a modular design with long stroke and high payload capacity, suitable for transfer and assembly of various round containers and workpieces in mobile material handling scenarios.
Product parameters
| Name | Heawy-duty modular three-finger hand | Heavy-duty modular six-finger hand |
| Product model | AVHM3F460 | AVHM6F460 |
| Drive mode | Servo-driven | |
| Maximum travel distance | 460 mm | |
| Maximum gripping force | 100 N | |
| Maximum load | 60 kg | 120 kg |
| Maximum gripping speed | 200 mm/s | |
| Self-weight | 35 kg | 80kg |
| Control accuracy | 1 mm/1 N | |
| Operating voltage | 24 V | 48 V |
| Repeat positioning accuracy | 0.3 mm | |
| Maximum current | 25 A | 50 A |
| Programmable parameters | Position, Speed, Force | |
| Feedback parameters | Position, Size, Current | |
| Recommended operating environment | 0~40℃、85%RH below | |
| Communication protocol | I/O Modbus RTU TCP/IP | |
Application Case
Yellow rice wine automated production line
Heavy-load mobile handling project
Schematic Diagram

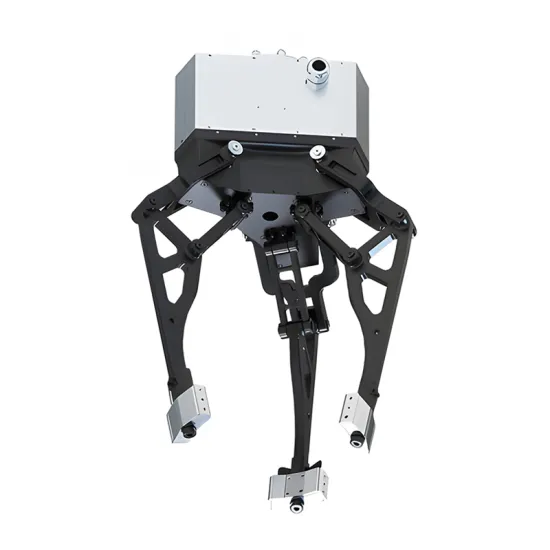

Heavy-duty modular 3-finger hand

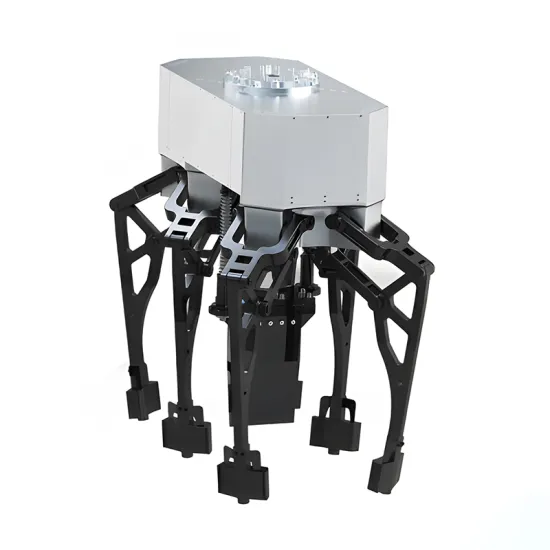

Heavy-duty modular 6-finger hand
Product Advantages
Built for Different Payload Requirements | Modular Industrial Solutions
We provide a complete range of heavy-duty robotic arm systems, designed to meet diverse industrial automation needs. From medium-load handling to ultra-heavy payload applications, our series ensures precision, stability, and continuous performance in demanding environments.
Integrated drive and control Flexible gripping Power-off self-locking
Modular design Large stroke High load
