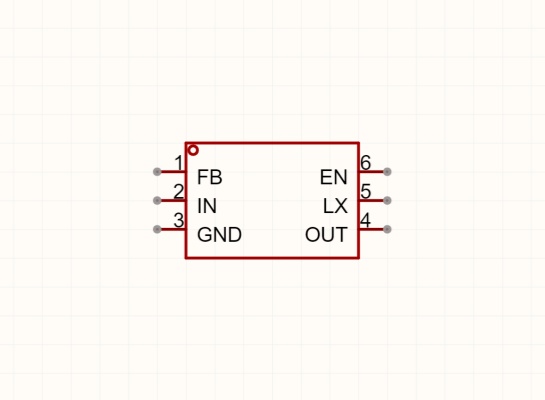

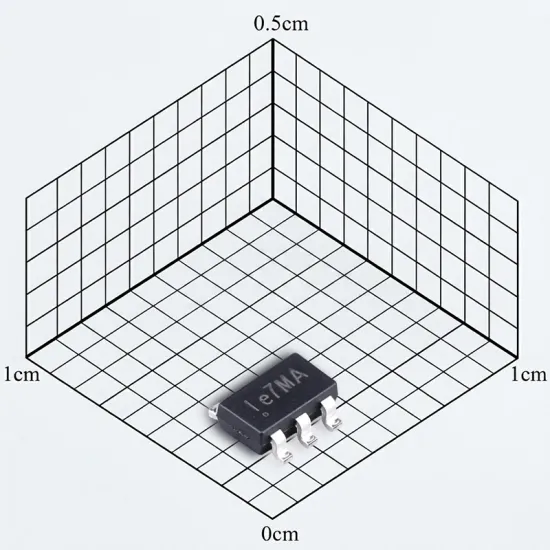

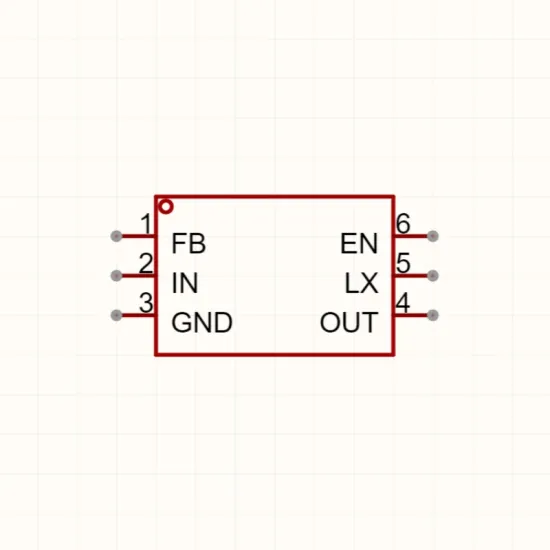

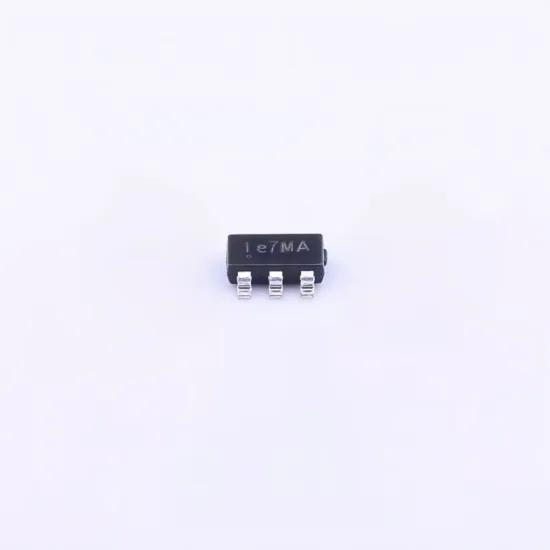

SY7069ADC
SY7069ADC IC is a high-efficiency synchronous boost converter with 2.5V-5.5V adjustable output, 3A valley current limit and seamless boost/bypass operation.
- Operating Input Voltage Range：2.5V~5.5V
- Output Voltage Range：2.5V~5.5V
- Output Current：3A
- Switching Frequency：1MHz
- Operating Ambient Temperature Range：-40℃~+85℃

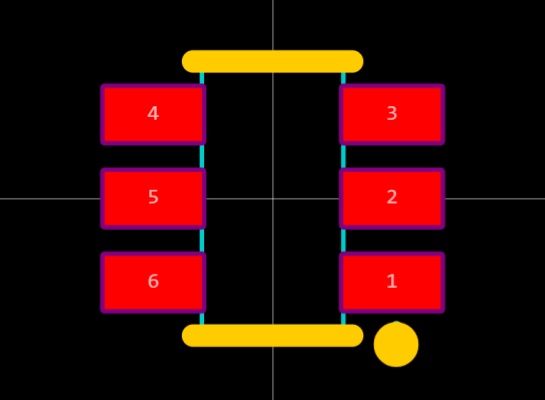

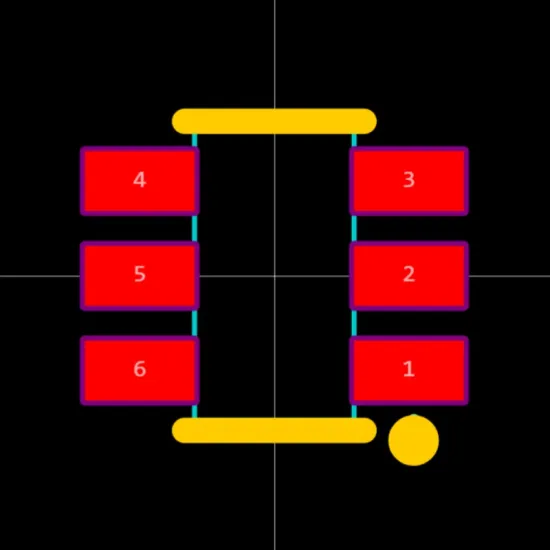

- Package Type：TSOT-23-6
- Packing：Tape&Reel
USD 0.35
5400
Supplier Information
Email：omnichip@ttbridge.com
Tel：15670610275
