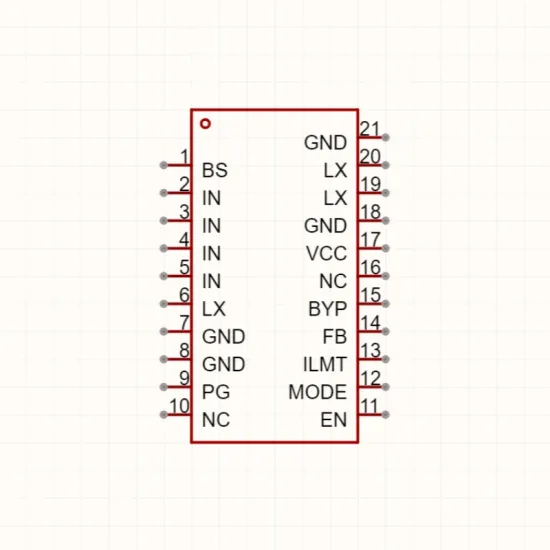

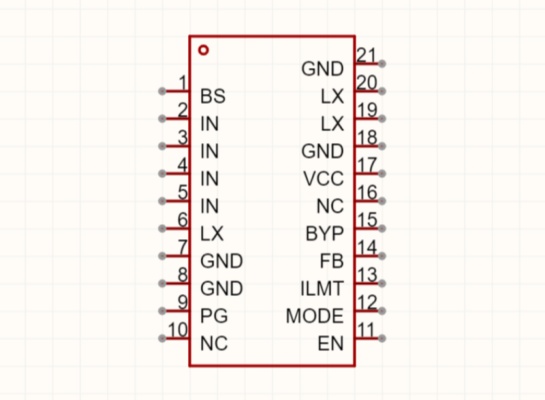

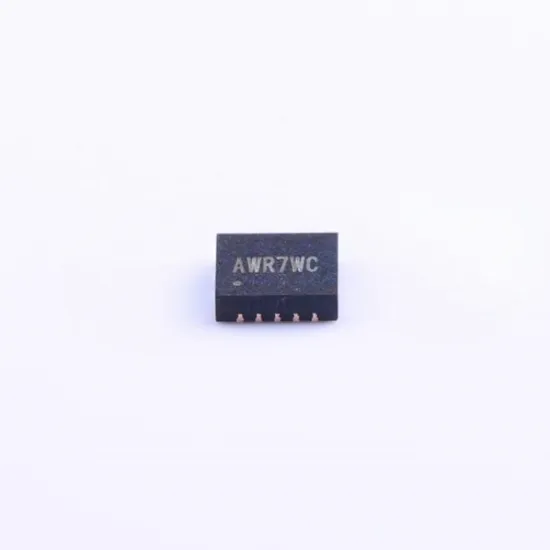

SY8286ARAC
SY8286ARAC IC is a high-efficiency 6A synchronous buck DC-DC converter with 4V-23V input, 600kHz operation, fast transient response and integrated protection.
- Operating Input Voltage Range：4V~23V
- Output Voltage Range：-
- Output Current：6A
- Switching Frequency：510kHz~690kHz
- Operating Ambient Temperature Range：-40℃~+85℃@(TA)

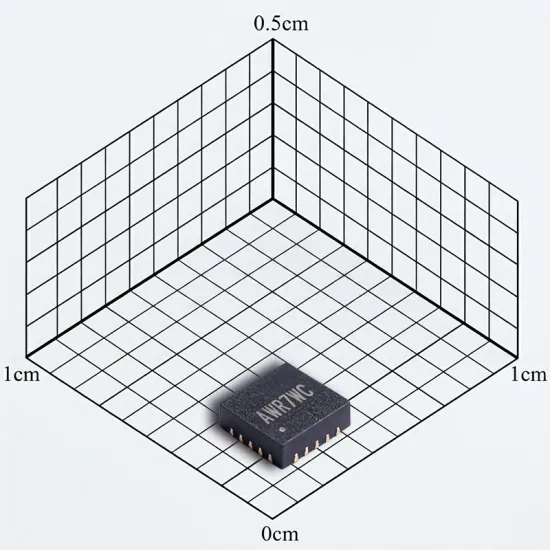

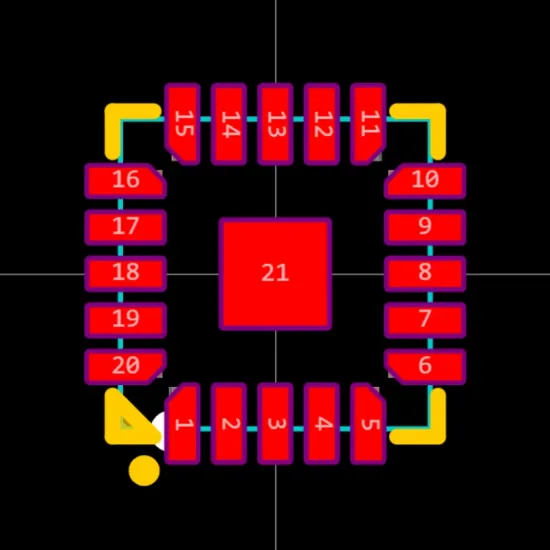

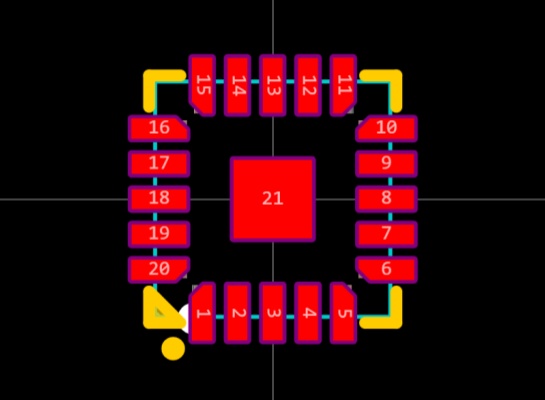

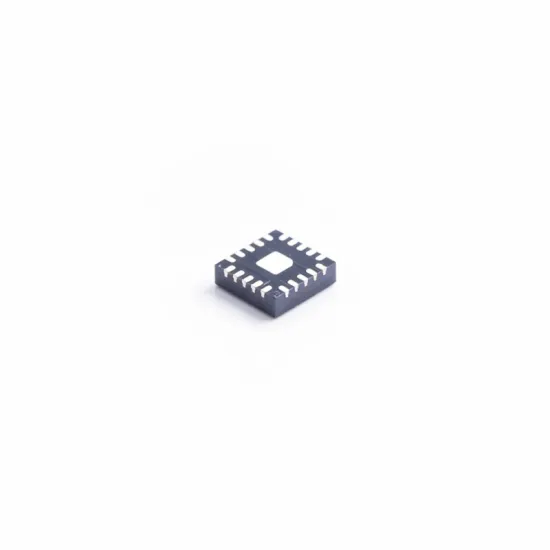

- Package Type：QFN-20-EP(3x3)
- Packing：Tape&Reel
USD 0.6
3400
