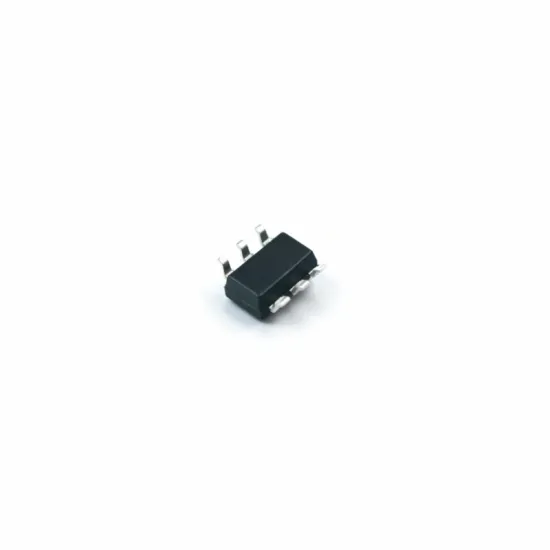

SY8201ABC
SY8201ABC IC is a high-efficiency 1A synchronous buck DC-DC converter with 4.5V-27V input, 500kHz operation, low RDS(ON), soft start and SOT23-6 package.
- Operating Input Voltage Range：4.5V~27V
- Output Voltage Range：-
- Output Current：1A
- Switching Frequency：500kHz
- Operating Ambient Temperature Range：-40℃~+85℃@(TA)

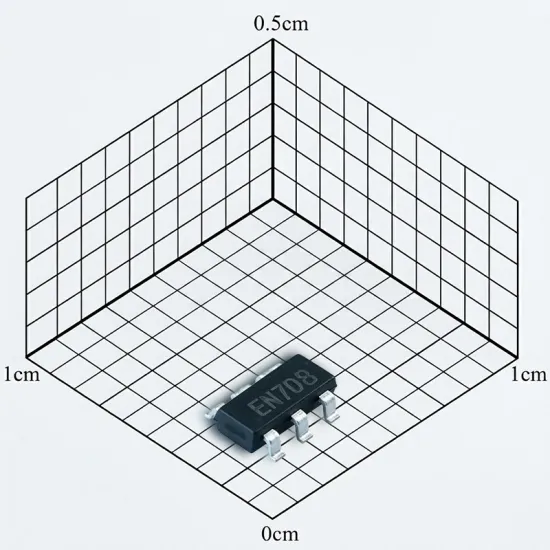

- Package Type：SOT-23-6
- Packing：Tape&Reel
USD 0.15
3000
