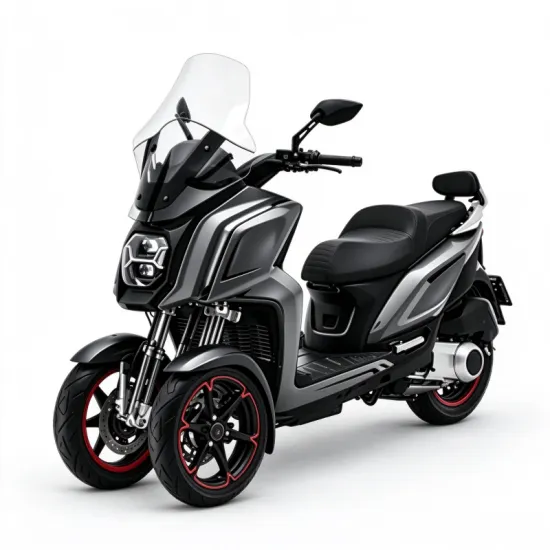

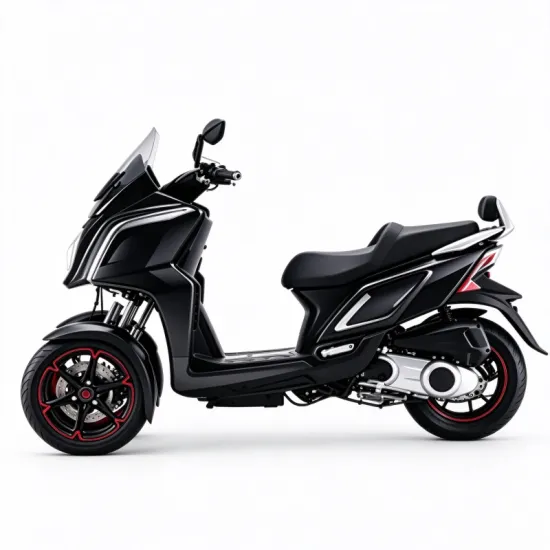

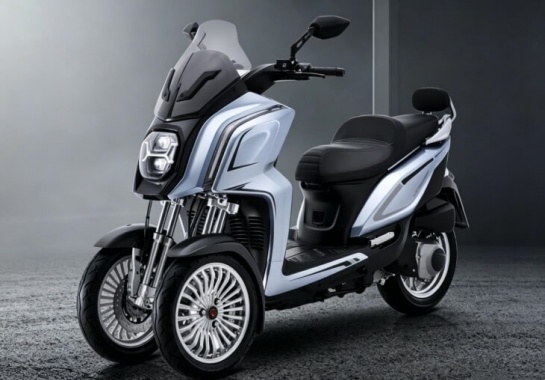

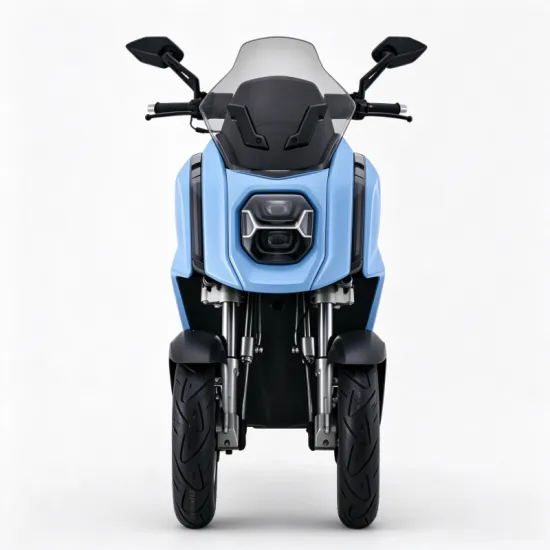

Product Overview

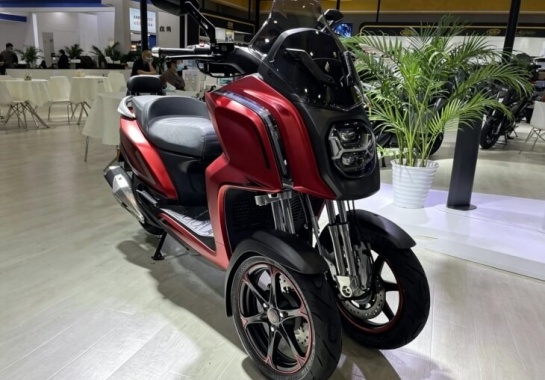

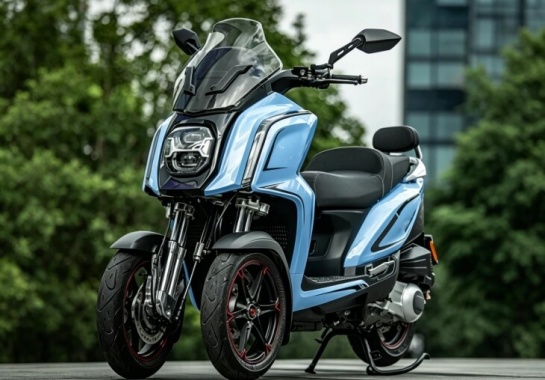

The DF01/ERR-3 is a leaning three-wheeled electric recreation vehicle. A mid-mounted motor and belt drive deliver smooth, punchy power, while the Mutual Leaning System (MLS) and Electric Balance System (EBS) combine two-wheel agility with three-wheel confidence. A 60V removable lithium battery and 7-inch TFT display come standard, in two power levels. Built for outdoor adventure and leisure—not daily commuting—it turns every ride into an experience.
Key Advantages:
· Lean into corners — MLS front suspension keeps bike agility with trike stability
·Punchy power — 65 N·m mid-drive motor for instant, thrilling acceleration
·Adventure-ready — waterproof removable battery + EBS self-balancing for reliable outdoor fun
·High-ROI attraction — eye-catching, photo-ready and built to turn visitors into repeat riders
|
|
Key Features
| Power & Performance Power That Makes Every Ride an Adventure · Mid-mounted motor delivers 65 N·m, with rapid starts and instant response · Belt drive is quiet and smooth, with easier maintenance · 5.0kW version has a top speed of 95 km/h, sparking true riding passion · 3.0kW version tops out at 45 km/h for easy access |
Range & Battery Go Farther, Play Longer · 60V removable lithium battery with smart BMS management for longer lifespan · Approx. 115 km range for the 5.0kW version; approx. 65 km for the 3.0kW version · Waterproof and shock-resistant battery for all-day worry-free use at camps and scenic areas |
|
| Handling & Stability Two-Wheel Agility, Three-Wheel Confidence · MLS (Mutual Leaning System) coordinates the two front wheels for natural, agile cornering · EBS (Electric Balance System) keeps you easily stable at red lights or short stops · Front and rear disc brakes (ABS on 5.0kW; CBS on 3.0kW) for controllable, confident braking |
All-Day Comfort Ride Longer, Feel Fresh · Front dual suspension reduces road vibration by about 30% · Friendly 780 mm seat height for a relaxed posture and easy handling · Air suspension on the 5.0kW version keeps the ride stable even on bumpy roads |
|
| Design & Tech Built to Be Seen and Understood · Sporty forward-leaning body with five color options—eye-catching and photo-ready · 7-inch TFT display with one-touch Normal/Sport mode switching; backlight automatically adjusts to ambient light · LED lighting + keyless start + reverse gear, fully loaded with tech |
Product Details
Smart Driving Features

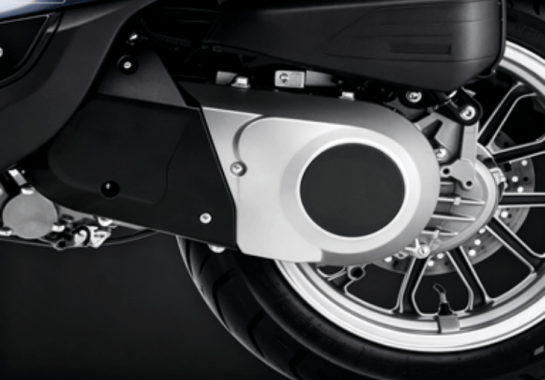

· Mid-mounted motor with belt drive, 65 N·m output

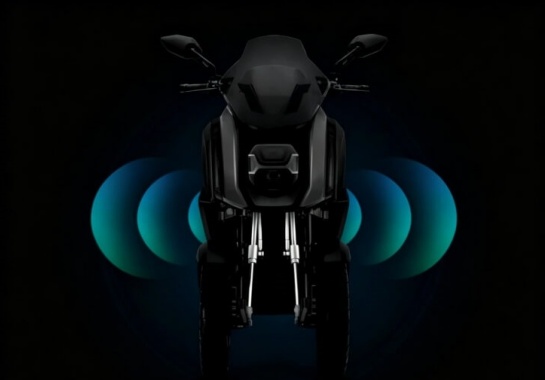

· EBS electric balance system (standard on 5.0kW; optional on 3.0kW)

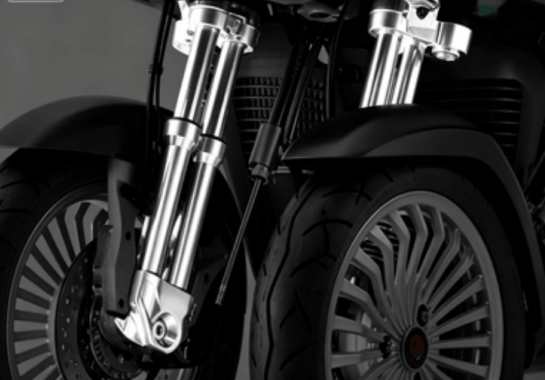

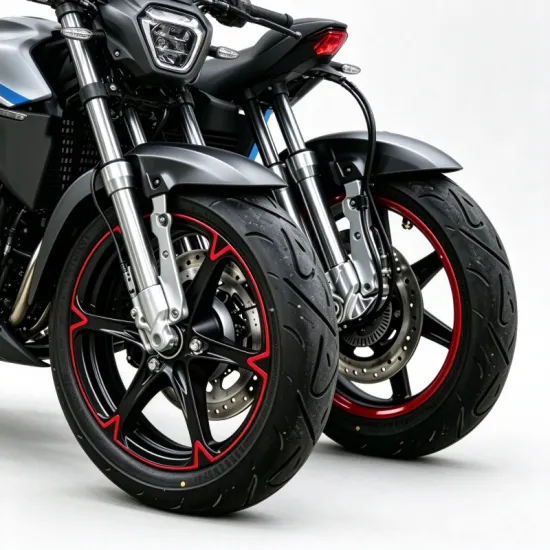

· MLS mutual leaning front suspension for coordinated cornering

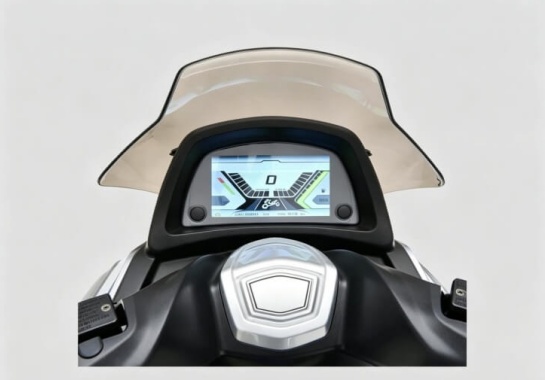

· 7-inch TFT color display with Normal/Sport mode switching
· Keyless start + reverse gear
|
|
Comfort Cabin Design

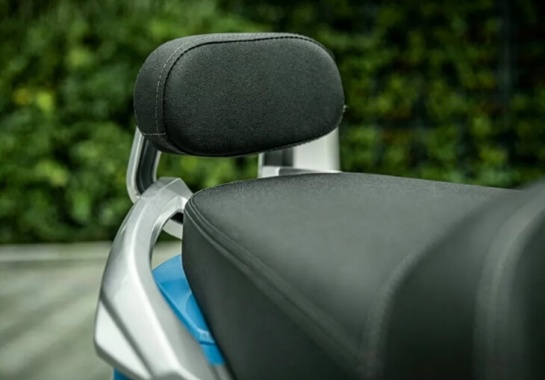

· 780 mm seat height for a relaxed riding triangle
· Front dual suspension reduces road vibration by about 30%
· Air shock absorbers on the 5.0kW version
· TFT backlight auto-adjusts to ambient light, clear day and night

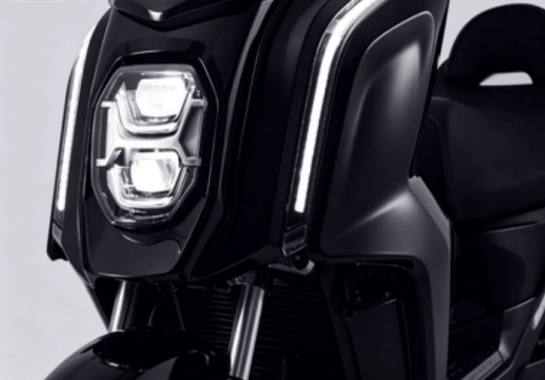

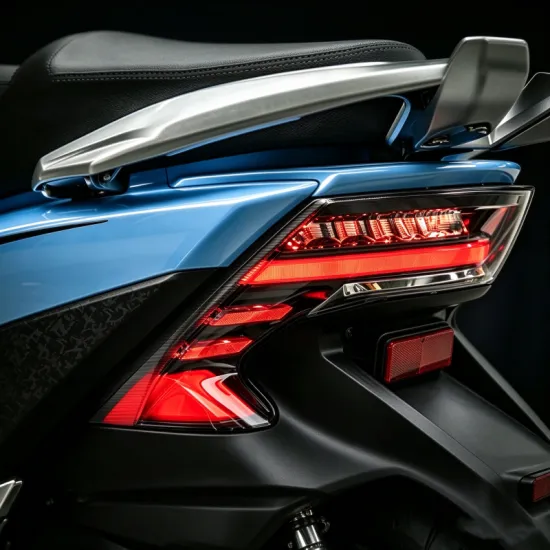

· LED front and rear lighting for night visibility
|
|
Safety & Exterior Details
· Front and rear disc brakes (ABS on 5.0kW; CBS on 3.0kW)
· Mechanical parking brake for secure hill stops
· 25% hill climbing capability for outdoor slopes
· 155 mm ground clearance for unpaved roads
· Five colors: white / black / silver / blue / red
|
|
Product Specifications
Specification | ERR-3 (5.0 kW) | ERR-3 (3.0 kW) |
Motor | Mid-drive, belt drive | Mid-drive, belt drive |
Rated Power | 5000 W | 3000 W |
Max Torque | 65 N·m | 65 N·m |
Battery | 60V / 80Ah lithium, removable | 60V / 40Ah lithium, removable |
Top Speed | 95 km/h | 45 km/h |
Range (approx.) | 115 km | 65 km |
Charging Time | 6.5 h | 3.5 h |
Dimensions (L×W×H) | 1975 × 780 × 1435 mm | 1975 × 780 × 1435 mm |
Wheelbase | 1435 mm | 1435 mm |
Front Track | 420 mm | 420 mm |
Seat Height | 780 mm | 780 mm |
Curb Weight | 150 kg | 150 kg |
Ground Clearance | 155 mm | 155 mm |
Gradeability | 25.00% | 25.00% |
Front / Rear Tire | 100/80-14 / 130/70-12 | 100/80-14 / 130/70-12 |
Brake System | Disc, ABS | Disc, CBS |
Front Suspension | Dual shock, airbag type | Dual shock, standard |
Dashboard | 7-inch TFT | 7-inch TFT |
Lighting / Reverse / Keyless | LED / Standard / Standard | LED / Standard / Standard |
Electric Balance (EBS) | Standard | Optional (extra) |
Colors | White · Black · Silver · Blue · Red | White · Black · Silver · Blue · Red |
Packing Size | 2030 × 790 × 1260 mm | 2030 × 790 × 1260 mm |
Applications
The ERR-3 leaning electric trike is built for experience operators. It fits adventure parks, resorts, theme parks, outdoor camps, scenic areas and recreation centers—giving riders the thrill of leaning into corners with three-wheel confidence. A high-ROI attraction that turns visitors into repeat riders and social-media stars.
|
|
