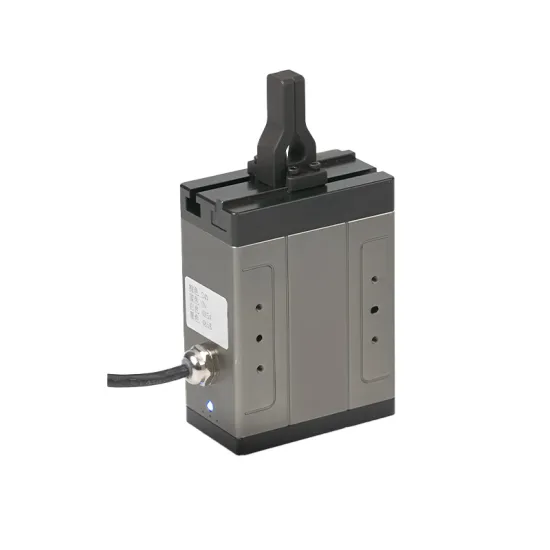

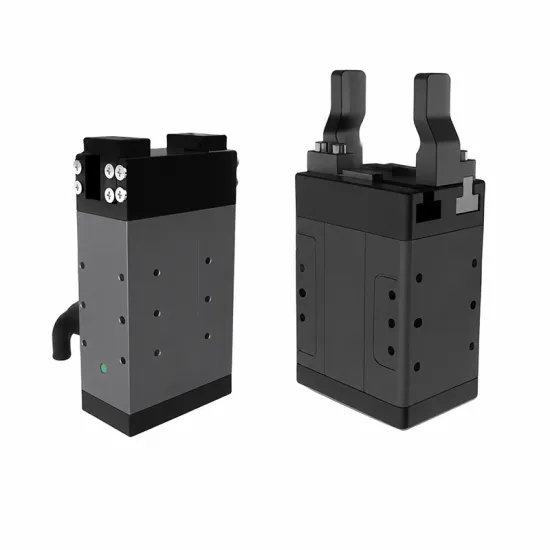

Product Description
The EPG series is a low-profile industrial electric parallel gripper. It offers a high level of safety and is equipped with a mechanical self-locking mechanism. Its ultra-thin design can accommodate multiple work pieces side by side.
Product parameters
Adjustable stroke |
0-26mm |
0-40 mm |
0-50mm |
Single-finger gripping force |
1-15N |
40-100N |
2-60N |
Open/close time | 0.3s | 0.9s | 0.6s |
Repeat accuracy(mm) |
±0.02mm | ||
Maximum recommended load |
0.3 kg |
2 kg |
1kg |
Drop detection | support | ||
Model name | EPG26-015 | EPG40-100 | EPG50-060 |
Usage environment |
5~40℃，below 85% RH | ||
Operation noise | ＜40dB | ||
weight | 0.25kg | 0.37Kg | 0.57kg |
Protection level | IP40 | IP40 or IP65 | IP40 or IP65 |
Rated voltage(V) | DC 24V±10% | ||
Maximum current(A) | 0.85A | ||
Rated current | 0.4A | ||
Communication protocol | Modbus RTU(RS 485) | Modbus RTU(RS 485) | Modbus RTU(RS 485) |
Digital I/O | Digital I/O | ||
International standards | CE、RoHS | ||
Vertical allowable static load Fz | 150N | 200N | 200N |
Slider allowable static moment Mx | 1.2N.m | 2N·m | 2N·m |
Slider allowable static moment My | 0.9N. m | 1.5 N·m | 1.5 N·m |
Slider allowable static moment Mz | 0.55N. m | 2N·m | 2N·m |

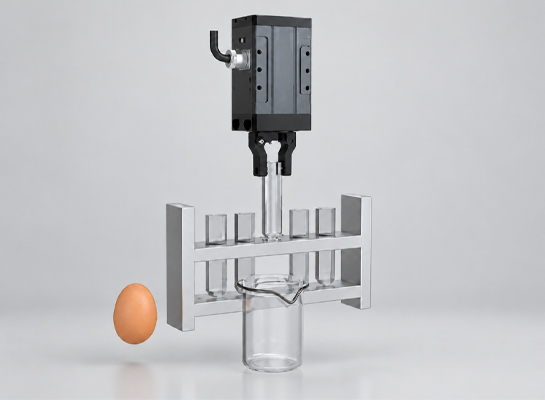

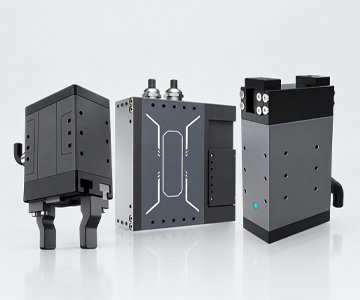

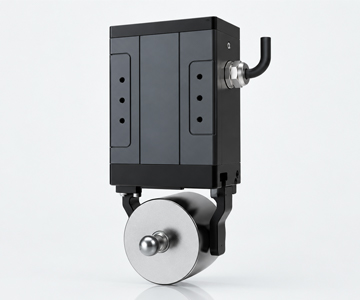

Product Display
Adjustable force and position
complete different tasks. Therefore, it can adapt to the needs of manufacturing plants including equipment unitization, parameter
adjustment, agile manufacturing, fast line change, low-noise operation, etc.
Small size, large stroke
2. Optimized transmission chain reduces imports and improves efficiency;
3. Optimized transmission shortcomings maximize performance.
High-precision force control
3. utilize a current/speed observer.

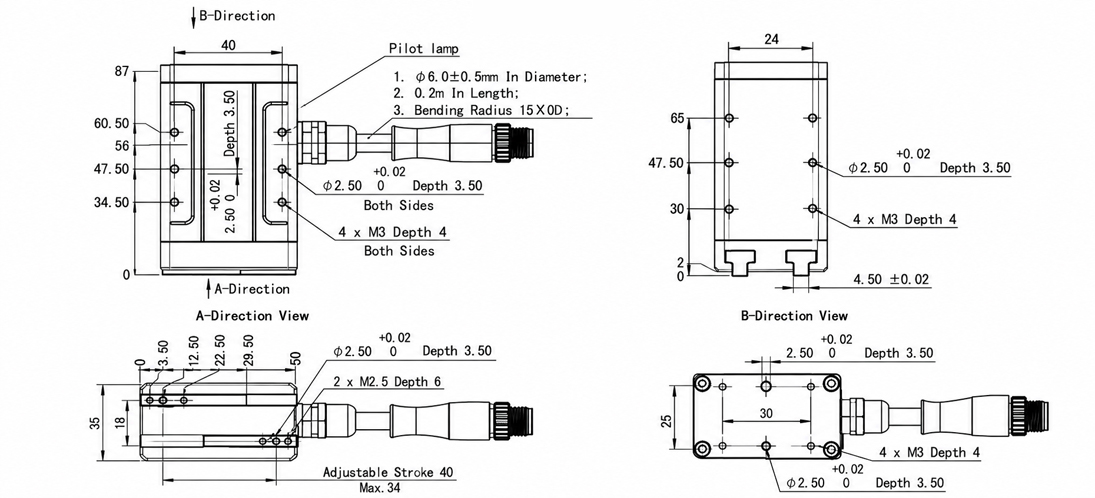

Schematic Diagram
EPG-50-060

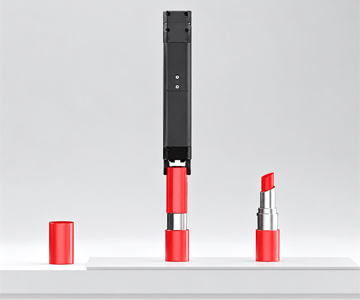

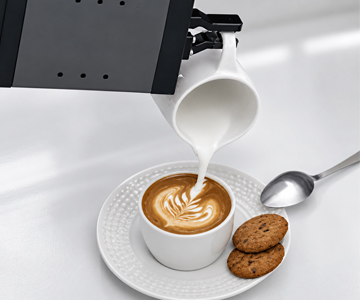

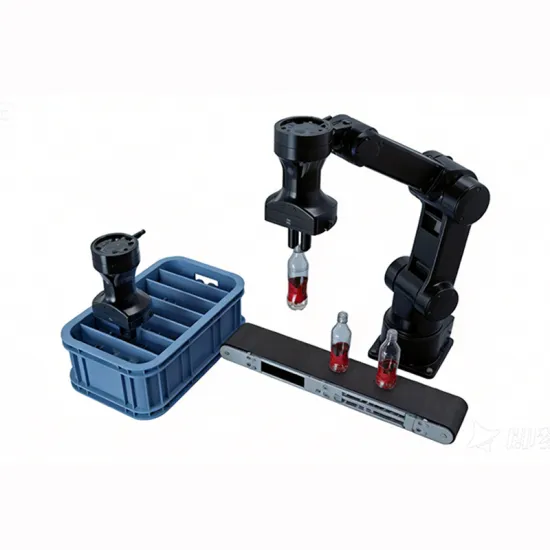

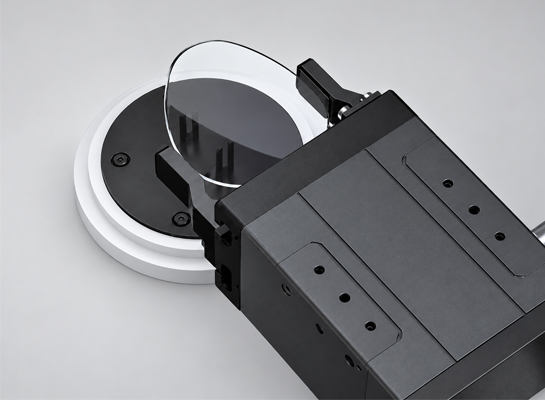

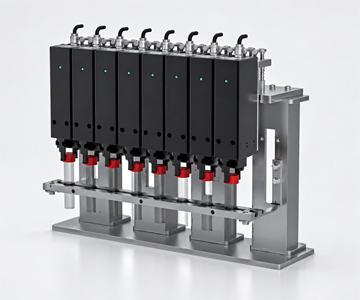

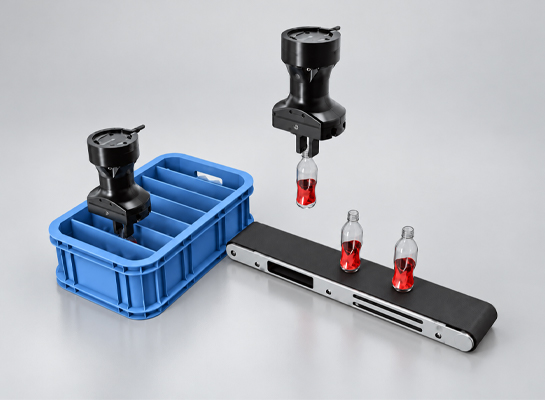

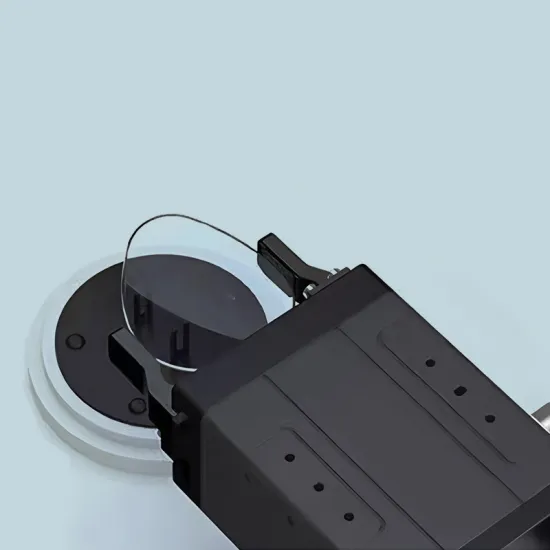

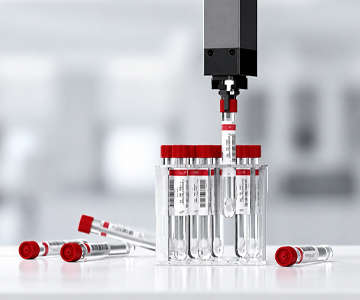

Application Cases
The electric gripper series integrates grasping, clamping and handling functions, and has a wide range of applications. It can be used in life sciences, 3C, semiconductors, new energy, robotics, inspection, packaging and various other application scenarios.
