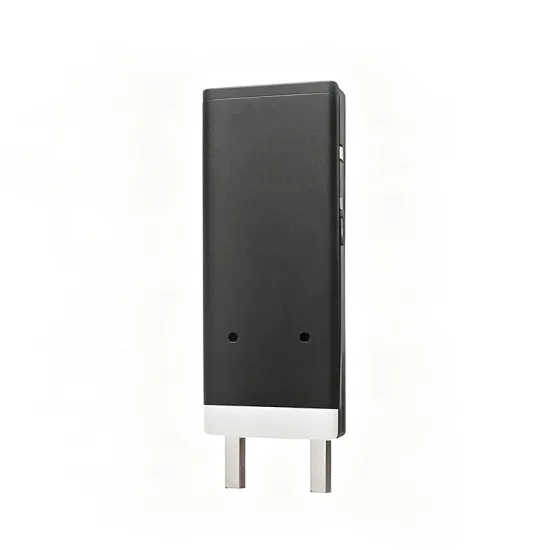

Product Description
The miniature electric gripper features an ultra-compact design, approximately the size of a car key, making it ideal for space-constrained applications. With a highly integrated structure, adjustable gripping force, and easy installation, it offers flexible and efficient gripping solutions for a wide range of robotic and industrial automation applications. Its simple communication interface enables convenient system integration and reliable operation.
Product parameters
Model name | EPG-ST04-10 | EPG-ST12-50 |
Adjustable stroke | 4 mm | 12 mm |
Single-finger gripping force | 10N | 50N |
Open/close time | 0.1s | 0.2s |
Maximum recommended load | 200g | 500g |
Drop detection | support | support |
Usage environment | 5~40℃，below 85% RH | 5~40℃，below 85% RH |
Operation noise | ＜50 dB | ＜60dB |
weight | 100g | 240g |
Protection level | IP40 | IP40 |
Rated voltage(V) | DC 24V±10% | DC 24V±10% |
Drive method | Built-in driver | Built-in driver I/O |
Vertical allowable static load Fz | 58 N | 98 N |
Slider allowable static moment Mx | 0.53 N·m | 1.36 N·m |
Slider allowable static moment My | 0.26 N·m | 0.68 N·m |
Slider allowable static moment Mz | 0.26 N·m | 0.68 N·m |

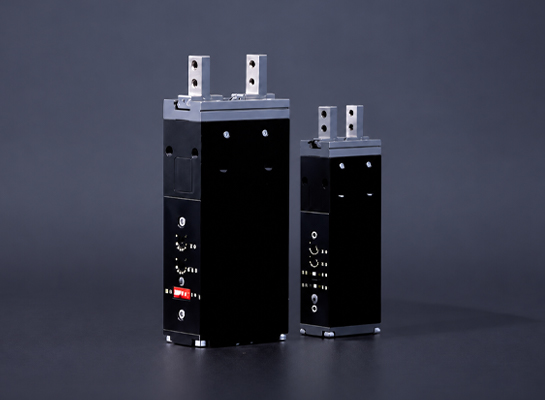

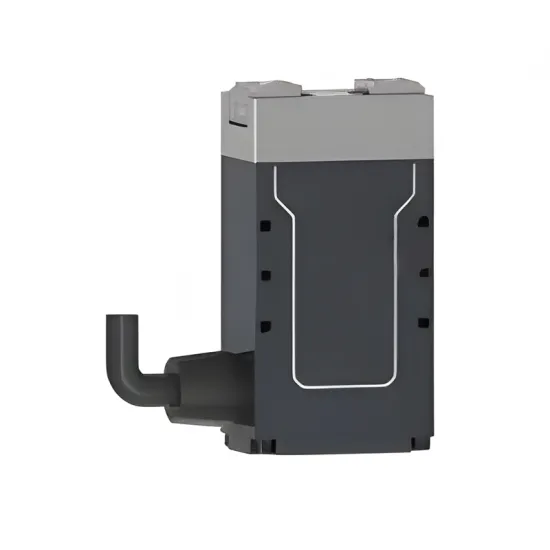

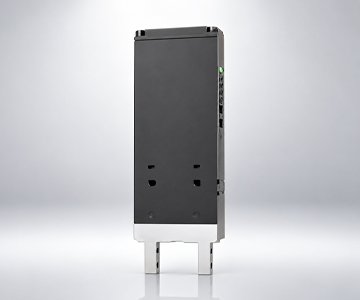

Product Display

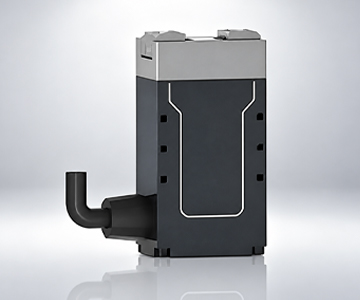

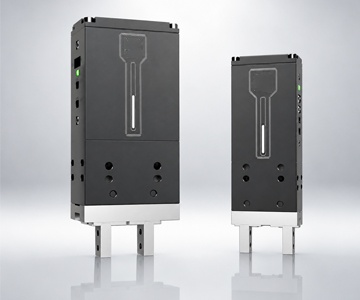

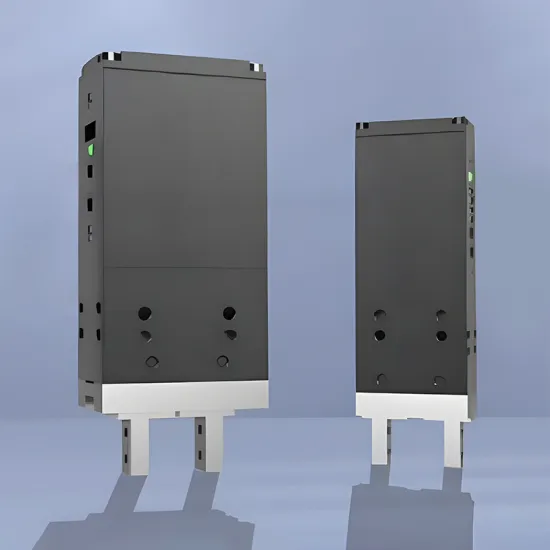

Ultra-Compact Design
Featuring an innovative ultra-compact structure, the gripper saves valuable installation space while maintaining practical gripping functionality. Its small footprint makes it ideal for compact robotic arms, precision equipment, and space-constrained automation applications.

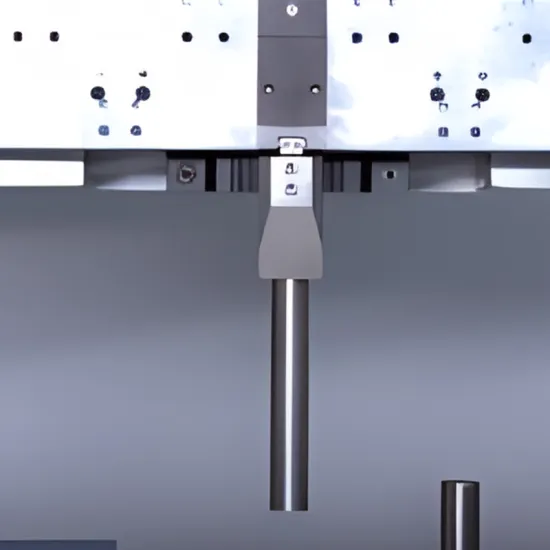

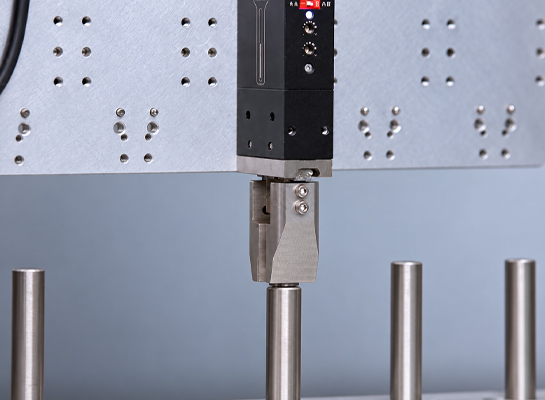

Flexible Workpiece Handling
Designed to accommodate different workpiece handling requirements, the gripper offers flexible operation for various shapes and sizes of workpieces. It is suitable for diverse gripping tasks in robotic systems and automated production lines.

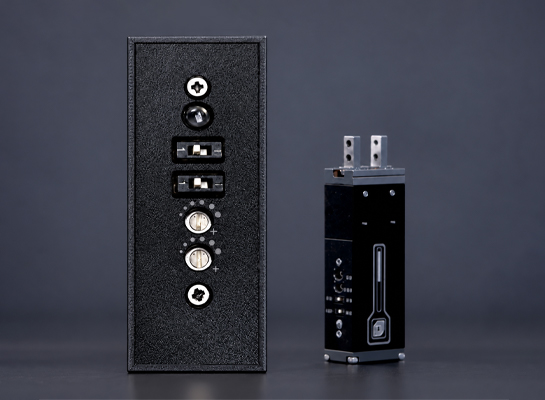

Integrated Drive and Control
The integrated drive and control design combines key functions into one compact unit, reducing external wiring and simplifying system integration. It provides a convenient solution for robotic applications and industrial automation equipment.

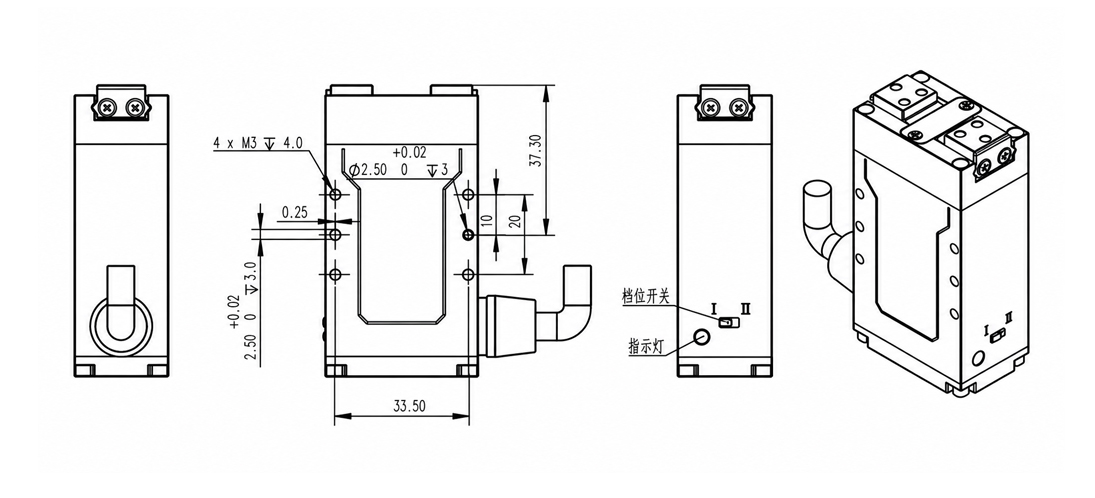

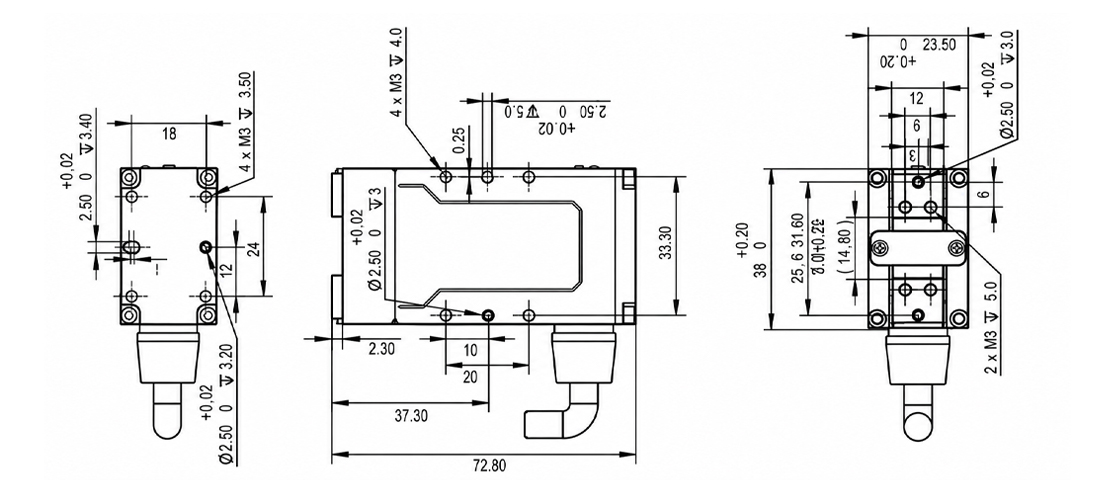

Schematic Diagram

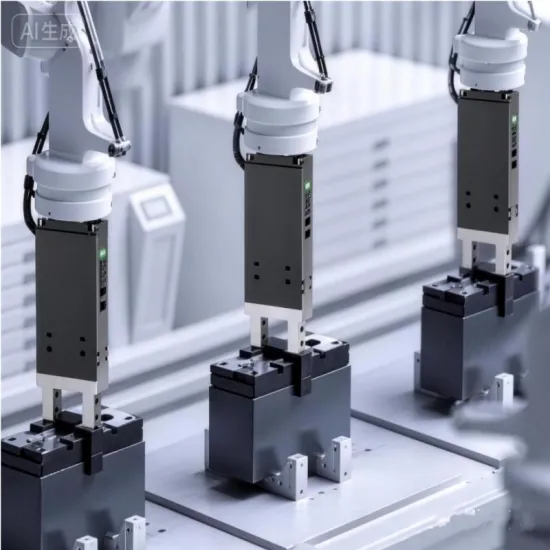

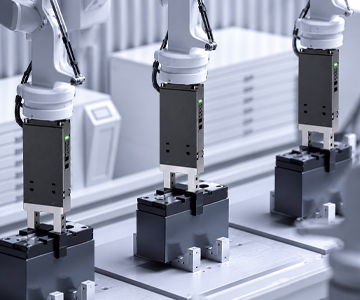

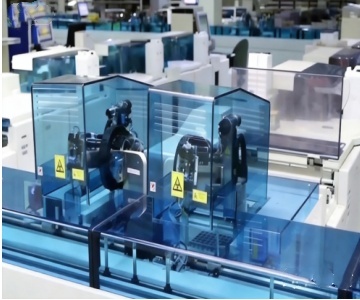

Application Cases

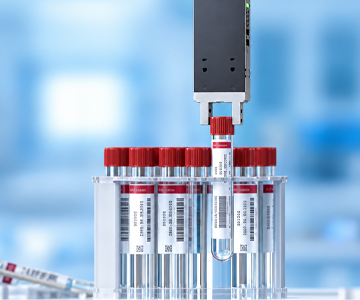

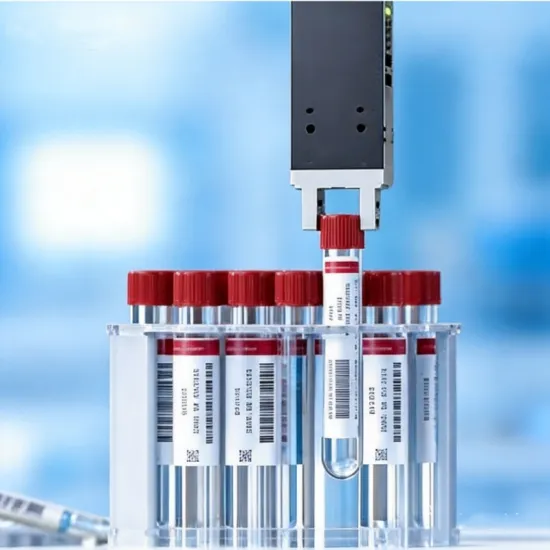

The miniature electric gripper is widely used in 3C electronics, precision manufacturing, electrical equipment, semiconductor production, medical devices, and new energy industries. With its compact design, adjustable gripping force, and convenient installation, it is ideal for precision gripping, component handling, assembly, and automated production processes.
