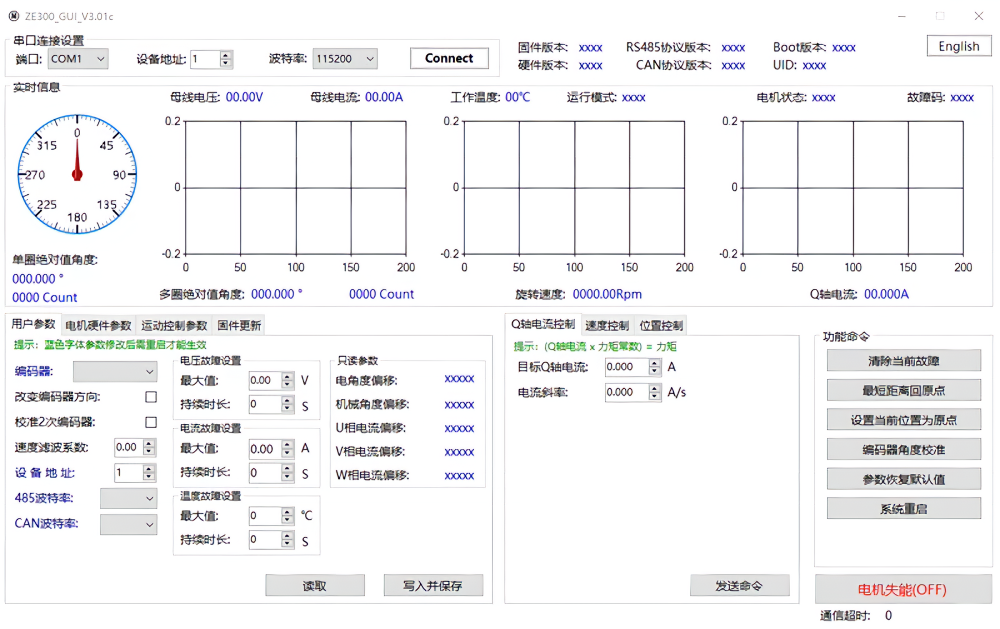

Host computer software

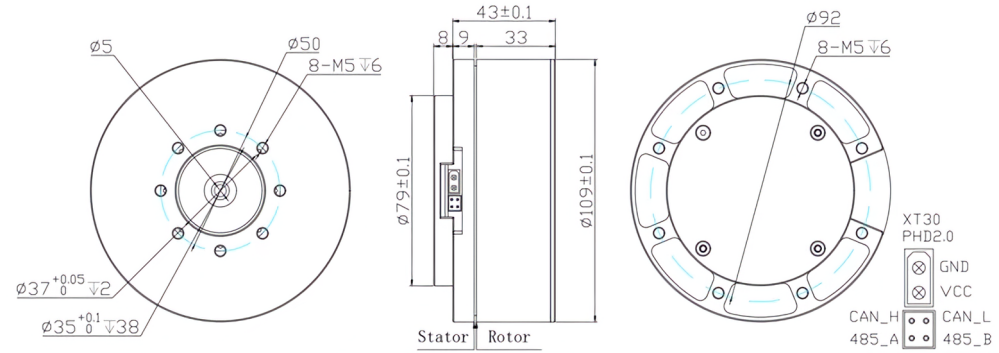

Motor Installation Dimension Drawing
Parameters | Unit | DM-S-11025 |
Nominal voltage | V | 36 |
Voltage range | V | 12~40 |
Nominal current | A | 3.8 |
Nominal power | W | 136.8 |
Nominal torque | N.M | 4.0 |
Nominal speed | rpm | 168 |
No-load max speed | rpm | 330 |
Peak torque | N.M | 8.5 |
Peak current | A | 16 |
Speed constant | rpm/v | 9.2 |
Torque constant | N.M/A | 1.03 |
Number of pole pairs | Pairs | 21 |
Phase resistance | Ω | 1.5 |
Phase inductance | Mh | 1.13 |
Rotor inertial | gcm^2 | 7796 |
Communication | / | RS485/CAN |
Encoder type | / | Single-turn absolute |
Resolution | bit | 14 |
Motor weight | g | 1028 |
Working temperature | °C | -20~80 |
|
|
|
|
Application Areas
| Quality Guarantee | Officially Operated | Worry-Free Operation |
Widely applicable across various industries
Targeted development services for other application domains are also available.
360° camera |
LiDAR |
Gatling head |
Handheld camera |
