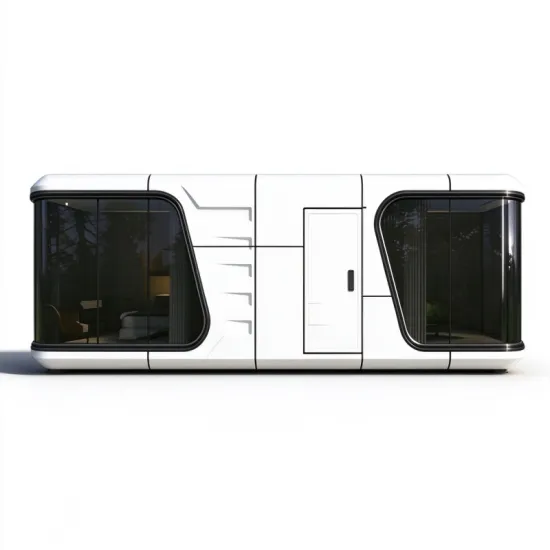

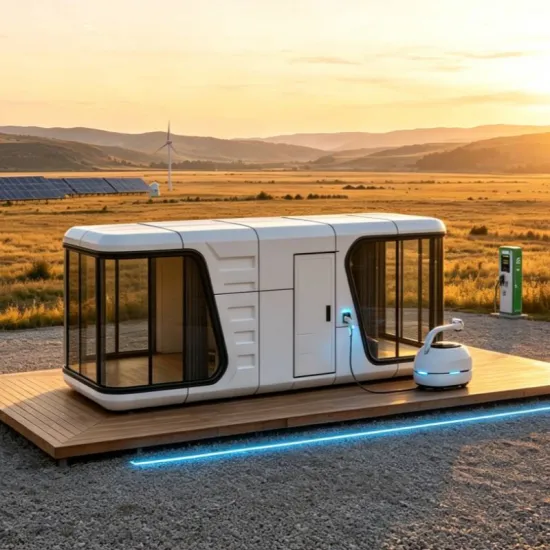

Product Description
The SP-32 features a high-strength steel frame, weather-resistant aluminum panels, and insulated glazing. Its relocatable structure and customizable interior make it suitable for robotics support facilities and remote operational sites.
Product parameters
Parameter | Specification |
Overall Dimensions | 9100 × 3450 × 3200 mm |
Cabin Area | 31.4 m² |
Approximate Weight | 8 tons |
Maximum Power | 10 kW |
Glazing Heat Transfer Coefficient | 1.58 W/(m²•K) |
Insulation Material | Insulated sprayed rigid polyurethane |
Thermal Conductivity | 0.0294 W/(m•K) |
Main Structure | High-strength hot-dip galvanized steel |
Exterior Panels | Weather-resistant fluorocarbon-coated aluminum |
Note: Specifications are for reference. Confirm the final configuration and applicable parameters before ordering.

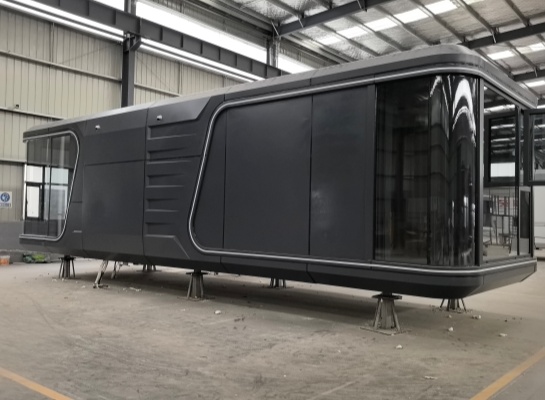

Product Construction & Materials

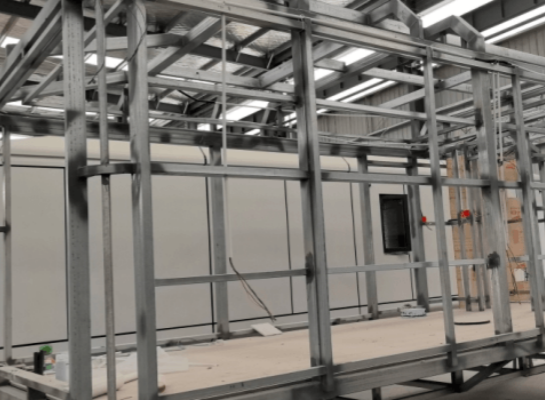

Steel Structure
The bird's-nest-style frame uses high-strength hot-dip galvanized steel.

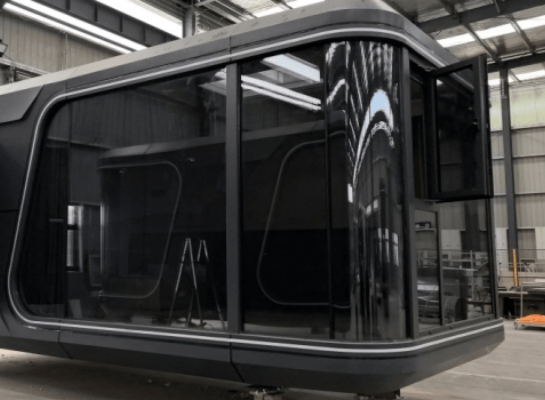

Aluminum Exterior Panels
Fluorocarbon-coated aluminum panels form the cabin's curved exterior, providing a streamlined appearance and weather resistance.
Insulated Doors & Windows
Thermally broken, mosquito-proof doors and windows are paired with Low-E double-glazed insulating glass.

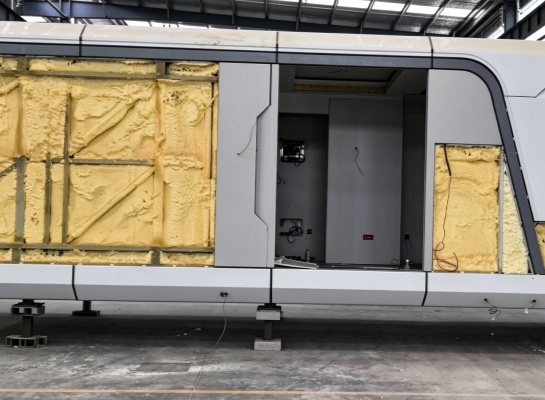

Thermal Insulation Material
Sprayed rigid polyurethane insulation has a listed thermal conductivity of 0.0294 W/(m·K).

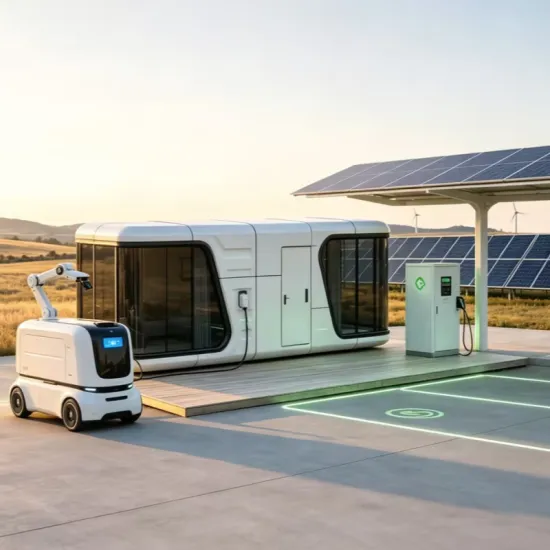

Project Applications

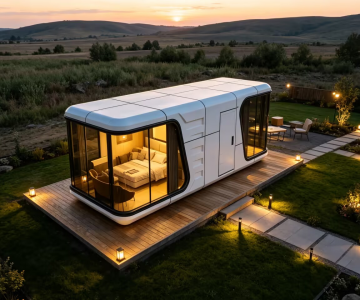

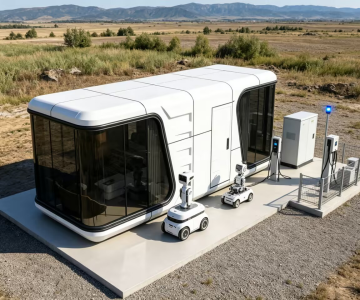

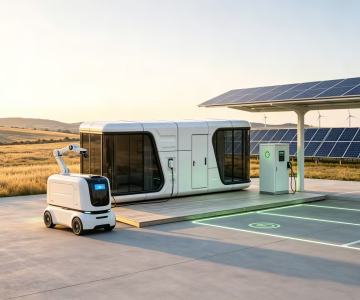

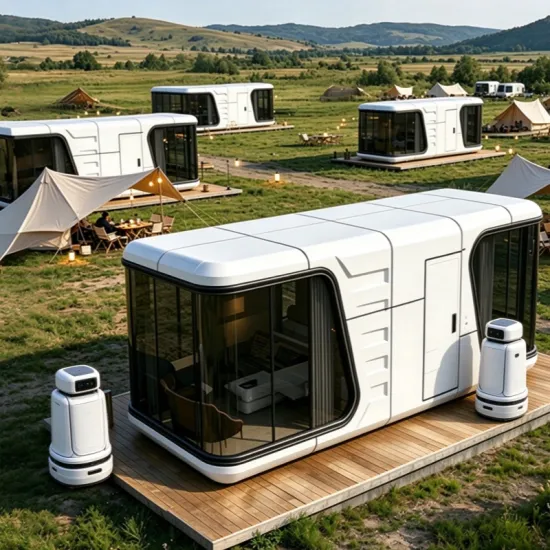

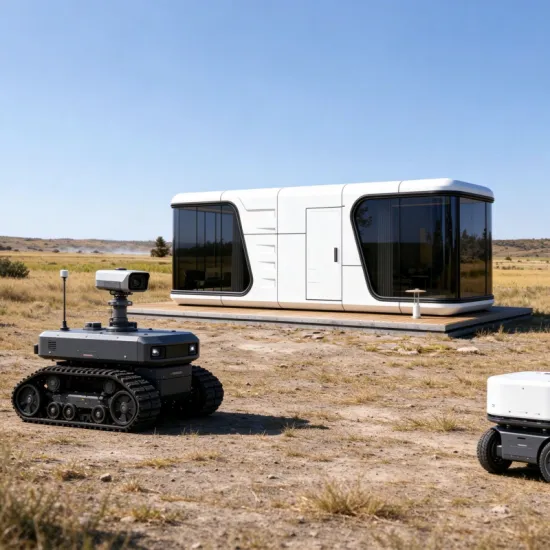

The SP-32 is suitable for robot service stations, guesthouses and homestays, and photovoltaic power stations. Its relocatable structure and customizable interior layout support different site requirements, while integrated water and energy solutions can support off-grid applications.
Project Configuration & Space Planning
Dimensions & Layout: Cabin dimensions and interior fittings can be customized according to project requirements.
Functional Space: Interior layouts can accommodate equipment storage, robot maintenance, or operator work areas.
Integrated Systems: Water and energy solutions can be coordinated with the interior layout to support efficient space utilization and independent living.
Ordering Considerations
Power Specification: Confirm the application and configuration associated with the listed 10 kW maximum power.
Final Configuration: Confirm the selected dimensions, interior fittings, and optional systems before order placement.
