Product Description

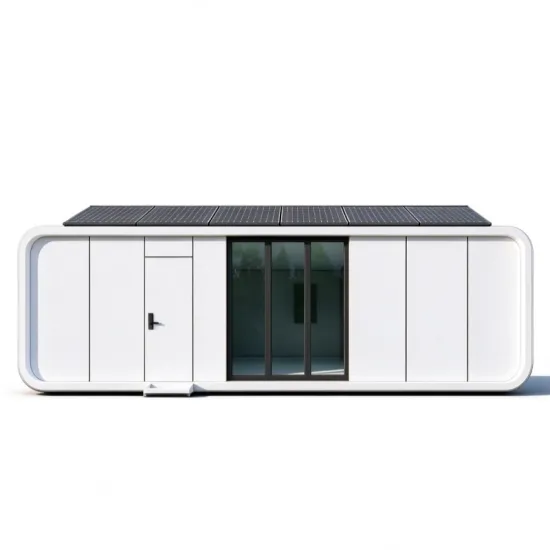

The AP-38 is a 38 m² cabin with a distinctive rounded exterior, designed for flexible use as an outdoor operations room, equipment control space, or robot service base. Its interior layout and optional systems can be configured to suit different site requirements.

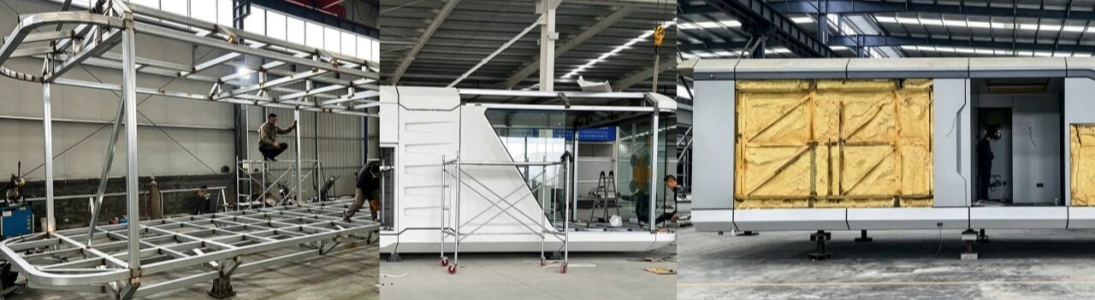

Structure & Material Details
Galvanized Steel Frame
The galvanized steel frame forms the main supporting structure of the cabin.
Fluorocarbon-Coated Aerospace Aluminum Alloy Panels
The exterior panels create the cabin's curved shape and distinctive apple-like appearance.
PU Insulation
The polyurethane insulation layer helps reduce heat transfer and provides acoustic insulation.
Product parameters
Item | Specification |
Model | AP-38 |
Floor Area | 38 m² |
Overall Dimensions | 11.5 × 3.3 × 3.2 m |
Main Frame | Galvanized steel structure |
Exterior Panels | Fluorocarbon-coated aerospace aluminum alloy |
Insulation | PU insulation |
Installation Time | 1–2 days |
Production Lead Time | Approximately 25 working days |
Wind Resistance | ≥ Level 12 (32–36 m/s), as specified |
Fire Rating | Class A, ≥ 1 hour, as specified |
Power Options | Grid / solar / battery compatible |
Monitoring | Remote monitoring supported, subject to configuration |
Communication | 5G / network ready |
Power Connector | IP67-rated outdoor industrial waterproof connector |
Water System | Optional integration |
Customization | Available |
Power Supply & Site Utilities
Whole-Cabin Power Connection

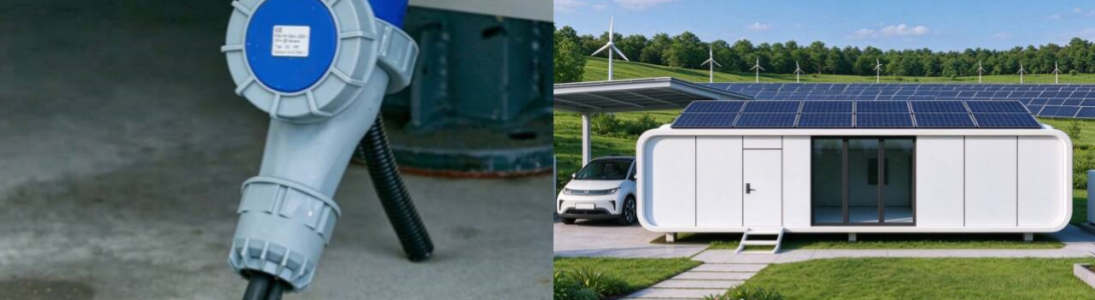

The AP-38 uses an IP67-rated outdoor industrial waterproof power connector for the cabin's electrical supply.
Renewable Energy Options

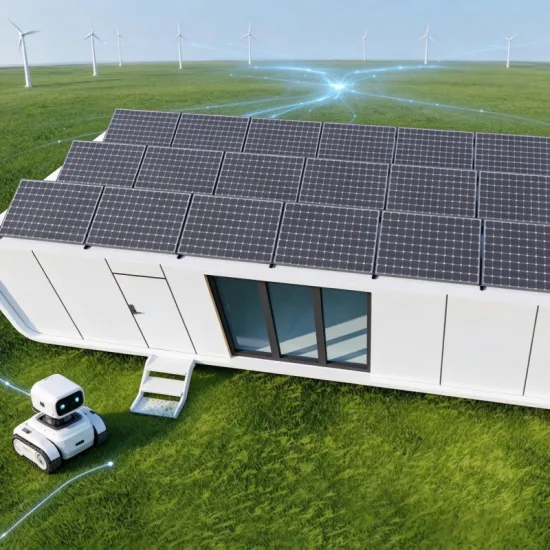

The cabin can be configured for wind power, solar power, or a wind-solar hybrid system according to site conditions and project requirements.
Exterior Design & Living Space
The 38 m² interior can be customized for homestay accommodation, resort stays, or commercial use, with flexible layouts to suit different project needs.
Flexible Spaces for Accommodation & Operations

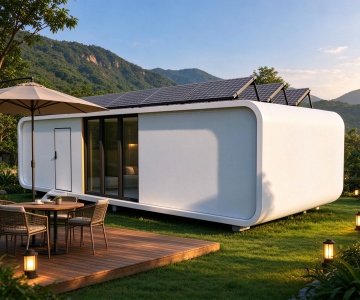

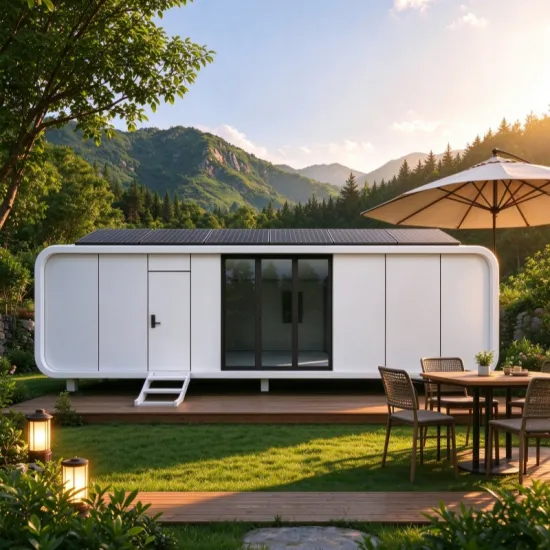

Homestays & Resort Accommodation
Suitable for homestay and resort projects, with interior arrangements customizable to meet different accommodation requirements.

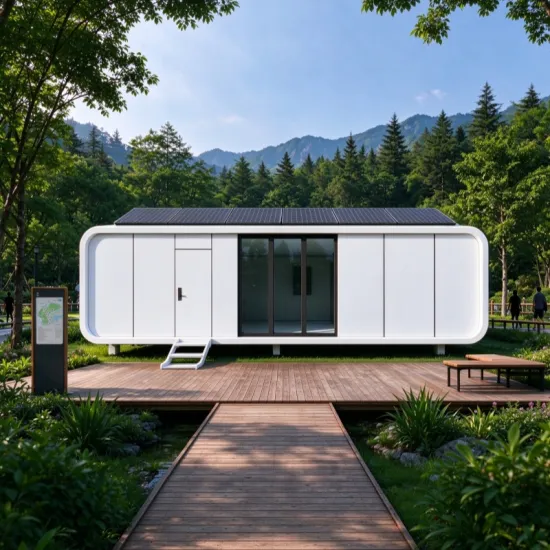

Campsites & Scenic Destinations
Can be considered for accommodation facilities in campsites, scenic areas, and outdoor leisure projects, subject to site and project requirements.
Remote Site Facilities

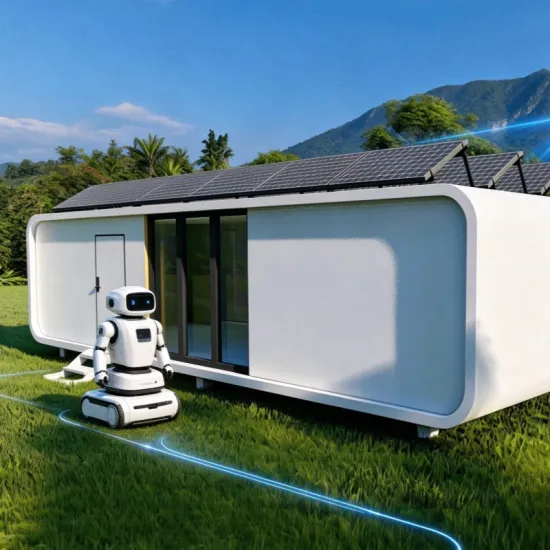

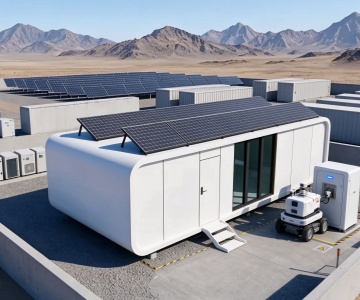

Can also be configured as a working or equipment management space for remote projects, including applications involving robot servicing and equipment monitoring.
Optional Functions & Applications
The AP-38 can be configured with additional systems according to the intended use.
Water System: Optional water storage, filtration, and basic treatment.
Connectivity: 5G or satellite communication options.
Monitoring: Temperature, humidity, air quality, and security monitoring options.
Robot Support: Optional docking, charging, maintenance space, and multi-robot coordination systems.
The availability and integration of each option should be confirmed for the specific project.
