Product Description
The ESK-9 is an electric off-road skateboard built for outdoor recreation and adventure operations. It pairs a planetary gear motor with car-grade independent suspension, available in dual-drive and 4WD versions. Top speed reaches 50–60 km/h, range up to 110 km per charge, and max load 150 kg. Designed for adventure parks, resorts, camps and scenic areas as a paid experience ride or event attraction.
Key Advantages:
· Planetary gear drive — strong torque, quiet, excellent climbing ability
· Car-grade independent suspension — stable on gravel, grass and trails
· Dual-drive / 4WD options — up to 110 km range for long operating days
· 11-layer composite deck + off-road tires — 150 kg max load, rental-ready durability
· CE / RoHS certified; design and utility model patents
Product Features

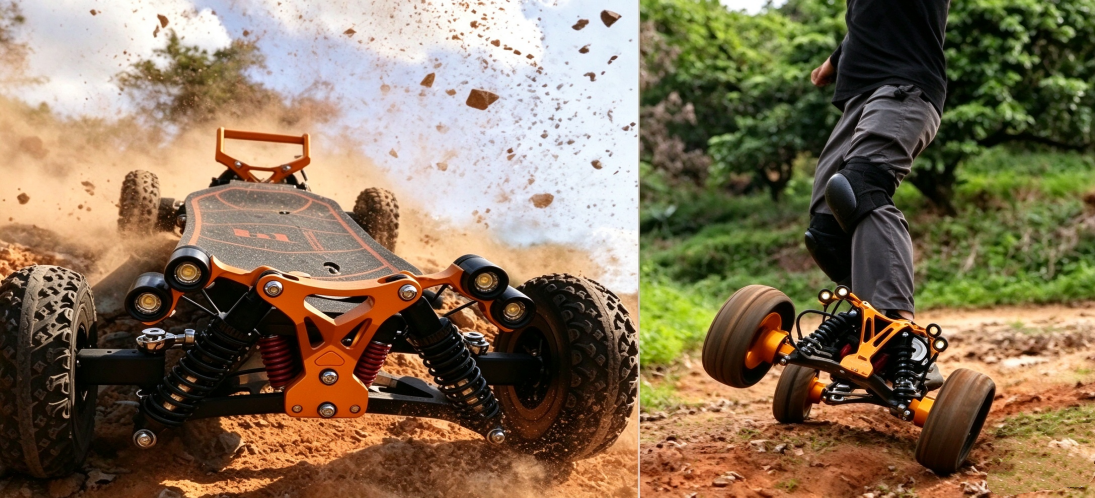

Power Performance
The planetary gear drive with multi-point engagement delivers strong and sustained torque output. A single motor peaks at 3,800 W, and the 4WD version has a total power of up to 15,200 W. The 4WD model can climb slopes up to 55°, maintaining continuous power on undulating terrain and slopes—ideal for rental scenarios that require “powerful and durable” performance.
· Single motor peak: 3,800 W; 4WD total power: 15,200 W
· 4WD version climbing angle: up to 55°
· Integrated embedded motor, compact and efficient

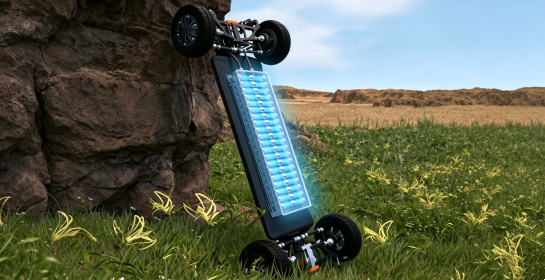

Range
Battery options include 12 / 20 / 35 / 40 Ah. The dual-drive 40 Ah version offers up to 110 km of range on a single charge, while the dual-drive 20 Ah version offers 60 km. Operators can choose battery configurations based on average daily rental duration and site area to reduce mid-operation charging interruptions.
· Battery options: 12 / 20 / 35 / 40 Ah
· Dual-drive 40 Ah: up to 110 km range
· Matched to different operational intensities and site sizes

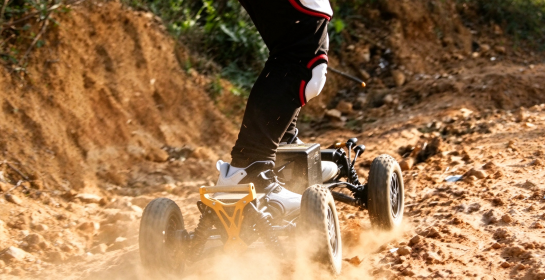

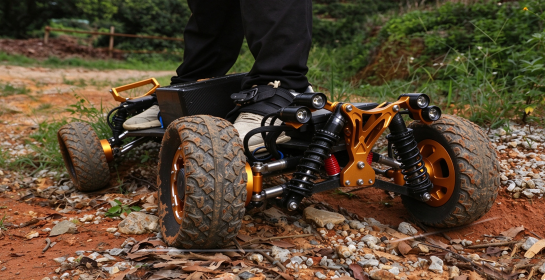

Handling Stability

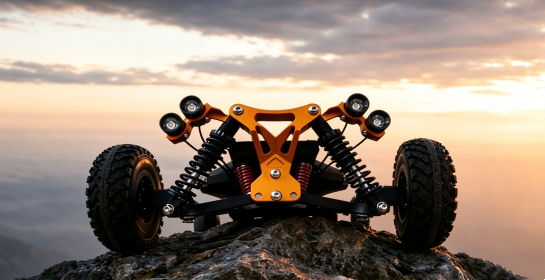

Automotive-grade independent suspension, independent four-wheel control, and an ESC core chip keep the vehicle planted on rough ground with zero-delay response. The system tolerates up to 20° of deviation, lowering the operating threshold for rental users on unfamiliar terrain.
· Independent four-wheel control, tolerates 20° deviation
· ESC chip, zero-delay response
· Stays planted and stable on rough terrain
Comfort

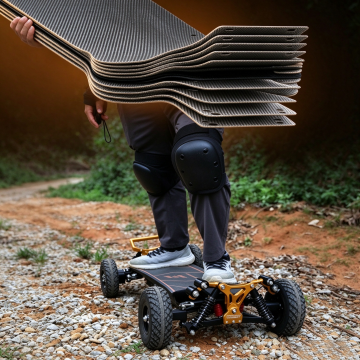

The 11-layer composite deck (9 layers of Canadian maple + 2 layers of fiberglass) works with off-road tires to absorb impacts, with deck hardness and toughness reaching 3 times conventional levels. A 200 mm ground contact width provides slip-resistant grip, and a maximum load of 150 kg accommodates high-frequency use by users of different body types.
· 11-layer composite deck, maple + fiberglass
· 200 mm ground contact width, slip-resistant grip
· Maximum load: 150 kg
Design
The integrated embedded motor makes the body more compact with clean, streamlined lines. The HD LED headlight and integrated taillight (flashing while riding, steady on when braking) improve nighttime visibility, and the integrated handle makes it easy for operators to carry and store.
· Embedded motor, compact integrated design
· HD LED headlight + integrated taillight
· Integrated handle, grab and go
Product parameters
Specification | ESK-9 Dual Drive 12 Ah | ESK-9 Dual Drive 20 Ah | ESK-9 Pro 4WD 20 Ah | ESK-9 Pro 4WD 35 Ah |
Max Speed | 45–55 km/h | 45–55 km/h | 50–60 km/h | 50–60 km/h |
Range (per charge) | 30–40 km | 50–60 km | 40–50 km | 55–65 km |
Battery Capacity | 12 Ah | 20 Ah | 20 Ah | 35 Ah (14S) |
Drive System | Dual Drive (2WD) | Dual Drive (2WD) | Four-Wheel Drive (4WD) | Four-Wheel Drive (4WD) |
Motor (total power) | 3,700 W × 2 | 3,700 W × 2 | 3,800 W × 4 | 3,800 W × 4 |
Motor Type | Planetary gear motor | Planetary gear motor | Planetary gear motor | Planetary gear motor |
Controller | 12S 50A | 12S 50A | 60 A × 2 | 60 A × 2 |
Max Climbing Angle | 30–40° | 30–40° | 47–55° | 47–55° |
Deck | 9-layer Canadian maple + 2-layer fiberglass | 9-layer Canadian maple + 2-layer fiberglass | 9-layer Canadian maple + 2-layer fiberglass | 9-layer Canadian maple + 2-layer fiberglass |
Tires | 200 × 55 mm | 200 × 55 mm | 255 × 90 mm | 250 × 55 mm |
Max Load | 150 kg | 150 kg | 150 kg | 150 kg |
Product Weight | 22.7 kg | 27.8 kg | 30.6 kg | 33.6 kg |
Dimensions (L × W × H) | 113 × 50 × 28 cm | 113 × 50 × 28 cm | 114 × 52 × 28 cm | — |
Product Details
Smart Driving Configuration

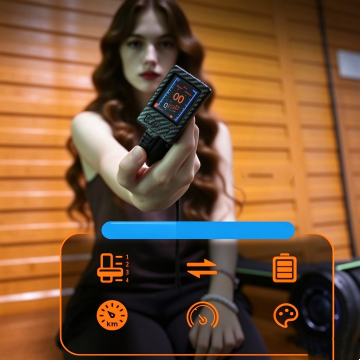

· HDR color screen remote control: 4 speed levels, 1-second gear shifting
· Real-time battery and mileage display
· Cruise control
· ESC core chip: responsive, stable, and precise
Comfortable Cockpit Design
· 11-layer composite deck: 9 layers of Canadian maple + 2 layers of fiberglass
· Off-road tires: 200 × 55 mm or 255 × 90 mm
· Maximum load: 150 kg
Safety & Exterior Details

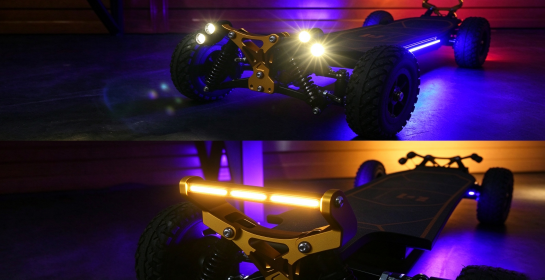

· LED headlight for clear nighttime visibility

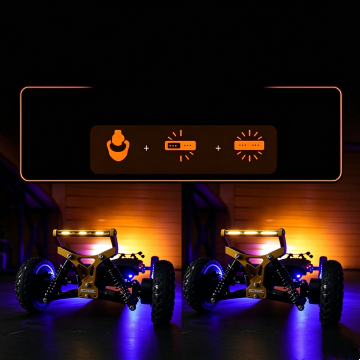

· Integrated taillight: flashing while riding, steady on when braking
· Embedded motor, integrated compact design
· CE / RoHS certified; design and utility model patents
FAQ
Q1. What makes the ESK-9 different from a regular electric skateboard?
A: The ESK-9 is purpose-built for outdoor recreation operations. It uses a planetary gear motor and car-grade independent suspension, with 4WD and 110 km range options—designed for rental durability on trails, grass and gravel, not for city commuting.
Q2. Which version should a dealer recommend for a rental fleet?
A: For moderate-use venues, the Dual Drive 20 Ah offers 50–60 km range. For larger adventure parks or demanding terrain, the Pro 4WD 35 Ah delivers 55–65 km range and up to 55° climbing capability.
Q3. Is the ESK-9 suitable for riders of different sizes?
A: Yes. The 11-layer composite deck and 200 mm contact patch support a max load of 150 kg, accommodating a wide range of adult users in rental settings.
Q4. What maintenance does a rental operator need to plan for?
A: The planetary gear drive is sealed and quieter than belt systems, reducing belt-replacement needs. The embedded motor and integrated deck design simplify cleaning and inspection between sessions.
Q5. What certifications come with the ESK-9?
A: The product carries CE / RoHS certification and holds design and utility model patents.
Q6. Can the ESK-9 be used at night or in low-light conditions?
A: Yes. It comes with an HD LED headlight and an integrated tail light that flashes while riding and stays steady under braking, supporting evening operations in resorts and camps.
Applications
The ESK-9 fits adventure parks, resorts, theme parks, outdoor camps, scenic areas and recreation centers. It works as a paid experience ride, an event attraction or a family entertainment asset—adding a rental-ready, repeatable experience that extends guest dwell time and on-site spending.
