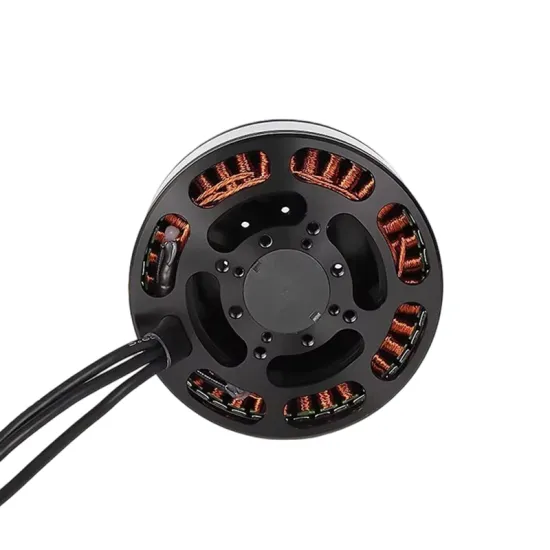

Built for farm work｜Reliable drone motors for daily crop spraying

P60/P80Ⅲ — 3rd-Gen Professional Crop Protection Brushless Motors. Built for agricultural spraying, with IP-rated dustproof and waterproof performance.

Multi-Rotor P-Series Plant Protection Model：

P60 Pin KV170/KV340

P60 Without Pin KV170/KV340

P80 Ⅲ Pin KV100/KV120

P80 Ⅲ Without Pin KV100/KV120

USD 150

Monthly Output600

contact shop

Product DescriptionProduct parameters

Product Description

P-Series brushless motor for plant protection

Empowering smart agricultural machinery and promoting sustainable development in agriculture and forestry.

Functional Features

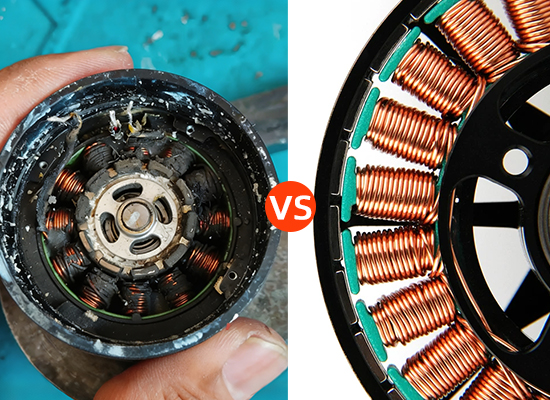

Tired of frequent motor breakdowns out in the fields?

Farm dust, pesticide mist, humid weather and accidental crashes easily damage ordinary drone motors, causing unexpected downtime and costly repairs.

Our P60 & P80 III agricultural drone motors solve real pain points for pilots and farm owners.Stop wasting money on frequent replacements. Choose durable motors to keep your spraying fleet running all season long.

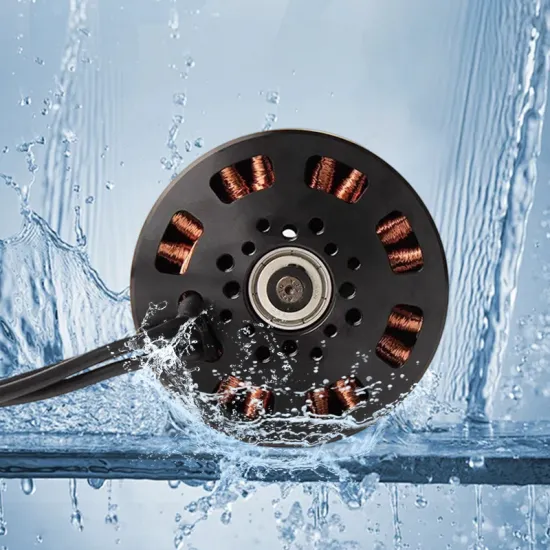

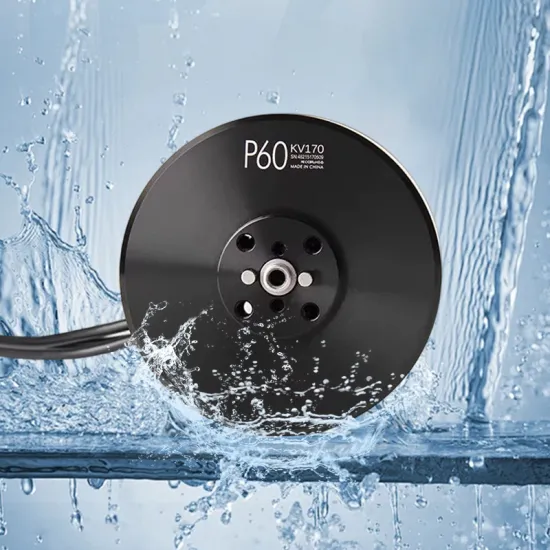

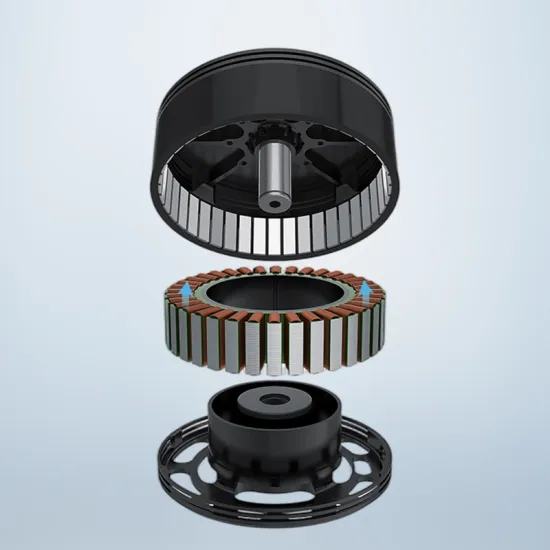

Excellent dustproof & waterproof structure

special anti‑corrosion coil coating. Resist pesticide liquid, dew and farm dust. Less motor failures in harsh field conditions.

Low vibration and smooth operation

Features stable hovering, uniform liquid spraying, and eliminates missed or overlapping applications, ensuring superior crop protection results.

Strong pulling force

Low‑vibration smooth running keeps your drone stable during hovering. Even spray distribution avoids missed or overlapped spraying for better crop protection results.

Quick-release design, swap and fly

Quick‑release propeller design. You can replace propellers right on site within minutes without complicated tools, minimizing work interruption.

Product Display

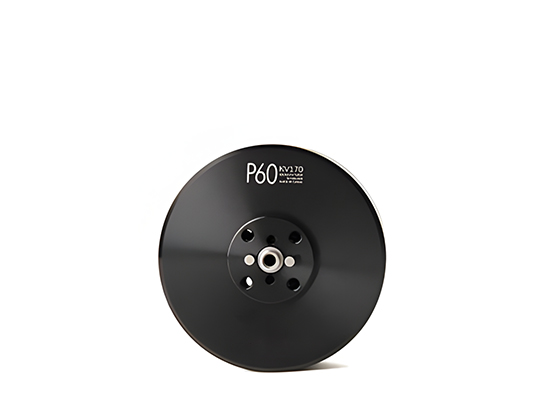

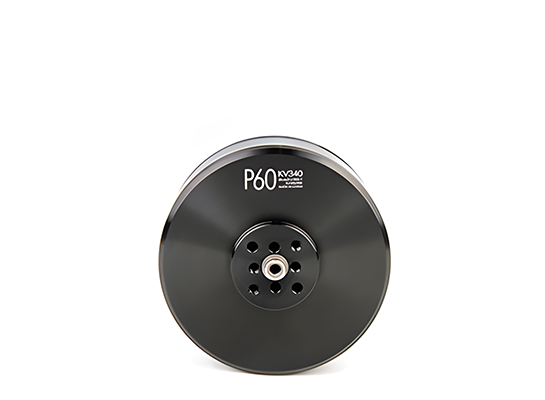

P60 Pin Version

P60 Non-Pin Version

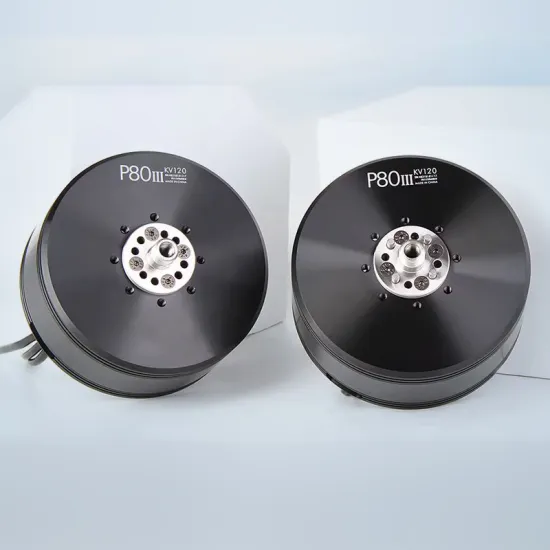

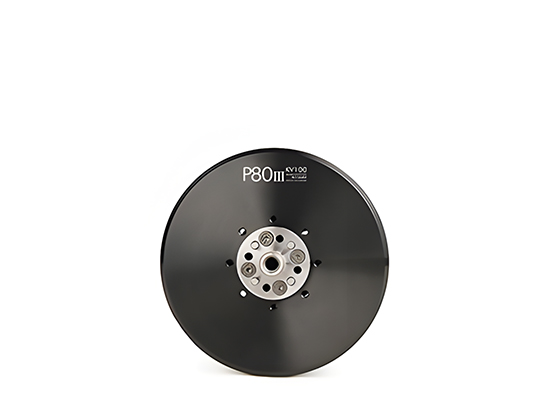

P80Ⅲ Pin Version

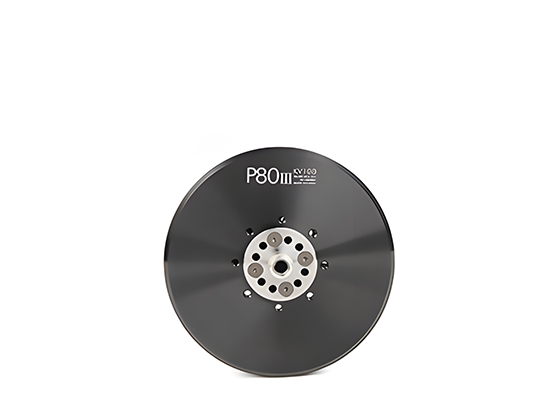

P80Ⅲ Non-Pin Version

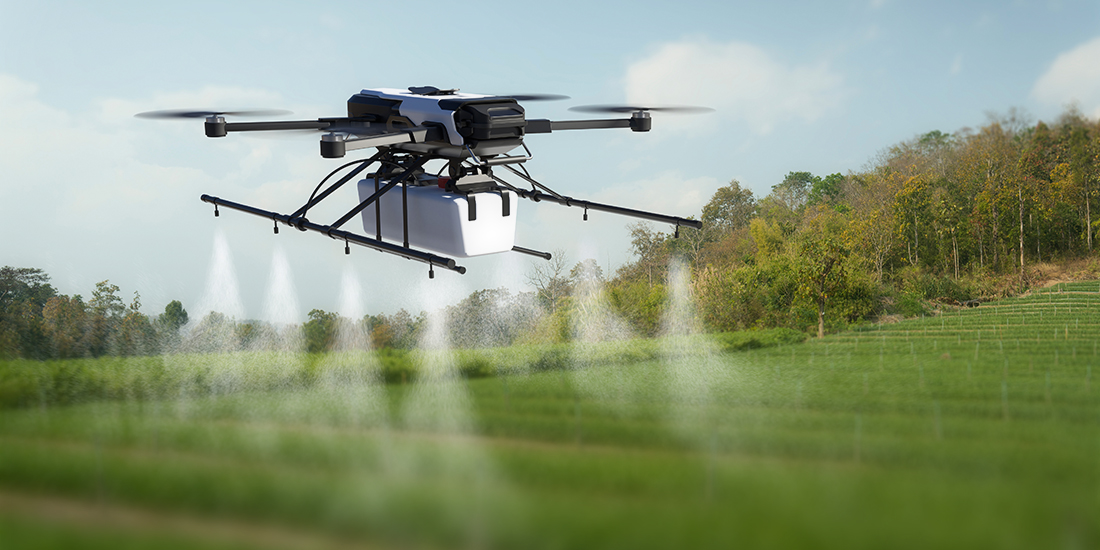

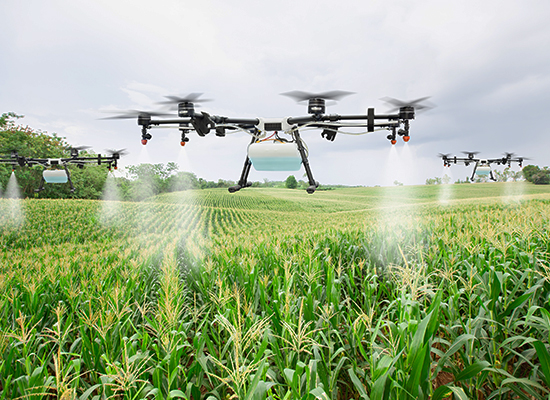

Application

This power system meets a wide range of agricultural requirements:

Pesticide Spraying | Fertilizer Spreading | Field Plant Protection

Diversified functions

The use of P60 motors is not limited to the field of crop protection, but can also have good performance in the field of four axis vertical takeoff and landing fixed wings.

Match reference plan ↓

Motor	P60-KV340	P60-KV170
Carbon fiber propeller	22*6.6CF	22*6.6CF
Power adjustment	Flame60A	Flame60A
Voltage	6S	12S
Battery	22Ah	22Ah*2
Total weight	4-axis/18-22KG	4-axis/20-25KG

The use of P80 III motor is not limited to the field of plant protection, but can also have good performance in the field of four axis vertical takeoff and landing fixed wing.

Match reference plan ↓

Motor	P80III-KV100	P80III-KV120
Carbon fiber propeller	32*11	29*9.5
Power adjustment	FLAME 80A 12S V2.0	FLAME 80A 12S V2.0
Voltage(LiPo)	12S	12S
Battery(LiPo)	22Ah*2	22Ah*2
Total weight	4-axis/45-50KG	4-axis/45-50KG

Product parameters

Engineering drawing

P60 Plug Board

P60 Non-Plug Board

P80 III Plug Board

P80 III Non-Plug Board

Parameter table

Basic Parameters
Product testing model	P60 KV170	Report Number	P.00002
Resistance	80mΩ	Slot Pole	24N28P
Shaft diameter	6mm	Motor size	φ69×37mm
Outer diameter of silicon steel sheet	62mm	Silicon steel sheet height	15mm
Line number	16#	Line length	600mm
Motor weight (including wire)	375g	Motor weight (excluding wires)	345g
Support lithium batteries	6-14S	No-load current	1A
Maximum continuous power	412W	Maximum current	38A
Product testing model	P60 KV340	Report Number	P.00001
Resistance	35mΩ	Slot Pole	24N28P
Shaft diameter	6mm	Motor size	φ69×37mm
Outer diameter of silicon steel sheet	62mm	Silicon steel sheet height	15mm
Line number	16#	Line length	600mm
Motor weight (including wire)	375g	Motor weight (excluding wires)	345g
Support lithium batteries	6-8S	No-load current	2A
Maximum continuous power	415W	Maximum current	65A

Test parameters
Serial number	Voltage (V)	Propeller	Throttle	Current (A)	Power (W)	Tensile force (G)	Speed	Power efficiency (G/W)	Motor temperature (℃)
P60 KV170	48	20*6CF	50%	5.4	259.2	2116	4152	8.16	55
			55%	6.4	307.2	2371	4425	7.72
			60%	7.7	369.6	2762	4709	7.47
			65%	9.3	446.4	3125	5014	7
			75%	13.2	633.6	4002	5626	6.32
			85%	17.3	830.4	4821	6177	5.81
			100%	25.4	1219.2	6246	6992	5.12
		22*6.6CF	50%	6.6	316.8	2801	3703	8.84	85
			55%	8.6	412.8	3312	4005	8.02
			60%	9.9	475.2	3763	4289	7.92
			65%	12.4	595.2	4356	4575	7.32
			75%	17.1	820.8	5372	5091	6.54
			85%	23.2	1113.6	6582	5635	5.91
			100%	34	1632	8414	6374	5.16
Attention: The motor temperature is the temperature at which the motor runs for 10 minutes at 100% throttle.
P60 KV340	24	20*6CF	50%	10.4	249.6	1912	3960	7.66	50
			55%	12.6	302.4	2207	4247	7.3
			60%	14.5	348	2472	4491	7.1
			65%	17	408	2805	4760	6.88
			75%	23.9	573.6	3493	5292	6.09
			85%	31.5	756	4191	5781	5.54
			100%	44.9	1077.6	5302	6470	4.92
		22*6.6CF	50%	14	336	2683	3732	7.99	78
			55%	17.3	415.2	3075	3977	7.41
			60%	20.2	484.8	3444	4192	7.1
			65%	23	552	3802	4418	6.89
			75%	31.1	746.4	4609	4869	6.17
			85%	40.5	972	5459	5257	5.62
			100%	57.8	1387.2	6762	5827	4.87
Attention: The motor temperature is the temperature at which the motor runs for 10 minutes at 100% throttle.

Basic Parameters
Test model	P80 Ⅲ KV100	Weight (including thread)	649g
Motor size	Φ91.6*43mm	Inter phase internal resistance	45-51mΩ
Lead specification	Silicone wire No.14	Slot Pole	36N42P
Shaft diameter	15mm	Rated working voltage (Lipo)	6-12S
No load current (10V)	1.6A	Maximum current (180s)	60A
Maximum continuous power (180s)	631W	/	/
Test model	P80 Ⅲ KV120	Weight (including thread)	649g
Motor size	Φ91.6*43mm	Inter phase internal resistance	36-41mΩ
Lead specification	Silicone wire No.14	Slot Pole	36N42P
Shaft diameter	15mm	Rated working voltage (Lipo)	6-12S
No load current (10V)	≤2.0A	Maximum current (180s)	70A
Maximum continuous power (180s)	955W	/	/

Test parameters
Model	Propeller	Throttle	Voltage (V)	Tensile force (g)	Torque (N * m)	Current (A)	Speed (RPM)	Input power (W)	Power efficiency (g/W)	Motor temperature (℃)
P80 ΙΙΙ KV100	G30*10.5" CF	40%	47.91	2850	0.97	4.97	1719	238	11.96	/
		42%	47.9	3108	1.06	5.54	1783	265	11.72
		44%	47.88	3331	1.13	6.07	1849	291	11.46
		46%	47.87	3571	1.22	6.65	1913	318	11.23
		48%	47.87	3859	1.3	7.29	1981	349	11.06
		50%	47.85	4114	1.39	7.99	2040	382	10.77
		52%	47.84	4439	1.5	8.8	2125	421	10.54
		54%	47.81	4748	1.61	9.8	2204	468	10.14
		56%	47.79	5143	1.75	10.89	2292	520	9.88
		58%	47.76	5515	1.88	12.2	2386	582	9.47
		60%	47.75	5886	1.99	13.11	2459	626	9.41
		62%	47.72	6306	2.14	14.39	2531	687	9.18
		64%	47.71	6649	2.25	15.56	2610	742	8.96
		66%	47.67	7061	2.39	17	2683	810	8.72
		68%	47.66	7434	2.51	18.22	2755	868	8.56
		70%	47.62	7886	2.67	20.15	2836	960	8.22
		76%	47.54	9074	3.07	24.34	3030	1157	7.84
		82%	47.45	10215	3.45	29.34	3223	1392	7.34
		88%	47.36	11500	3.88	34.75	3397	1646	6.99
		94%	47.26	12603	4.28	40.33	3569	1906	6.61
		100%	47.15	14011	4.78	46.99	3747	2215	6.33
	MF3016	40%	47.89	3050	1.09	5.32	1712	255	11.97	/
		42%	47.88	3296	1.18	5.9	1769	282	11.67
		44%	47.87	3508	1.25	6.52	1830	312	11.24
		46%	47.86	3729	1.33	7.1	1893	340	10.97
		48%	47.85	4020	1.42	7.72	1961	369	10.88
		50%	47.84	4278	1.52	8.46	2024	405	10.57
		52%	47.82	4616	1.65	9.41	2104	450	10.26
		54%	47.8	4902	1.75	10.33	2176	494	9.93
		56%	47.78	5361	1.91	11.58	2271	553	9.69
		58%	47.76	5729	2.04	12.68	2345	606	9.46
		60%	47.73	6189	2.19	14.14	2434	675	9.17
		62%	47.71	6526	2.31	15.38	2506	734	8.9
		64%	47.68	6969	2.47	16.86	2580	804	8.67
		66%	47.65	7363	2.61	18.14	2650	864	8.52
		68%	47.63	7719	2.73	19.5	2719	929	8.31
		70%	47.6	8132	2.88	21.1	2782	1004	8.1
		76%	47.51	9395	3.34	26.16	2987	1243	7.56
		82%	47.41	10618	3.78	31.59	3174	1498	7.09
		88%	47.32	11833	4.22	37.16	3350	1758	6.73
		94%	47.21	13009	4.64	43.34	3515	2046	6.36
		100%	47.09	14371	5.13	50.42	3686	2374	6.05
	G32*11" CF	40%	47.89	3569	1.3	6.23	1682	298	11.97	/
		42%	47.88	3833	1.4	6.84	1744	327	11.72
		44%	47.86	4074	1.48	7.57	1804	362	11.25
		46%	47.86	4329	1.57	8.08	1848	387	11.19
		48%	47.83	4655	1.69	9	1915	431	10.81
		50%	47.82	4992	1.8	9.89	1982	473	10.56
		52%	47.81	5325	1.92	10.76	2054	514	10.36
		54%	47.77	5655	2.05	11.96	2121	571	9.9
		56%	47.76	6143	2.22	13.22	2206	631	9.73
		58%	47.73	6604	2.39	14.61	2289	697	9.47
		60%	47.69	7188	2.59	16.52	2374	788	9.13
		62%	47.67	7609	2.75	17.83	2438	850	8.95
		64%	47.64	7997	2.9	19.37	2506	923	8.67
		66%	47.62	8413	3.04	20.83	2577	992	8.48
		68%	47.59	8783	3.18	22.42	2646	1067	8.23
		70%	47.55	9372	3.38	24.31	2707	1156	8.11
		76%	47.45	10840	3.92	30.37	2905	1441	7.52
		82%	47.34	12181	4.43	36.47	3078	1726	7.06
		88%	47.23	13512	4.94	43.11	3237	2036	6.64
		94%	47.1	14961	5.48	50.65	3393	2385	6.27
		100%	46.96	16344	5.98	58.51	3545	2748	5.95
	MF3218	40%	47.87	3505	1.3	6.23	1684	298	11.75	/
42%		47.87	3744	1.39	6.71	1739	321	11.66
44%		47.85	3992	1.47	7.43	1798	356	11.23
46%		47.83	4267	1.58	8.2	1856	392	10.88
48%		47.82	4565	1.68	8.98	1920	429	10.63
50%		47.8	4885	1.79	9.75	1981	466	10.48
52%		47.77	5248	1.93	11	2056	525	9.99
54%		47.76	5592	2.06	11.93	2125	570	9.82
56%		47.74	6039	2.23	13.24	2214	632	9.56
58%		47.72	6510	2.39	14.65	2295	699	9.31
60%		47.68	7018	2.57	16.3	2376	777	9.03
62%		47.65	7408	2.71	17.7	2446	843	8.78
64%		47.63	7803	2.87	19.12	2512	911	8.57
66%		47.61	8227	3.02	20.56	2583	979	8.41
68%		47.57	8732	3.2	22.39	2646	1065	8.2
70%		47.54	9167	3.36	24.1	2713	1146	8
76%		47.44	10531	3.87	29.81	2913	1414	7.45
82%		47.33	11825	4.37	35.92	3087	1700	6.95
88%		47.23	13079	4.83	42.1	3256	1988	6.58
94%		47.1	14412	5.3	49.09	3418	2312	6.23
100%		46.97	15849	5.83	56.87	3567	2671	5.93
Attention: The motor temperature is the temperature at which the motor runs for 10 minutes at 100% throttle. (The above data were measured by the 2017 testing platform and cannot be compared horizontally with other old models. It is for reference only.)
P80 ΙΙΙ KV120	G30*10.5" CF	40%	47.86	3819	1.29	7.55	1984	361	10.57	/
		42%	47.84	4145	1.4	8.39	2055	401	10.33
		44%	47.83	4433	1.49	9.14	2141	437	10.15
		46%	47.79	5135	1.73	11.09	2289	530	9.68
		48%	47.76	5719	1.94	12.95	2416	618	9.25
		50%	47.73	6157	2.08	14.35	2503	685	8.99
		52%	47.71	6592	2.22	15.63	2589	746	8.84
		54%	47.68	7019	2.38	17.19	2673	820	8.56
		56%	47.65	7493	2.53	18.84	2755	898	8.34
		58%	47.61	8114	2.74	21.11	2860	1005	8.08
		60%	47.58	8578	2.9	22.89	2933	1089	7.88
		62%	47.55	8983	3.04	24.52	3003	1166	7.71
		64%	47.52	9388	3.17	26.22	3070	1246	7.53
		66%	47.48	9842	3.35	28.33	3145	1345	7.32
		68%	47.45	10262	3.47	30.19	3222	1432	7.16
		70%	47.41	10784	3.66	32.47	3289	1540	7
		76%	47.28	12346	4.19	39.73	3488	1878	6.57
		82%	47.16	13689	4.68	47.11	3679	2222	6.16
		88%	47.02	15158	5.17	54.95	3855	2583	5.87
		94%	46.84	16739	5.73	64.69	4037	3030	5.52
		100%	46.66	18256	6.28	74.97	4209	3498	5.22
	MF3016	40%	47.85	4027	1.44	8.14	1964	390	10.33	/
		42%	47.84	4322	1.54	8.91	2034	426	10.14
		44%	47.82	4608	1.64	9.81	2103	469	9.82
		46%	47.8	5009	1.79	11.07	2197	529	9.47
		48%	47.76	5603	1.99	12.85	2318	614	9.13
		50%	47.72	6395	2.28	15.37	2473	733	8.72
		52%	47.69	6805	2.42	16.8	2553	801	8.5
		54%	47.66	7239	2.57	18.34	2637	874	8.28
		56%	47.63	7702	2.73	20.06	2715	955	8.06
		58%	47.6	8219	2.92	21.98	2796	1046	7.86
		60%	47.56	8708	3.1	24.13	2886	1148	7.59
		62%	47.53	9147	3.25	25.84	2951	1228	7.45
		64%	47.49	9526	3.39	27.85	3029	1323	7.2
		66%	47.45	10077	3.59	30.04	3102	1425	7.07
		68%	47.41	10495	3.74	32.12	3174	1523	6.89
		70%	47.37	11049	3.93	34.54	3239	1636	6.75
		76%	47.25	12441	4.44	41.62	3442	1966	6.33
		82%	47.11	13813	4.96	49.58	3623	2335	5.91
		88%	46.97	15149	5.43	57.5	3798	2701	5.61
		94%	46.8	16817	5.98	67.17	3979	3143	5.35
		100%	46.61	18291	6.54	77.84	4142	3628	5.04
	G29*9.5" CF	40%	47.88	3371	1.1	6.6	2020	316	10.67	/
		42%	47.86	3643	1.19	7.32	2097	351	10.39
		44%	47.84	3974	1.3	8.3	2199	397	10.01
		46%	47.81	4498	1.47	9.72	2332	465	9.68
		48%	47.79	4931	1.61	10.9	2442	521	9.47
		50%	47.78	5338	1.74	12	2529	573	9.31
		52%	47.74	5850	1.91	13.9	2657	664	8.82
		54%	47.72	6290	2.05	15.25	2755	728	8.64
		56%	47.68	6778	2.21	17.07	2854	814	8.33
		58%	47.66	7230	2.35	18.52	2936	883	8.19
		60%	47.63	7608	2.47	19.97	3012	951	8
		62%	47.6	7960	2.59	21.38	3079	1018	7.82
		64%	47.58	8330	2.72	22.86	3149	1088	7.66
		66%	47.55	8737	2.84	24.55	3228	1167	7.49
		68%	47.52	9214	2.99	26.37	3306	1253	7.35
		70%	47.48	9632	3.14	28.43	3381	1350	7.14
		76%	47.38	10865	3.53	33.93	3594	1608	6.76
		82%	47.26	12235	3.99	40.64	3792	1921	6.37
		88%	47.13	13656	4.47	48.19	3995	2272	6.01
		94%	46.99	15086	4.93	56.17	4185	2640	5.72
		100%	46.82	16504	5.42	65.18	4371	3052	5.41
Attention: The motor temperature is the temperature at which the motor runs for 10 minutes at 100% throttle. (The above data were measured by the 2017 testing platform and cannot be compared horizontally with other old models. It is for reference only.)
