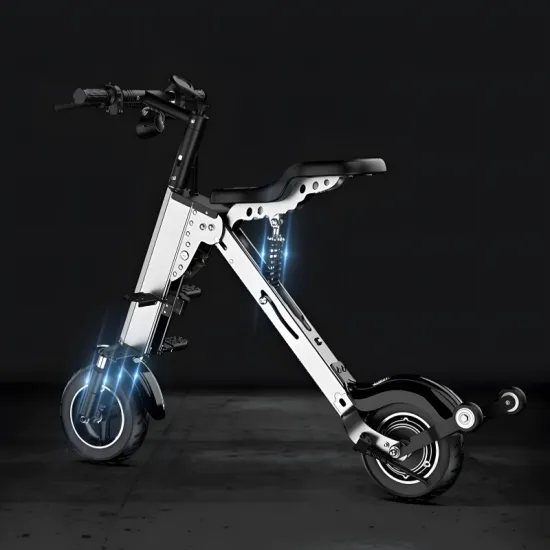

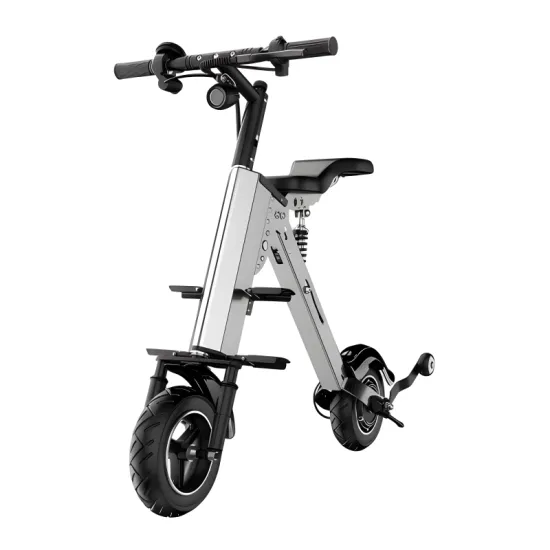

Product Description
The FER-5 is a compact folding electric trike designed for outdoor leisure, travel, and recreational riding. It features a 350W brushless motor, 10-inch tires, a lightweight aluminum alloy frame, and multiple seating configurations. Its folding structure supports convenient storage and transportation.
Product Features

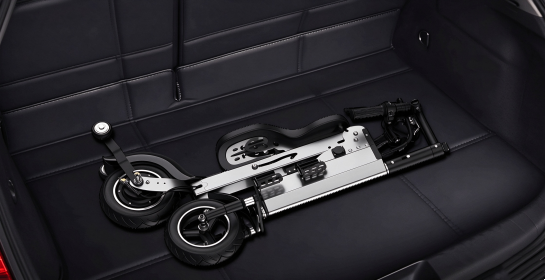

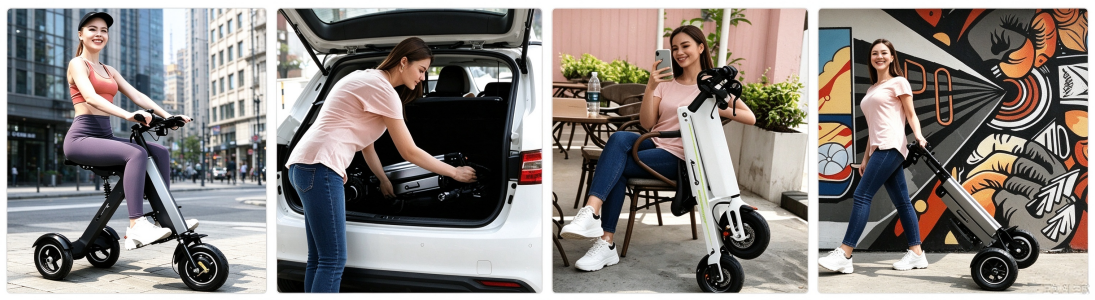

Compact Folding Design
Dual-folding structure for convenient storage and transportation.
Designed to fit suitable vehicle trunks and storage spaces.
Approximate vehicle weight: 16 kg.

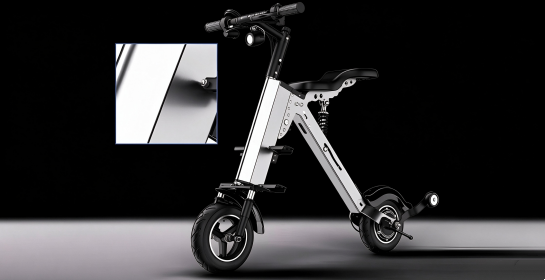

Lightweight Aluminum Alloy Frame
Aluminum alloy frame for a balance of strength and low weight.
Corrosion-resistant surface treatment.

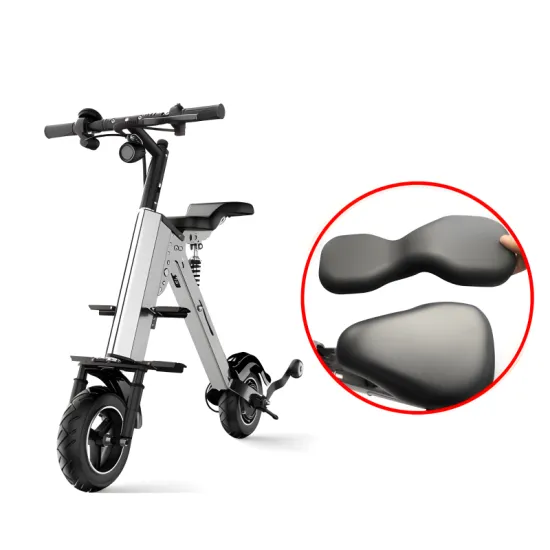

Flexible Seat Configurations
Single-seat and two-seat configurations.
Optional detachable parent-child seat.
Configuration options to suit different recreational needs.

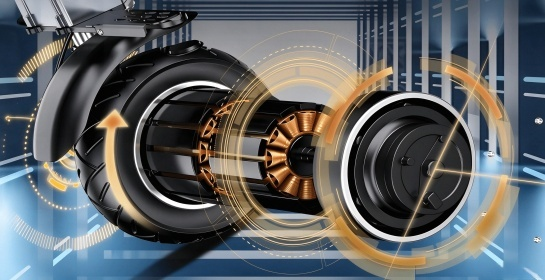

350W Brushless Motor
Brushless motor for smooth and efficient power delivery.
Maximum speed: 20–25 km/h.
Maximum torque: 28 N·m.

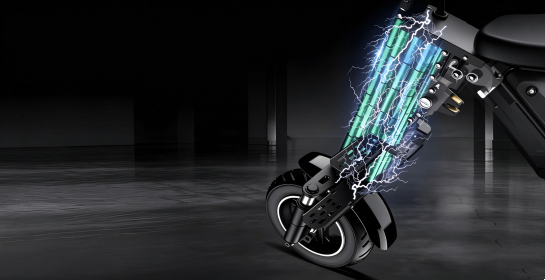

Lithium Battery Options
Powered by an 18650 lithium battery pack.
Advertised range options: 30–45 km and 40–50 km,
depending on configuration and riding conditions.
Charging time: approximately 3–5 hours.
Intelligent BMS Protection
Overcharge and over-discharge protection.
Overcurrent and short-circuit protection.
Temperature monitoring and battery self-check functions.
Three-Speed Riding Modes
Learning mode: 6 km/h.
Standard mode: 12 km/h.
Sport mode: up to 20 km/h.

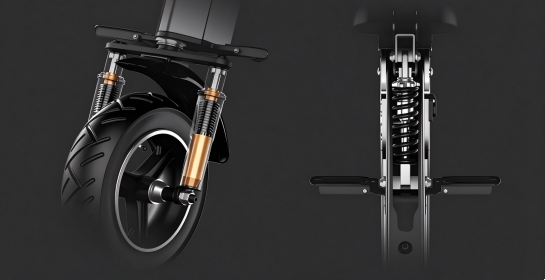

Suspension and Braking System
Front hydraulic dual suspension.
Rear mechanical spring suspension.
Product parameters
| Item | Specification | Item | Specification |
| Vehicle Weight | Approx. 16 kg | Front Wheel | 10-inch Off-Road Tire |
| Load Capacity | 120–150 kg | Rear Wheel | 10-inch Off-Road Tire |
| Range | 30–45 km | Braking Distance | 3 m |
| Max. Speed | 20–25 km/h | Braking System | Drum Brake + ABS Electronic Brake |

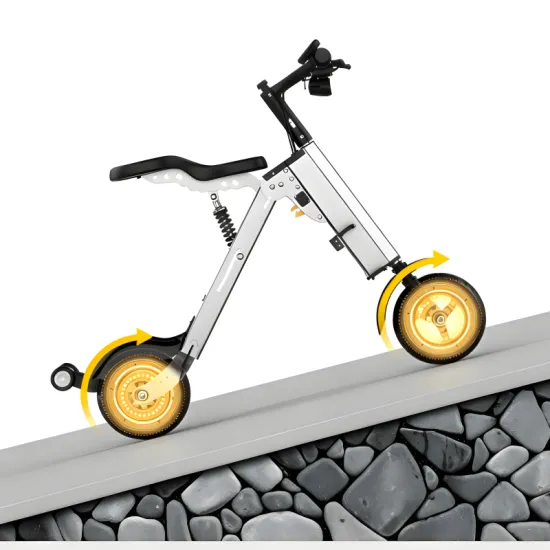

| Gradeability | 10°–20° | Motor Speed | 1,300 RPM |
| Battery Type | 18650 Power Lithium Battery | Frame Material | Aviation-Grade Aluminum Alloy |
| Charging Time | 3–5 h | Controller | Custom High-End Brushless Controller |
| Motor Power | 350W Suspended Brushless Motor | Drive System | Rear-Wheel Drive |

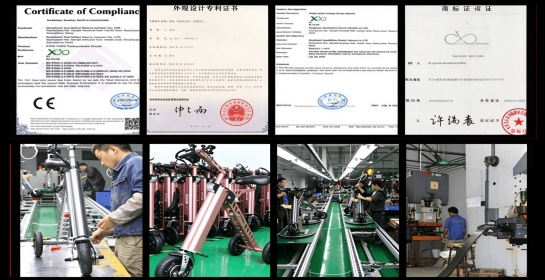

Factory Strength

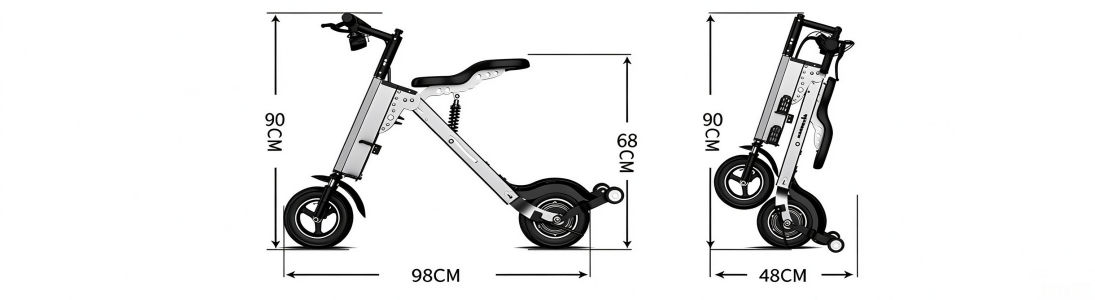

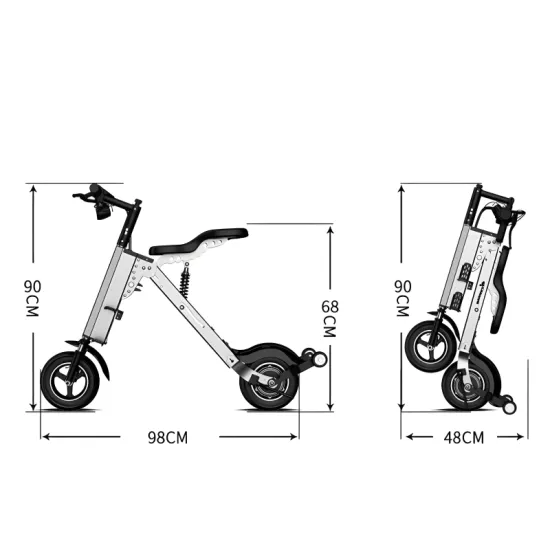

Dimensions
Applications
The FER-5 is suitable for recreational riding in parks, resorts, residential communities, scenic areas, camps, and other outdoor leisure environments, subject to local regulations and site conditions.
