Product Description

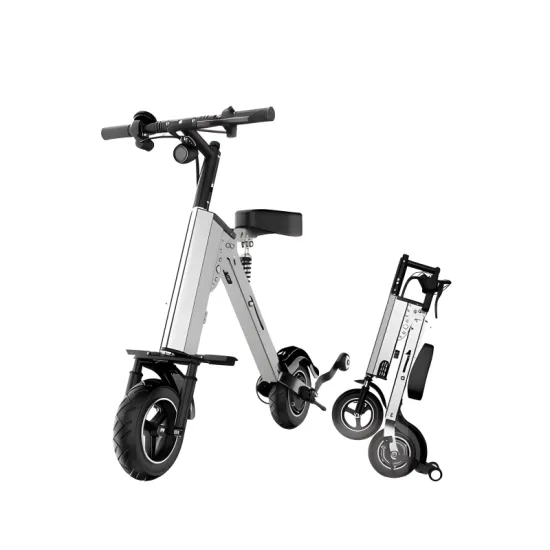

The FER-5A is a compact folding electric vehicle designed for outdoor leisure, travel, and recreational riding. It features a 48V 500W brushless motor, lightweight aluminum alloy frame, 10-inch tires, front and rear suspension, and an intelligent battery management system. Single-seat and optional parent-child seat configurations provide flexibility for different recreational needs.
Product Features

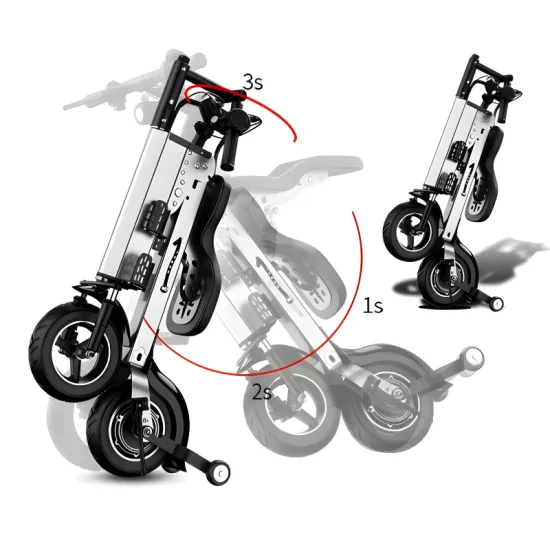

Quick-Folding Design
Folds in approximately 3 seconds.
Folding and rotating handlebar for compact storage.

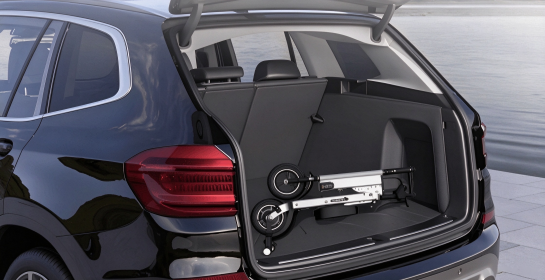

Designed for convenient transportation and storage.

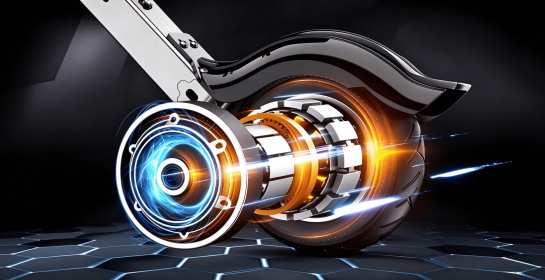

48V 500W Brushless Motor
500W brushless motor for smooth power delivery.
Maximum speed: 20–25 km/h.
Maximum torque: 28 N·m.

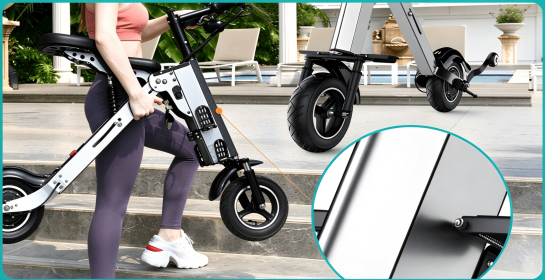

Lightweight Aluminum Alloy Frame
High-strength aluminum alloy construction.
Approximate vehicle weight: 16–17 kg.
Designed for portability and everyday durability.

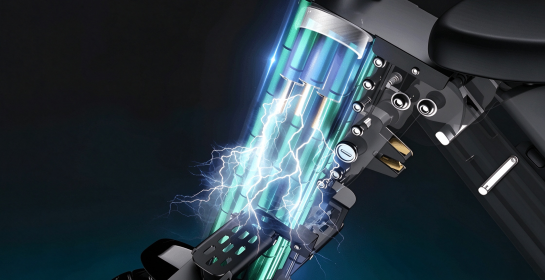

Lithium Battery System
48V lithium battery system.
Stated range: approximately 40–50 km.
Charging time: approximately 3–5 hours.
Intelligent BMS Protection
Overcharge and over-discharge protection.
Overcurrent, short-circuit, and temperature protection.
Intelligent battery monitoring and self-check functions.

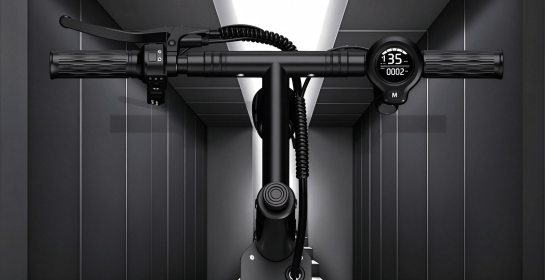

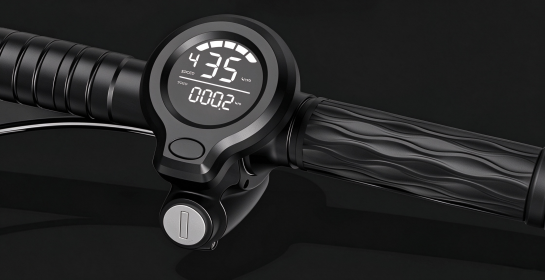

LCD Display and Cruise Control
Displays battery level, speed, and voltage status.
One-button cruise control for added riding convenience.
Three Riding Modes
Learning mode: 6 km/h.
Standard mode: 12 km/h.
Sport mode: 20–25 km/h.

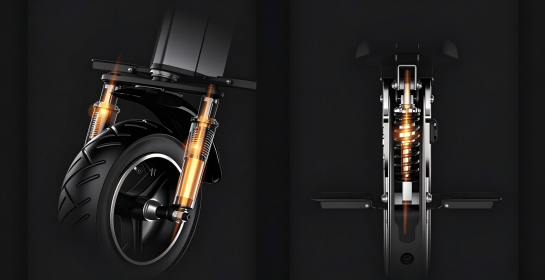

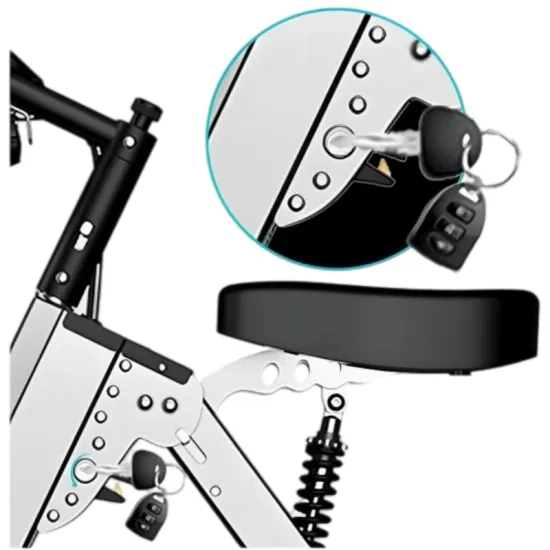

Front and Rear Suspension
Front dual hydraulic suspension.
Rear mechanical spring suspension.
Helps improve comfort on uneven surfaces.
Braking and Lighting Systems
Front drum brake with electronic braking assistance.

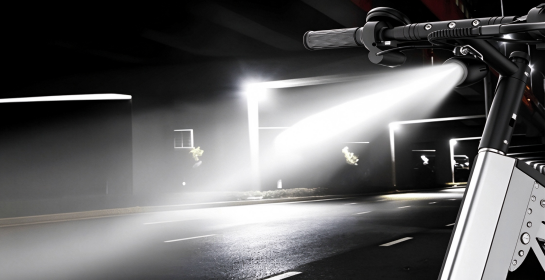

LED headlight, rear light, and electronic horn.

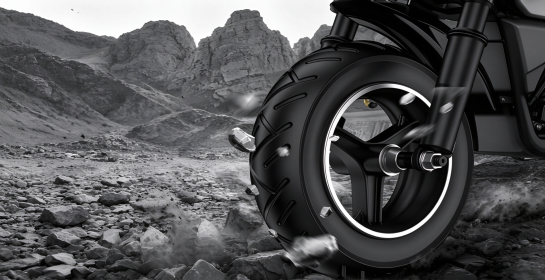

10-Inch Pneumatic Tires
10-inch off-road tires with a 2.50-inch width.
Tread design supports grip and riding stability.
Product parameters
| Item | Specification | Item | Specification |
| Vehicle Weight | Approx. 16–17 kg | Rear Wheel | 10-inch 2.50 Off-Road Tire |
| Load Capacity | 120–150 kg | Braking System | ABS Electronic Brake + Drum Brake |
| Range | 40–50 km | Seat Upgrade | 3D Rebound Comfort Cushion / Figure-8 Parent-Child Seat |
| Max. Speed | 20–25 km/h | Frame Material | Aviation-Grade Aluminum Alloy |

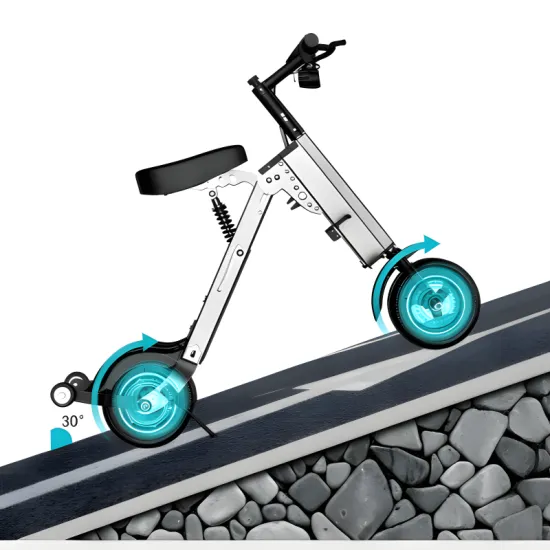

| Gradeability | 10°–30° | Drive System | Rear-Wheel Drive |
| Battery Type | Imported Panasonic High-Performance Lithium Battery | Controller | Custom High-End Brushless Controller |
| Charging Time | 3–5 h | Braking Distance | 3 m |
| Motor Power | 500W High-Power Motor | Lighting System | Automotive-Grade LED Headlight + Decorative Tail Light |
| Front Wheel | 10-inch 2.50 Off-Road Tire | Suspension System | Front Hydraulic Suspension + Six-Stage Suspension |

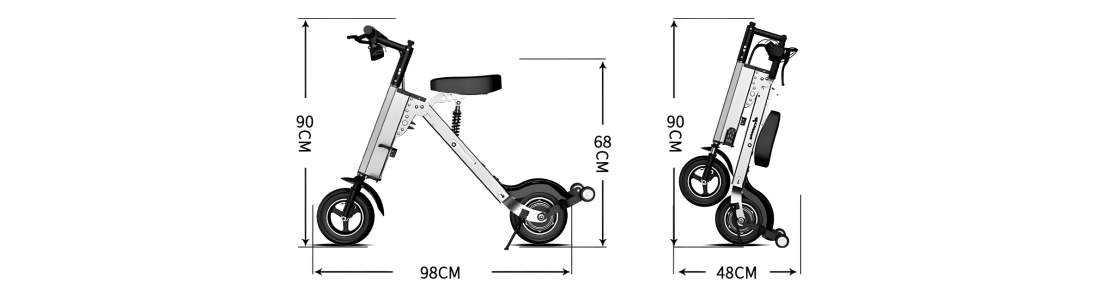

Dimensions
Applications
The FER-5A is suitable for outdoor leisure, parks, tourist areas, campsites, RV trips, and recreational riding environments, subject to local regulations and site conditions.
