Product Description

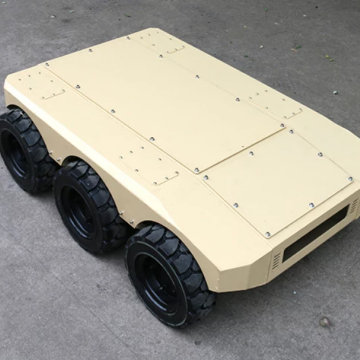

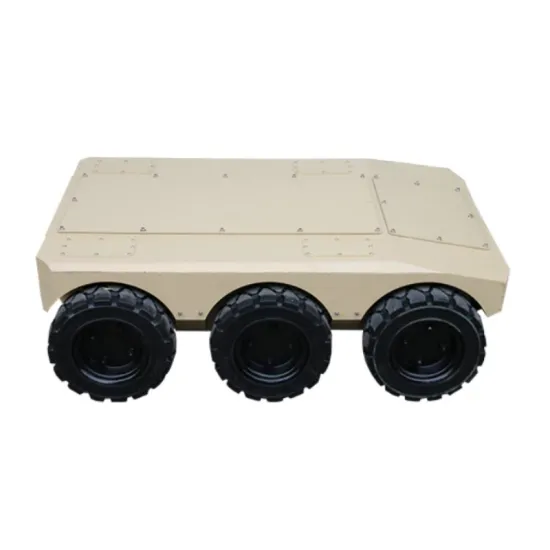

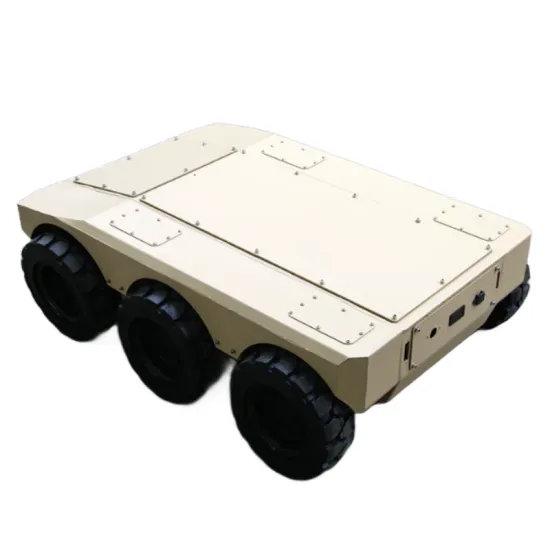

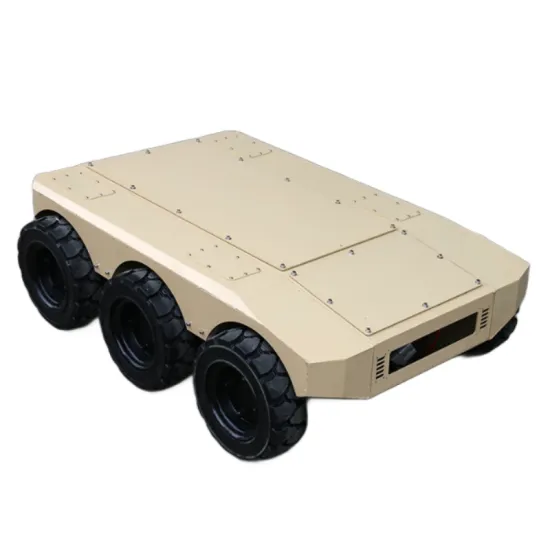

Electric remote-controlled all-terrain wheeled chassis with 48V brushless motor, 80KG load capacity, IP55 waterproof, 360° in-situ rotation, ideal for inspection and firefighting robots.
Functional Features
Electric Remote Control & Smart Operation
Dual-drive controller supports CAN/PWM/232/485 interfaces for precise, safe remote control.
All-Terrain Crawler Chassis
Rubber tracks embedded with Kevlar fiber offer strong grip on mud, snow and other tough terrain.
High Load Capacity
Load capacity of about 80KG meets the needs of inspection and firefighting robots.
Powerful & Smooth Drive
48V brushless DC motor with RV50-40 worm gear reducer delivers strong, smooth power.
Flexible Steering & Climbing
360° pivot in place and 30° slope climbing for flexible operation in tight spaces.
Durable & Well-Protected
IP55 waterproof rating, carbon steel/aluminum structure for harsh outdoor environments.
Product Views

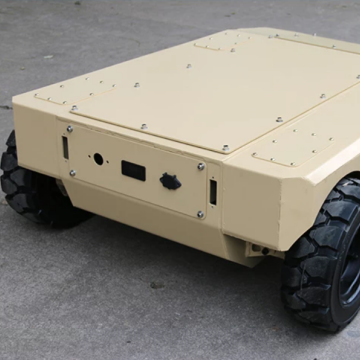

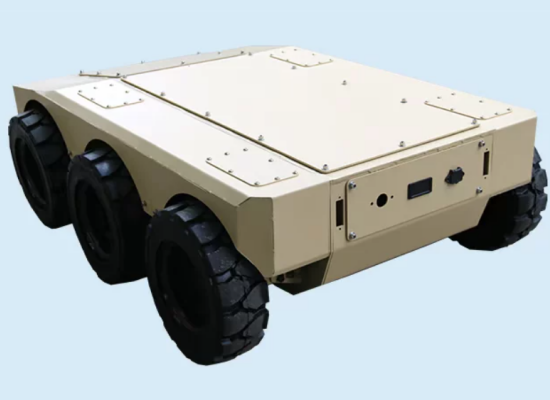

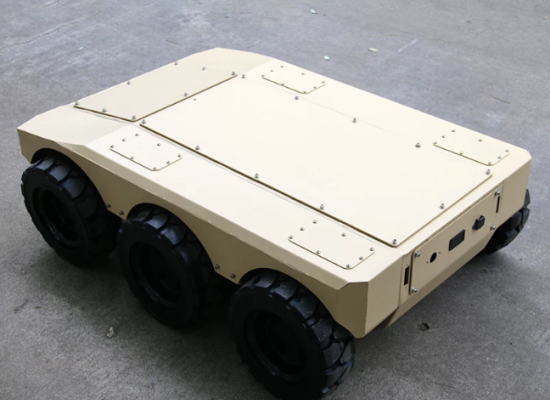

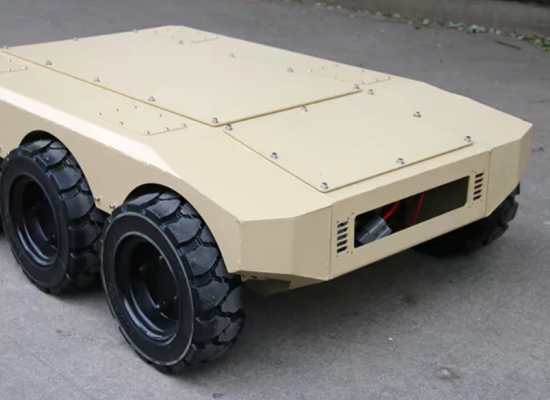

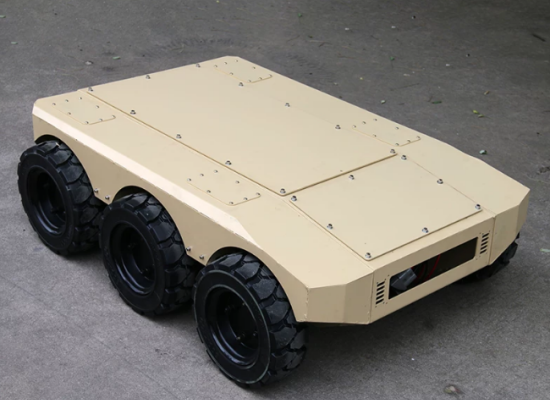

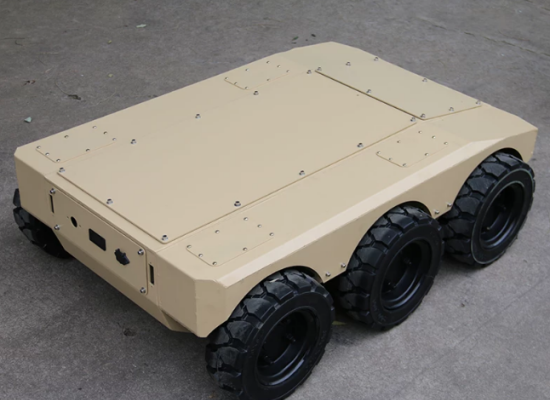

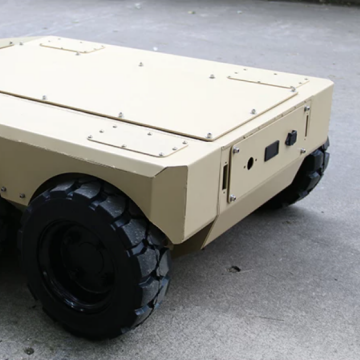

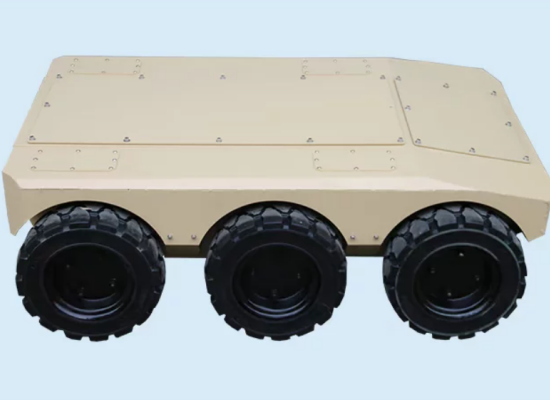

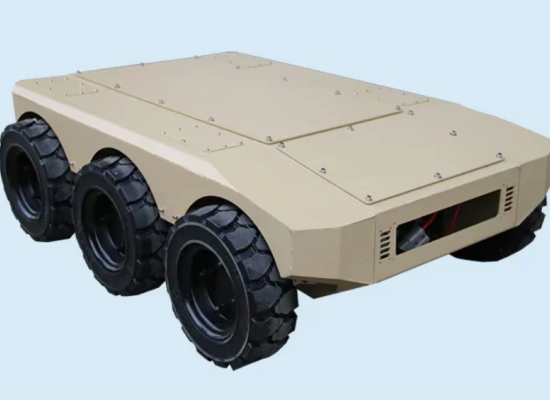

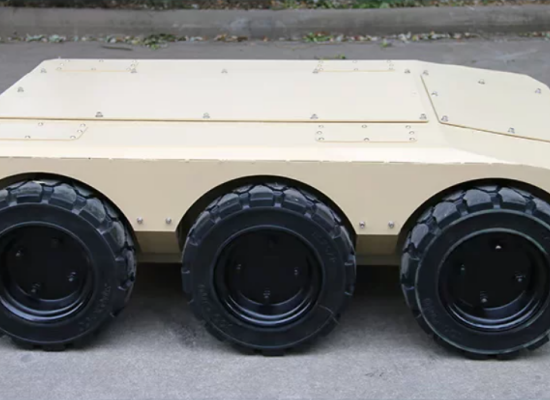

All-terrain 6-wheel chassis with flat-top mounting platform for easy equipment integration

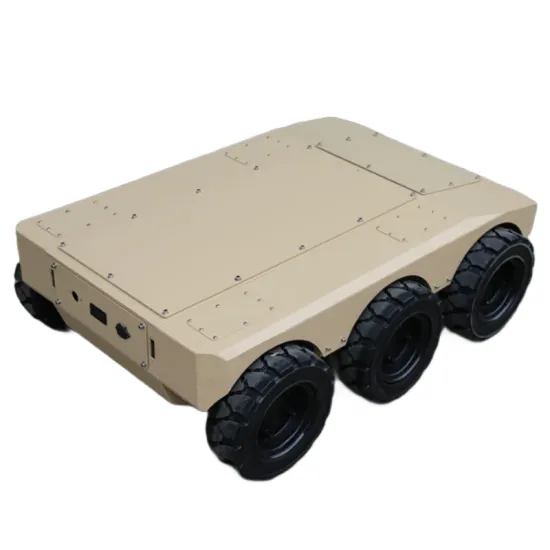

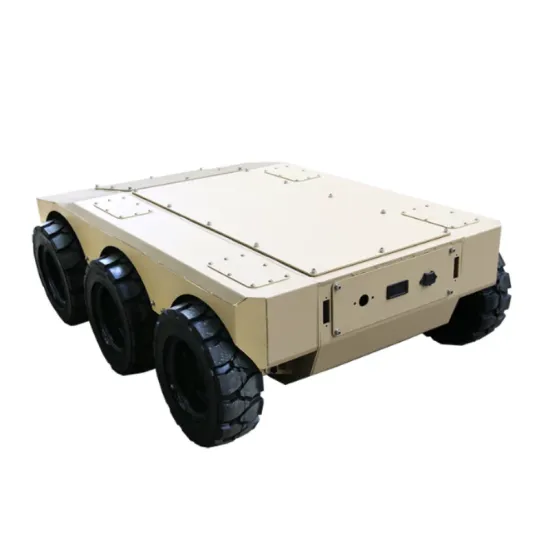

Intelligent dual-drive control system with CAN/PWM/232/485 interfaces for precise and safe remote control
Application
Intelligent Inspection:
Equipped with PTZ cameras and sensors for automatic inspection in parks and factories
Firefighting:
Equipped with firefighting equipment to extinguish fires and conduct reconnaissance in dangerous areas
Product parameters
Parameter | Specification |
Chassis Model | ZDDP-YWZN-LS |
Chassis Dimensions | 1200MM*800MM*400MM |
Load Capacity | About 80KG |
Main Material | Carbon Steel/Aluminum |
Waterproof Rating | IP55 |
Climbing Ability | 30° Slope |
Running Speed | 0~3KM/H |
Turning Radius | 360° Pivot in Place |
Track Width | 150MM (Embedded Kevlar Fiber) |
Reducer Parameters | RV50-40 (Worm Gear Reducer) |
Motor Parameters | 48V 1.5KW-3000 (Brushless DC Motor) |
Control Interface | Dual-Drive Controller (CAN/PWM/232/485) |
Applications | Mostly Used in Inspection, Firefighting Robots & Industrial/Agricultural R&D |
