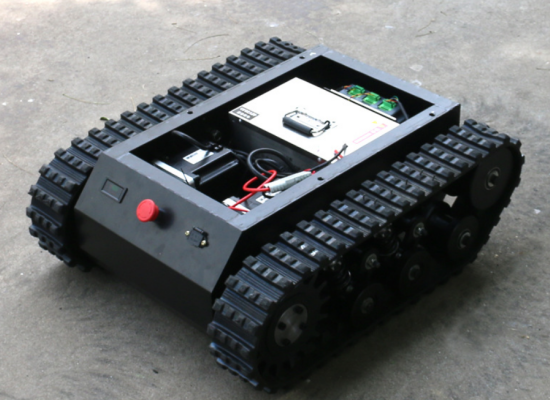

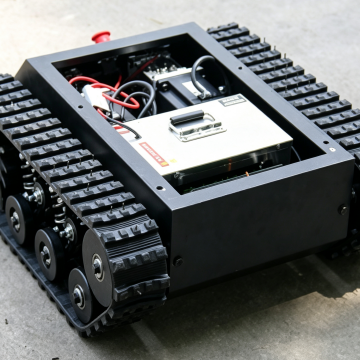

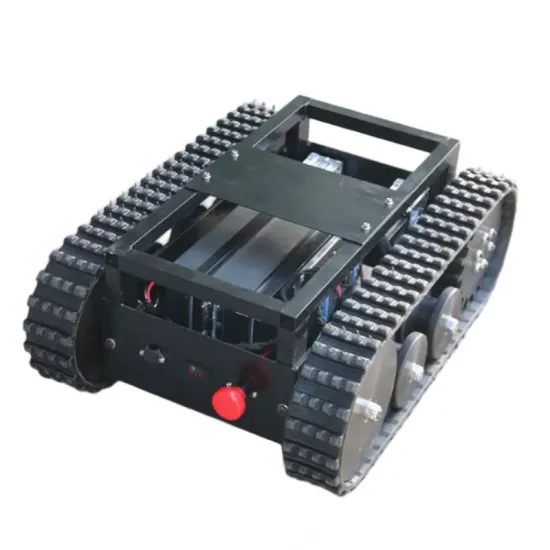

Product Description
Fully automatic remote control rubber track chassis, thick material with strong load-bearing capacity, strong traction, smooth climbing, 360 ° rotation in place, multi interface control, suitable for inspection and firefighting robots and complex terrains.
Functional Features
1.Track type chassis
Exquisite processing, layer by layer, suitable for various difficult and complex terrains
2.walking speed
Good driving performance, built-in low-speed high torque motor walking reducer, with high throughput performance
3. Thickened material
International material, thickened board, good load-bearing capacity, sturdy and durable, improving safety
4.track chassis
Good stability, strong driving force, and strong climbing ability
5. Strong traction and low noise
The structure has high strength and stiffness, and the tracks are made of construction machinery

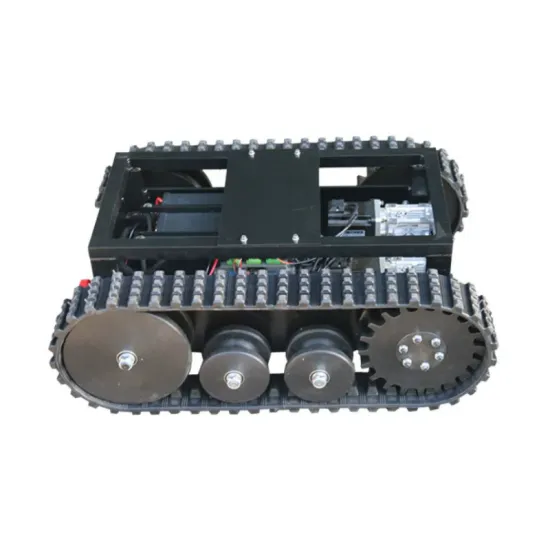

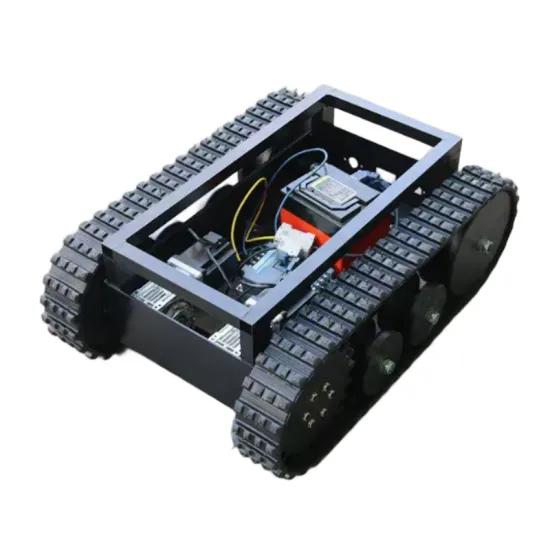

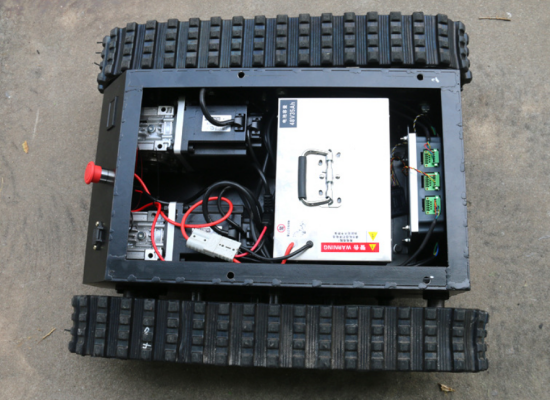

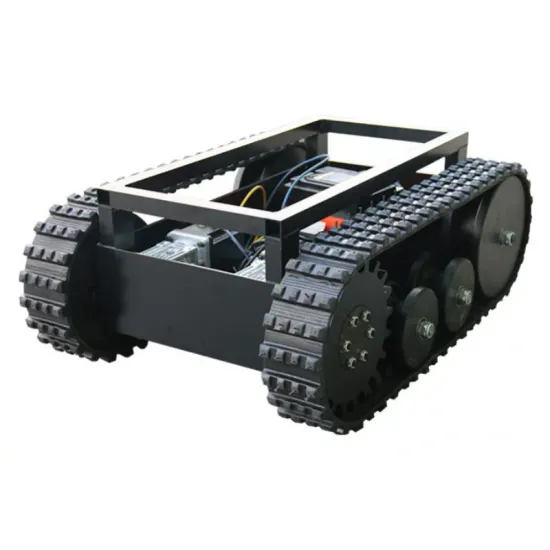

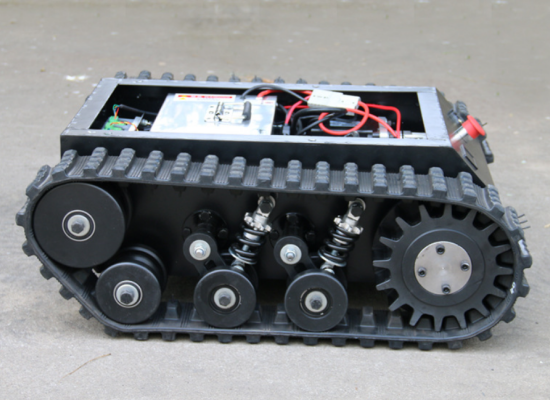

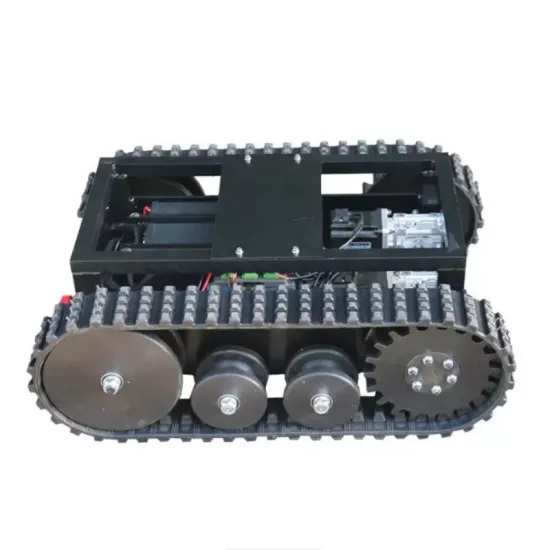

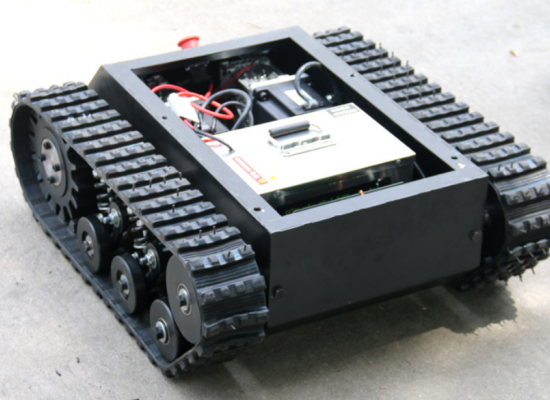

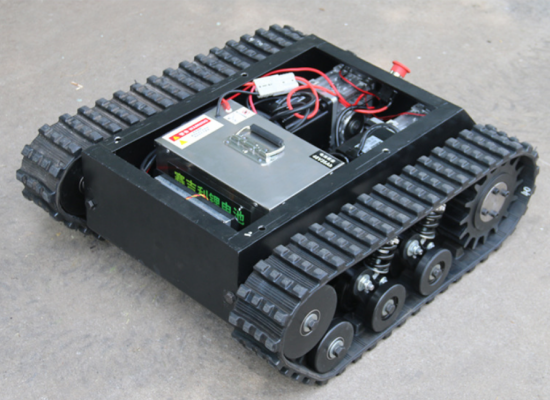

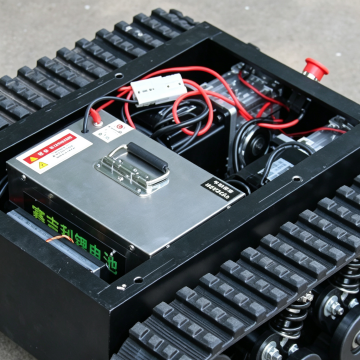

Product Views
Source‑controlled, High‑compatibility Wheels
National‑standard Material & Durable Fine Workmanship
User‑friendly Multi‑rotation Drilling Design

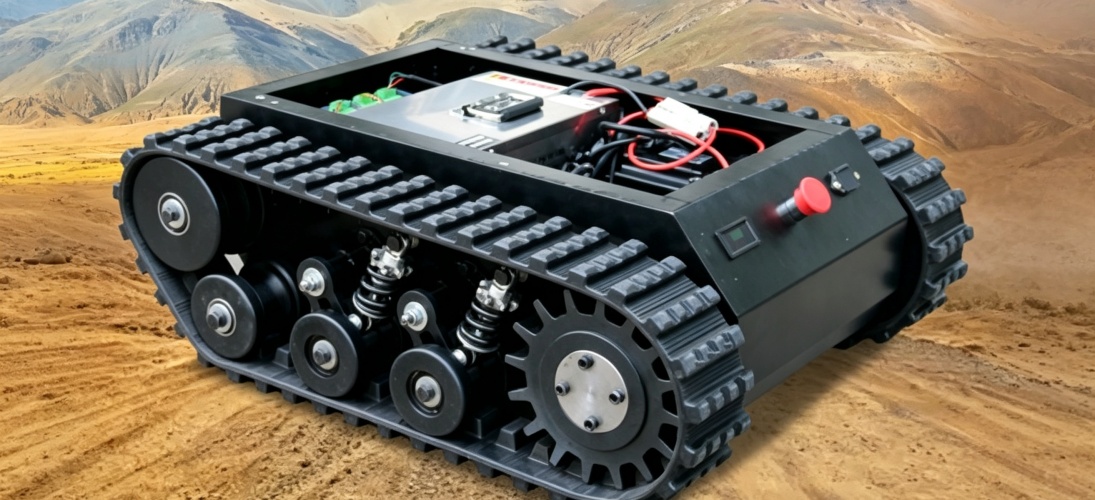

Application
Multiple advantages, flexible and applicable to various places
The fully automatic remote control chassis adjusts the walking speed, direction, and rotation of the track chassis by controlling the remote control, enabling the entire machine to move, turn, climb, and walk.
Product parameters
Parameter | Value |
Chassis Model | ZDDP-MZDX-100 |
Surface Treatment | Powder coating |
Main Material | Carbon steel / Aluminum |
Braking Method | Motor brake + |
Load Capacity | Approx. 100 kg |
Waterproof Rating | IP55 |
Climbing Ability | 30° slope |
Running Speed | Approx. 0–3 km/h |
Turning Radius | 360° in-situ rotation |
Reducer | RV50-40 (worm gear reducer) |
Motor | 48V 500W-1500 DC brushless motor |
Track Pitch | 40 mm |
Track Width | 100 mm |
Chassis Dimensions | 890 mm × 600 mm × 280 mm (L×W×H) |
Control | Dual-drive controller (supports CAN/PWM/232/485 interfaces) |
Track | Rubber track (Grade A natural rubber, embedded Kevlar fiber) |
Application | Inspection, fire-fighting robots and industrial/agricultural R&D |
