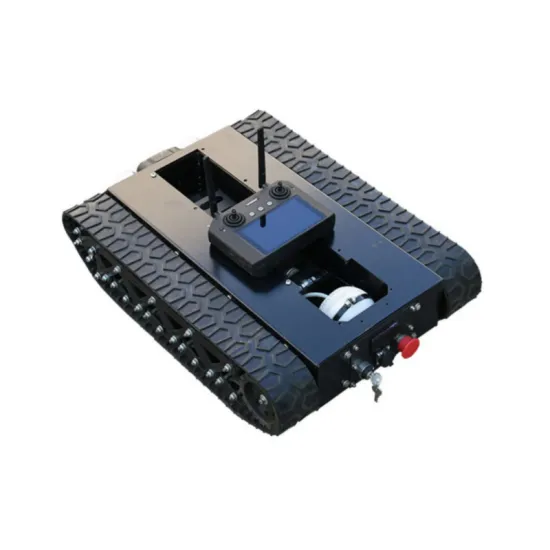

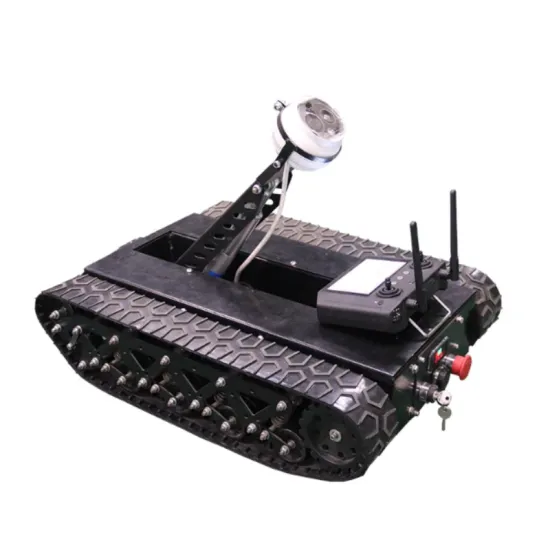

Product Description
ZDDP-XJJQ-80 compact rubber track chassis, equipped with DC brushless motor and worm gear reducer, dual-drive controller supports CAN/PWM/232/485 interfaces, 360° in-situ rotation, IP55 protection, suitable for inspection, fire-fighting robots and other industrial/agricultural R&D applications.
Functional Features
1. All-Terrain Access, Climbing & Obstacle Crossing
Rubber tracks provide strong grip, stable driving on 30° slopes and muddy/gravel roads, IP55 protection for complex outdoor environments.
2. Flexible Control, Rich Interfaces
Dual-drive controller supports CAN/PWM/232/485 interfaces, 360° in-situ rotation for narrow space operation, easy for secondary development.
3. Compact Structure, Stable Load
Carbon steel/aluminum frame, compact 630×480×200mm size, 150kg load capacity, Grade-A natural rubber track with Kevlar fiber, wear and tear resistant.

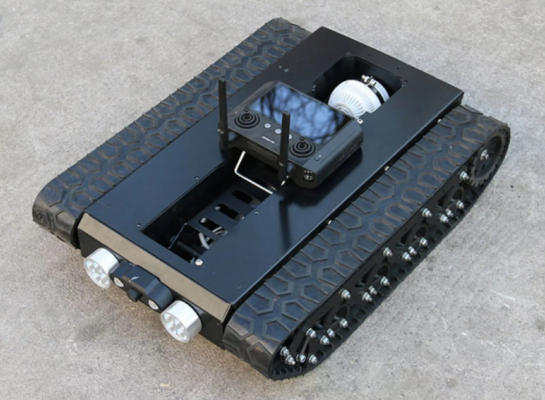

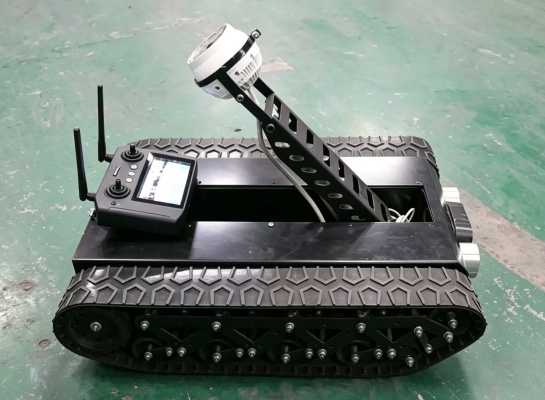

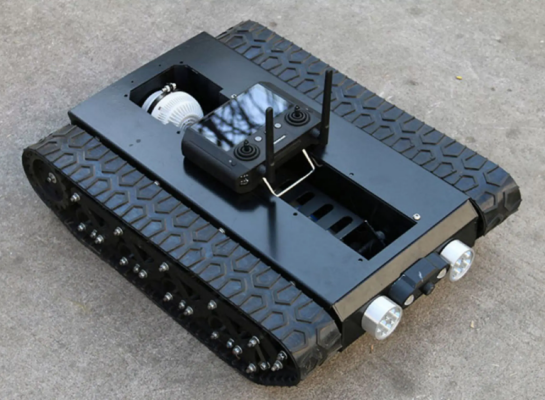

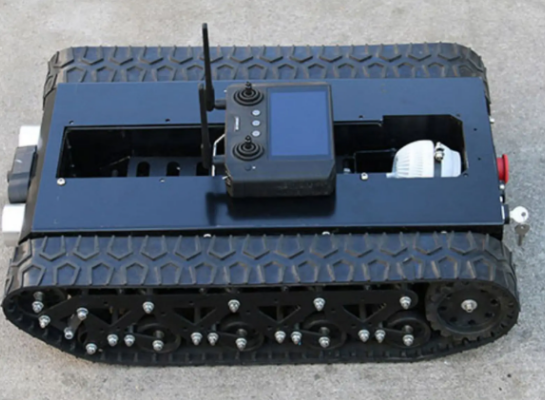

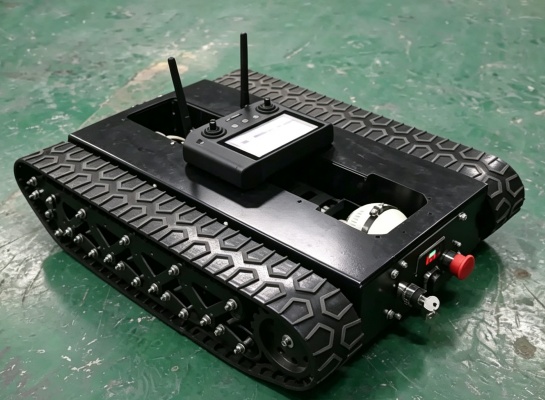

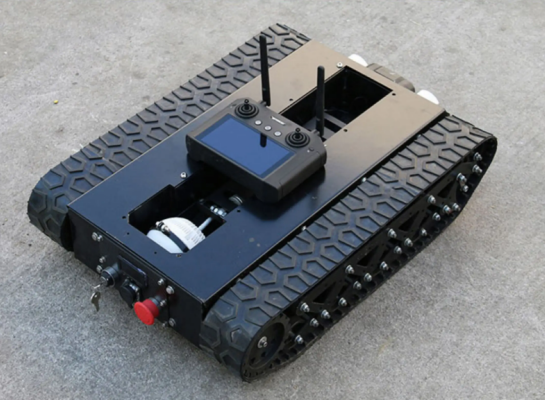

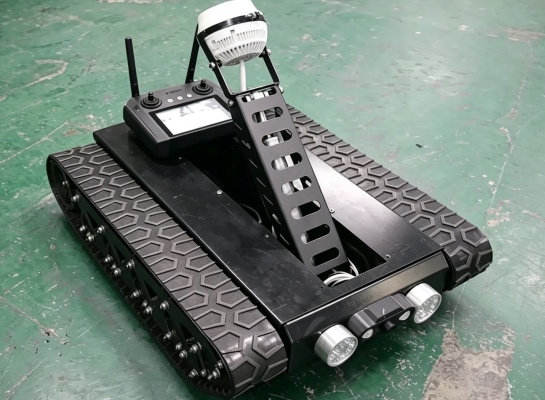

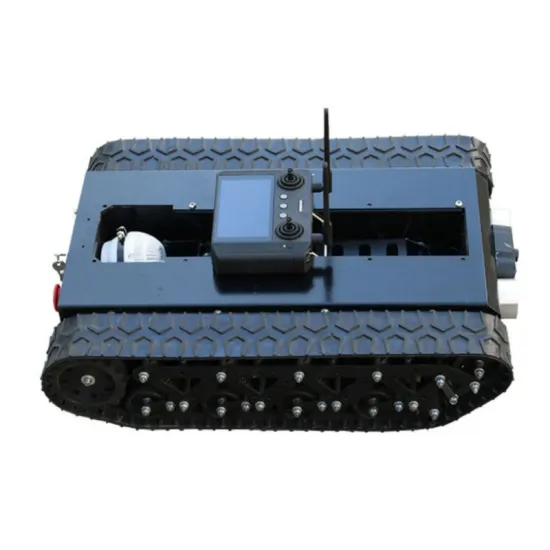

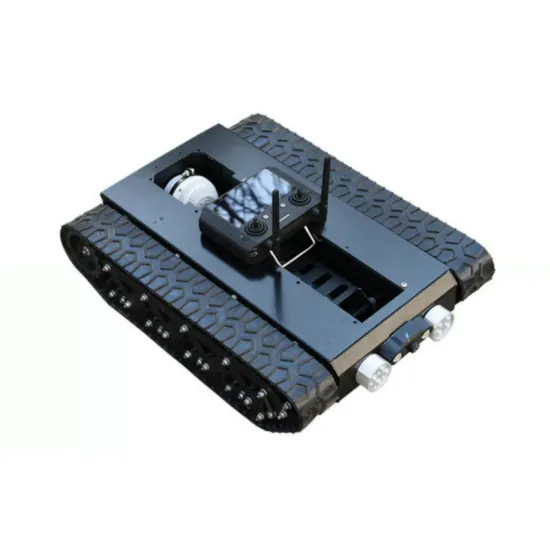

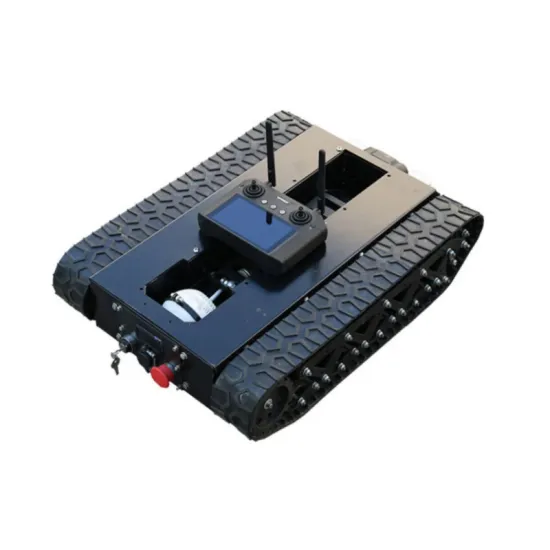

Product Views
Robust and compact structure, rubber track with multi-wheel system, DC brushless motor drive with sufficient power and good protection.
Dual-drive controller supports CAN/PWM/232/485 interfaces, reserved expansion ports, worm gear reducer for smooth transmission, easy for secondary development.
Application
Scenario 1: Inspection Robot
Pipeline inspection, factory patrol, security patrol and other scenarios, stable all-terrain travel, supports various sensors.
Scenario 2: Fire-Fighting Robot
Fire reconnaissance and extinguishing robot chassis, IP55 protection for complex environments, heavy-load operation, ensures rescuer safety.
Product parameters
Parameter | Specification |
Chassis Model | ZDDP-XJJQ-80 |
Chassis Dimensions | 630MM×480MM×200MM (L×W×H) |
Main Material | Carbon Steel / Aluminum |
Load Capacity | approx. 150kg |
Protection Grade | IP55 |
Climbing Capacity | 30° Slope |
Travel Speed | 0~3KM/H |
Turning Radius | 360° In-situ Rotation |
Reducer | Worm Gear Reducer |
Motor | DC Brushless Motor |
Controller | Dual-drive Controller (CAN/PWM/232/485 supported) |
Track Width | 80mm (Kevlar fiber reinforced) |
Track Pitch | 20mm |
Rubber Track | Grade-A Natural Rubber with Kevlar Fiber |
Application | Inspection, fire-fighting robots, industrial & agricultural R&D |
Product Certificate
Quality assurance, customization supported, products certified with relevant quality standards.
