Product Description

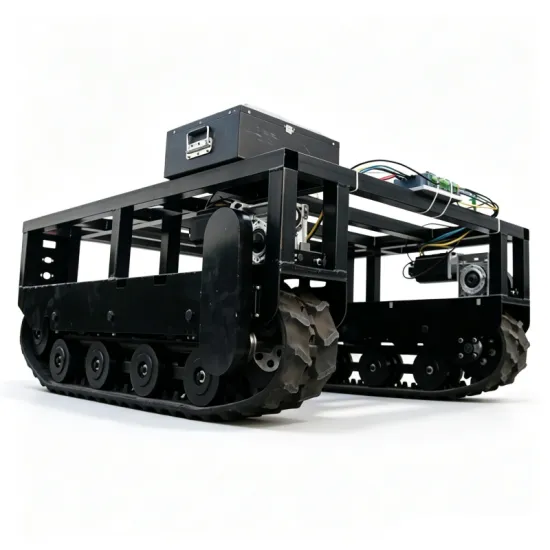

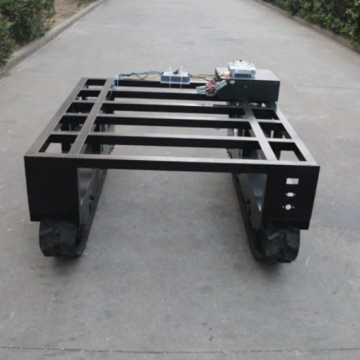

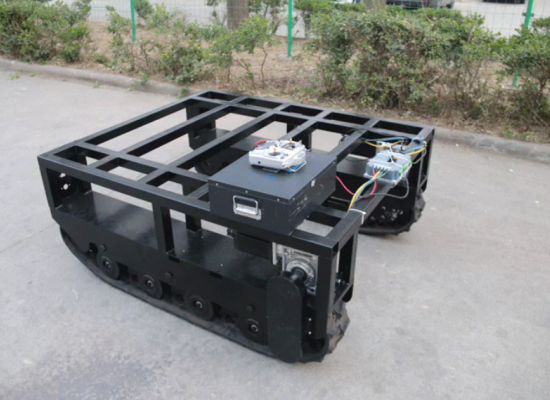

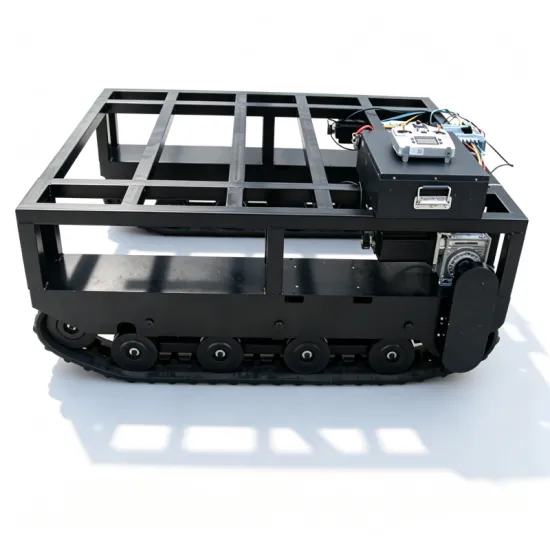

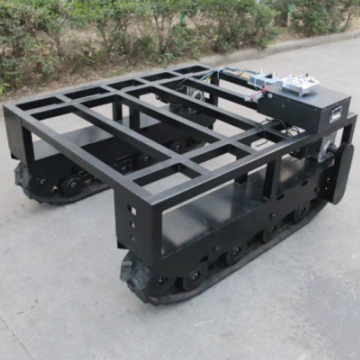

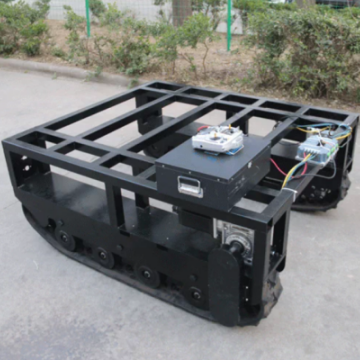

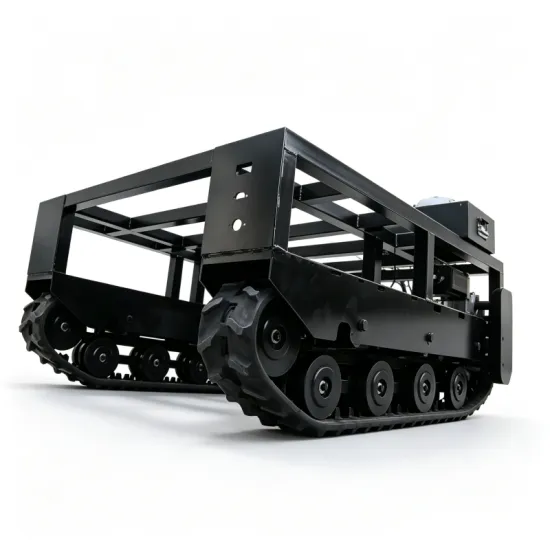

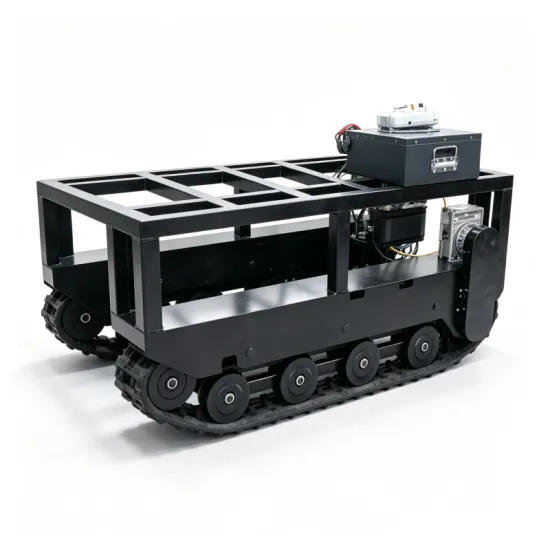

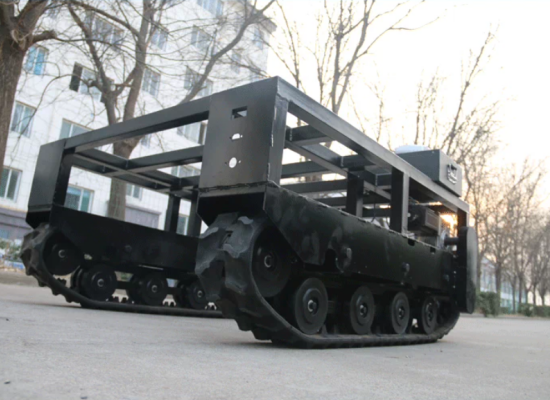

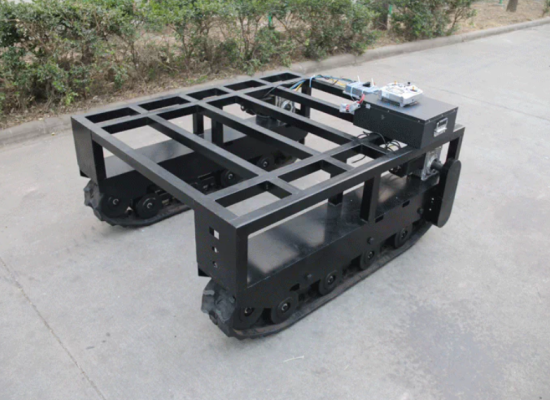

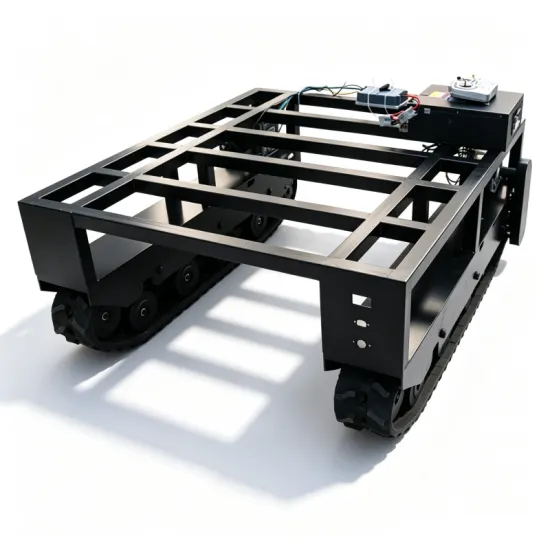

ZDDP-LMDP-180 electric gantry track chassis, 500kg load capacity, 48V-2KW motor with RV63 reducer, dual-drive controller, all-terrain orchard picking and transportation, carbon steel powder-coated body, IP55 protection, customization supported.
Functional Features
① Powerful performance
Equipped with a high torque DC brushless reduction motor, it has strong power; Low center of gravity design, good passability, heavy-duty suspension, smooth operation.
② Not picking terrain

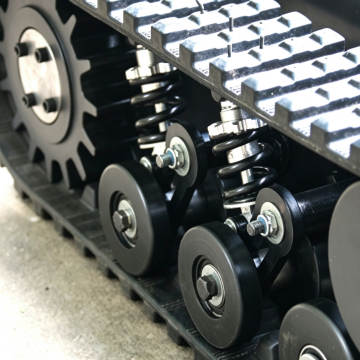

Universal tracked robot chassis, Christie independent suspension, smooth driving, heavy-duty suspension, and large space for secondary development.
③ Thickened material
A robot chassis suitable for exploration, rescue, reconnaissance, filming and other scenarios.
Product Details
High quality rubber tracks

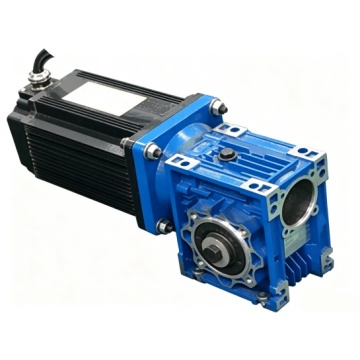

DC brushless motor+dual drive controller
High polymer polyethylene material wheel system
Application
Crawler transportation, suitable for walking on mud, paddy fields, swamps, and snowy terrain
Product parameters
Parameter | Specification |
Product Model | ZDDP-LMDP-180 |
Product Dimensions | 1840MM×1520MM×660MM (L×W×H) |
Track Width | 180mm |
Track Pitch | 72mm |
Protection Grade | IP55 |
Motor Spec | 48V-2KW-3000RPM |
Reducer | RV63-40 |
Wheel Material | Ultra-high Molecular Weight Polyethylene |
Track Material | Natural Rubber |
Body Material | Carbon Steel Powder Coating |
Controller | Dual-drive Controller |
Load Capacity | 500kg |
Travel Speed | 0-3km/h |
Climbing Capacity | 30° Slope |
Product Certificate
Quality assurance, customization supported, products certified with relevant quality standards.
Service
We have a highly professional service team.
Team members are the elites in their respective fields, they have gone through strict selection and systematic training, have a wealth of professional knowledge and superb skills.
Whether facing complex technical problems or daily service needs, they can quickly understand your needs with keen insight and provide the perfect solution with efficient action.
Company Introduction
Zhengding Machinery Co., Ltd. in Dezhou is a leading manufacturer in the all terrain walking industry, specializing in the research and production of all terrain rubber tracks and track chassis, intelligent robot chassis, and track assemblies. It is a group style military enterprise.
The product supports customization and is sold globally with quality assurance.
Transport
Whether it is a small package or a large shipment, whether it is local delivery or long-distance transportation, we meet your needs with a professional attitude and quality service. Safety is the core value of our transportation services.
At the same time, this order has a comprehensive cargo tracking and monitoring system. From the moment the goods are shipped until they safely arrive at the destination, we always provide you with transparent services.
